Mecpow MC5 5 Megapixels Camera for Laser Engravers
High-Definition Camera for Laser Engravers

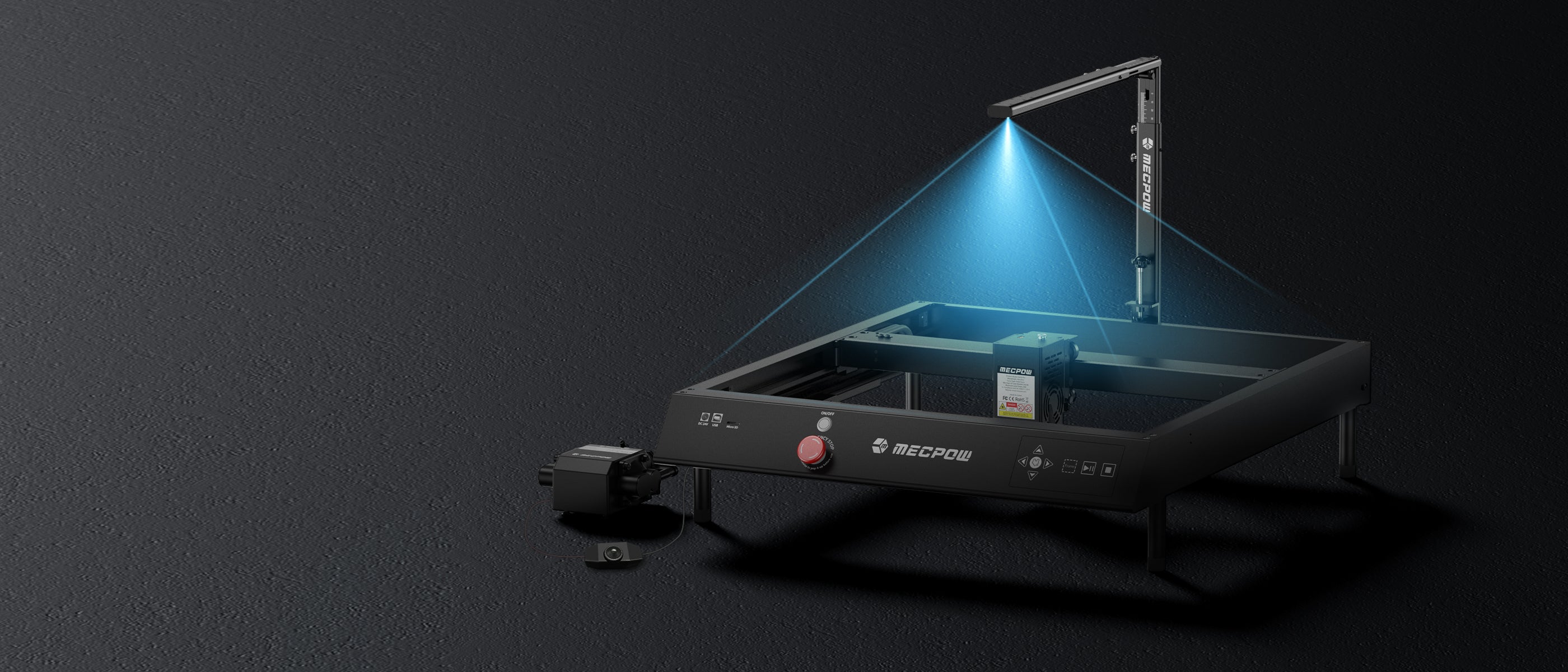

The Mecpow MC5 camera is specially designed for laser engraving machines. With a high definition of 5 megapixels, it provides sharper visuals and captures clearer images.

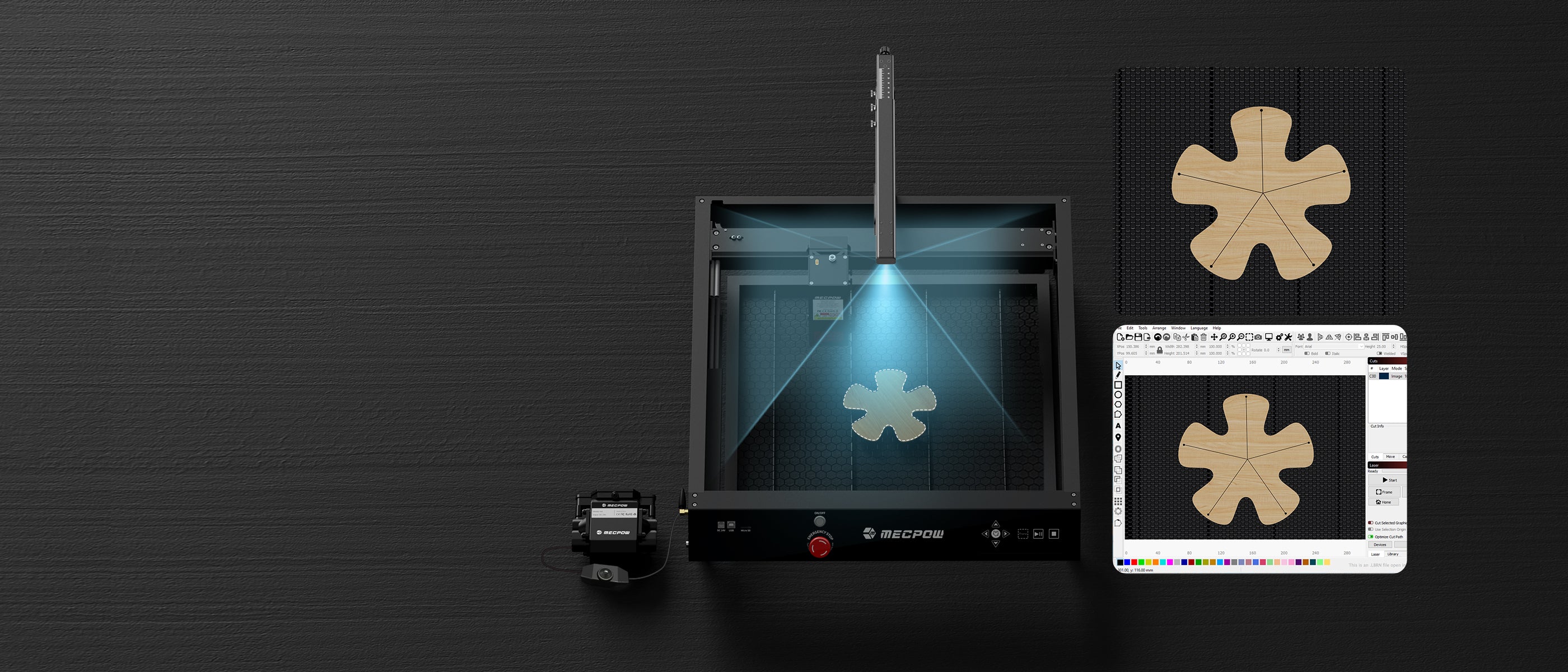

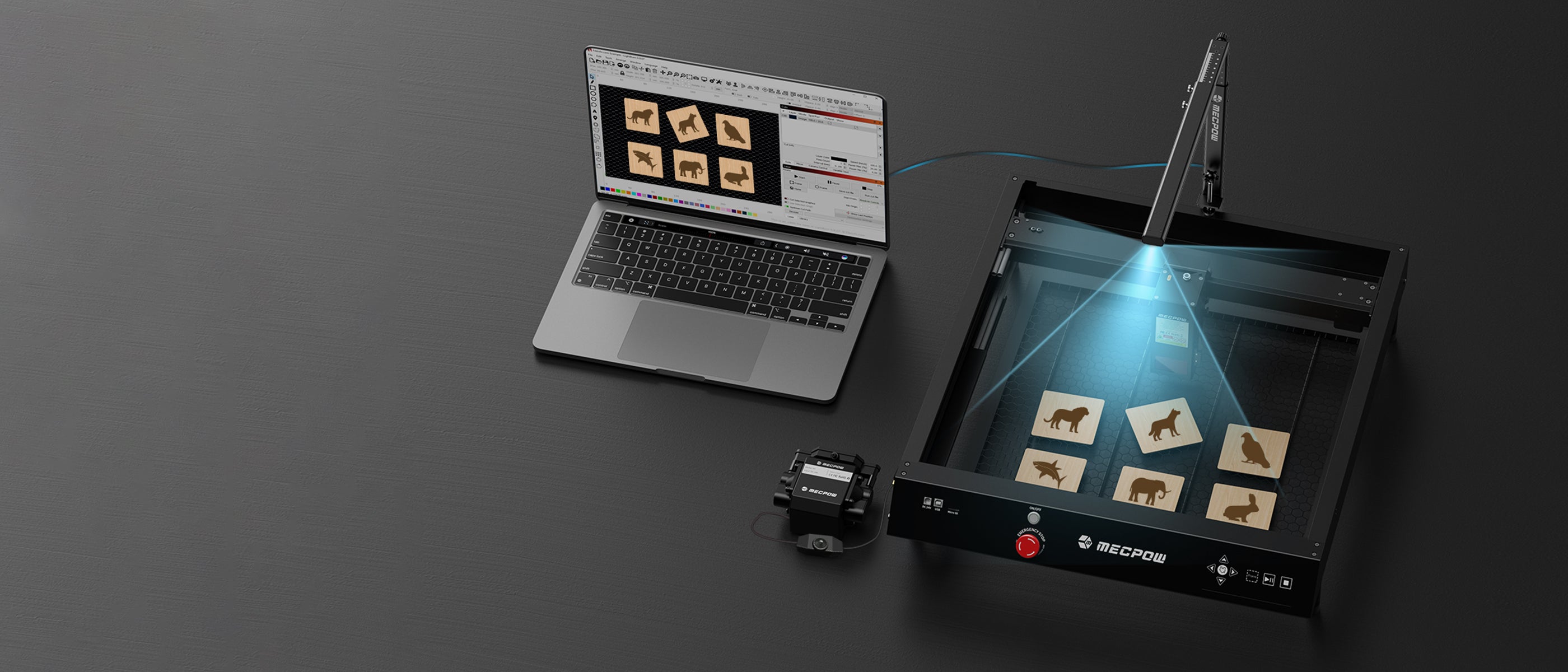

Precise Positioning & Batch Engraving
Compatible with the LightBurn software, this 5MP camera spares you the hassle of manual positioning by visualizing the work area in LightBurn, allows for precise positioning of the engraved objects with a deviation of less than 1 mm, and simultaneously locates multiple workpieces, enabling easy and productive batch engraving.

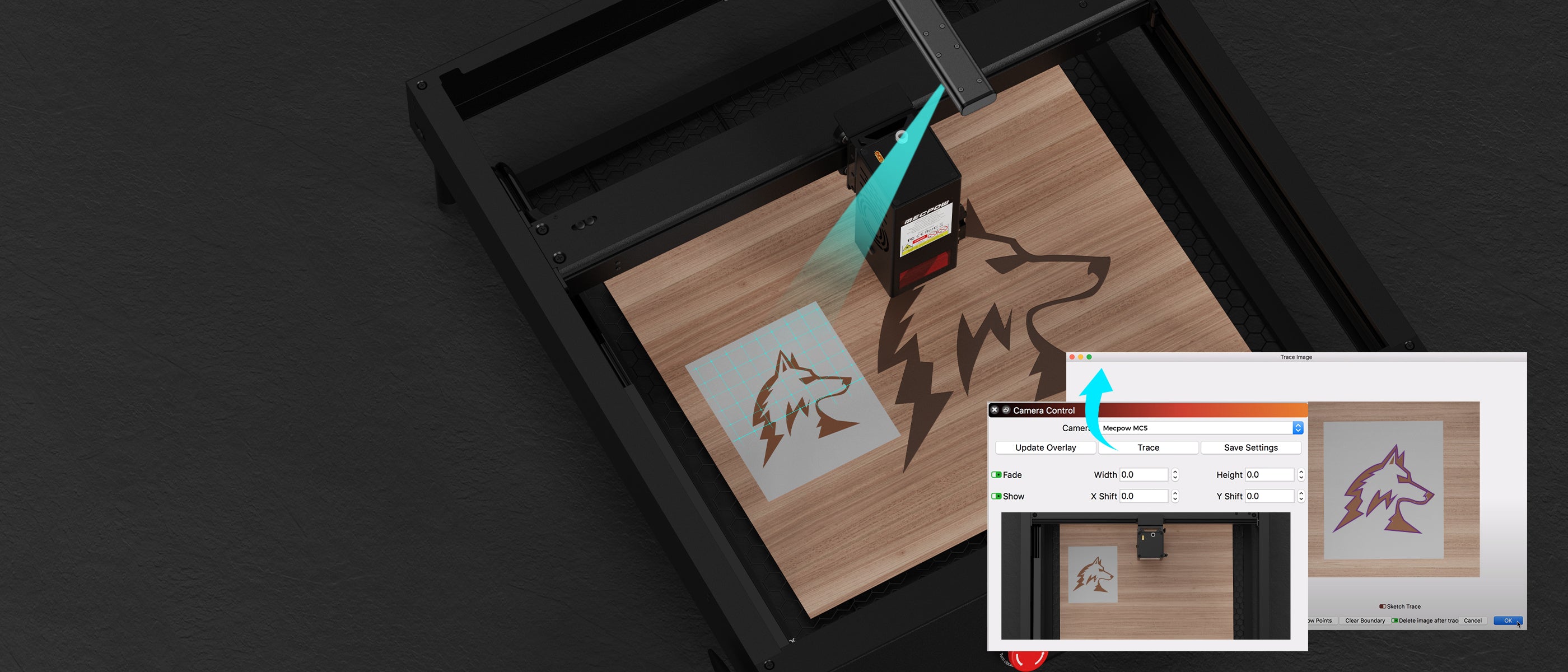

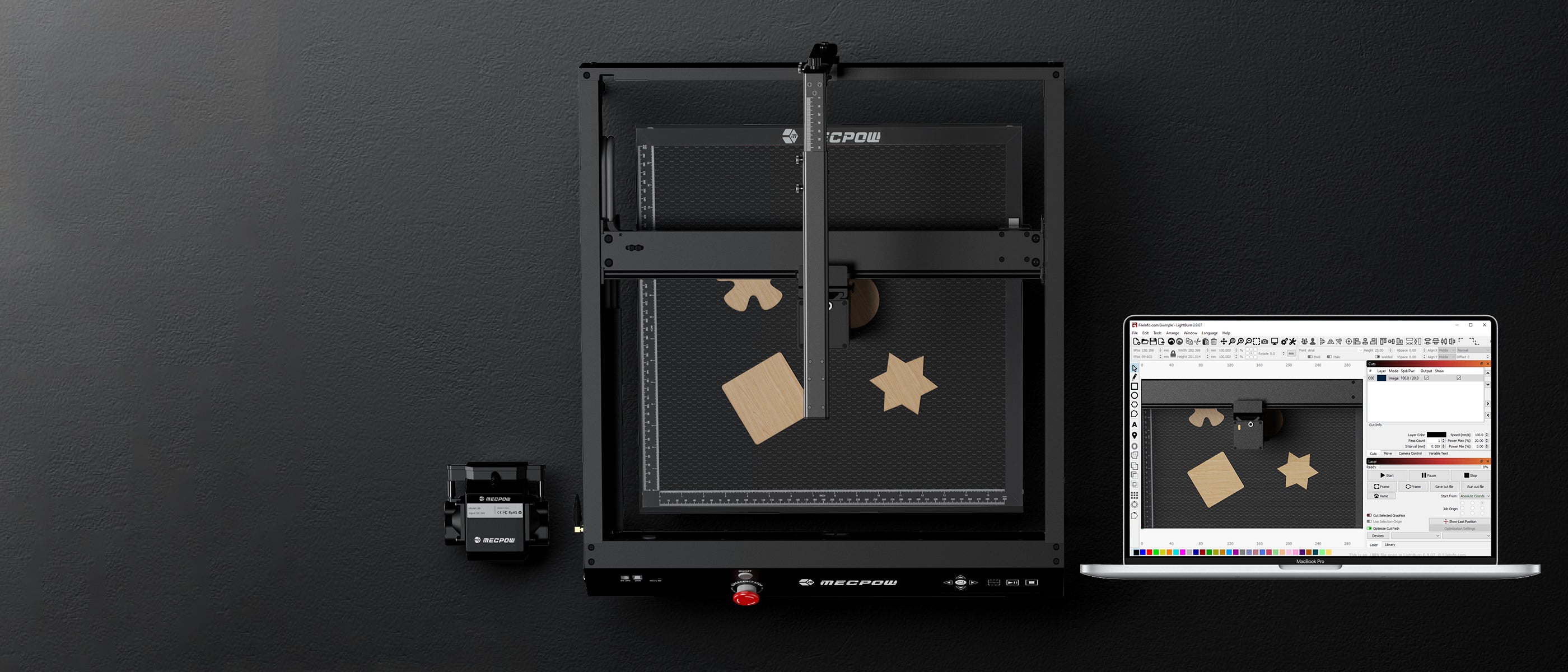

Image Tracing
The MC5 camera is able to trace and capture the images onto the material to be engraved via LightBurn and creates engraved vector files that guide the laser engraving machine to engrave the images.

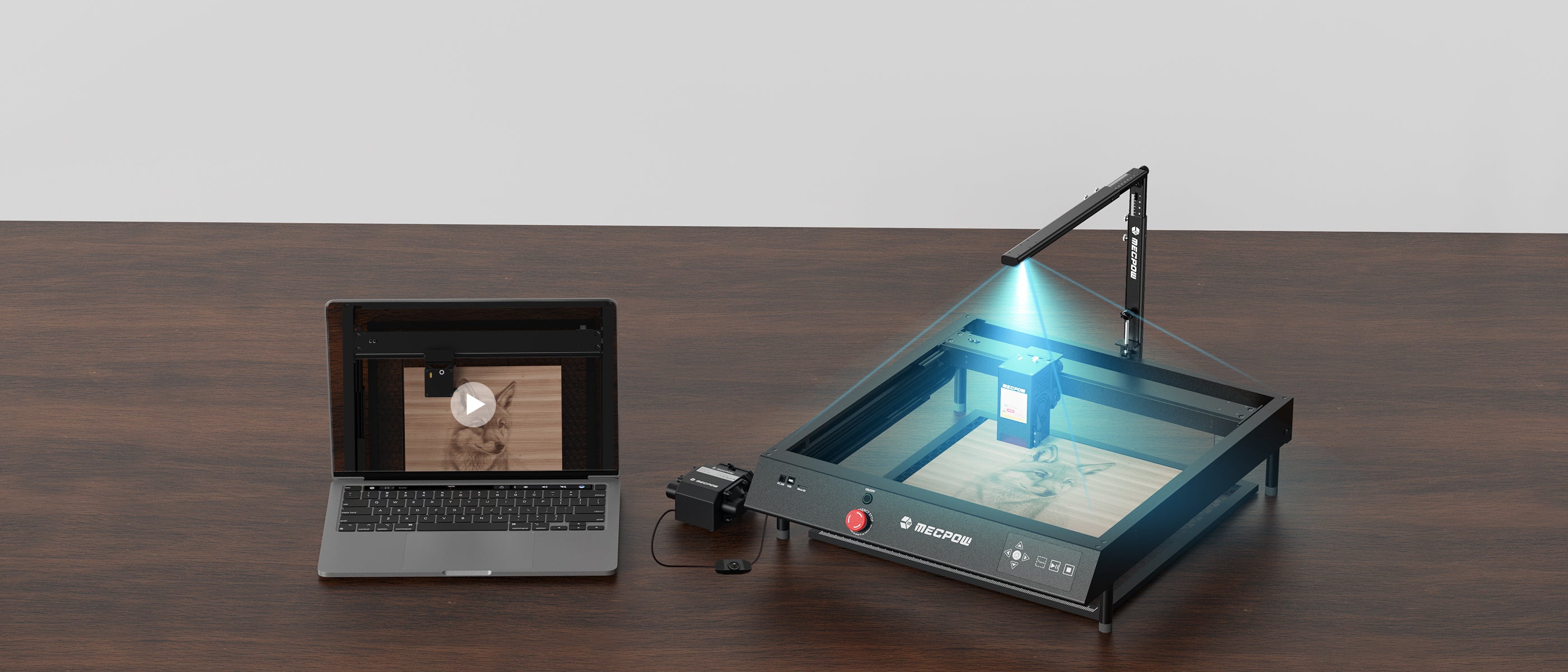

Video Recording
With the video recording function, the MC5 camera allows for easy monitoring of the engraving process and helps operators to record and share engraving memories and troubleshoot any issues that may occur during the process.

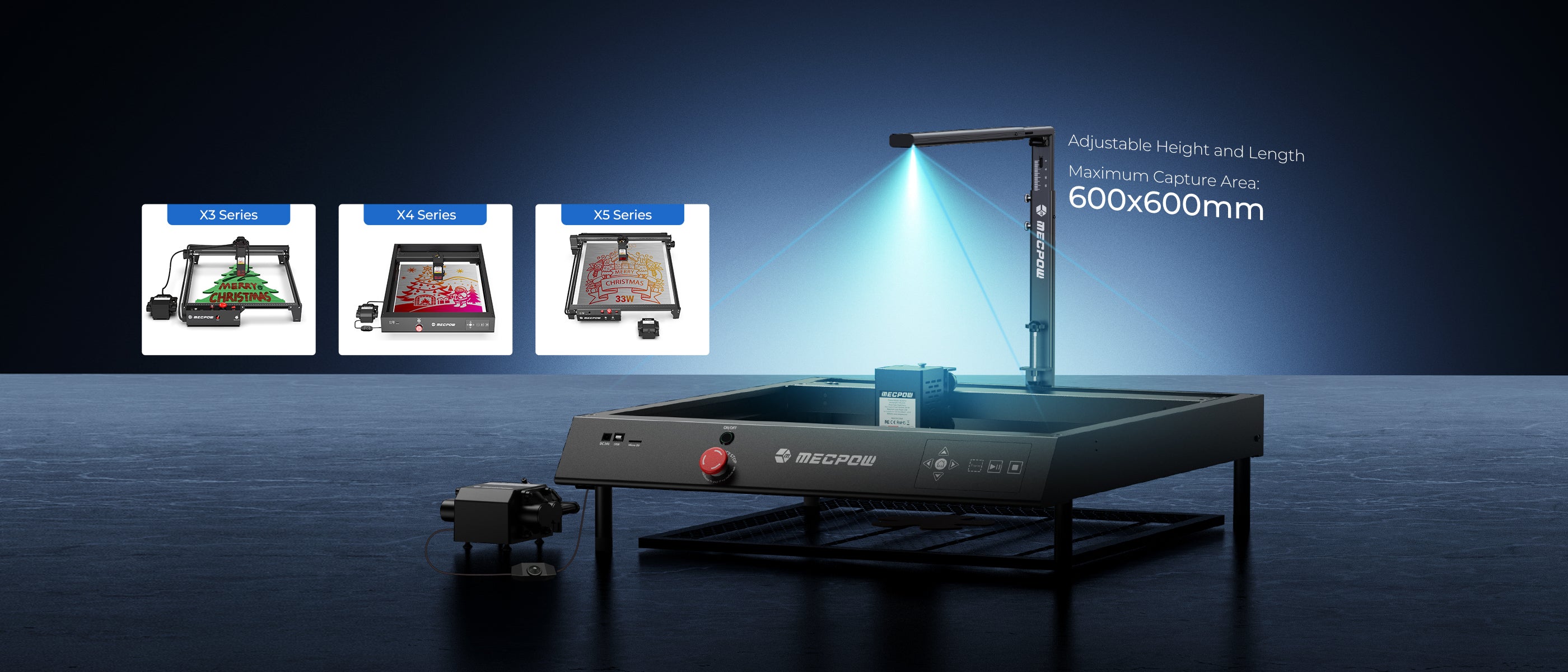

High Adaptability

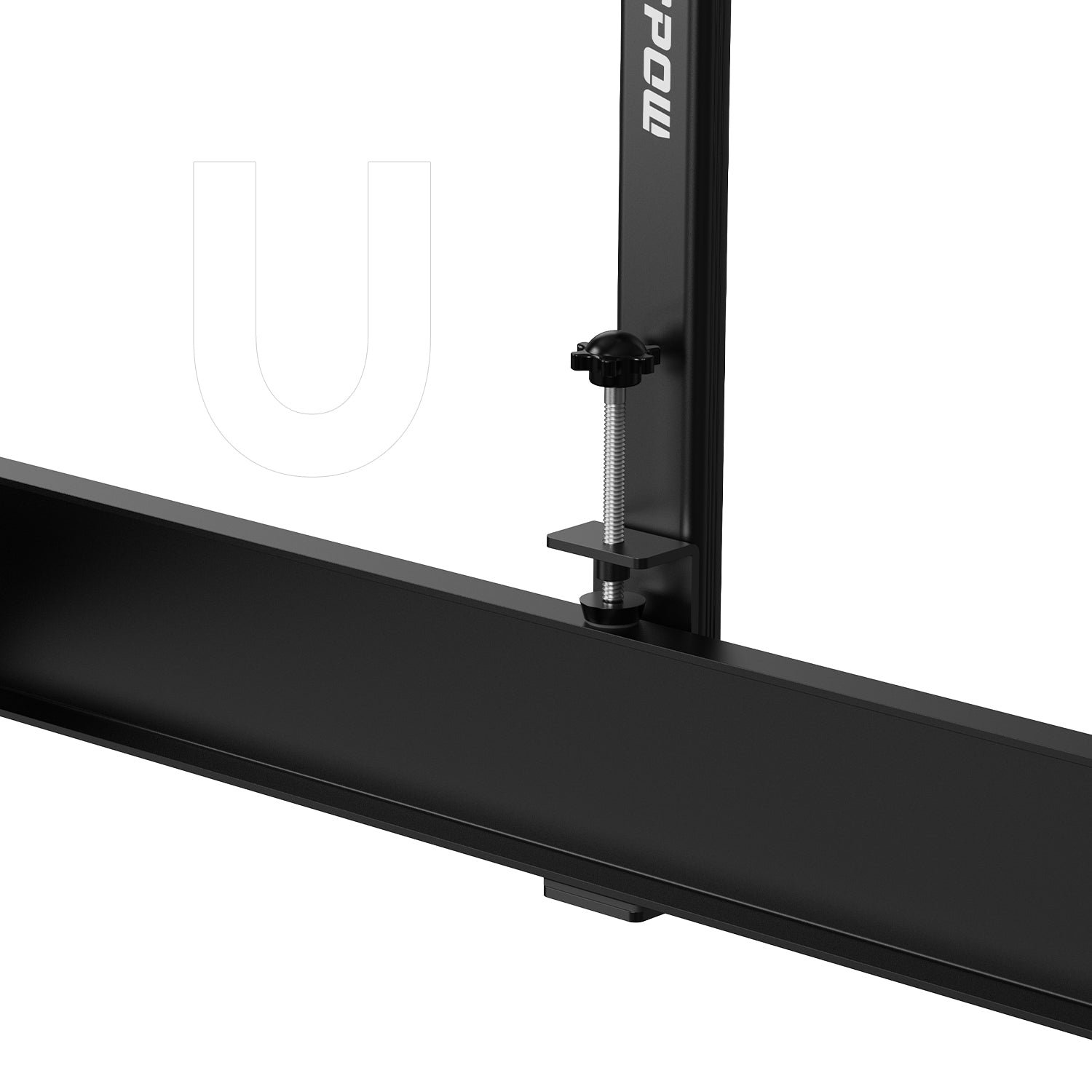

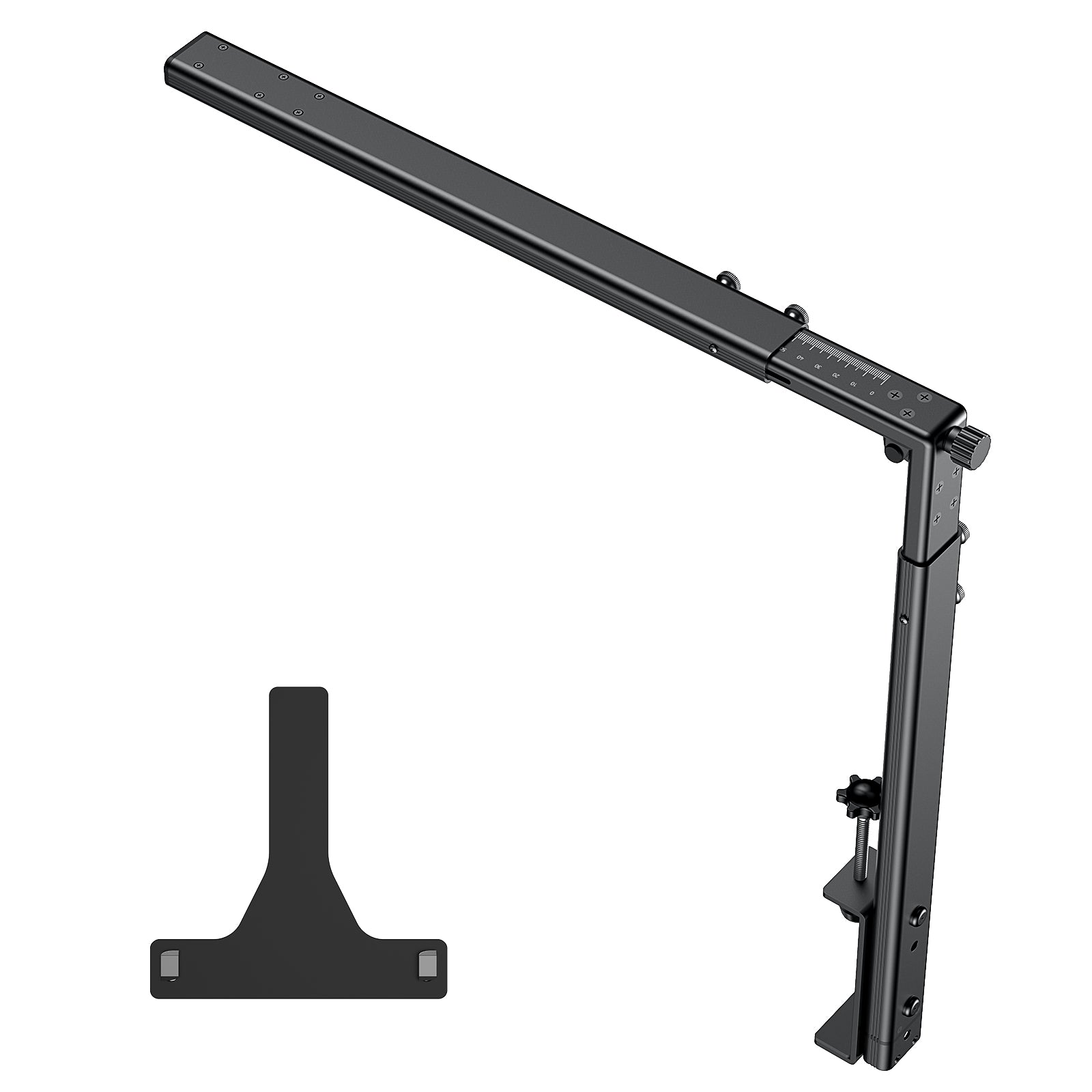

This camera comes with T-shaped and U-shaped brackets to fit 95% of frame-type laser engravers on the market. With adjustable height and length, it features a maximum capture area of 600x600 mm.
Capture every detail with precision for your laser engraving projects.
Visual Preview
Batch Engraving
Precise Positioning
Image Tracing
Video Recording
Wide Compatibility
No need to identify the position manually by visualizing the work area in LightBurn.
It can simultaneously locate multiple workpieces for easy and productive batch engraving.
The 5MP camera perfectly matches LightBurn and accurately positions engraved objects with less than lmm deviation.
Trace images on materials via LightBurn and create vector files for engraving or cutting.
Compatible with 95% of frame-type laser engravers on the market
Capture the moment with precision and engrave memories of your masterpieces!

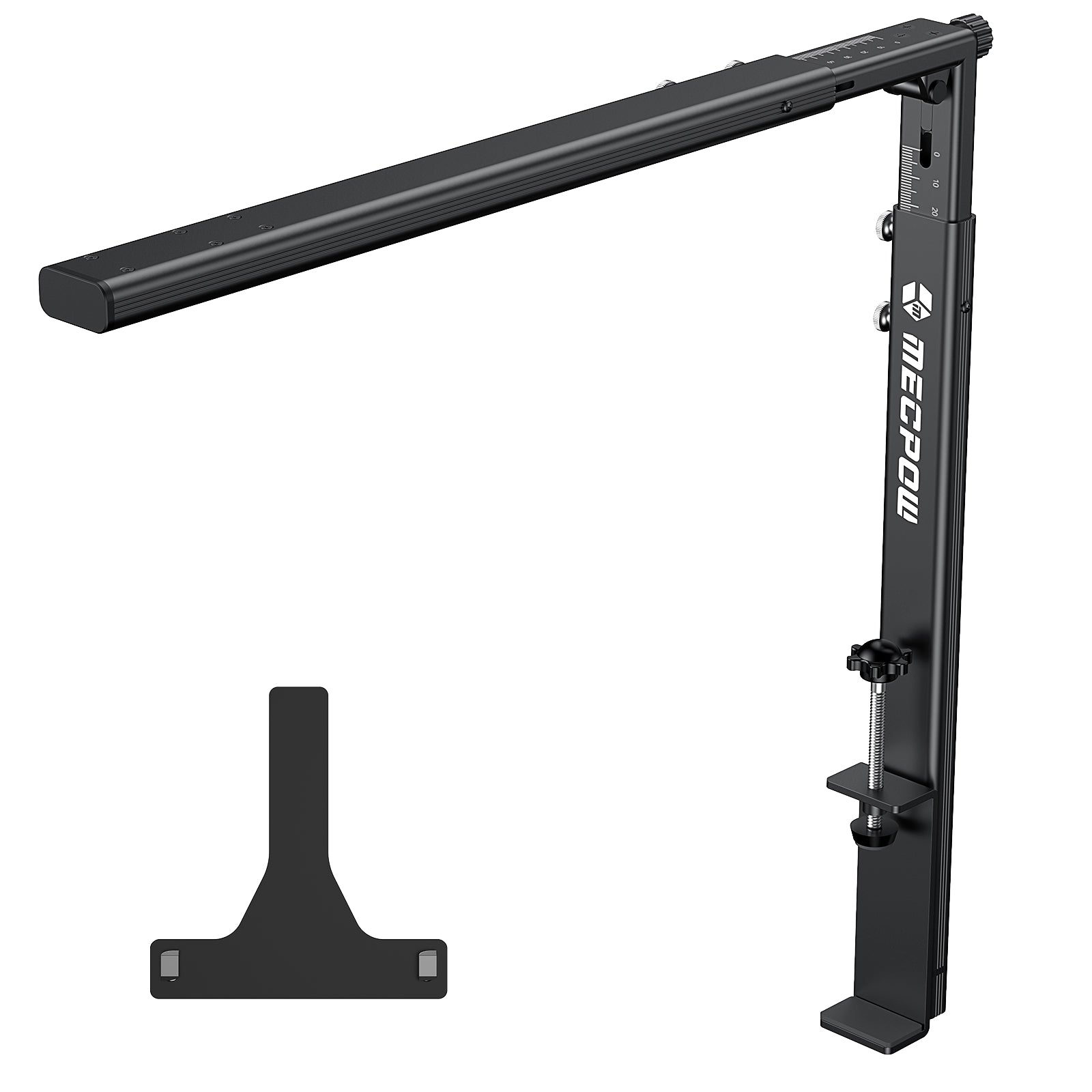

Easy Installation

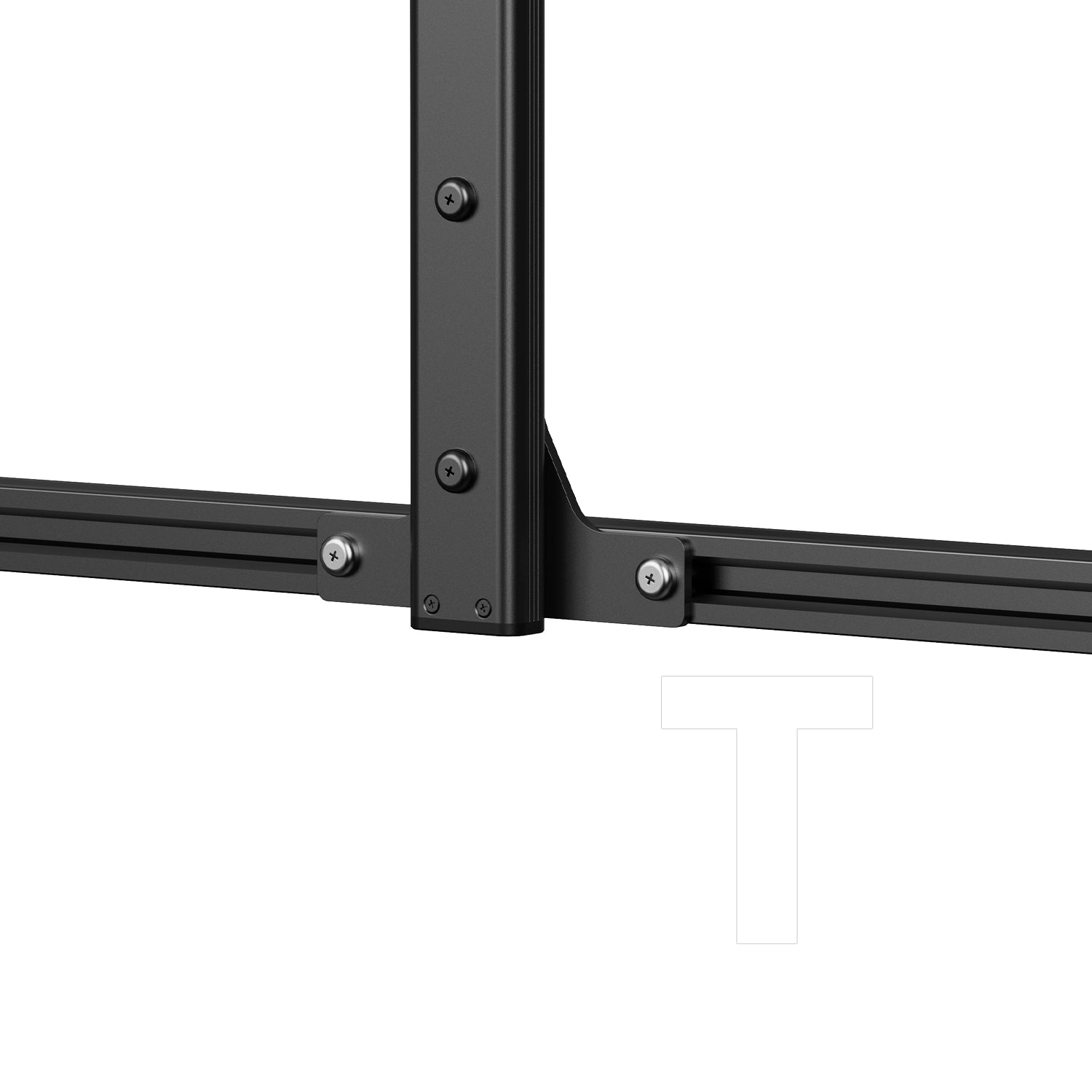

Two types of mounting brackets meet your multiple needs.
MC5 Specification
Brand: Mecpow
Type: Camera for Laser Engravers
Model: MC5
Color: Black
Pixel: 5MP
Maximum Pixel: 2592(H)x1944(V)
Viewing Angle: D=162°±3°, H=132°±3°, V=102°±3°
Adjustment Height: 360 (Min), 500 (Max)
Adjustment Length: 400 (Min), 580 (Max)
Maximum Capture Area: 600x600mm
Minimum Illumination: 10 Lux
Connection: USB
System Support: Windows, MacOS
Software Support: LightBurn
Product Weight: 0.5kg
Package Weight: 1kg

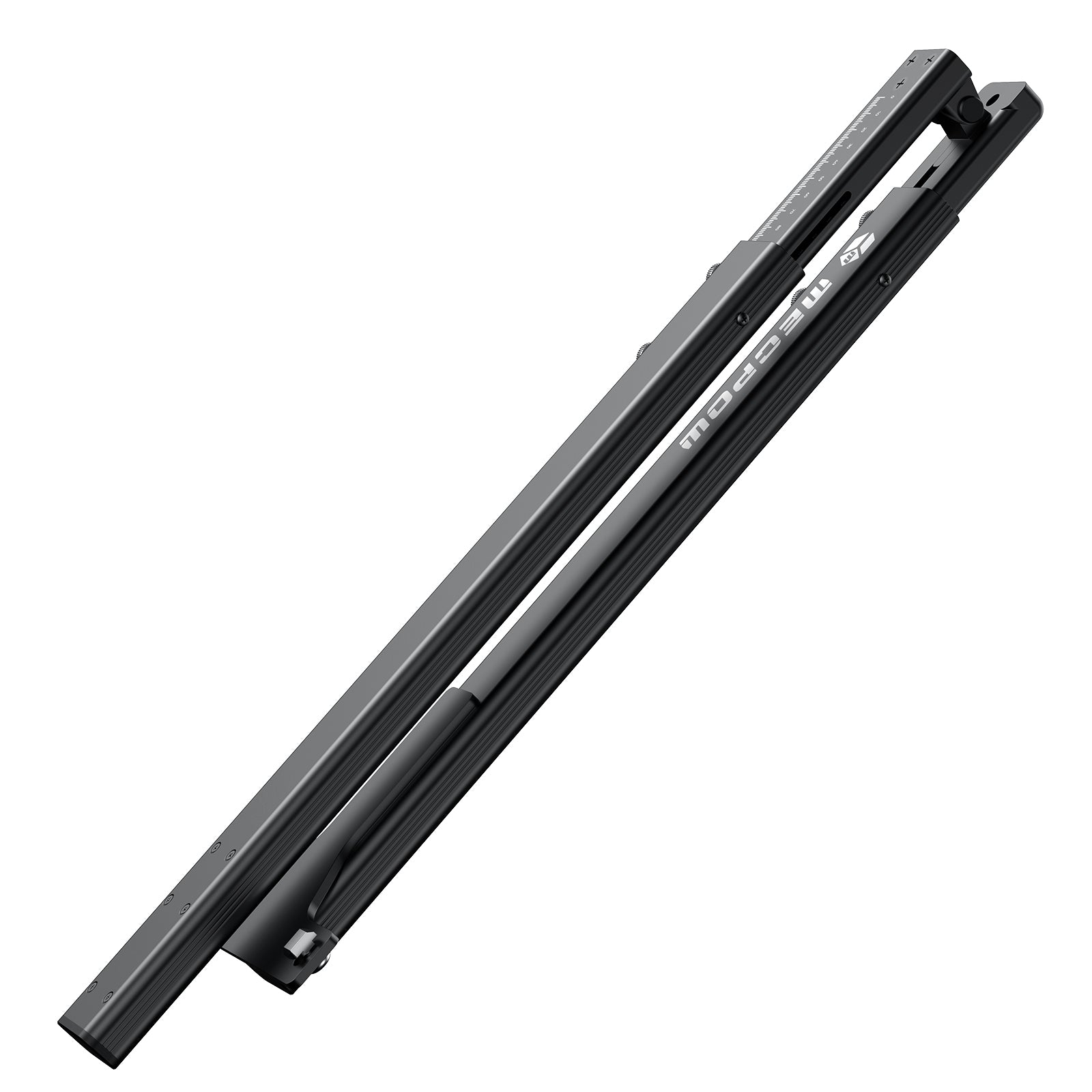

Folded Product Size(L x W x H): 400x100x42mm
Unfolded Product Size(L x W x H): 400x100x360mm (Min), 580x100x500mm (Max)
Package Size(L x W x H): 440x158x82mm

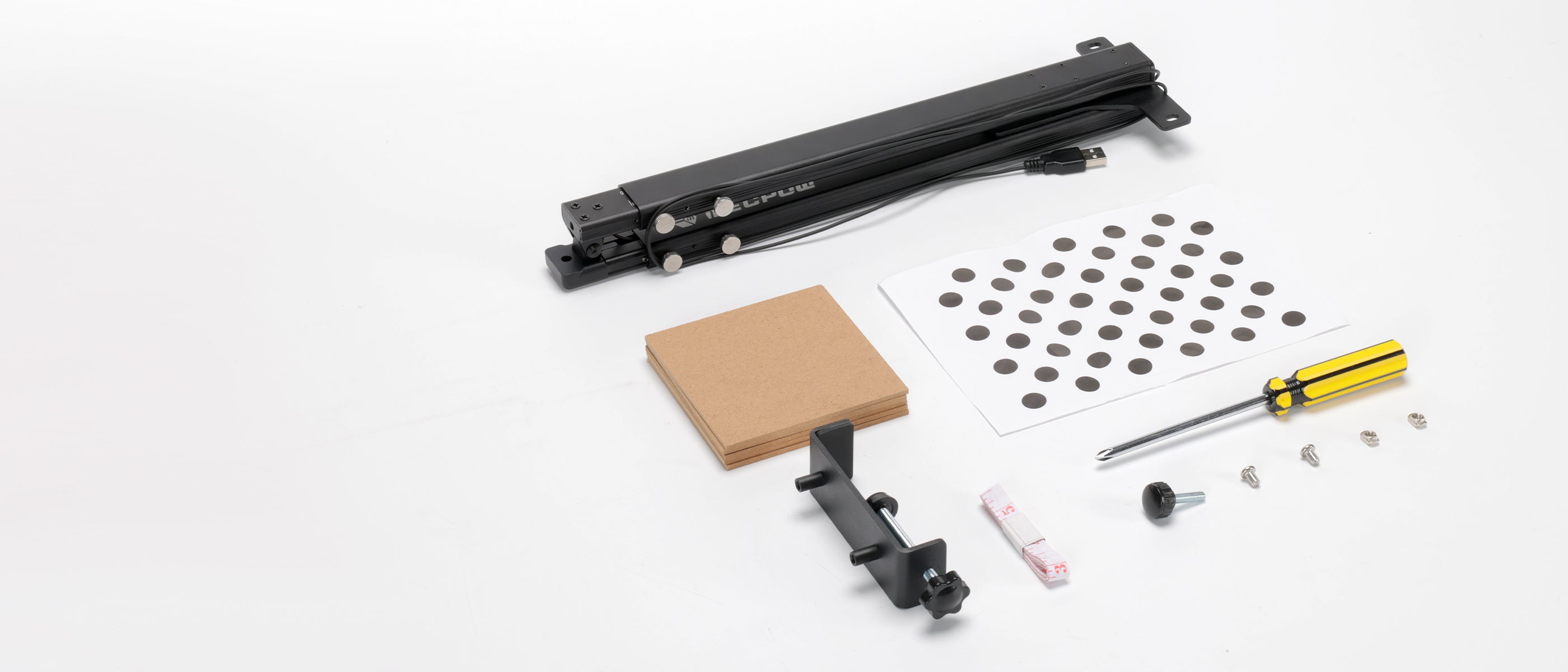

1 x Camera with USB Cable and T-Shaped Mounting Bracket
1 x U-Shaped Mounting Bracket
5 x Wood Board (10x10cm)
1 x Calibration Card
1 x Tape Measure
1 x User Manual
1 x Screwdriver
2 x M5*8 Screw
1 x M5*20 Screw
2 x T-Shaped Nut
