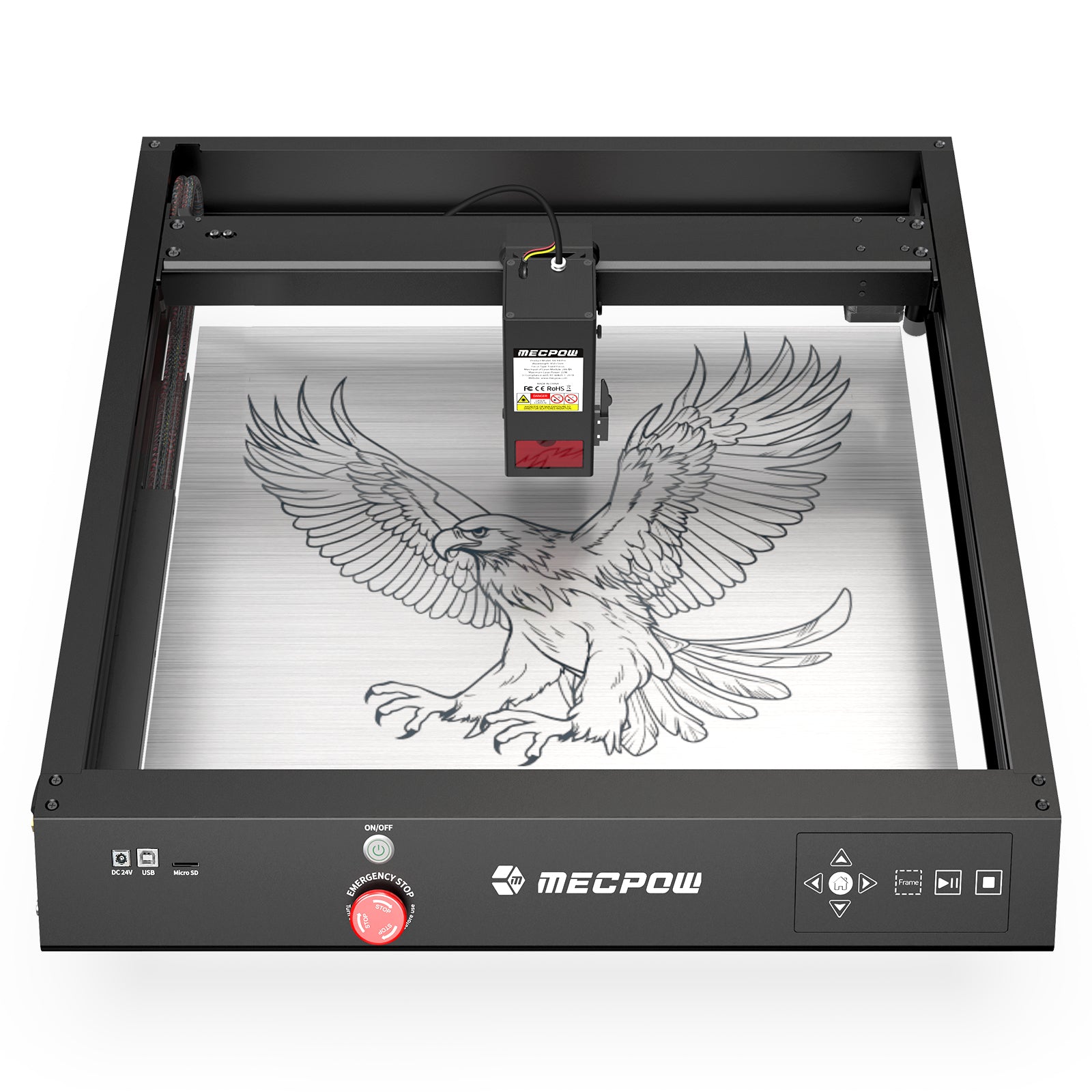

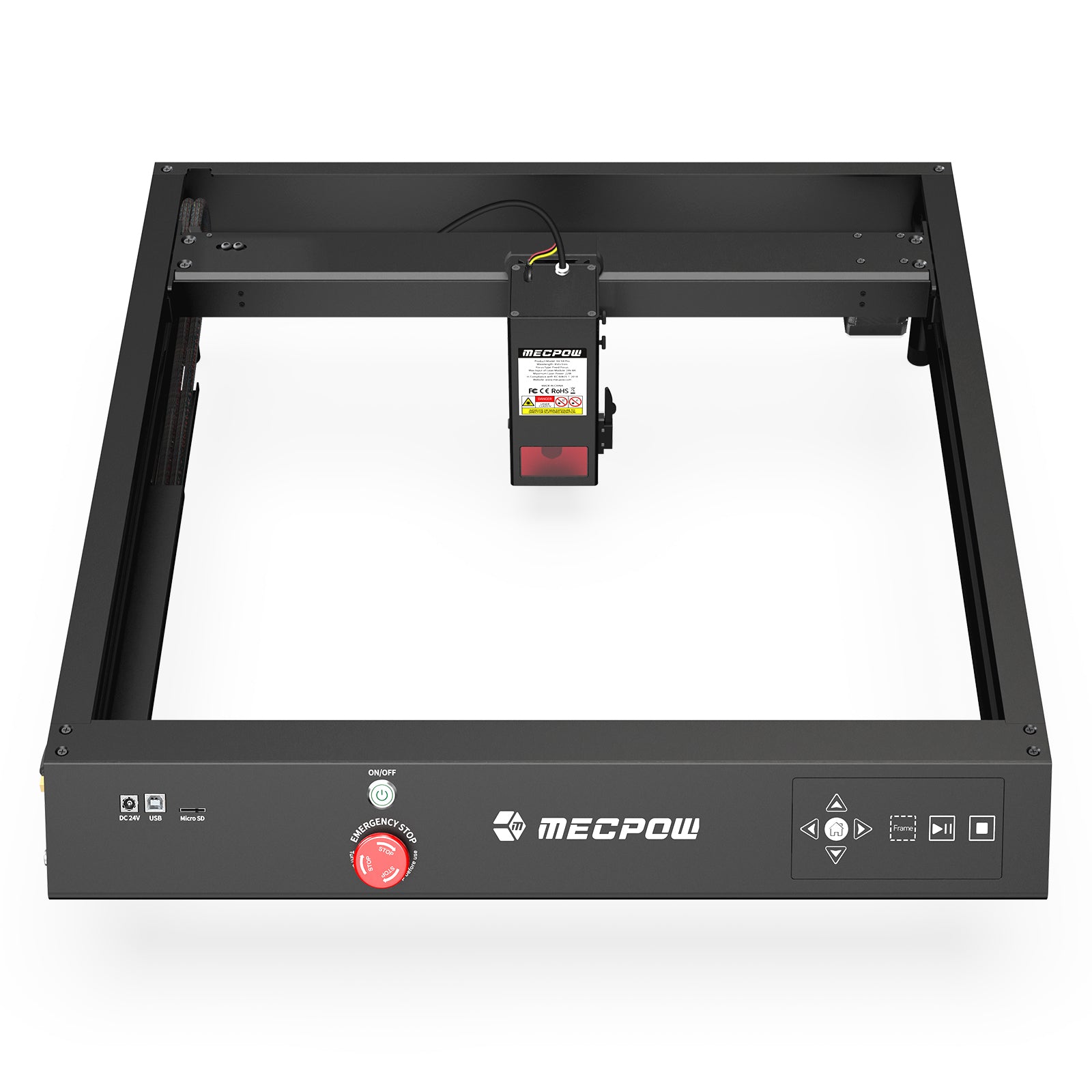

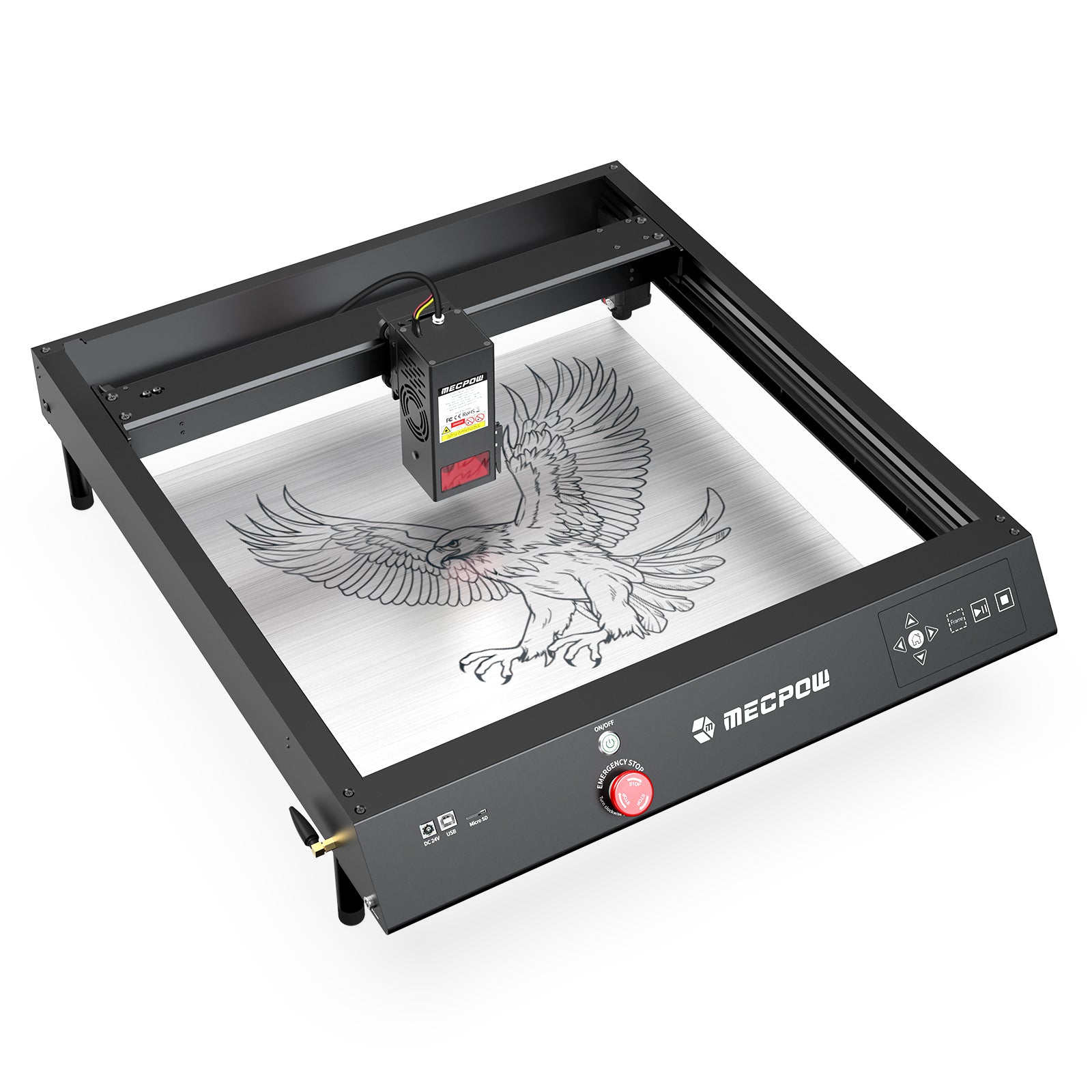

X4 22W Powerful Laser Engraver

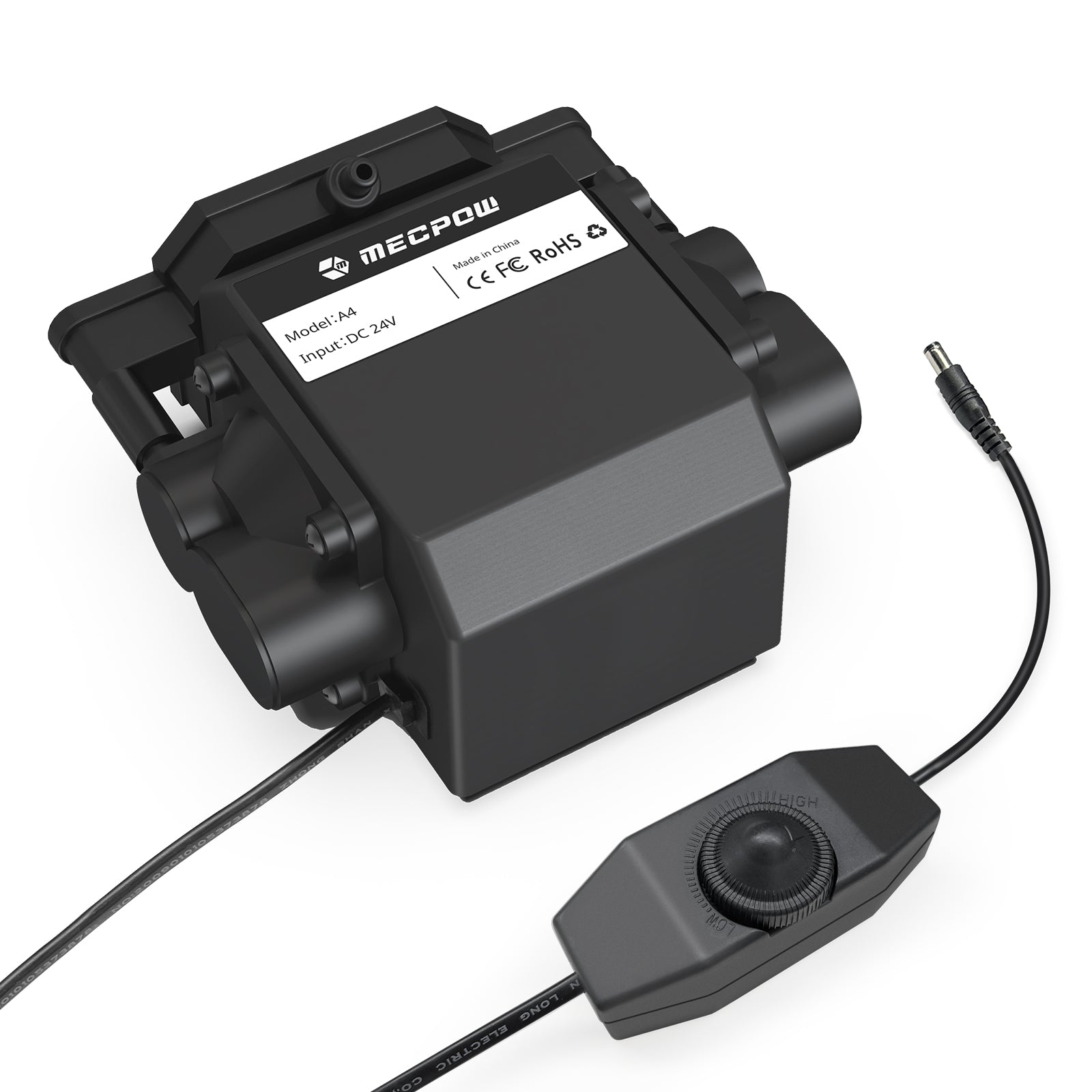

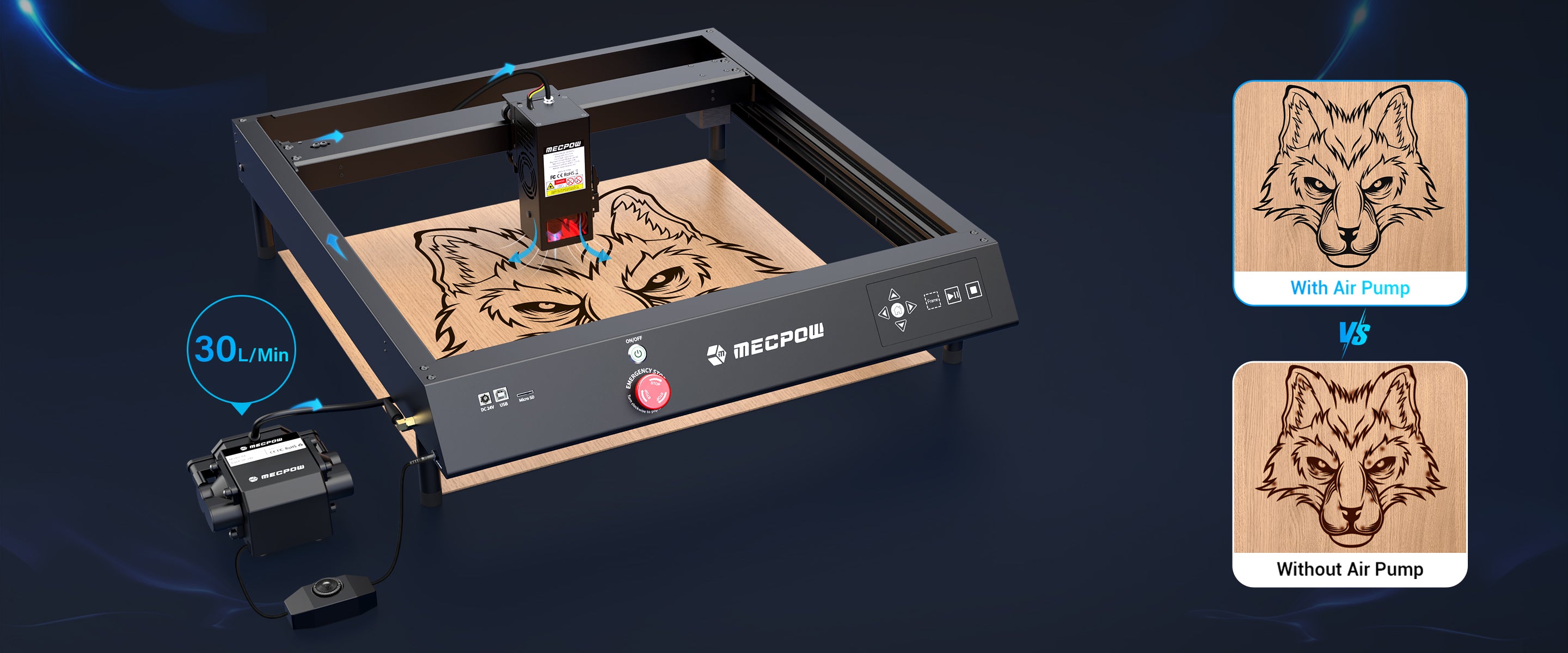

Auto Assist Air Pump
The 30L/min air pump blows up the dirt on the engraving area easily, keeping the surface tidy. The high air pressure prevents the engraving from burning, which ensures complete and intact patterns as well as smooth and shiny lines in the engraving. You can also adjust the air volume to quickly get the required volume.

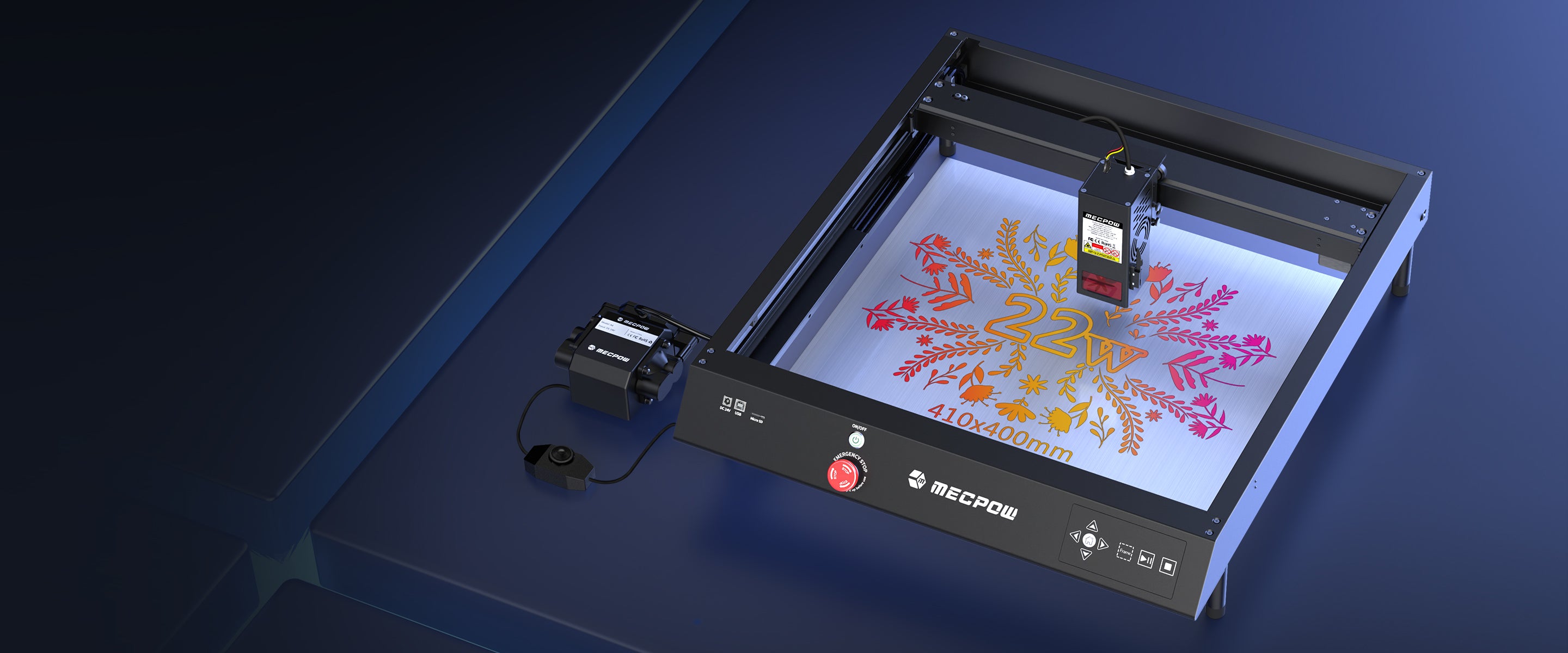

High Power & Capacious Engraving Area

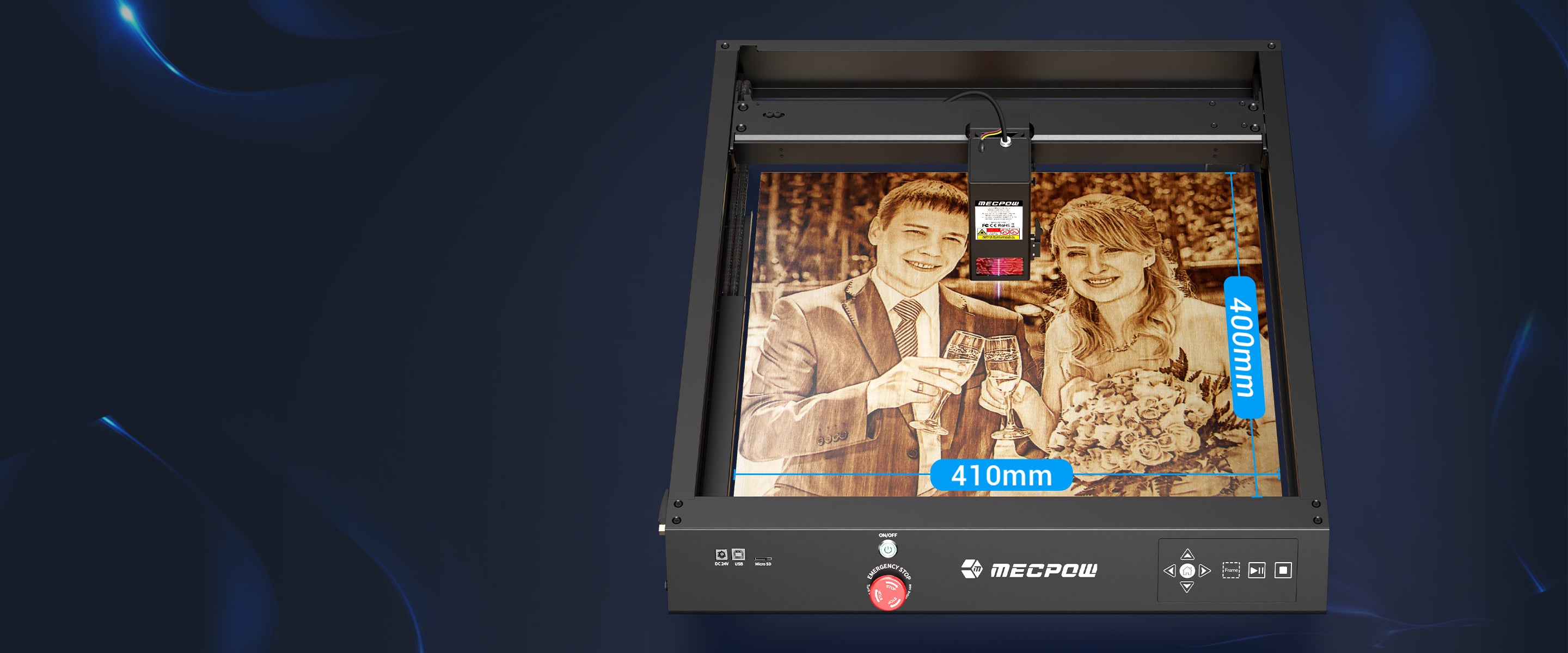

The Mecpow X4 laser engraver boasts 22W high power, enabling several-fold the thickness of cutting achievable. The laser engraver unleashes enormous power for stable and extensive engraving. The spacious engraving area reaches up to 400×410mm (15.7×16.1 inches), providing a boundless area for users to create.
Incredibly High Efficiency & Pinpoint Precision

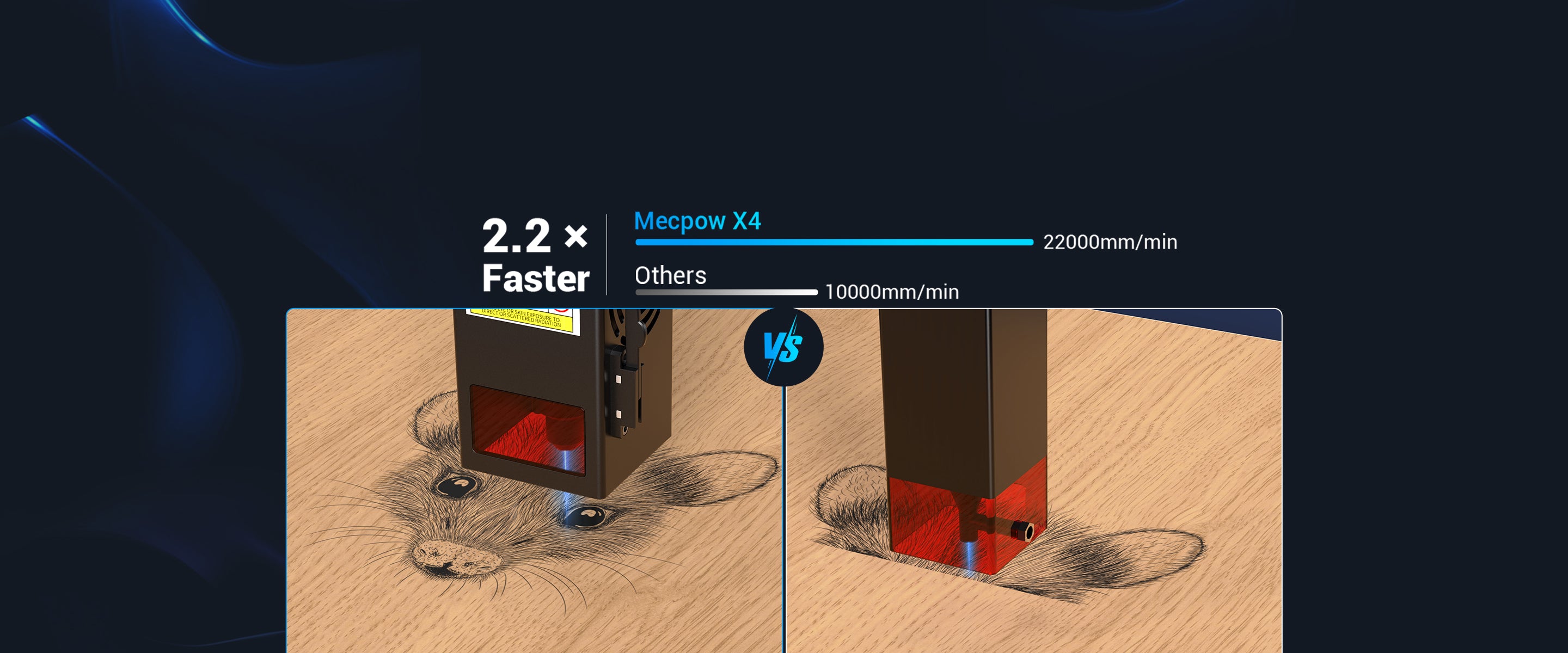

The Mecpow X4 achieves a remarkable maximum engraving speed of 22,000mm/min, spending less time to increase productivity. Featuring an ultra-fine laser point of 0.08mm×0.1mm, the laser engraver increases its accuracy, effortlessly engraving exquisite and fine artworks.
Comprehensive Protection System & Fast Focusing

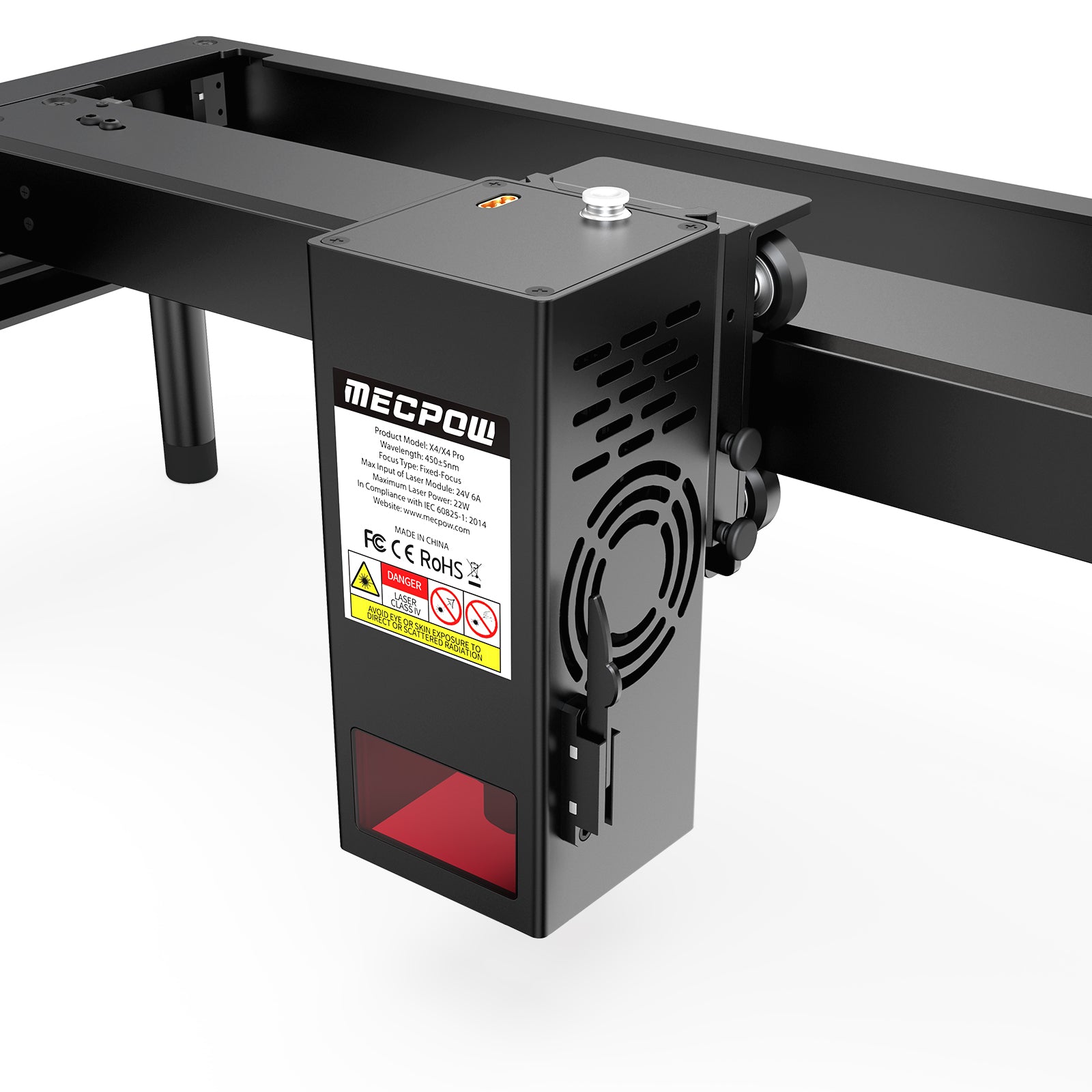

Equipped with a flame sensor, an alarm, a tilt sensor, a built-in laser shield and an emergency stop button, the Mecpow X4 considers the safety of the user thoroughly and avoids accidents. The eye-protective laser head could filter harmful lasers with the protective shield. Besides, the Mecpow laser engraver completes focusing in just a few minutes. You can embrace your engraving without extra concern and embark on your creative journey rapidly.
Offline Operation & Wide Compatibility

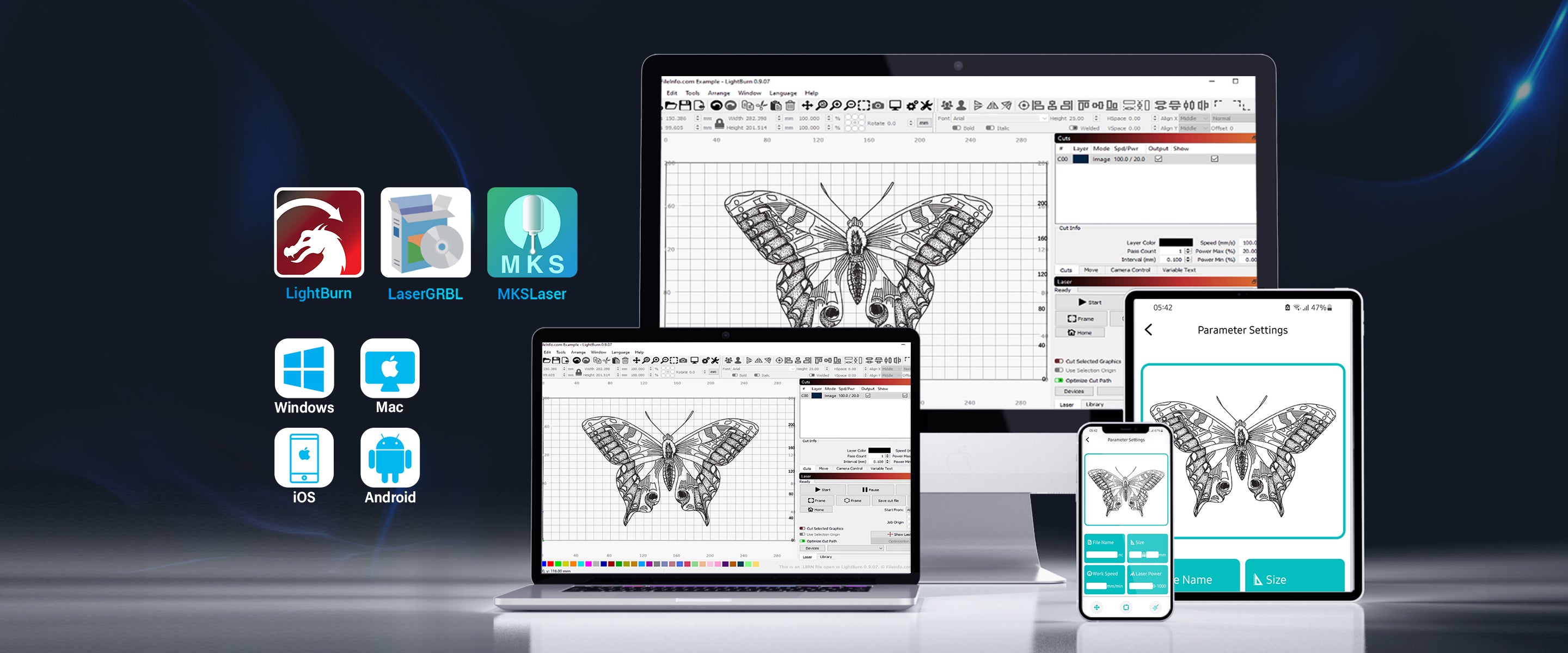

The Mecpow laser engraver makes offline operations possible for the convenience of the user. You can begin the engraving by inserting the TF card or connecting your phone to the WiFi of the laser engraver. Besides, the X4 laser engraver is compatible with various software, such as MKSLaser APP, LaserGRBL and LightBurn, etc. You will invent novel and stylish engravings thanks to these two great strengths.
Multiple Engraving Materials for Personalized Discovery
To satisfy the diverse needs of the users, Mecpow created the amazing X4 laser engraver. With a variety of engraving materials like wood, acrylic, glass, metal, china, fabric, bamboo, plastic board, leather, food, and more, you can create one-of-a-kind engravings that stand out.
22W Strong Power
22000mm/min Super Fast Engraving
Integrated Air Assist
410×400mm Engraving Area
Offline Engraving
0.08*0.1mm Laser Spot

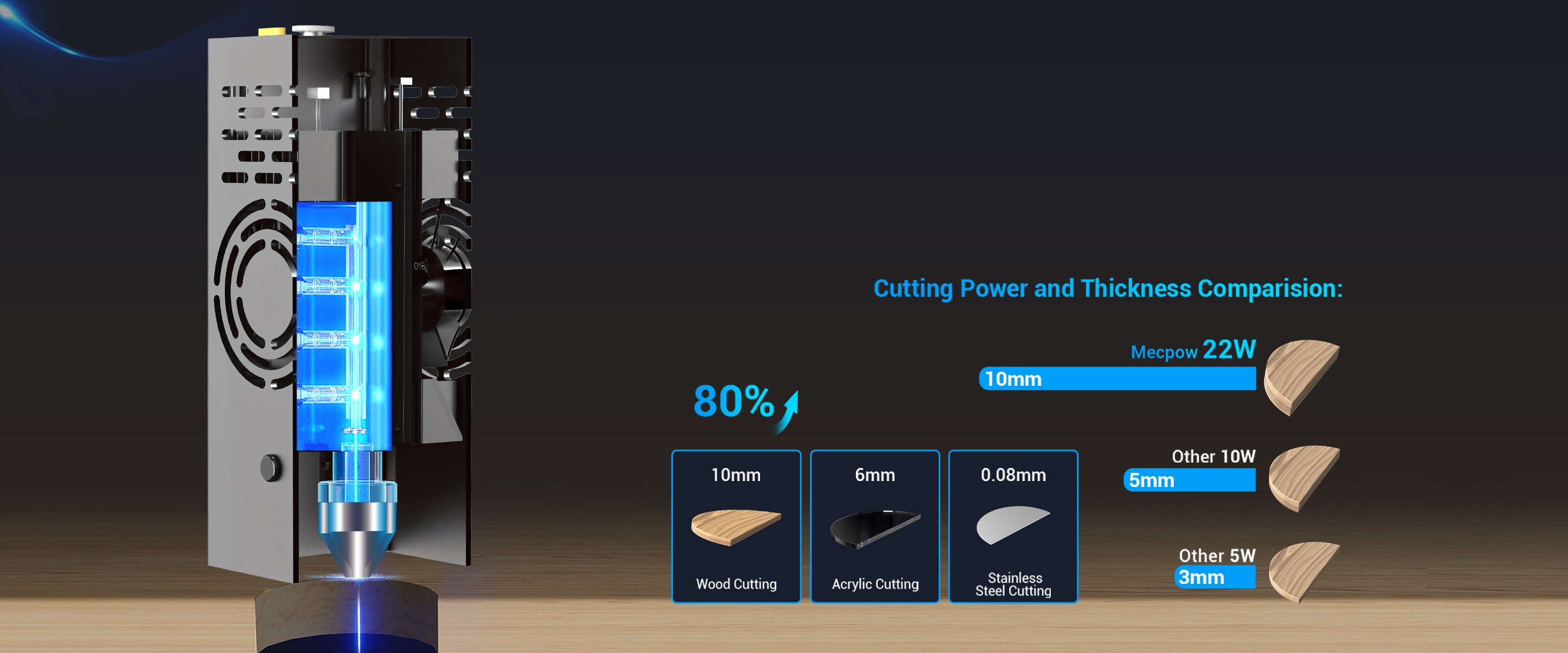

Increasing the power and cutting thickness by several times, expanding engraving and cutting possibilities
Less time to spend, more productivity to achieve

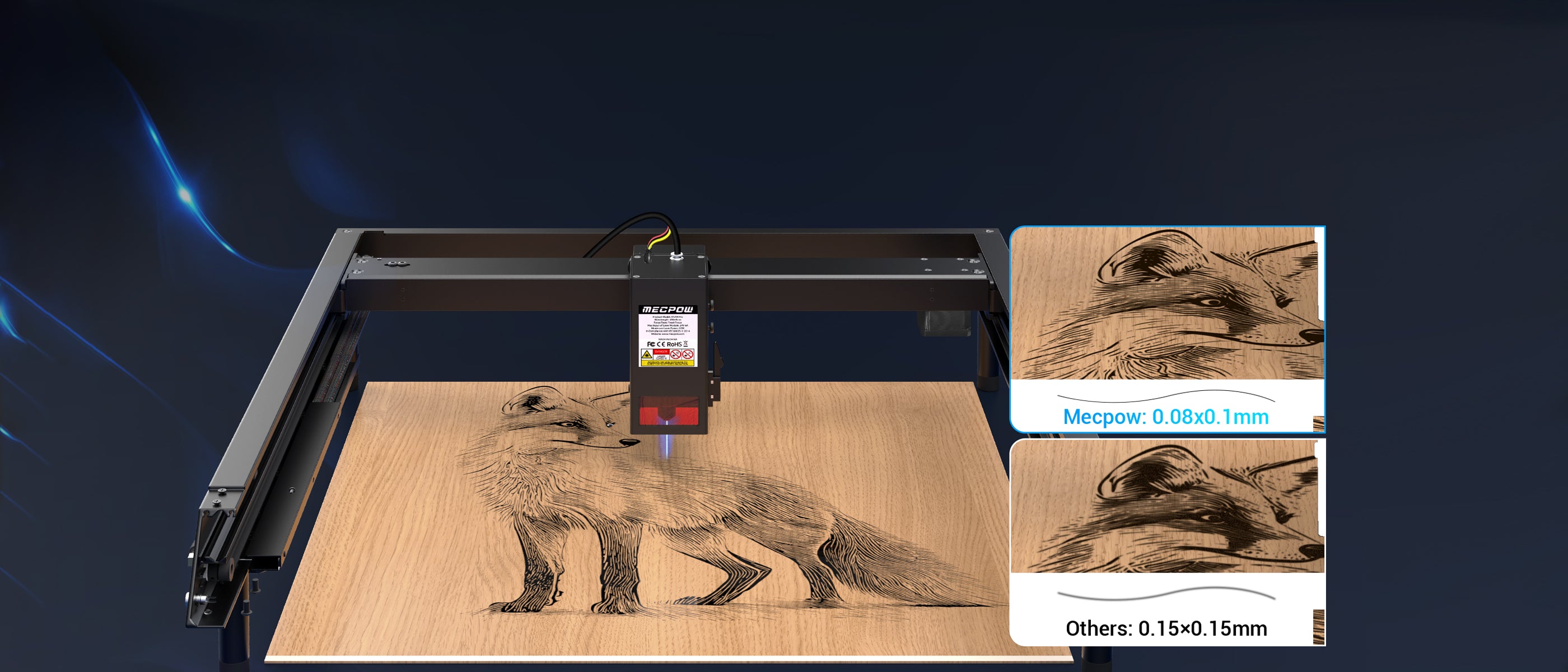

The 0.08x0.1mm laser point ensures concentrated energy and finer, delicate engraving and cutting.
Unleashing creative ideas on a wider scale
Creating exquisite and sanitary engraving with a 30L/Min air pump.

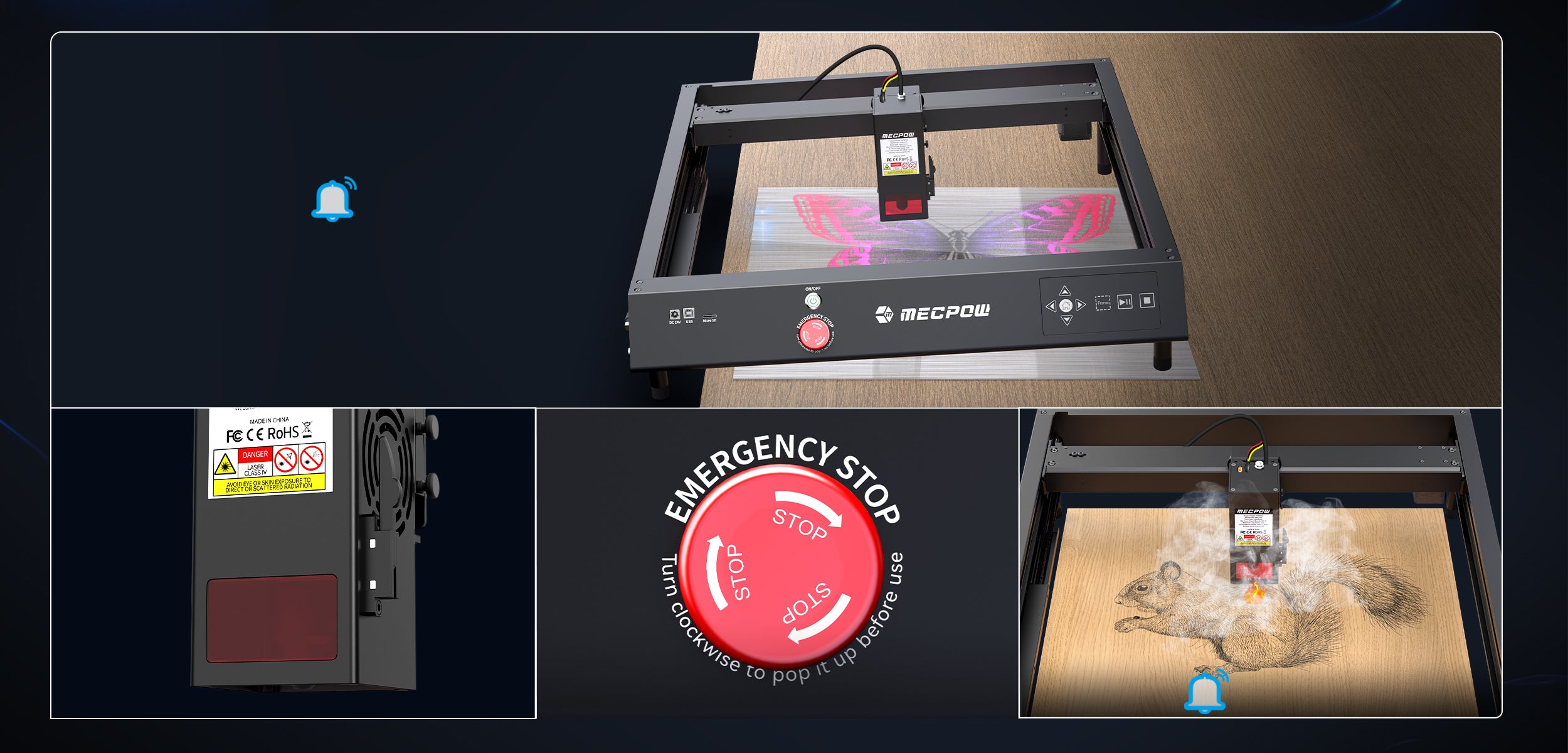

All-Around Safety Protection
Tilt Alarm
Built-in Laser Shield
Emergency Stop
Flame Sensor

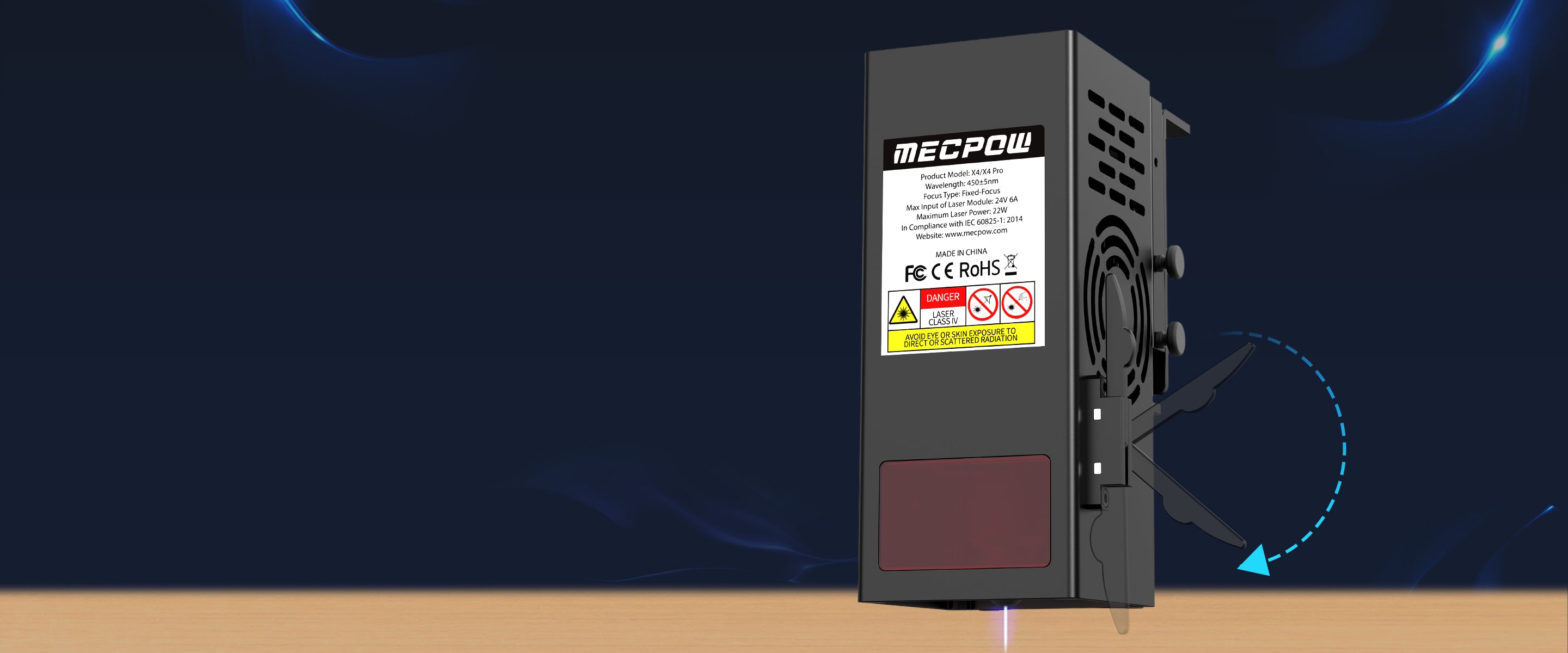

Simply pull down on the focus adjustment bar for perfect focusing.

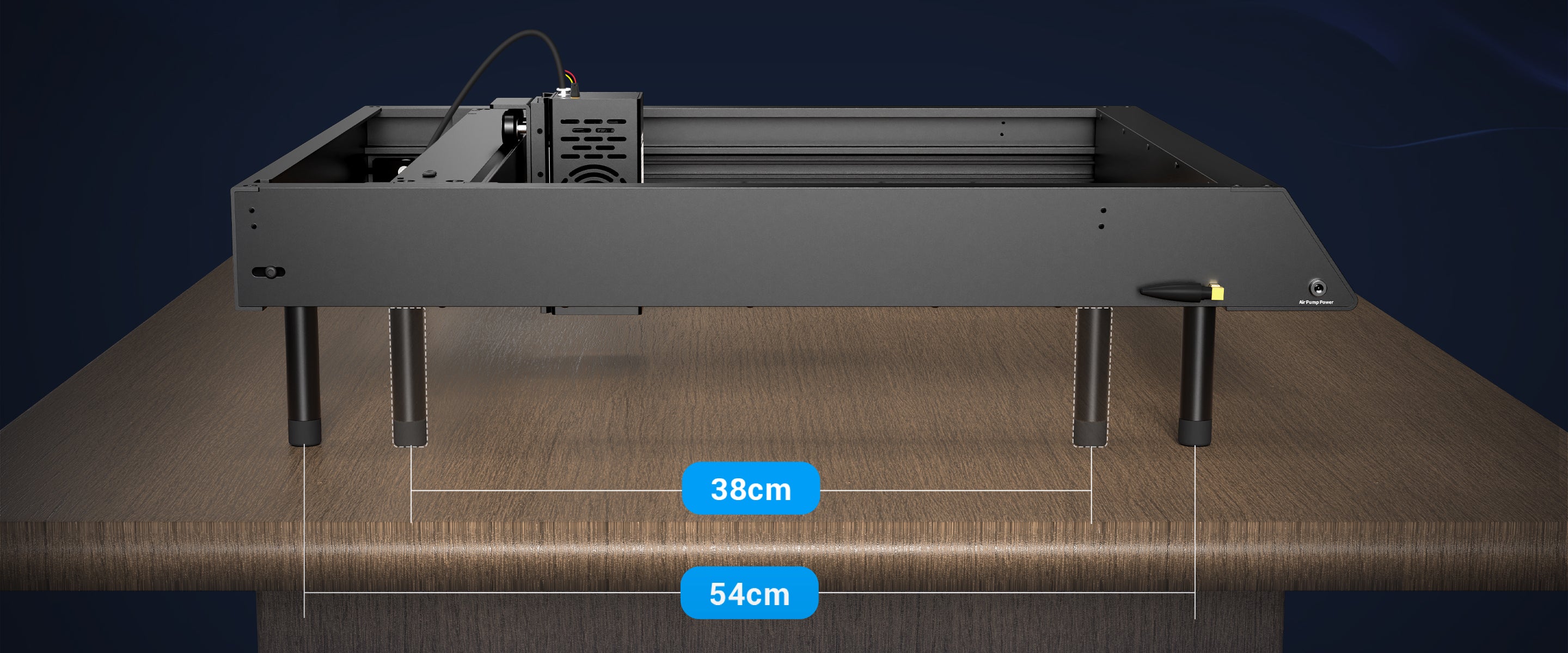

There are 2 adjustment holes on the bottom of the machine to suit different table sizes.

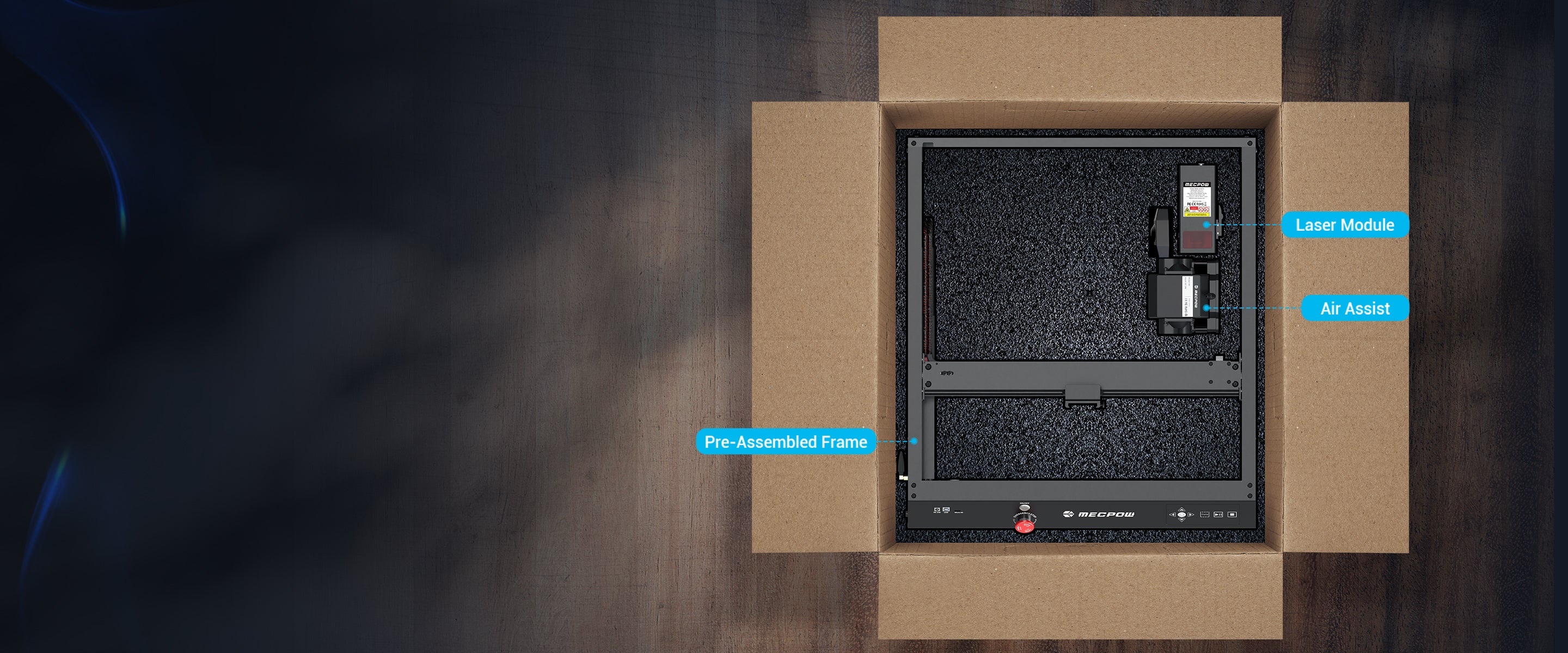

Start creating immediately in just 3 installation steps with our 90% pre-assembled machine!

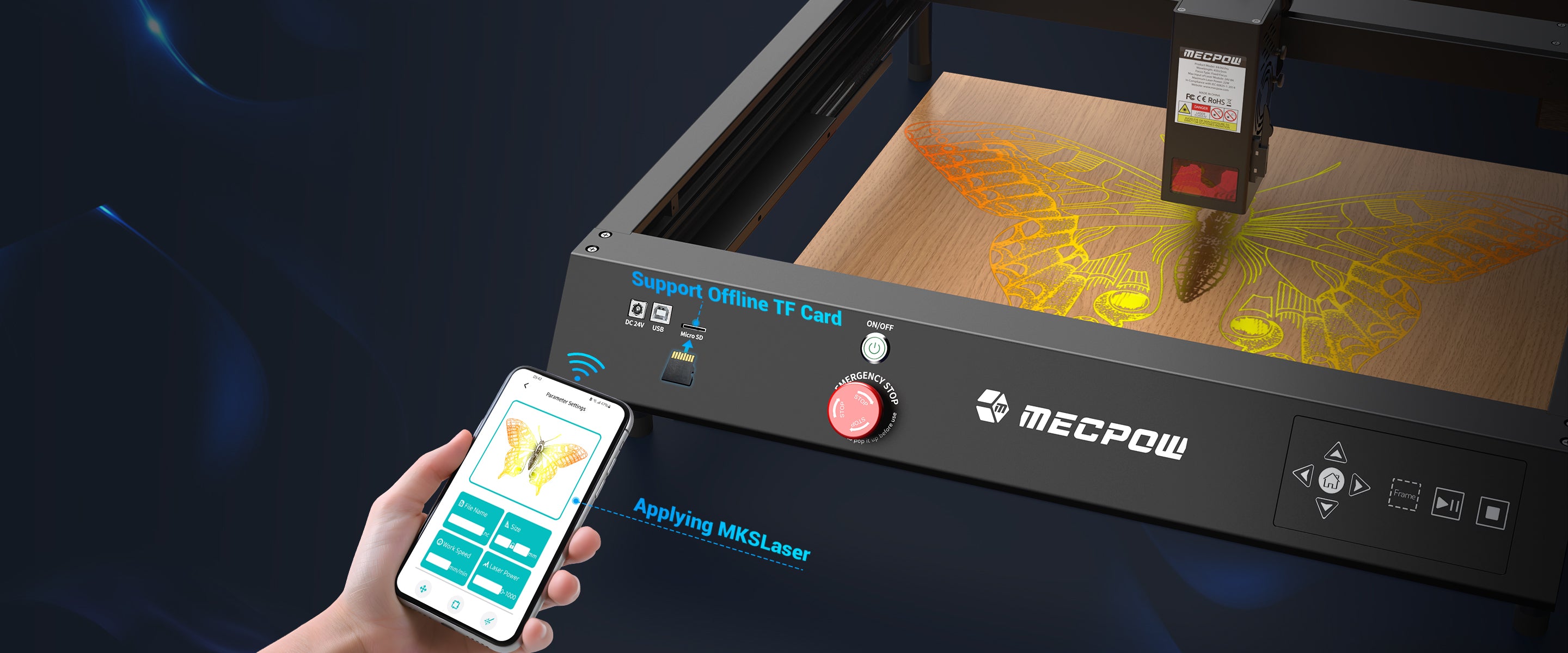

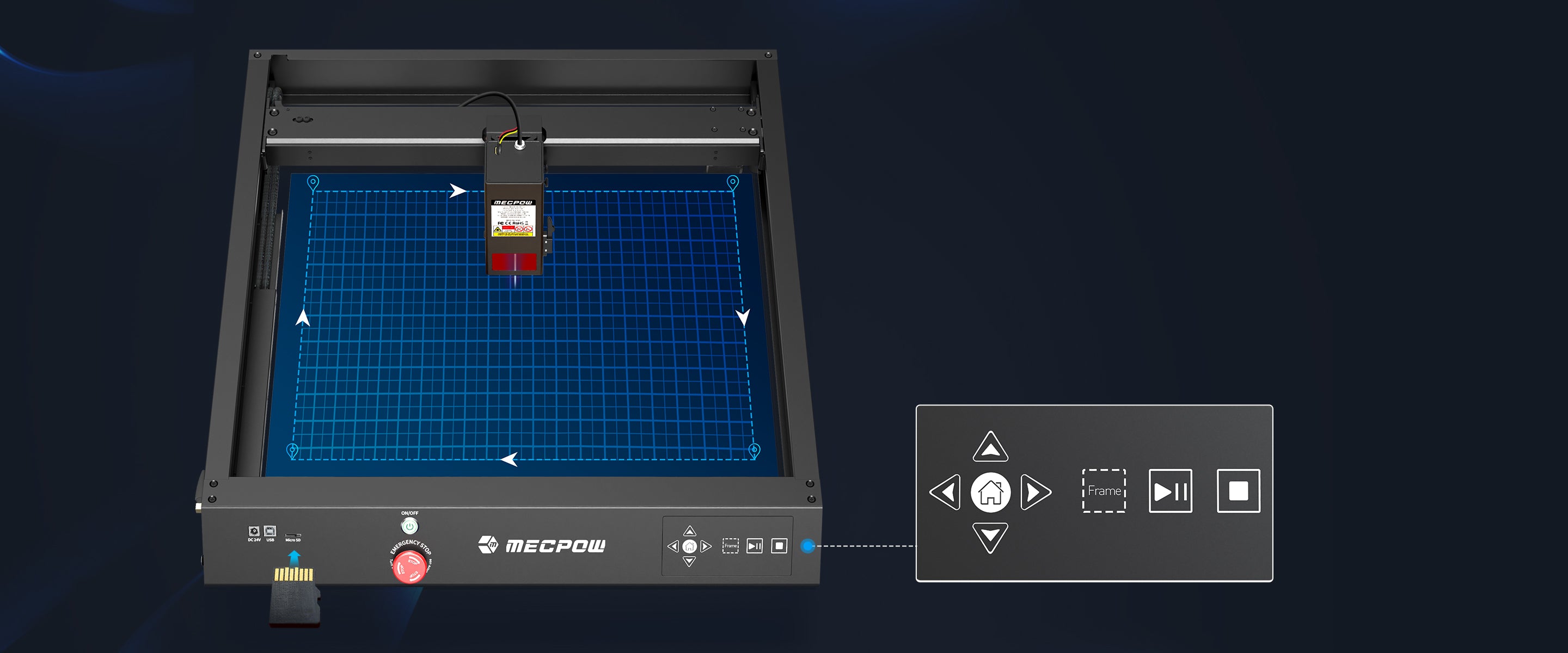

Experience offline engraving using the TF card or the mobile app - MKSLaser.

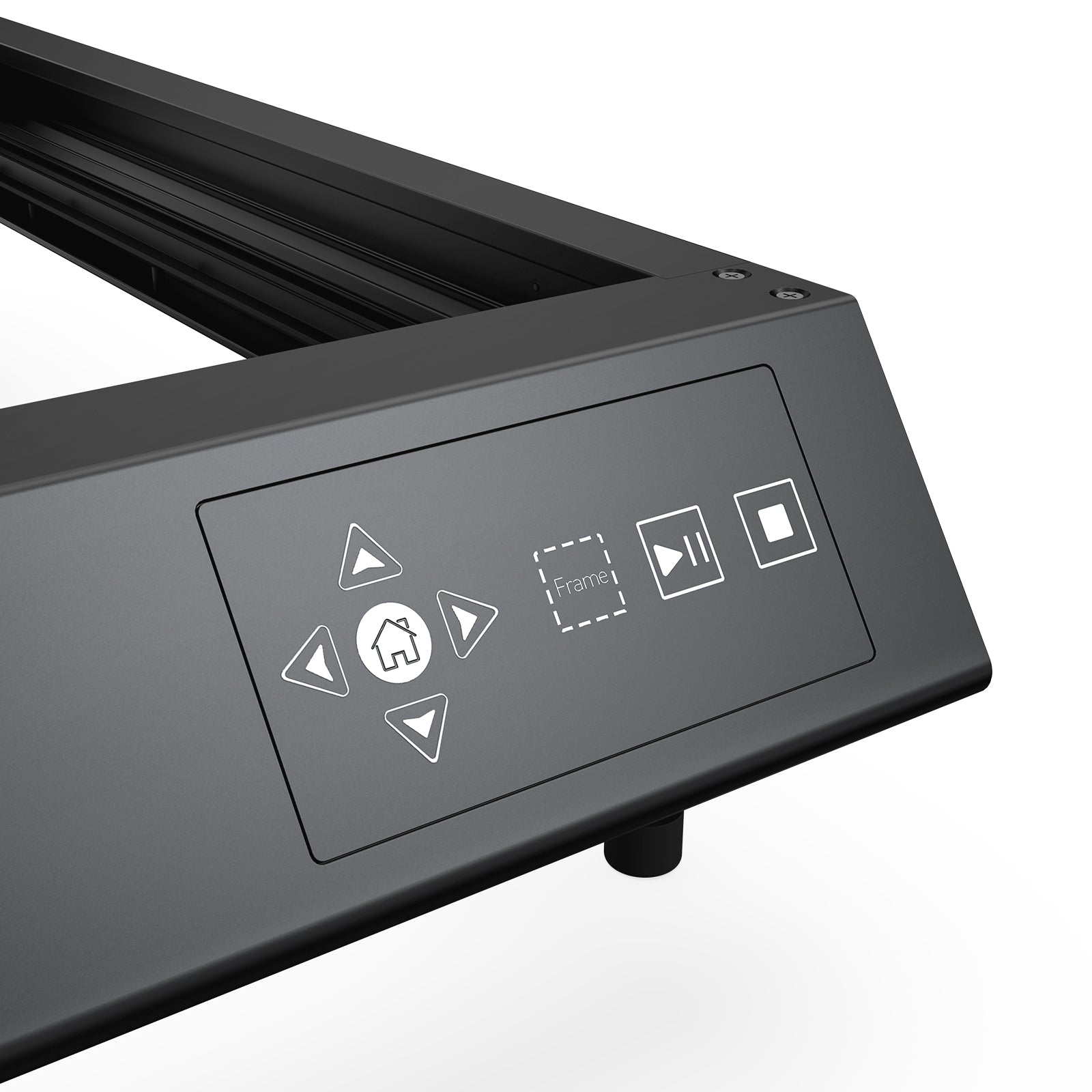

Setting up the Gcode file to copy to the TF card, then insert the TF card into the laser engraver to start the engraving by operating the control panel.
X4 Specification
Brand: Mecpow
Type: Laser Engraving Machine
Model: X4
Color: Black
Frame Material: Aluminum
Input Voltage: DC 24V
Rated Power: 144W
Max. Engraving Area: 410 x 400mm
Max. Engraving Speed: 22000mm/min
Spot Size of Laser Beam: 0.08 x 0.1mm
Tilt Alarm: 50°±5
Methods of Data Transmission: USB Wired/ WIFI Wireless/ TF Card
Software Support: MKSLaser APP/ LaserGRBL/ LightBurn
System Support: Windows/ Mac/ Linux
File Format Support: JPEG, BMP, GIF, PLT, PNG, DXF
Materials for Laser Engraving: Wood, Acrylic, China, Fabric, Bamboo, Plastic Board, Leather, Fruit, Bread, etc.
Laser Power: 22W
Air Velocity for Air Pump: 30L/min
Charger: AC 100~240V 2.5A (Input), 24V 6A (Output)
Auto Air Pump: Yes
Offline Operation Support: Yes
Eye-Protective Laser Head with a laser shield: Yes
Alarm: Yes
Emergency Stop: Yes
Reset Button: Yes
Tilt Sensor: Yes
Flame Sensor: Yes
Limit Switches: Yes
Product Weight: 7.5 kg
Package Weight: 11 kg

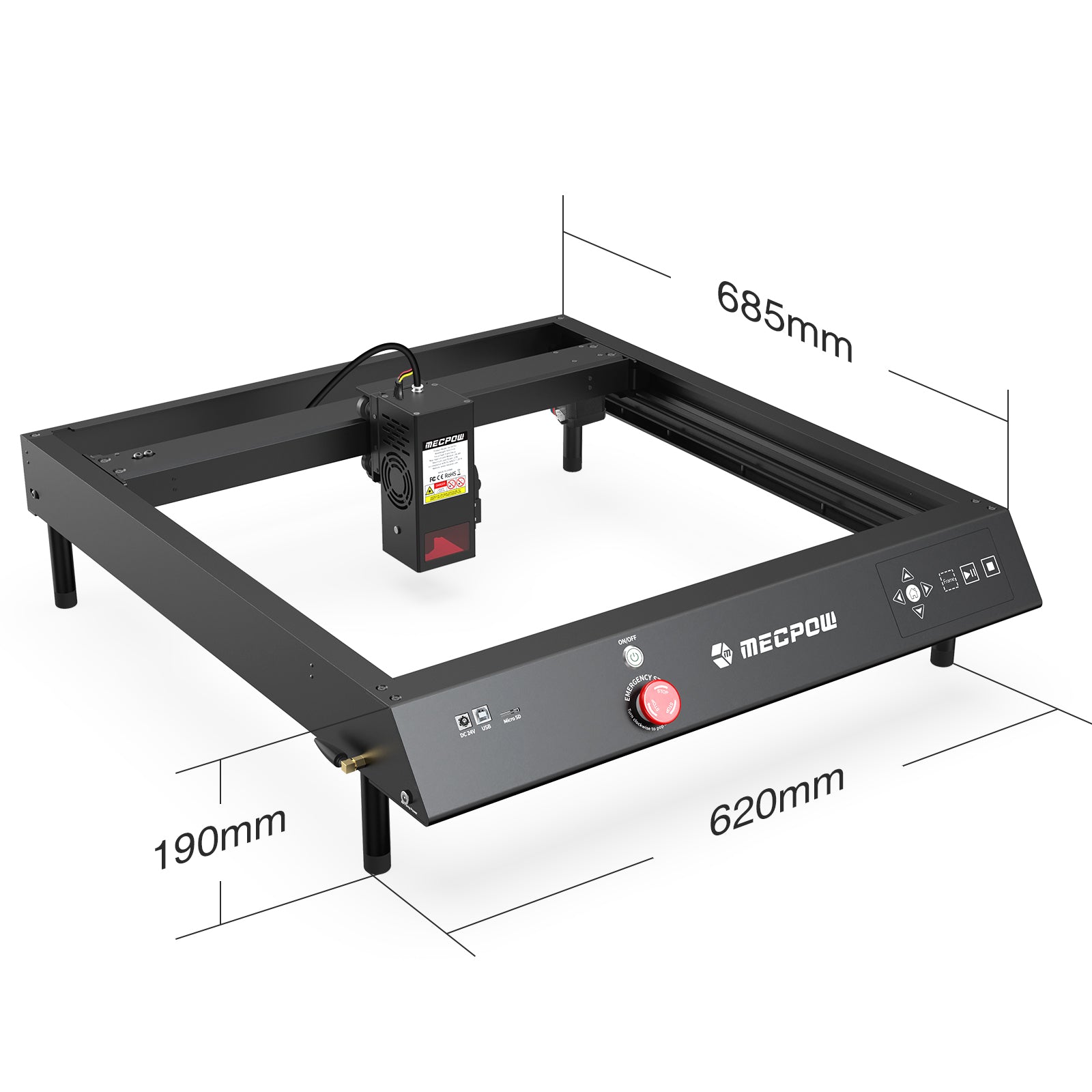

Product Size (L x W x H): 685 x 620 x 190mm
Package Size (L x W x H): 715 x 645 x 145mm
1 x Laser Module
1 x Power Adapter
1 x USB Cable
2 x Wood Board
1 x Metal Plate
1 x Goggles
1 x User Manual
1 x Air Pump
4 x Raiser
4 x Raiser for Combination
1 x TF Card
1 x TF Card Reader
1 x Cleaning Brush
1 x Wrench
1 x WiFi Antenna
1 x Screwdriver
FAQs for X4
What is the range of the engraving area?
The maximum engraving area is 410×400mm (16.1×15.7 inches).
What is the spot size of the laser beam?
The spot size of the laser beam is 0.08×0.1mm, which allows you to engrave exquisite objects.
What kind of objects can the X4 laser engraver engrave on?
The X4 laser engraver can engrave on many objects: Wood, Acrylic, Glass, Metal, Cylinders, Cards, Board, Stainless Steel, Food, Leather, Fabric, Rubber and so on.
Can it connect to the smartphone?
Yes, it can connect to the smartphone and computer for use.
Is it safe to use?
Of course! The X4 laser engraver has a comprehensive safety system, equipped with a flame sensor, an alarm, a tilt sensor, a safety lock, an eye-protective laser protection shield and an emergency stop button, all of which will guarantee your safety.
How often should I replace the lens of the laser module?
Smudged lens can seriously affect the quality of engraving or cutting. Thus, we recommend that you replace the lens once a month.
How to ensure the engraving range is within the engraved object?
Click “Frame” to preview the engraving range. If the engraving range is beyond the engraved object, move the object or the laser head to adjust it.
Is the air pump noisy?
No, the air pump won’t produce much more noise. Don’t worry; it won’t affect your engraving creation.
