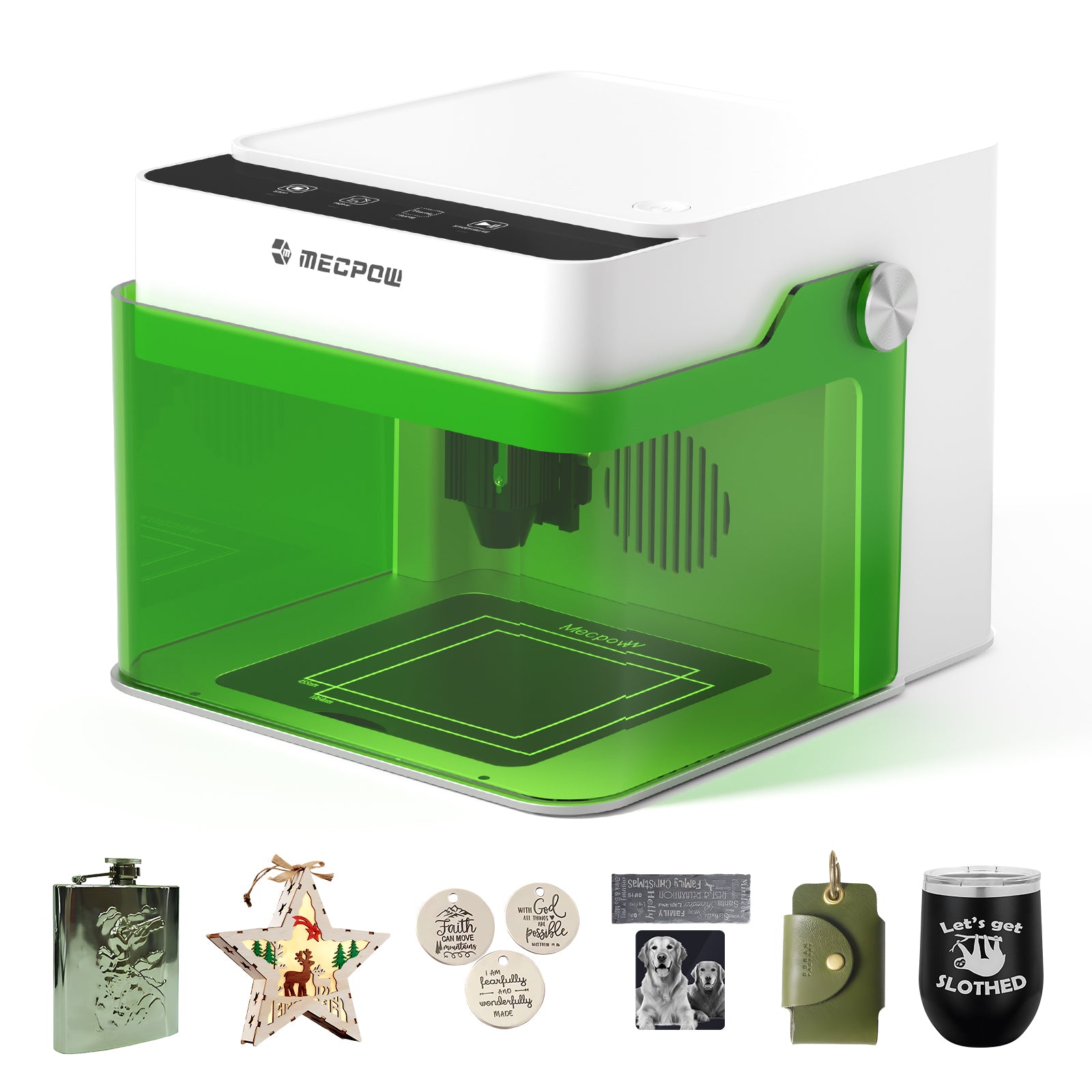

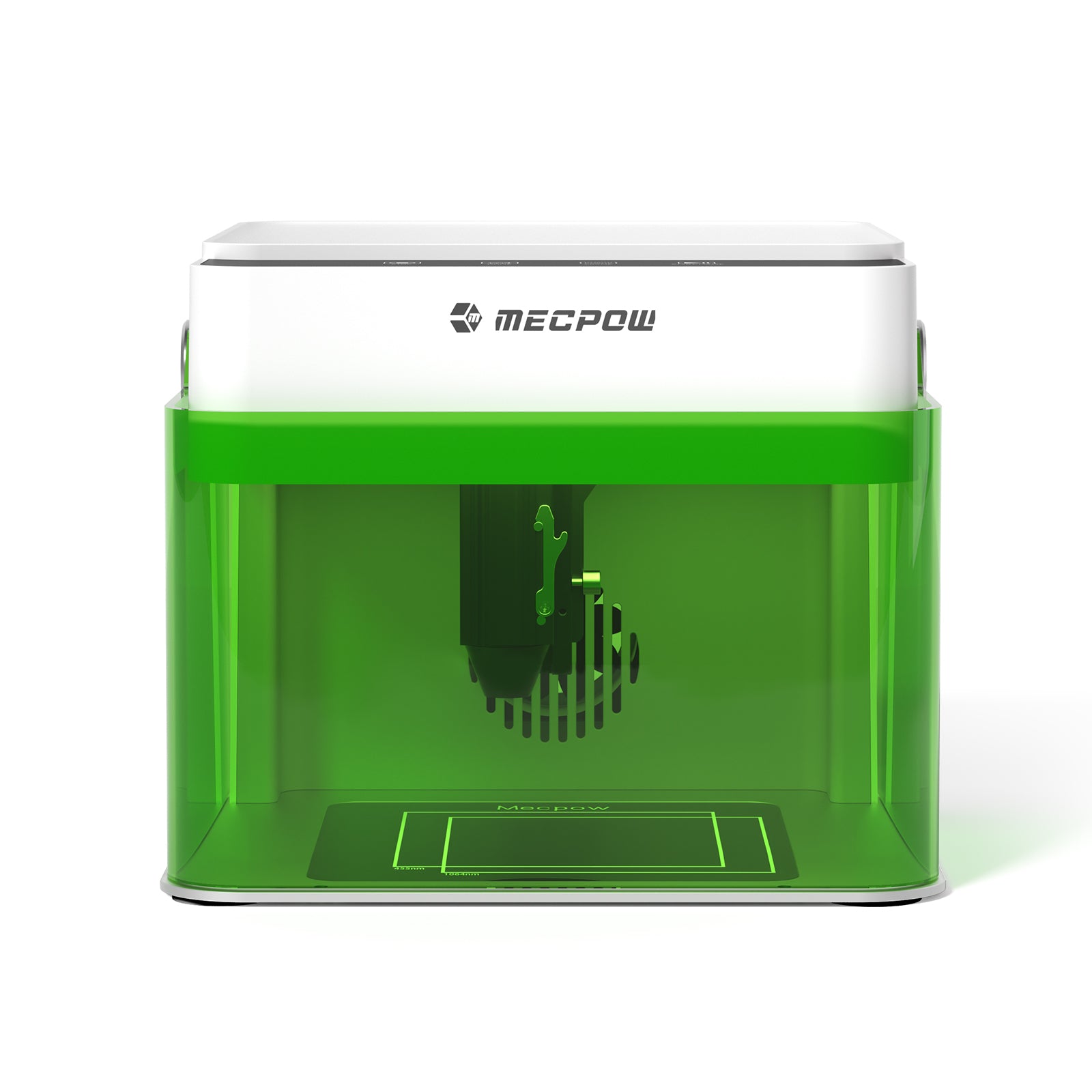

Mecpow M1 3.5W/5W Laser Engraver
- Supports 3.5W/5W diode lasers and an optional 1.2W infrared laser module, engraving over 300 materials.
- FDA Class I safety certification for worry-free operation.
- Ready to use out of the box for easy mastery by beginners.
- Compact and portable design for flexible workspace adjustment.

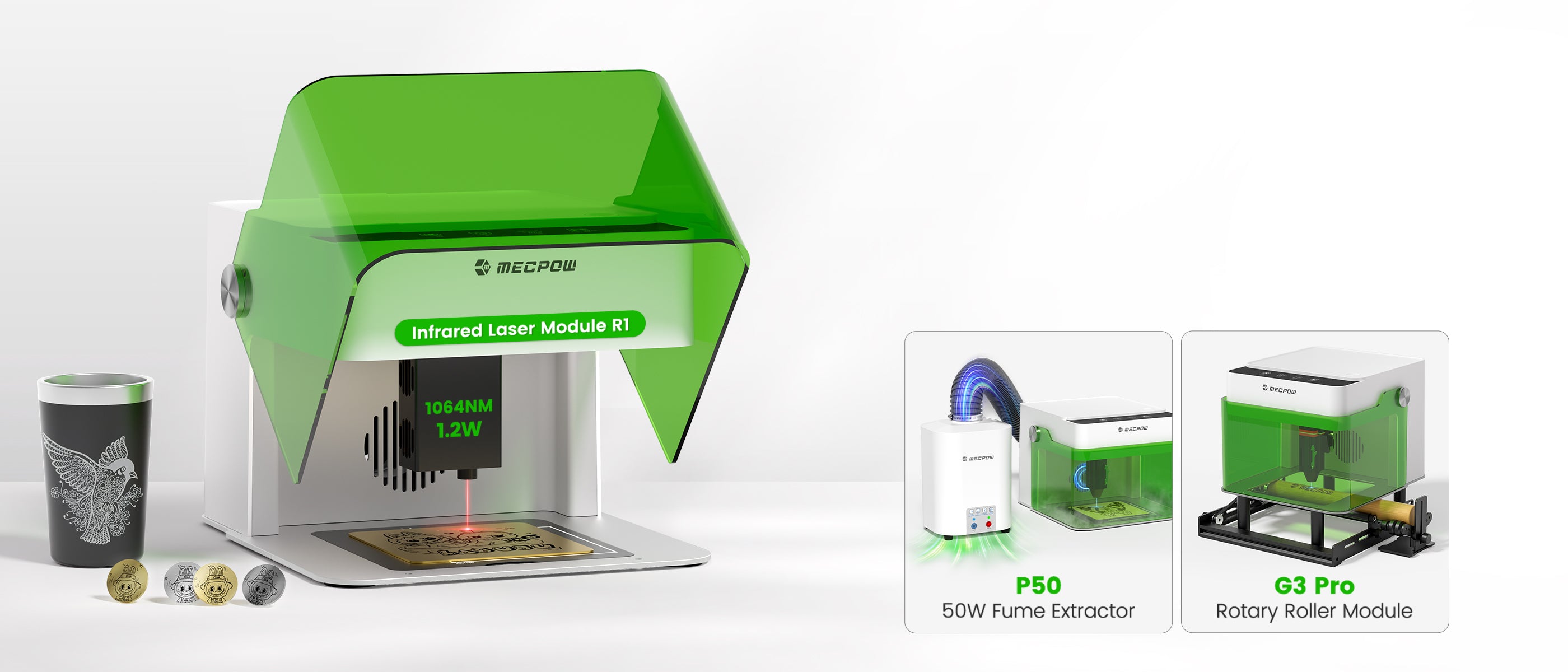

- Compatible with the Mecpow R1 infrared laser module and the G3 Pro/G5 rotary roller module.

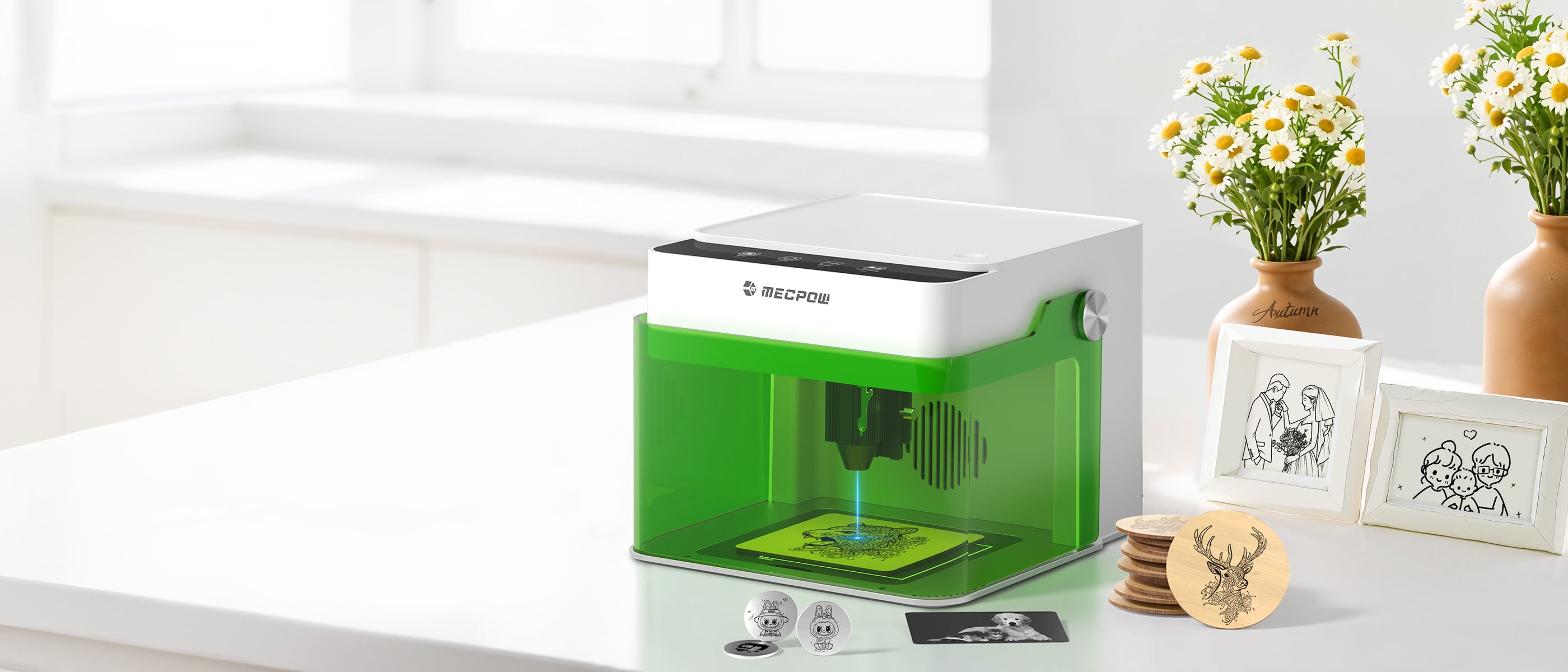

FDA Class I Laser: Your Ideal Desktop Engraver
Class 1 Laser Safety
3.5W/5W Diode Laser

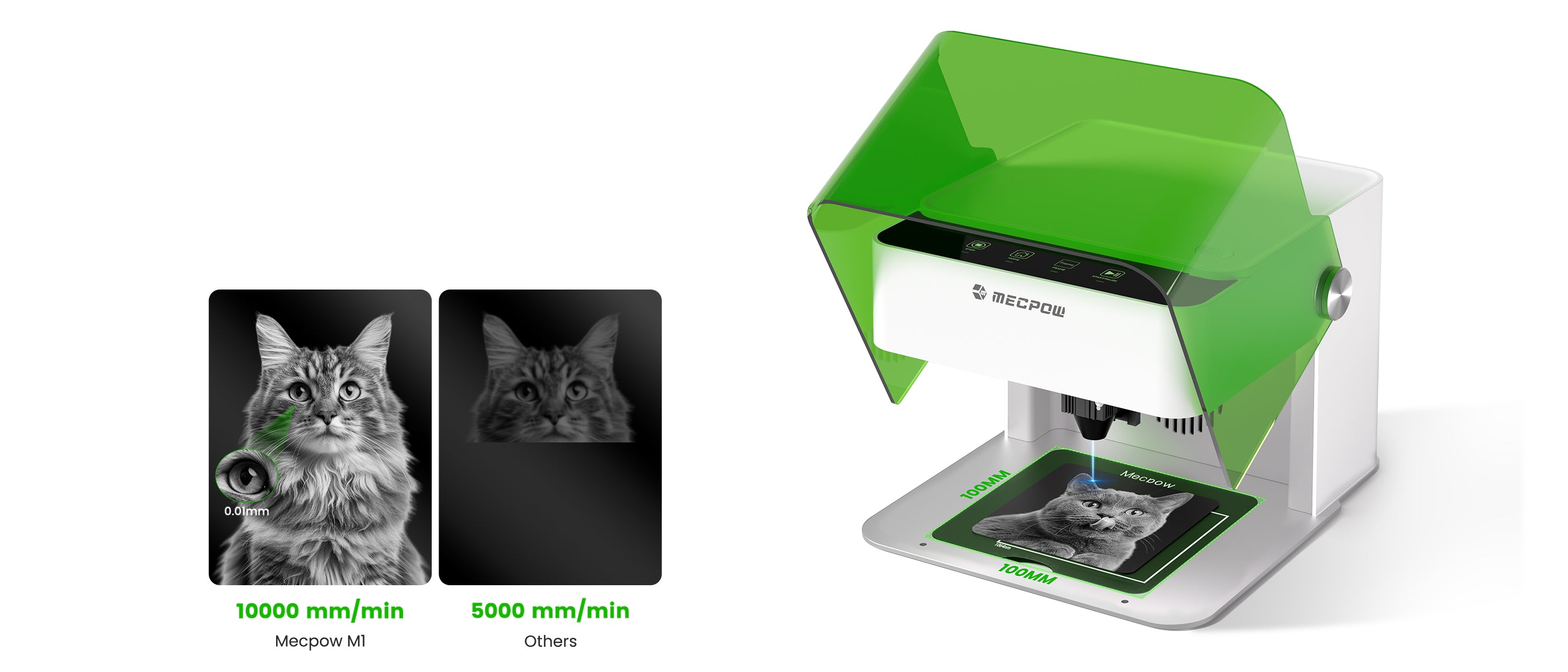

10000mm/min High Speed
0.01mm Accuracy
100x100mm Engraving Area
Three Connection Modes
Enjoy a safer working environment with your family!
Enclosed & Eye-Protected Design
Auto-Stop Safety Solution
Smoke-free & Odor-Free
Tilt Protection(15±5°)

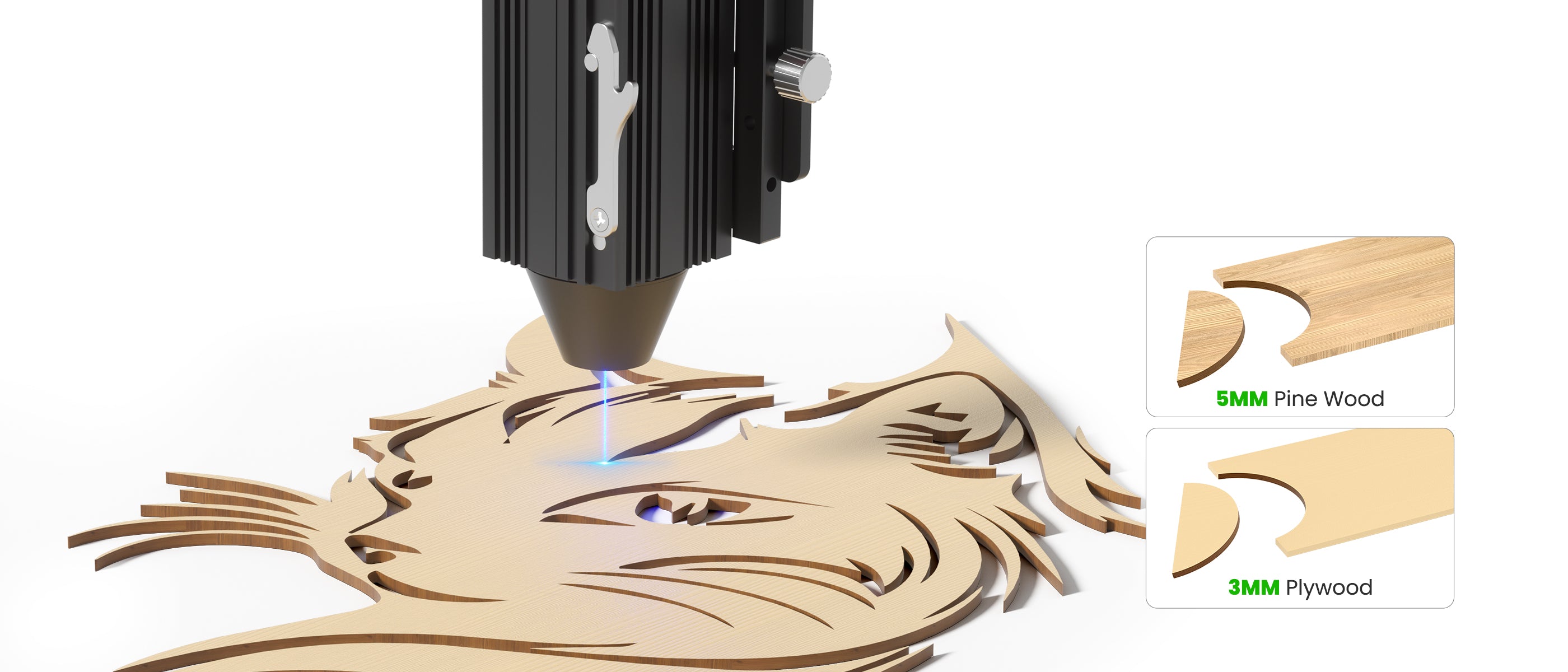

Cut & Engrave Various Materials
1.2W
Infrared Laser
3.5W
Diode Laser
5W
Diode Laser
Meet various needs of DIY crafts!
Ensure the fastest cutting and most precise engraving!

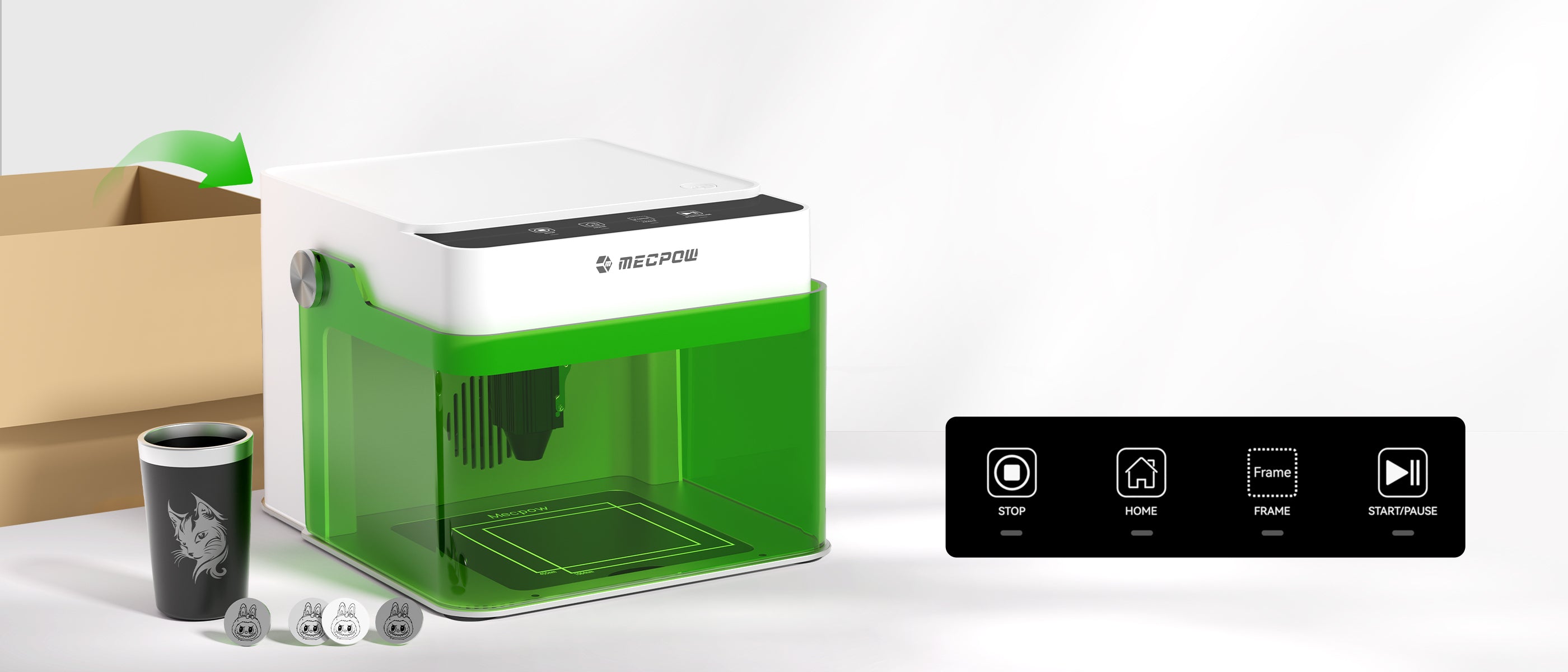

100% Pre-Assembled & Ready to Create
Master basic operation instantly with four buttons.
Enjoy ergonomic comfort during cutting or engraving processes!

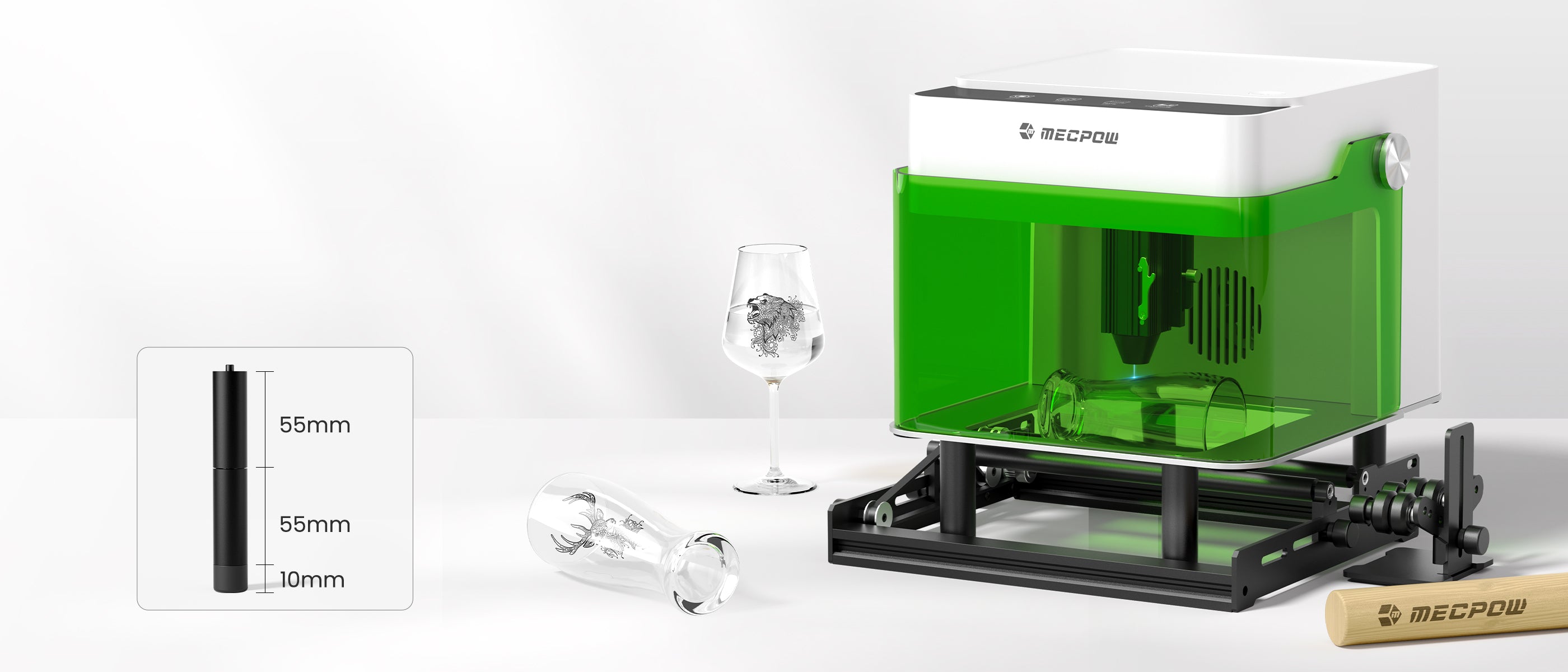

Note: Purchase stackable riser columns to achieve your ideal engraving height.
Note: Accessories need to be purchased separately in the picture.
Unlock Your Unique Creativity
Wood
Plastic
Leather
Cardboard
Stone
Ceramic
Coated Metal
Bamboo
M1 Specification
Brand: Mecpow
Type: Laser Engraver
Model: M1
Color: White and Green
Electrical Power: 60W
Engraving Area: 100 x 100 mm
Max. Engraving Speed: 10000 mm/min
Engraving Accuracy: 0.1 mm
Wavelength: 455±5 nm
Height of Engraved Objects (Without Riser Columns): ＜4.5 cm
Height of Engraved Objects (With Riser Columns): 4.5+6.5 cm
Tilt Alarm: 15±5°
Software Support: MKSLaser (APP), LaserGRBL, LightBurn
System Support: Windows, macOS, Android, iOS
File Format Support: JPEG, BMP, JPG, GIF, PLT, PNG, DXF, HPGL, NC, etc.
Materials for Laser Engraving: Wood, Plastic, Leather, Cardboard, Stone, Ceramic, Coated Metal, Bamboo, etc.
Input: DC 12V 5A
Laser Power: 3.5W/5W

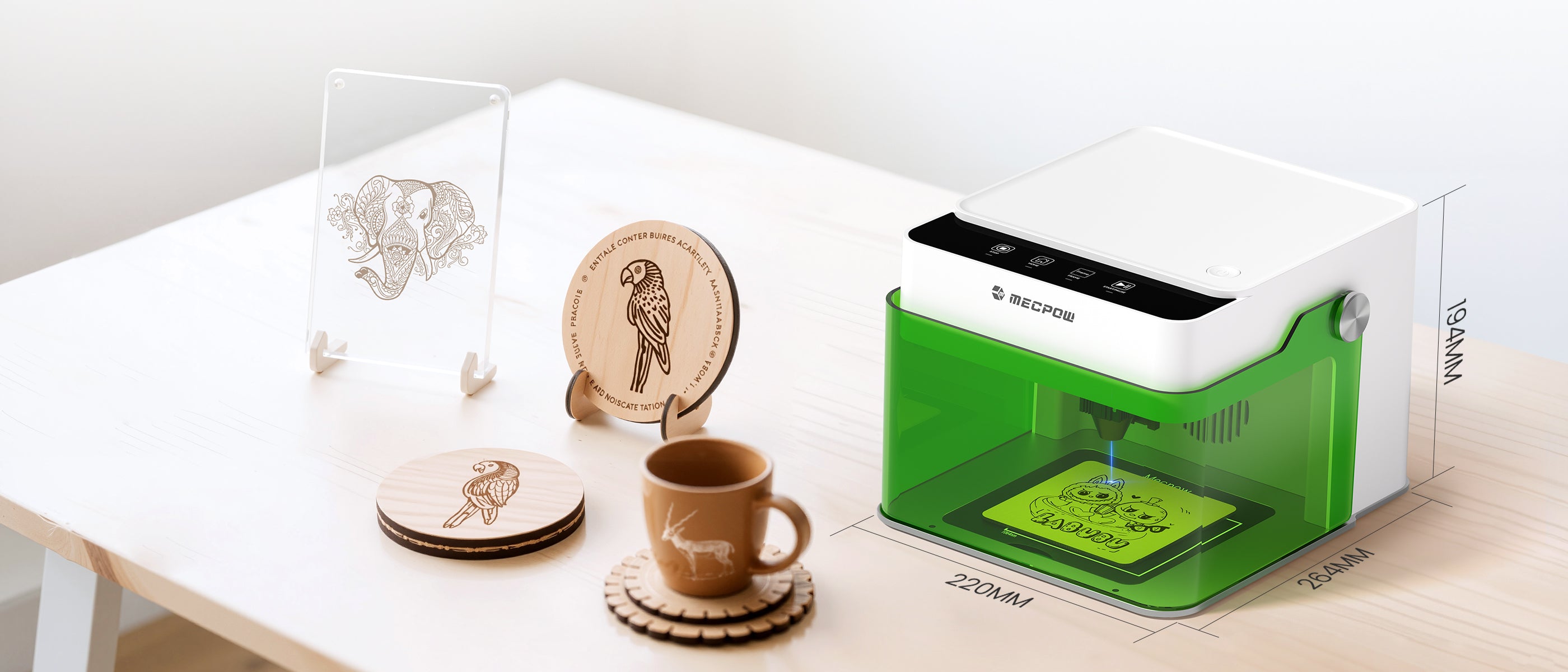

Product Dimension: 220 x 264 x 194 mm
Package Dimension: 308 x 271 x 238 mm
Product Weight: 2.4kg
Package Weight: 3.2kg
1 x Laser Engraver
1 x Power Cable
1 x Screwdriver
1 x Laser Module
1 x Power Adapter
1 x Goggles
1 x User Manual
1 x Engraving Area Positioning Plate
1x Marker Pen
1 x Card Reader
1 x TF Card (Machine Maximum Capacity Support: 16G)
1 x Flange
1 x Wrench
1 x Roller Cable
1 x 2.5mm Hex Key
2 x Wood Board
3 x M3x7
4 x Riser Column
5 x Anodized Aluminum Plate
FAQ
Why can’t the M1 laser engraver power on?
Causes:
a. The M1 laser engraver may not be properly connected to the input port.
b. The plug could be loose.
c. The power adapter might be damaged.
Solutions:
a. Check that the power cable is securely connected and that you're using the official adapter.
b. Test alternative outlets. If the issue persists, we recommend contacting technical support.
c. Purchase a new power adapter.
Can’t the machine connect to Wi-Fi?
Causes:
a.Weak or unstable Wi-Fi signal
b.Incorrect Wi-Fi password
c.Incorrect IP address input
Solutions:
a.Make sure the machine is connected to the network.
b.Ensure the password is entered correctly (capital letters matter).
c.Try accessing 192.168.4.1 in your browser.
Why is my computer software unable to connect to the machine?
Causes:
a.Select the incorrect port.
b.Use Windows 7/8 without the proper drivers.
Solutions:
a.Try switching the COM port.
b.Install the appropriate driver if you're using Windows 7/8.
Why does my laser engraving look blurry?q
Causes:
a.Incorrect focal length
b.Unsuitable material for engraving/cutting
c.Incorrect power or speed settings
Solutions:
a.Adjust the focal length of the laser module via the focusing lever until the beam achieves minimal dot size.
b.Ensure the material is appropriate for engraving/cutting.
c.Adjust power, speed, or other parameters accordingly.
What should I do if the lens is damaged?
Causes:
a.Lens not cleaned regularly, causing dust buildup
b.Lens assembly damage from external force
Solutions:
a.Regularly clean the lens with alcohol swabs (recommended after every 20 hours of cumulative use) to prevent dust buildup affecting laser output.
b.If the lens assembly is damaged, you can replace it as needed or contact Mecpow's manufacturer to purchase replacement components.
What types of lasers can engrave metal?
Diode lasers can engrave stainless steel and some coated metals, but they cannot engrave directly on reflective metallic surfaces, as this may damage the laser module. For the best results, infrared lasers are ideal for metal engraving because of their ability to engrave on any metal and produce deep marks.
