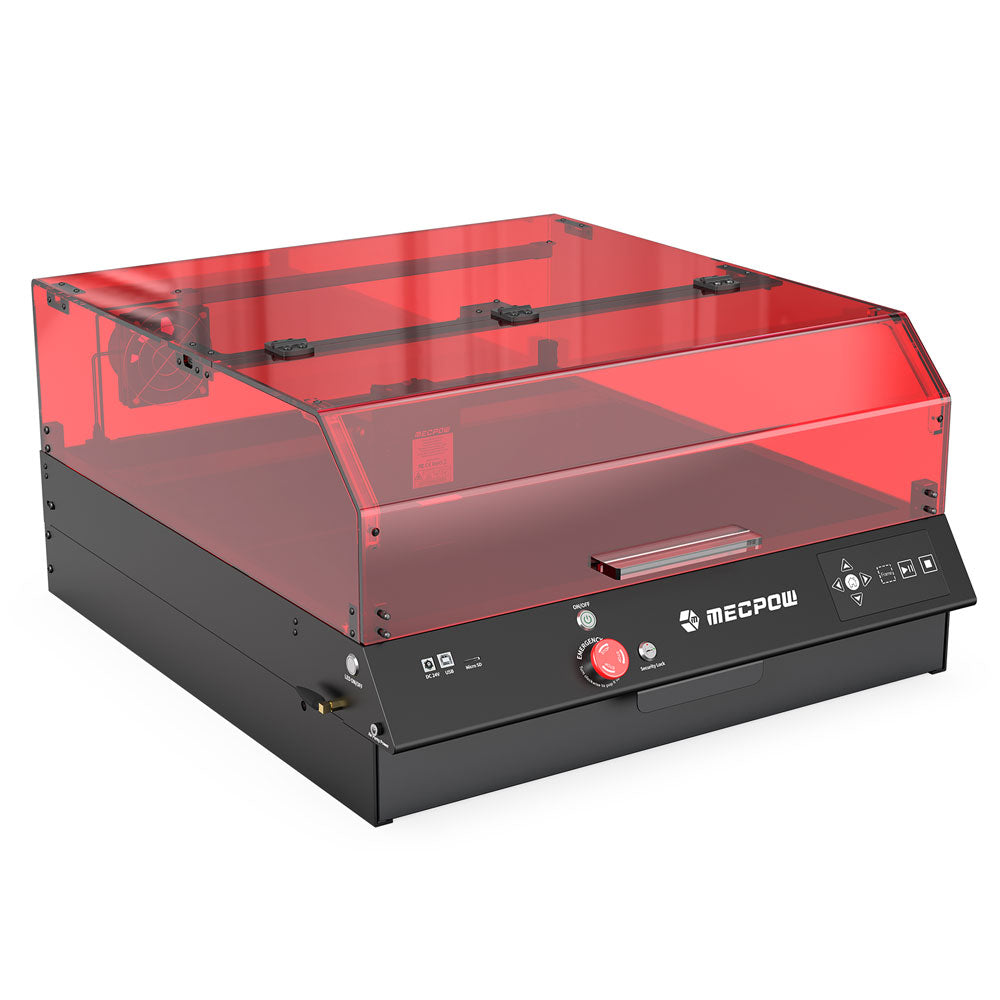

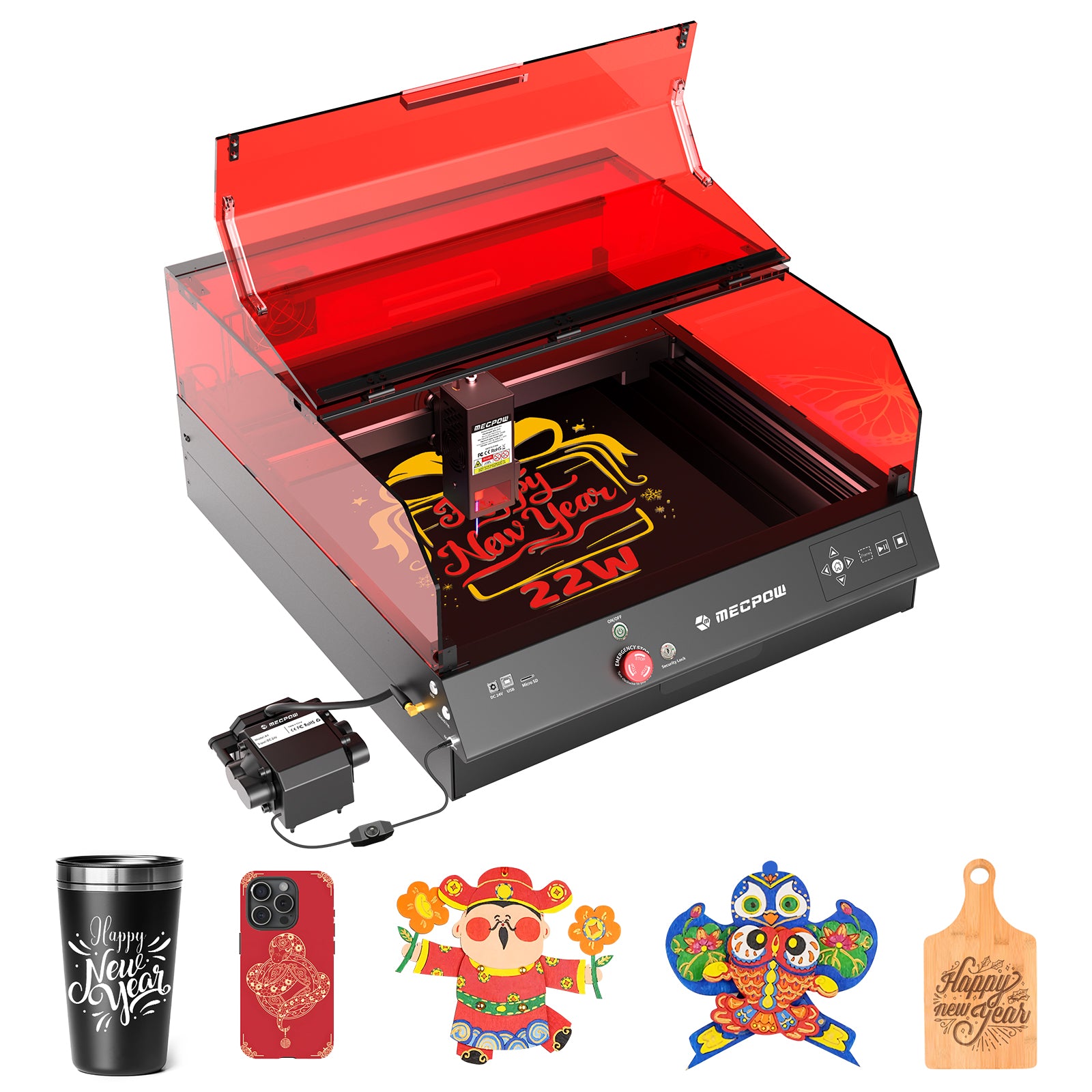

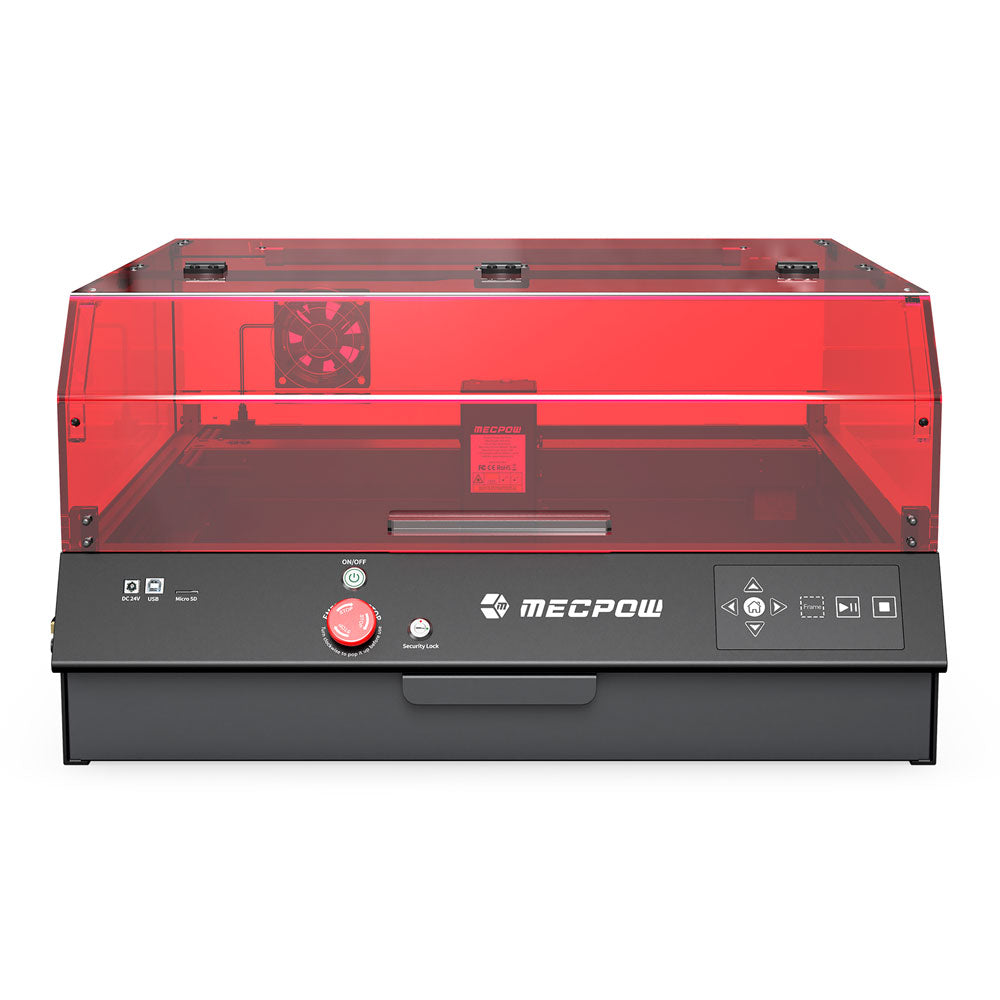

X4 Pro 22W Laser Engraving Machine
FDA Class 1 Safety & Comprehensive Protection System
The Mecpow X4 Pro is an FDA Class 1 certified laser cutting and engraving machine that prioritizes the safety of users from beginners to professionals. Featuring an integrated auto-stop function, it will automatically stop working when the protective cover is opened. The engraver is also equipped with a security lock, flame sensor, emergency stop, tilt sensor and limit switches, all of which fully guarantee the safety of both users and the machine.

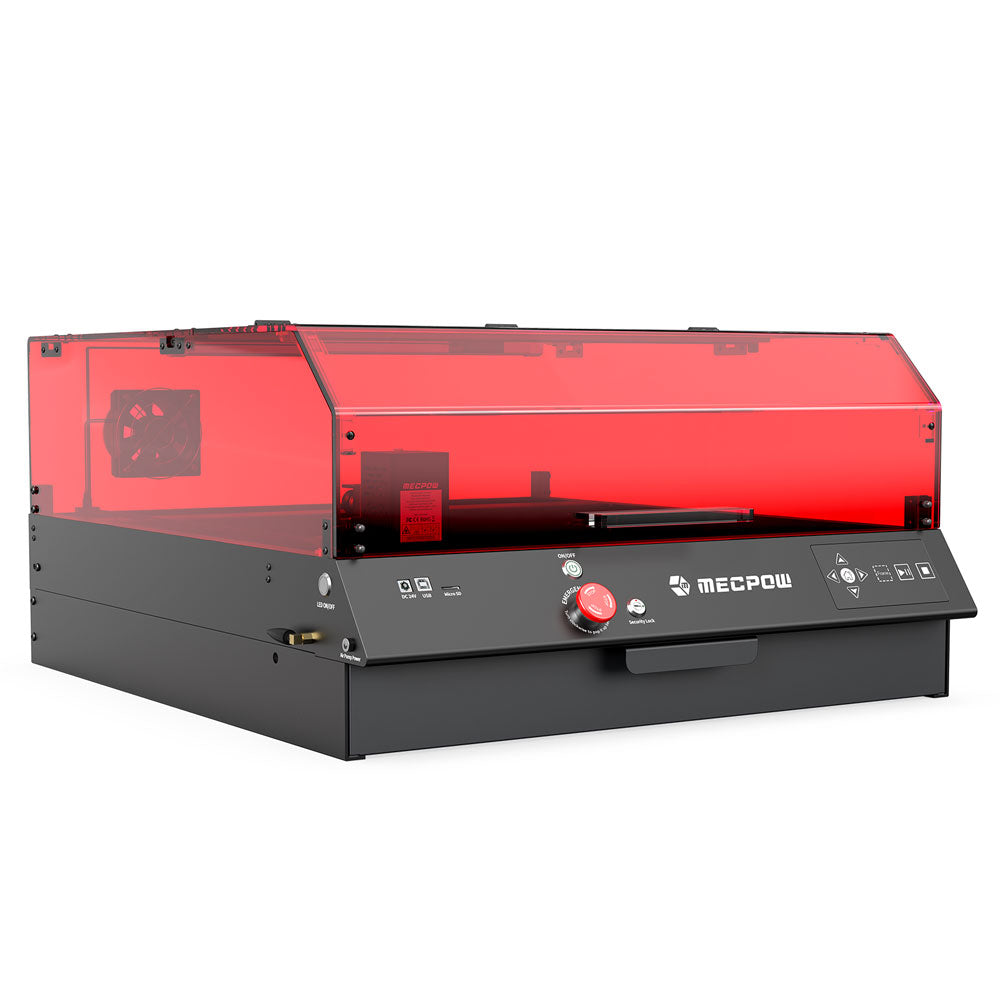

Versatile Protective Cover & Efficient Smoke Exhaustion
The enclosed design of the Mecpow X4 Pro laser engraver ensures complete protection for a tidy and tranquil environment, keeping users away from the noise and smoke. The powerful fan optimizes internal airflow to filter out harmful smoke and particles effectively, preventing combustion and creating a safer and more conducive environment for engraving within the enclosure.

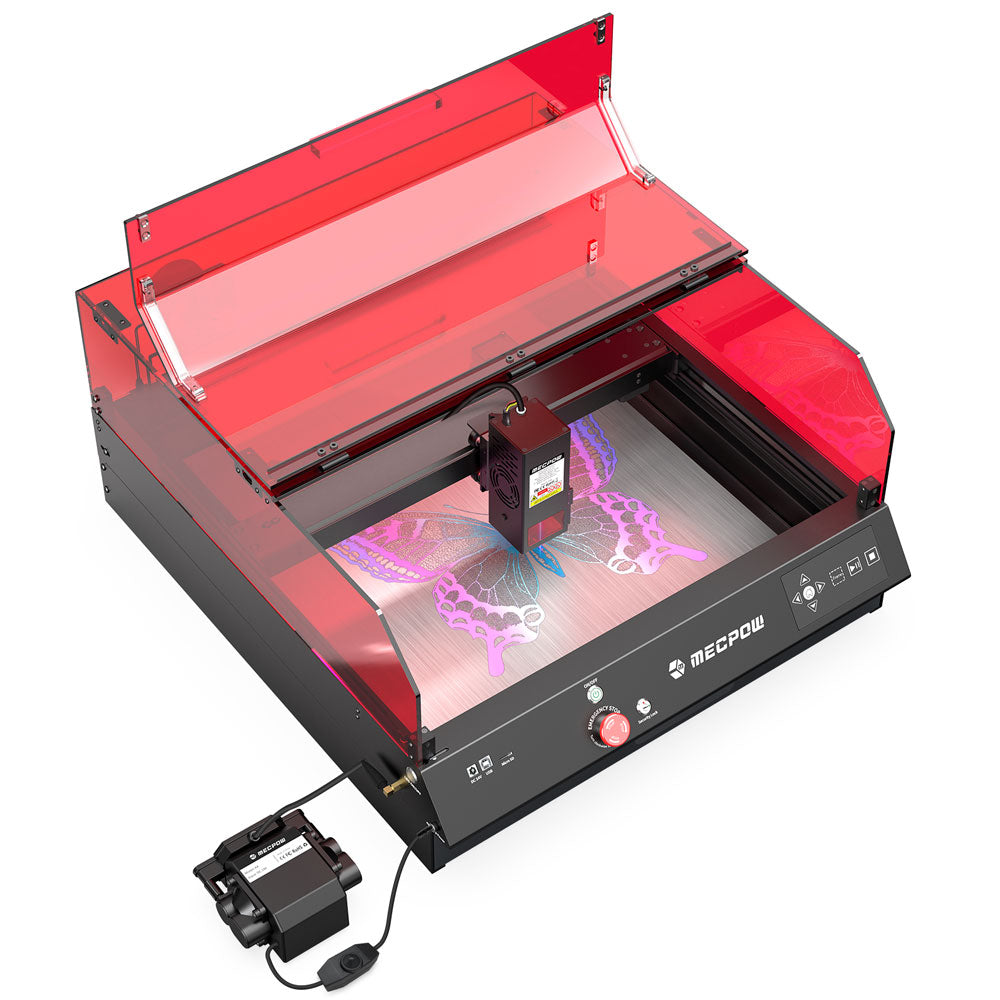

Built-in Camera, LED Light & Auto Air Assist
The engraving machine has a built-in camera and LED light that provides a more visible engraving experience for precise positioning and easy observation. The camera can also track the images for batch engraving and record high-definition videos for even more engraving fun. With a powerful 30 L/min air pump, the X4 Pro laser engraver could control the airflow easily and blow out the dirt and debris for a clean surface, dedicate engraving and better lens protection from dirt.
Mighty Power and Efficiency & Fine Laser Point
With a high laser power of 22W, the Mecpow X4 Pro laser engraver allows for cutting thicker materials and offers stable and extensive engraving. You will spend less time to increase productivity with high accuracy thanks to the achievement of a remarkable maximum engraving speed of up to 22,000 mm/min and an ultra-fine laser point of 0.08mm×0.1mm.
A Roomy Engraving Area & Multiple Materials

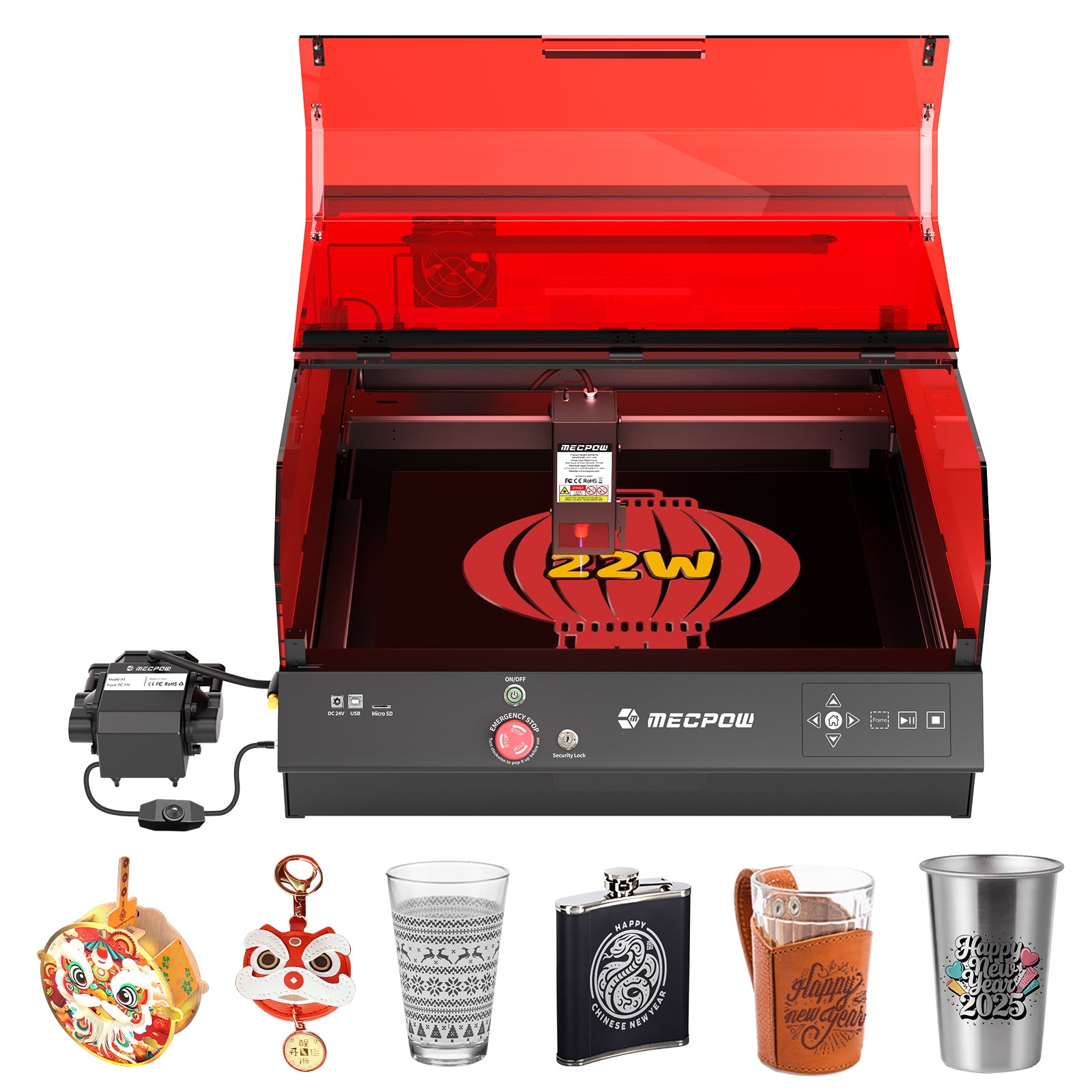

The engraver has a spacious engraving area of 410×400 mm (16.1×15.7 inches), providing boundless engraving capabilities. With the ability to engrave materials, such as wood, acrylic, glass, metal, fabric, bamboo, plastic, leather, and even food, the Mecpow X4 Pro laser engraver offers a wide range of options for personalized creations.
Offline Operation & Wide Compatibility
The Mecpow laser engraver supports offline operations, allowing users to make a quick start by inserting a TF card and operating on the control panel or by connecting to the engraver's wifi and operating on the mobile app, MKSLaser. Compatible with LaserGRBL and LightBurn, it can also be controlled on a computer via a wired connection. Supporting multiple operating systems, such as Windows, Mac, Linux, Android, and iOS, it provides users with added convenience and flexibility.
Pinpoint and Powerful Laser Cutter & Engraver
FDA Class 1 Certification
Full-Featured Protective Cover

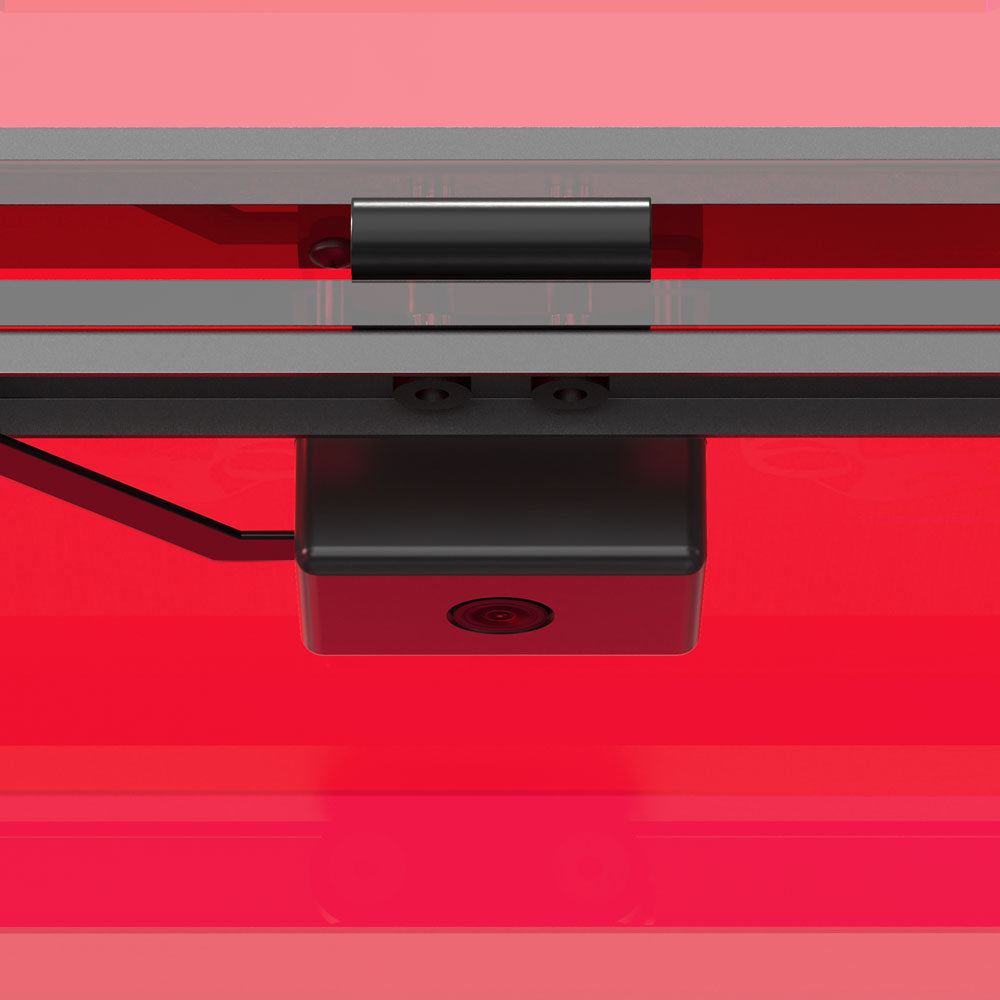

Built-in Camera
Comprehensive Security System
22W Strong Power
Offline Operation
22000mm/min High Speed
0.08x0.1mm Accuracy
410x400mm Commodious Area
Equipped with a lid-open safety stop to prevent laser leakage and ensure safer engraving
Making positioning more precise and operation more visible, ideal for image control, batch engraving and HD video recording.
Meeting the boundless needs of your business
Guaranteeing a tidy and tranquil environment and protecting your eyes from pernicious rays
The built-in LED light provides panoramic illumination within the enclosure for easy observation.
Driving off the fumes and harmful particles effectively, preventing combustion and creating a safer environment for engraving.

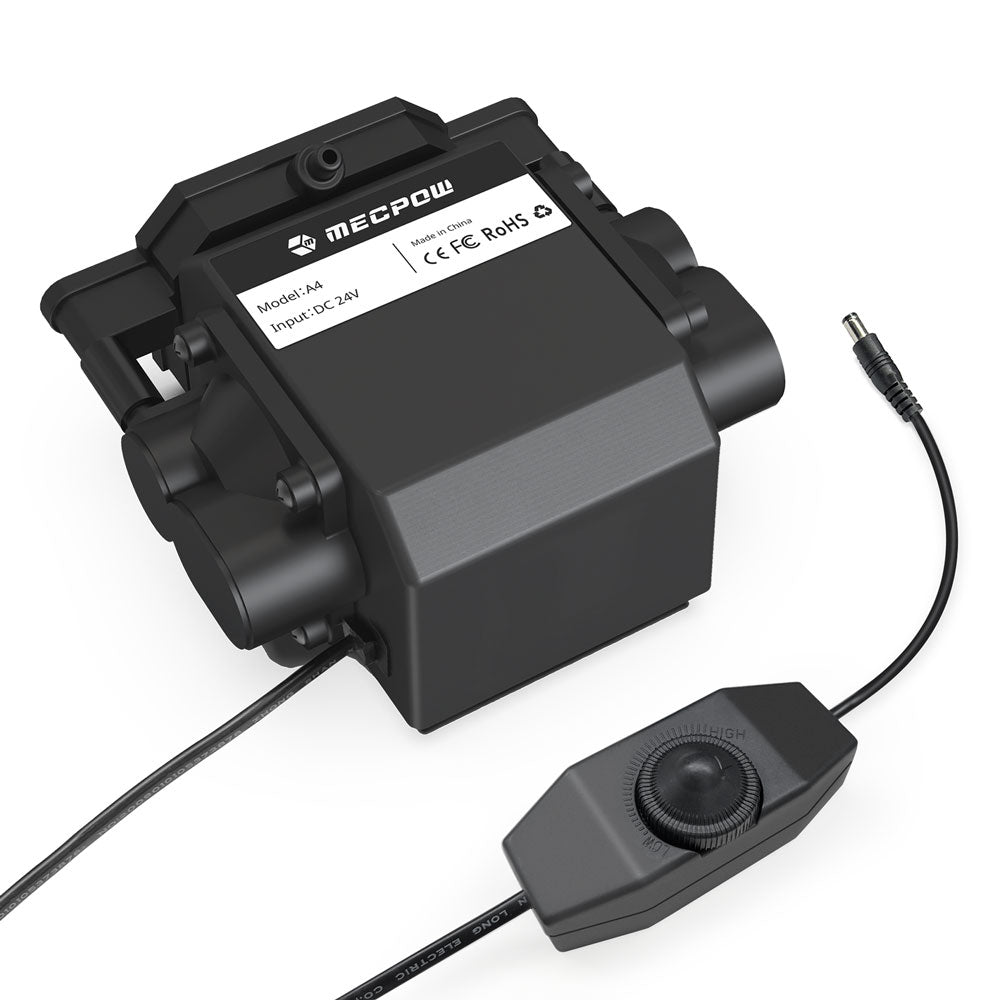

Creating exquisite engraving and protecting the lens with a 30L/Min air pump
All-Round Security System

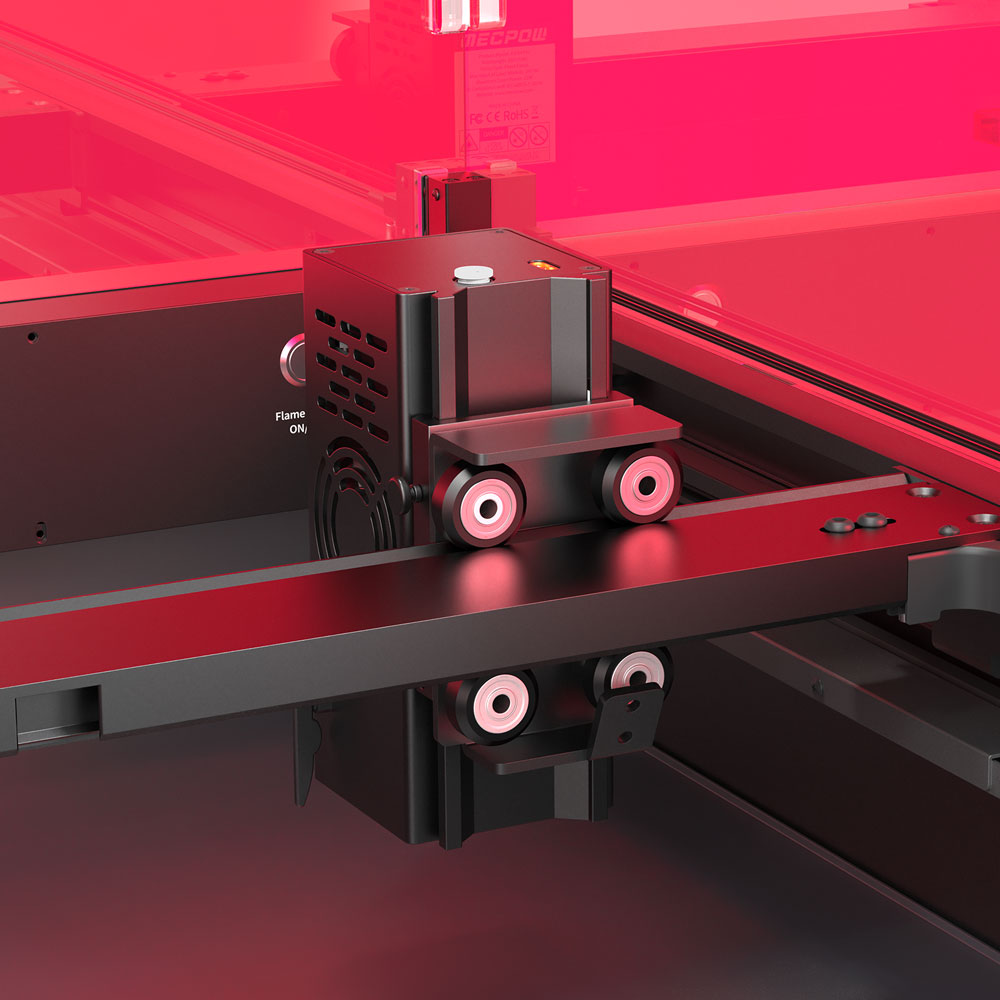

Limit Switches (4 Directions)
Tilt Sensor
Emergency Stop
Security Lock
Flame Sensor
Storing the debris and enabling you to unleash creation with rotary roller.

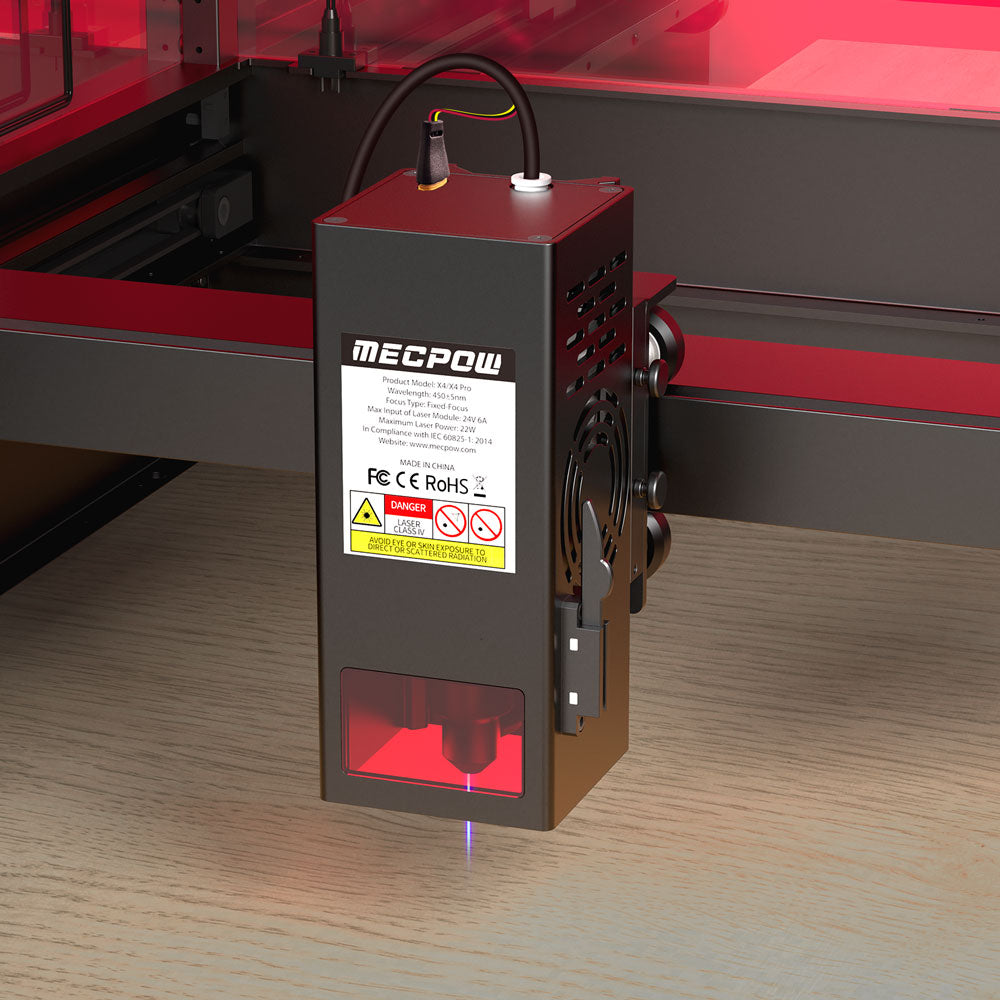

The 0.08x0.1mm laser beam creates fine, delicate and exquisite engraving and cutting.
Offering boosted efficiency for enhanced productivity.
With a spacious scale, you can create ingenious engravings without limitation.
The machine comes pre-assembled and requires only a few minutes to install all the acrylic covers.

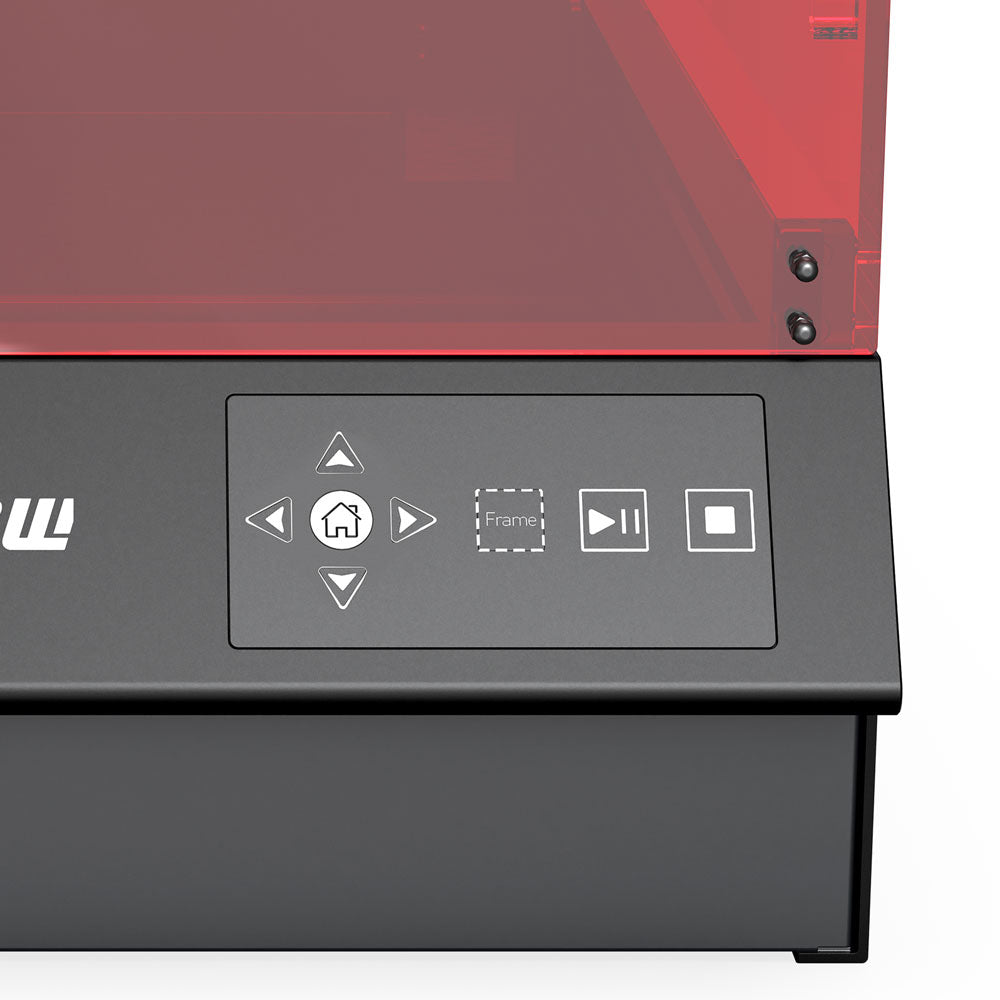

Immediately start engraving by inserting the TF card into the laser engraver and simply operating the control panel.
X4 Pro Specification
Brand: Mecpow
Type: Laser Engraving Machine
Model: X4 Pro
Color: Black and Red
Frame Material: Aluminum
Input Voltage: DC 24V
Rated Power: 144W
Max. Engraving Area: 410 x 400mm
Max. Engraving Speed: 22000mm/min
Spot Size of Laser Beam: 0.08 x 0.1mm
Tilt Alarm: 50°±5
Methods of Data Transmission: USB Wired/ WIFI Wireless/ TF Card
Software Support: MKSLaser APP/ LaserGRBL/ LightBurn
System Support: Windows/ Mac/ Linux
File Format Support: JPEG, BMP, GIF, PLT, PNG, DXF
Materials for Laser Engraving: Wood, Acrylic, China, Fabric, Bamboo, Plastic Board, Leather, Fruit, Bread, etc.
Laser Power: 22W
Air Velocity for Air Pump: 30L/min
Charger: AC 100~240V 2.5A (Input), 24V 6A (Output)
Built-in Camera: Yes
Panoramic Protective Cover: Yes
Automatic Exhaust Fan: Yes
Auto Air Pump: Yes
Lid Open/Off Safety Stop: Yes
FDA Class 1 Safety Certification: Yes
Drawer Design: Yes
Alarm: Yes
Emergency Stop: Yes
Security Lock: Yes
Tilt Sensor: Yes
Flame Sensor: Yes
Limit Switches: Yes
Offline Operation Support: Yes
Laser Head with a Laser Shield: Yes
Control Panel:Yes
LED Light: Yes
Net Weight:15 kg
Gross Weight: 21 kg

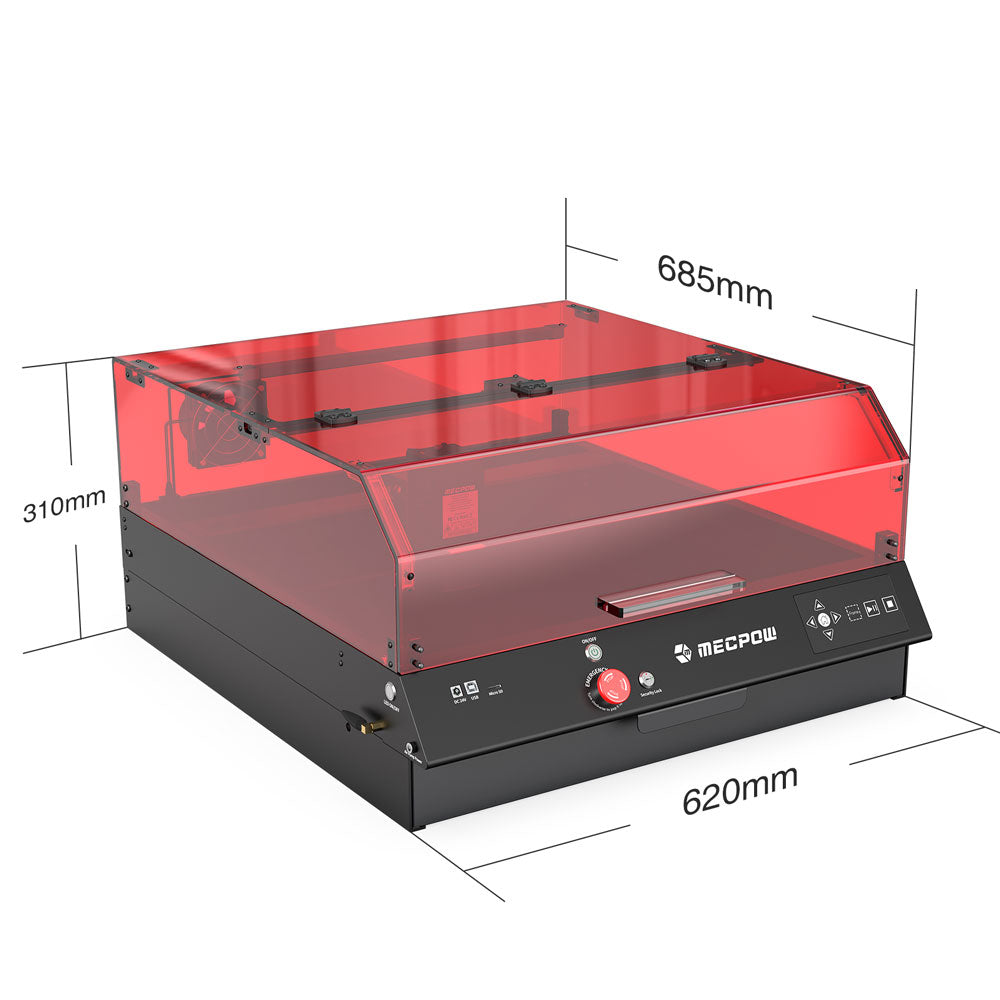

Product Size (L x W x H): 685 x 620 x 310mm
Package Size (L x W x H): 790 x 655 x 235mm
2 x Key
1 x Throat Hoop
1 x Screwdriver
1 x Exhaust Fan
1 x Exhaust Pipe
1 x Laser Module
1 x Power Adapter
2 x USB Cable
2 x Wood Board
1 x Metal Plate
1 x Goggles
1 x User Manual
1 x Air Pump
1x Screw Pack
1 x Cleaning Brush
1 x WIFi Antenna
1 x Left Protective Cover
1 x Right Protective Cover
1 x Rear Protective Cover
1 x Front Protective Cover
5 x Adhesive Cable Clip
1 x Calibration Card
4 x Raiser
4 x Protective Cover Support
1 x TF Card
1 x TF Card Reader
1 x Wrench
FAQs for X4
Can I use the laser engraver out of the box?
To enhance product protection during transport, it is partially assembled and will require installation. However, do not be concerned as an installation video and multi-language user manual are included in the package to assist you in assembling it easily and swiftly.
Will the protective cover prevent the smoke from flowing out?
Yes. The protective cover prevents smoke from escaping from anywhere other than the exhaust fan. The exhaust pipe vents out smoke and dust to the outdoors for a clean engraving environment.
Can the protective cover filter the harmful rays from the laser engraver?
Yes, the anti-blue light protective cover will filter the pernicious rays while still providing a panoramic view for easy observation.
Will the protective cover restrict the size of the engraving objects?
No, you can use it mainly for the engraving of small objects for batch production; you can also add raisers for the engraving of higher objects.
What can the camera do for us?
You can use it to record your engraving for even more fun or fast position with a visual aid for tracking the engraving position precisely.
What if the engraving objects are burned, even causing a fire?
Don’t worry; the situation won’t happen in most cases. The laser engraver is certified with FDA Class 1 security and has a comprehensive safety system: a flame sensor, limit switches, security lock, tilt sensor, and emergency stop, which will ensure the safety of both users and the machine. If there is a fire, the flame sensor will detect and activate the alarm while also halting the machine’s operation. You can check the environment and avoid placing the machine in direct sunlight. Contacting customer service to adjust the sensitivity of the lame sensor is also needed.
What kind of objects can the X4 Pro laser engraver engrave on?
The X4 Pro laser engraver can engrave on many objects: Wood, Acrylic, Glass, Metal, Cylinders, Cards, Board, Stainless Steel, Food, Leather, Fabric, Rubber and so on.
Can it connect to the smartphone?
Yes, it can connect to a smartphone for use. By connecting to the engraver's wifi and operating on the mobile app, MKSLaser, you will embark on your creation journey.
Does it support offline operations?
Yes, you can start the offline operation by inserting a TF card and operating on the control panel.
What system and software is it suitable for?
It supports multiple operating systems: Windows, Mac, Linux, Android, and iOS, and is compatible with software such as LaserGRBL and LightBurn.
