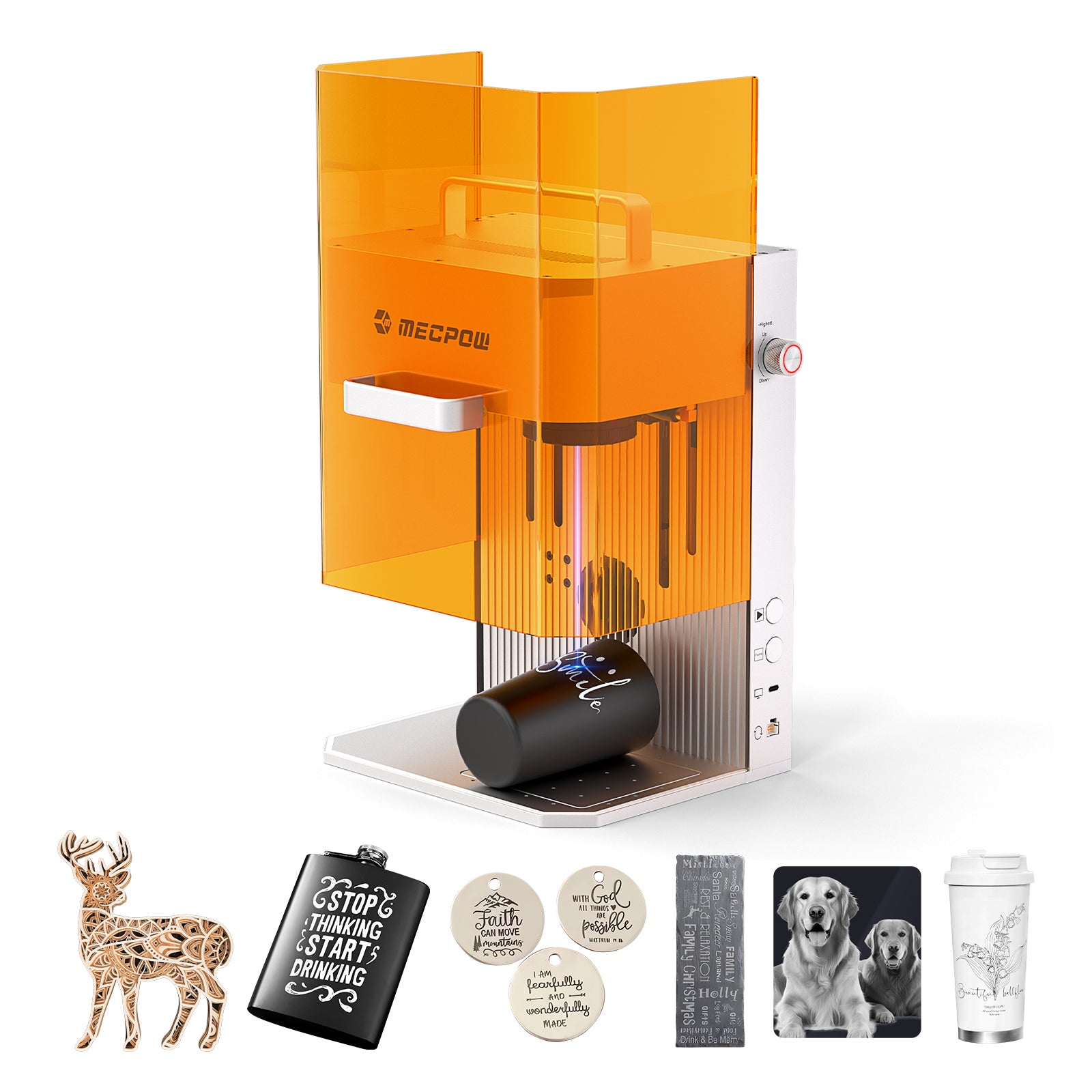

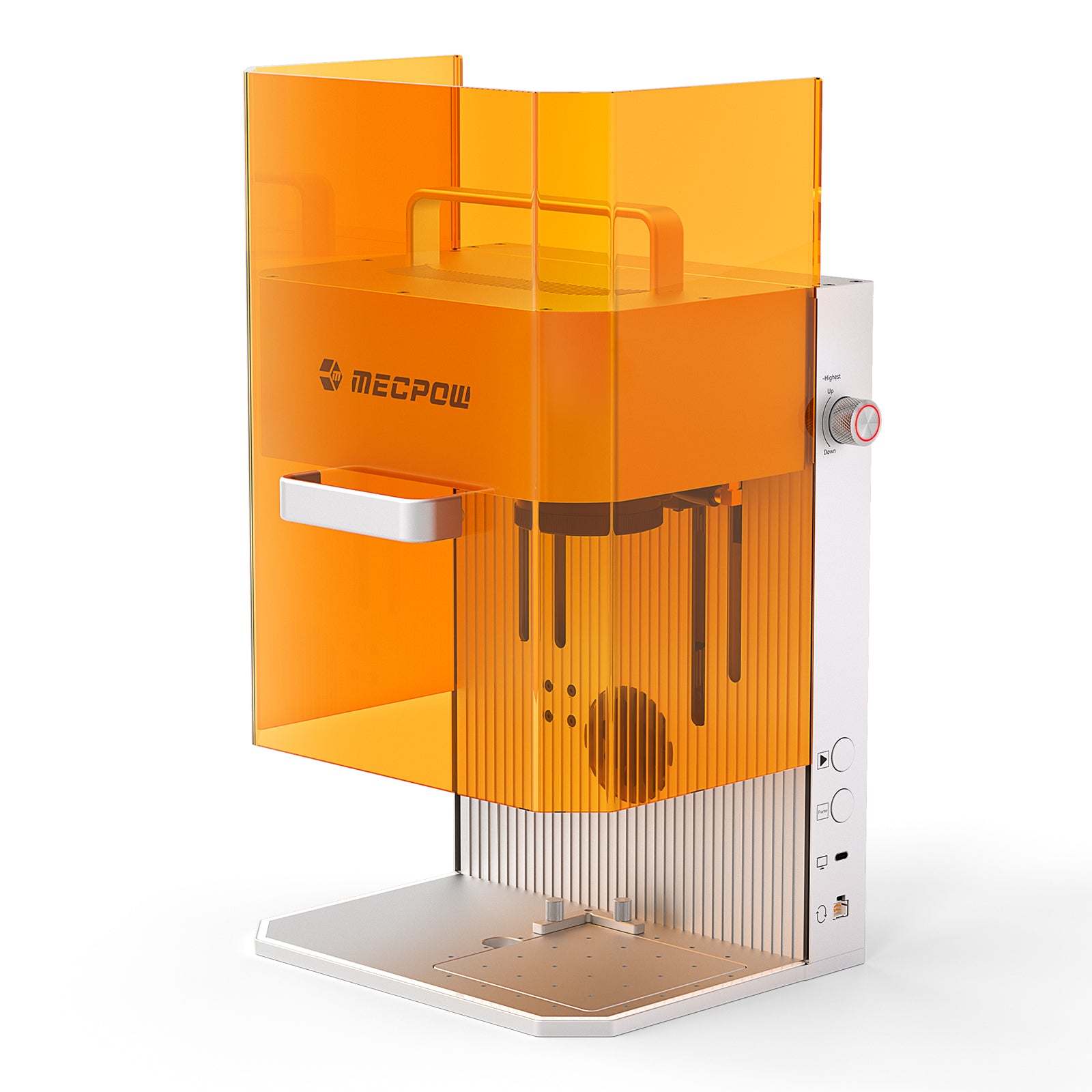

Mecpow X1 2W+10W Dual Laser Cutter and Engraver

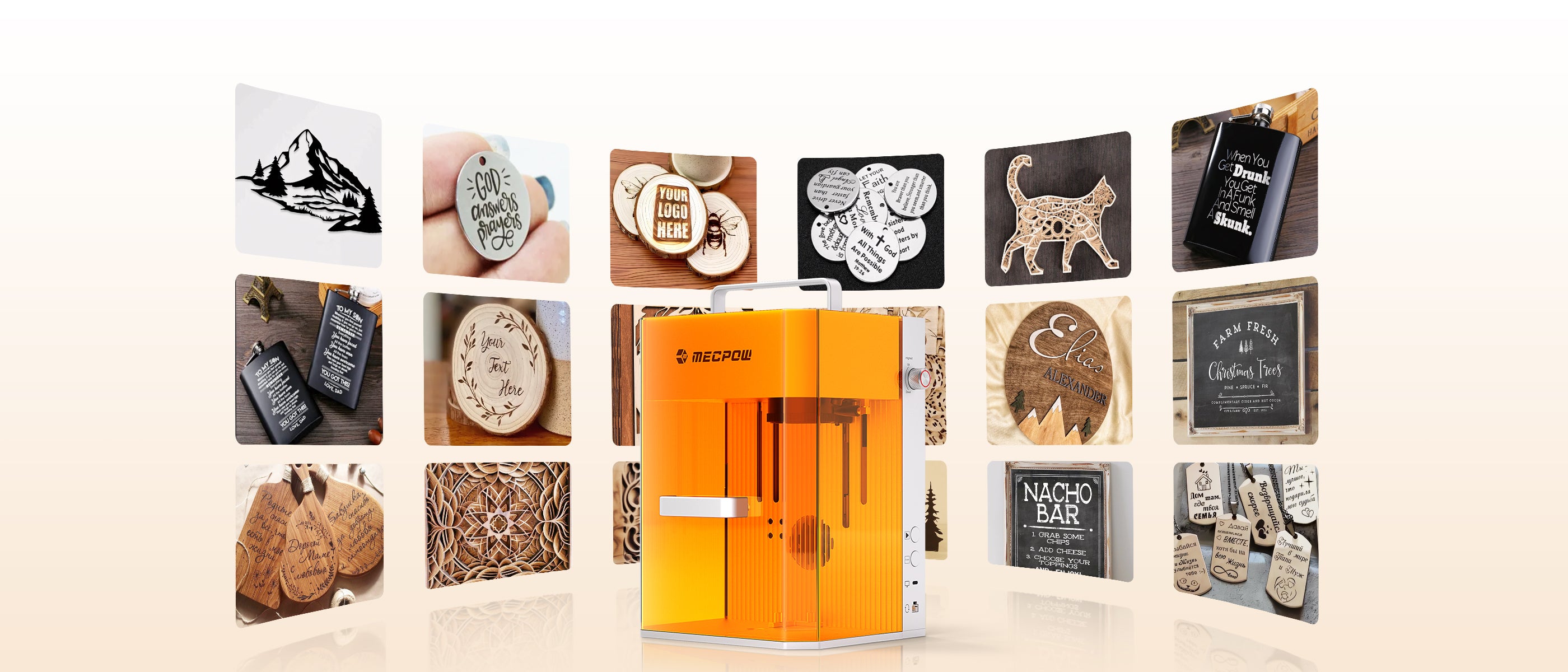

- Integrates a 2W infrared laser and a 10W diode laser, engraving over 300 materials.
- Industrial-grade high-frequency galvanometer module, max engraving speed 5000 mm/s.

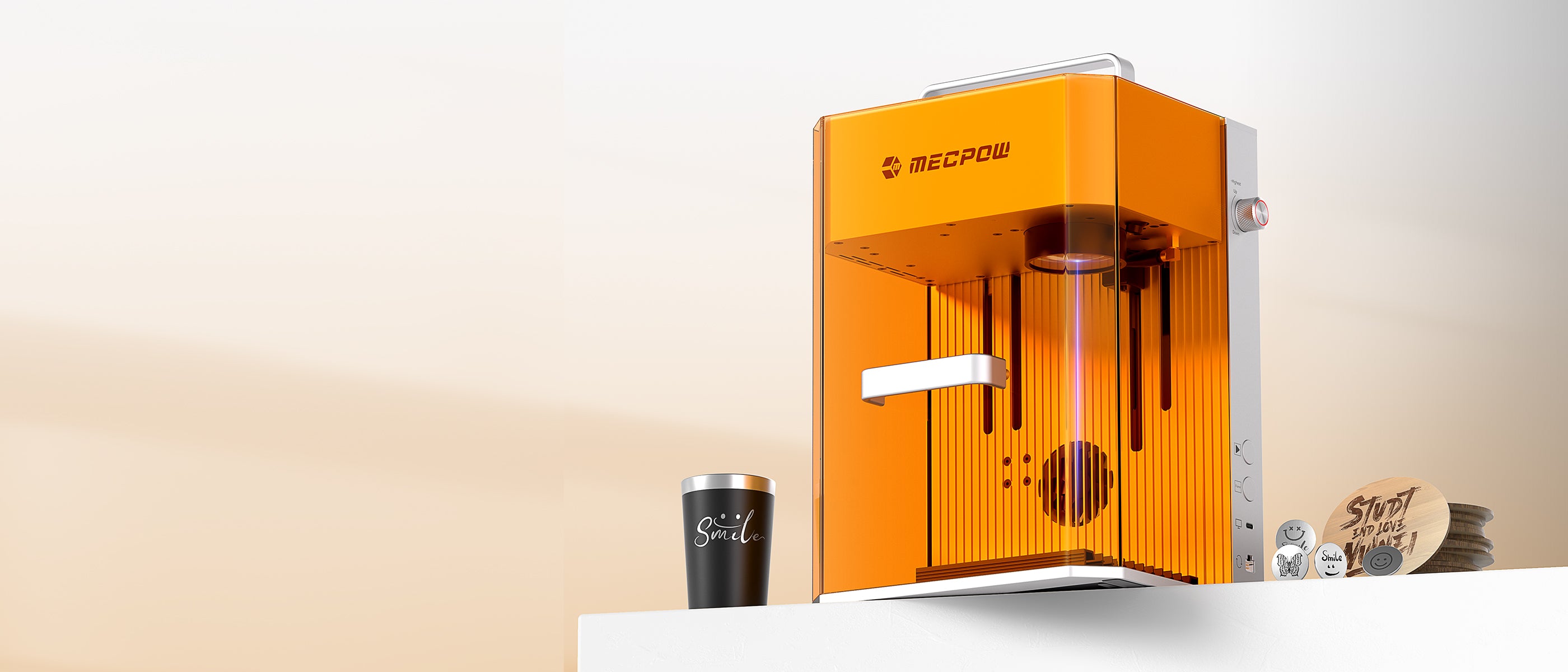

- Smoke-free operation and safety protection for worry-free engraving.

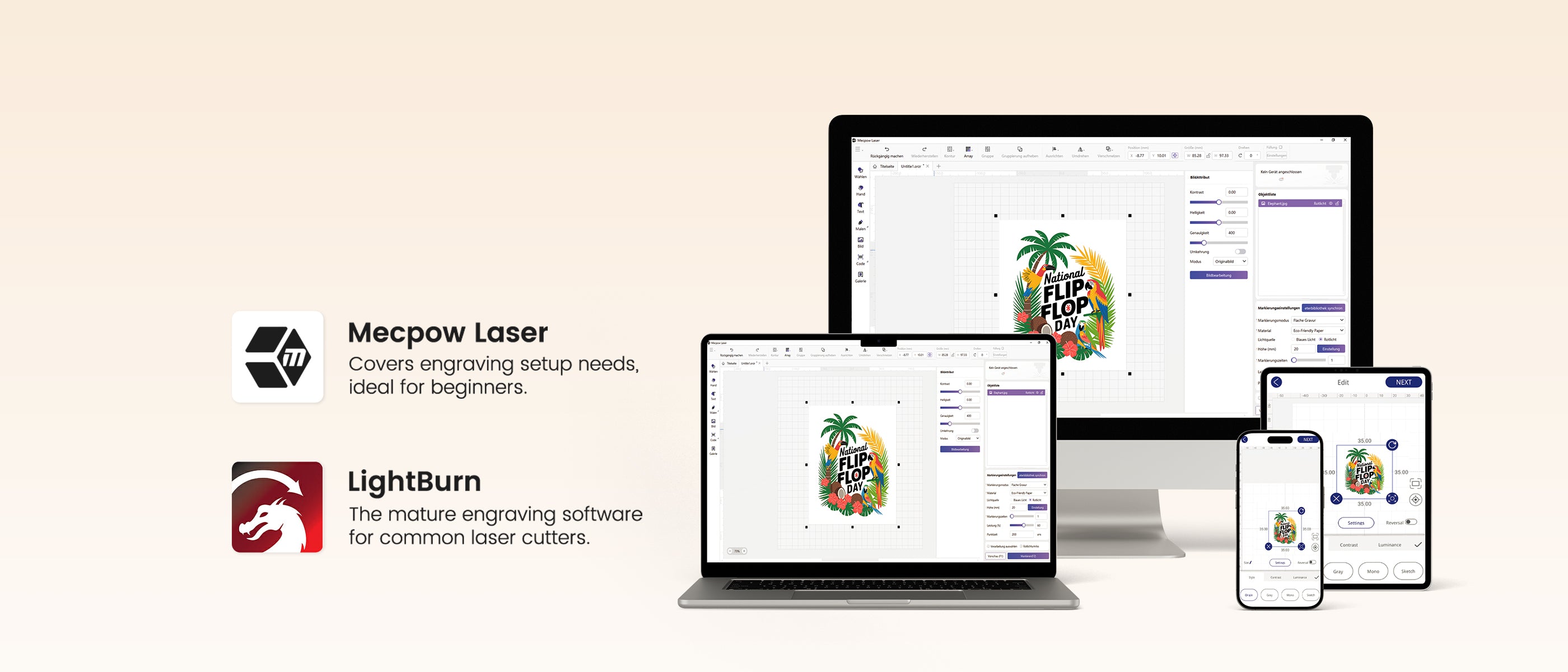

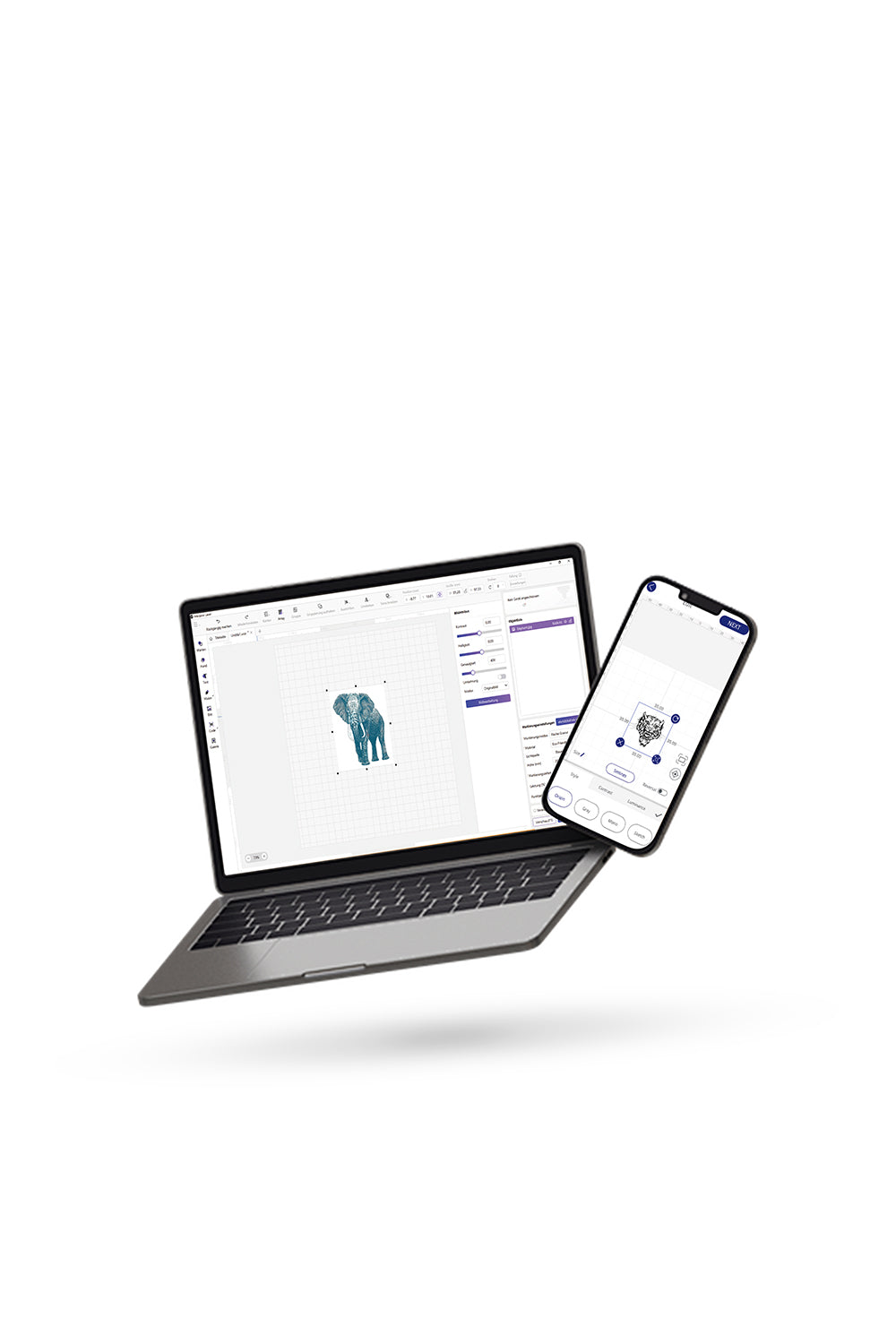

- Compatible with Mecpow Laser and LightBurn for easy computer operation for beginners.

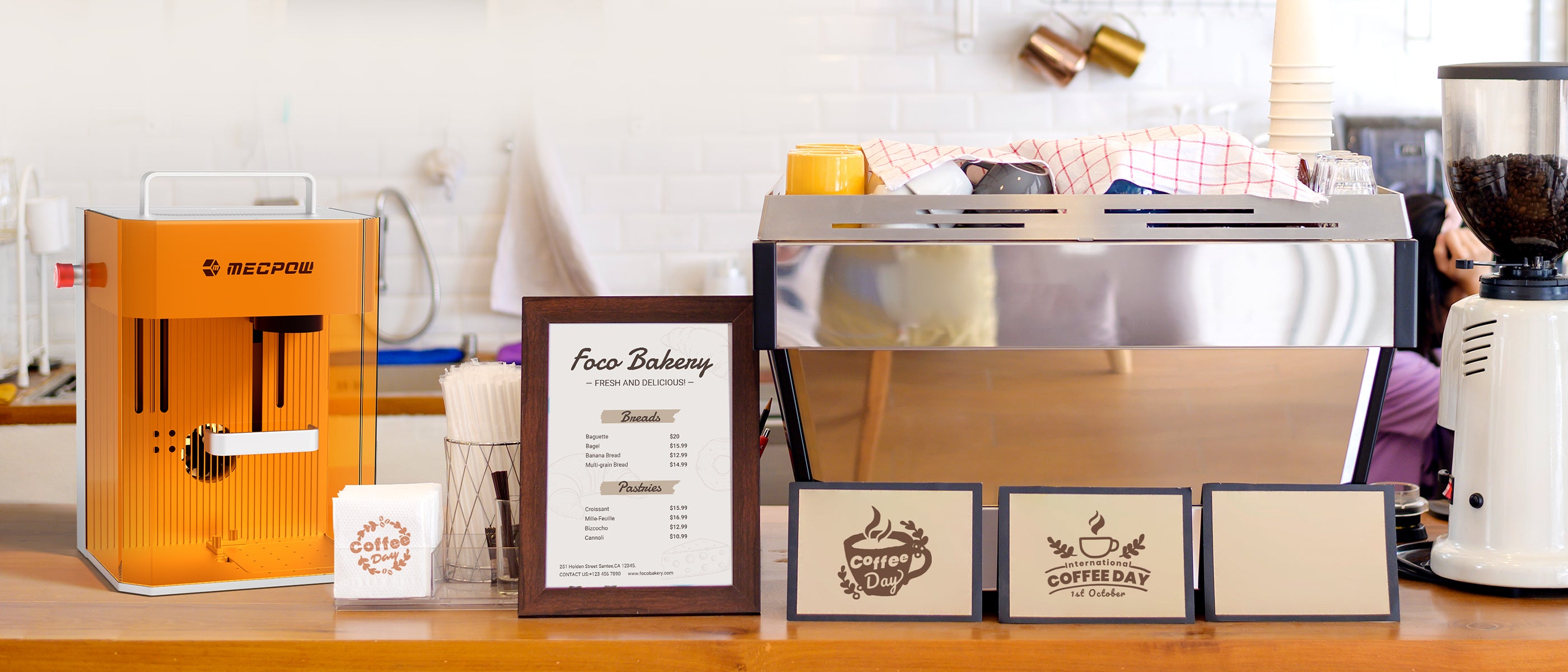

- Compact and portable design to facilitate selling creative handcrafts anytime.

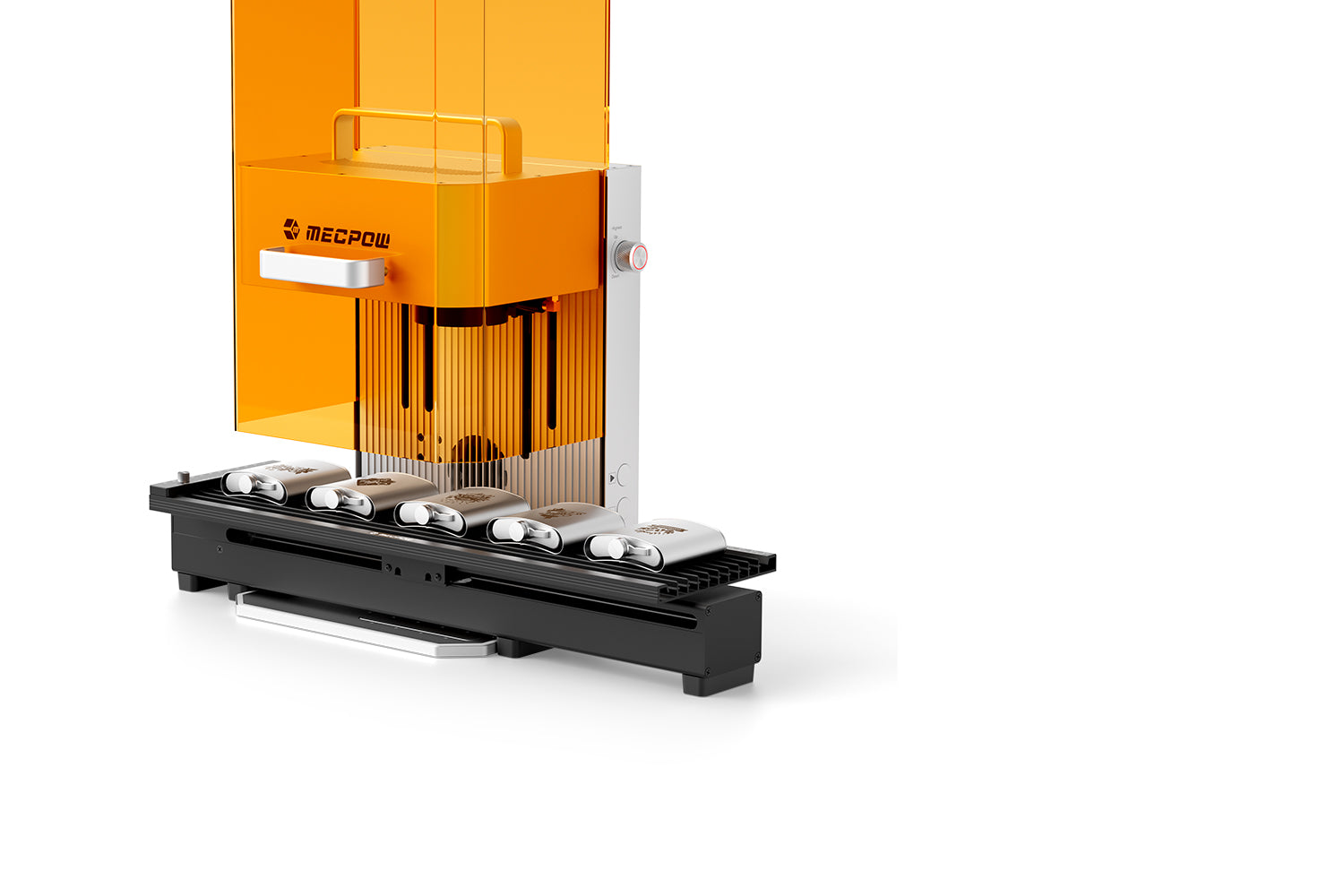

- Compatible with the Mecpow G1 slide expansion kit and the G5 rotary roller.
Dual-Laser Cutter & Engraver
10W Diode + 2W InfraredDual Lasers
Protective Cover
105 x 105 mm Max. Engraving Area
Wide Compatibility
WiFi & USB 2 Connection Modes
Class 1 Laser Safety

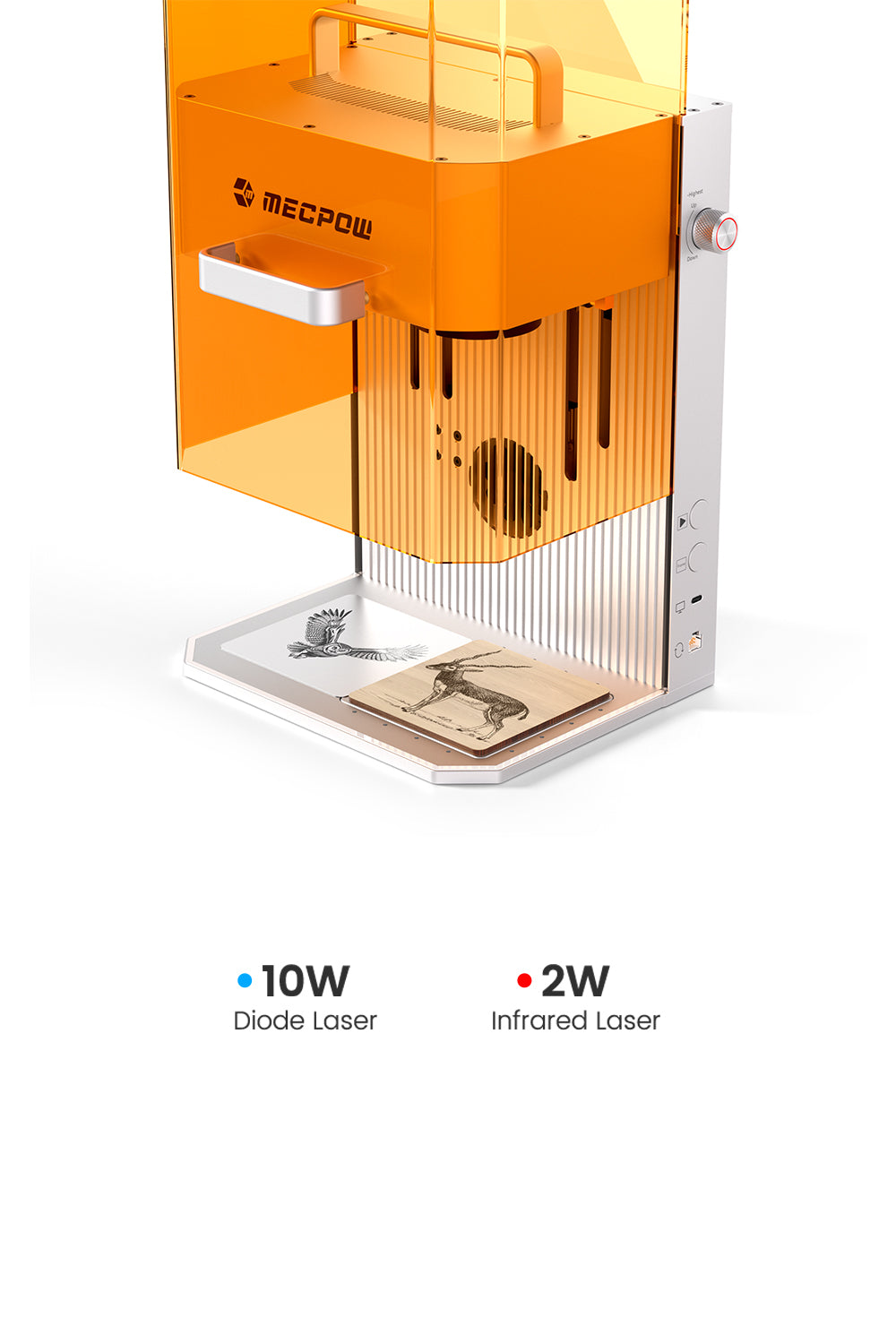

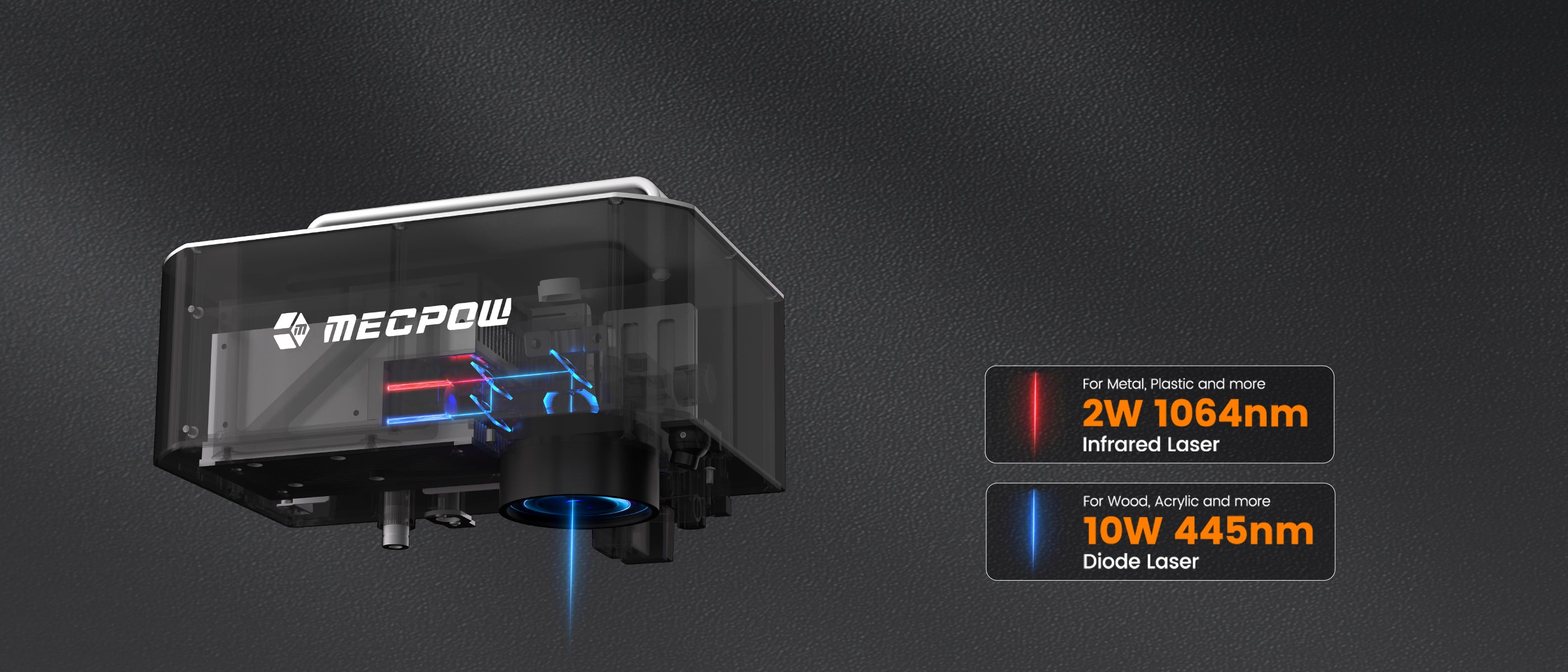

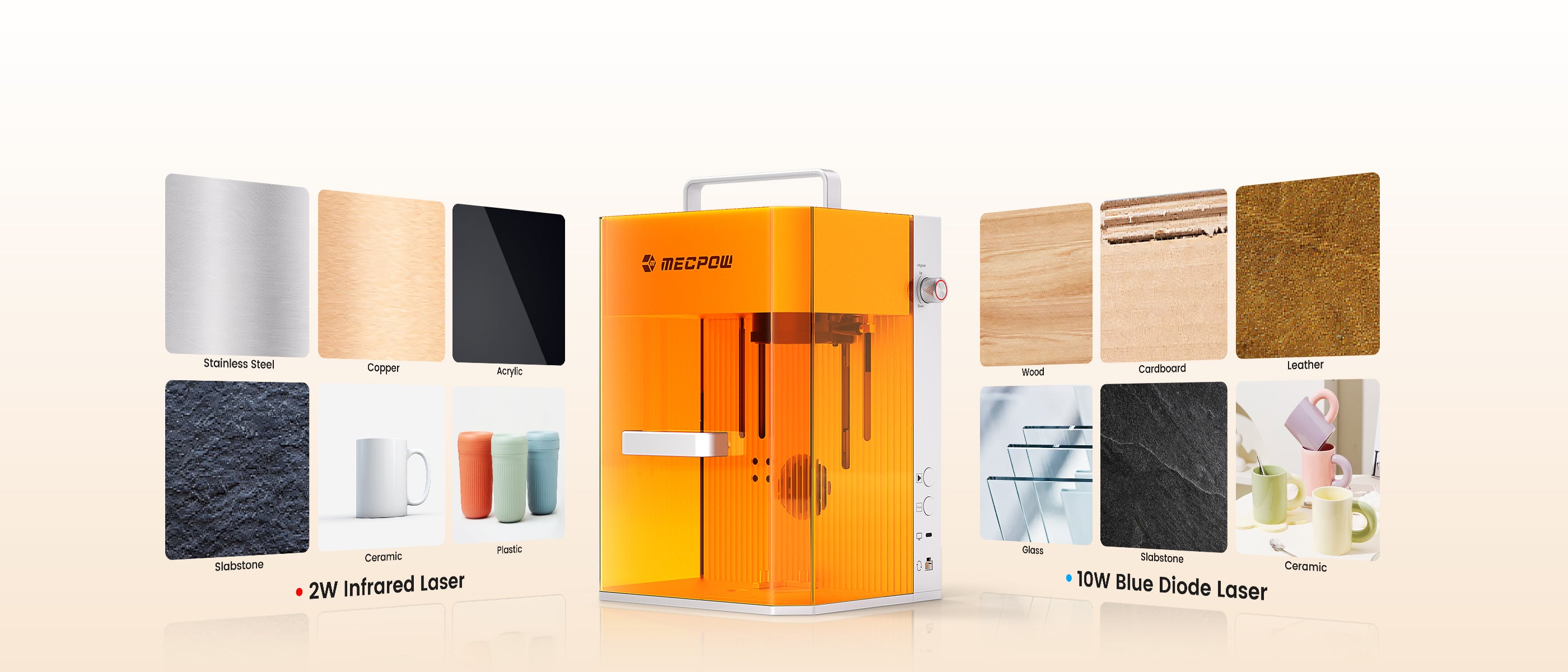

The laser engraver integrates a 2W 1064nm infrared laser and a 10W 445nm blue diode laser for almost all materials.
Cut Efficiently, Engrave Precisely
10W Diode Laser for Precise Cutting
The 10W 445nm diode laser delivers enough power for precise cutting on various materials.
Up to 8mm Wood
Up to 5mm Black Acrylic
Complete Engraving in Just 4 Steps
Design the Text or Pattern
Preview & Position in the Engraver
Pess the Button to Start Engraving
Wait for the Completion
2 Focus Methods for Precise Engraving
Auto Focus
Enter the material thickness and click "Adjustment", and the machine will focus automatically.
Thickness: 3mm
Manual Focus
Turn the knob to move the laser head up and down until the red and blue light spots coincide.
Live Preview of Engraving Status
Frame Preview
Pattern Outline Preview

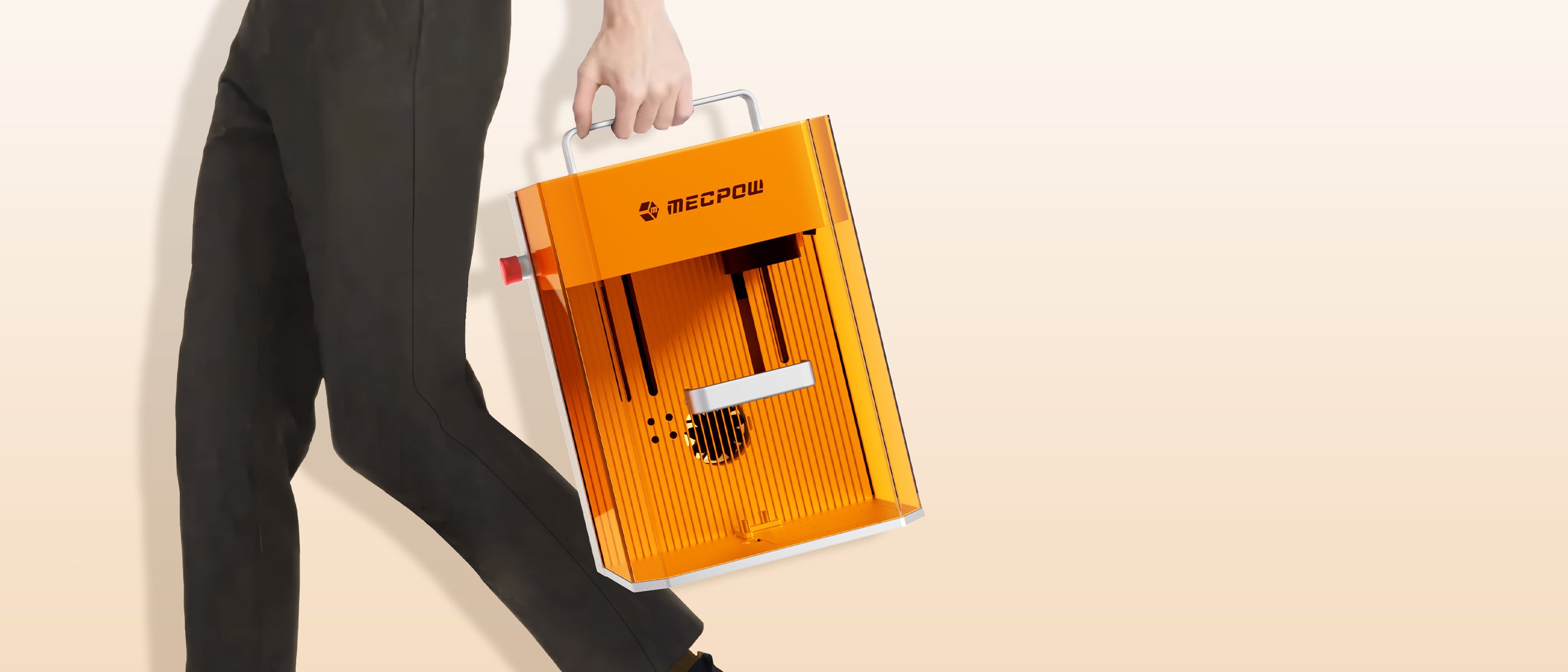

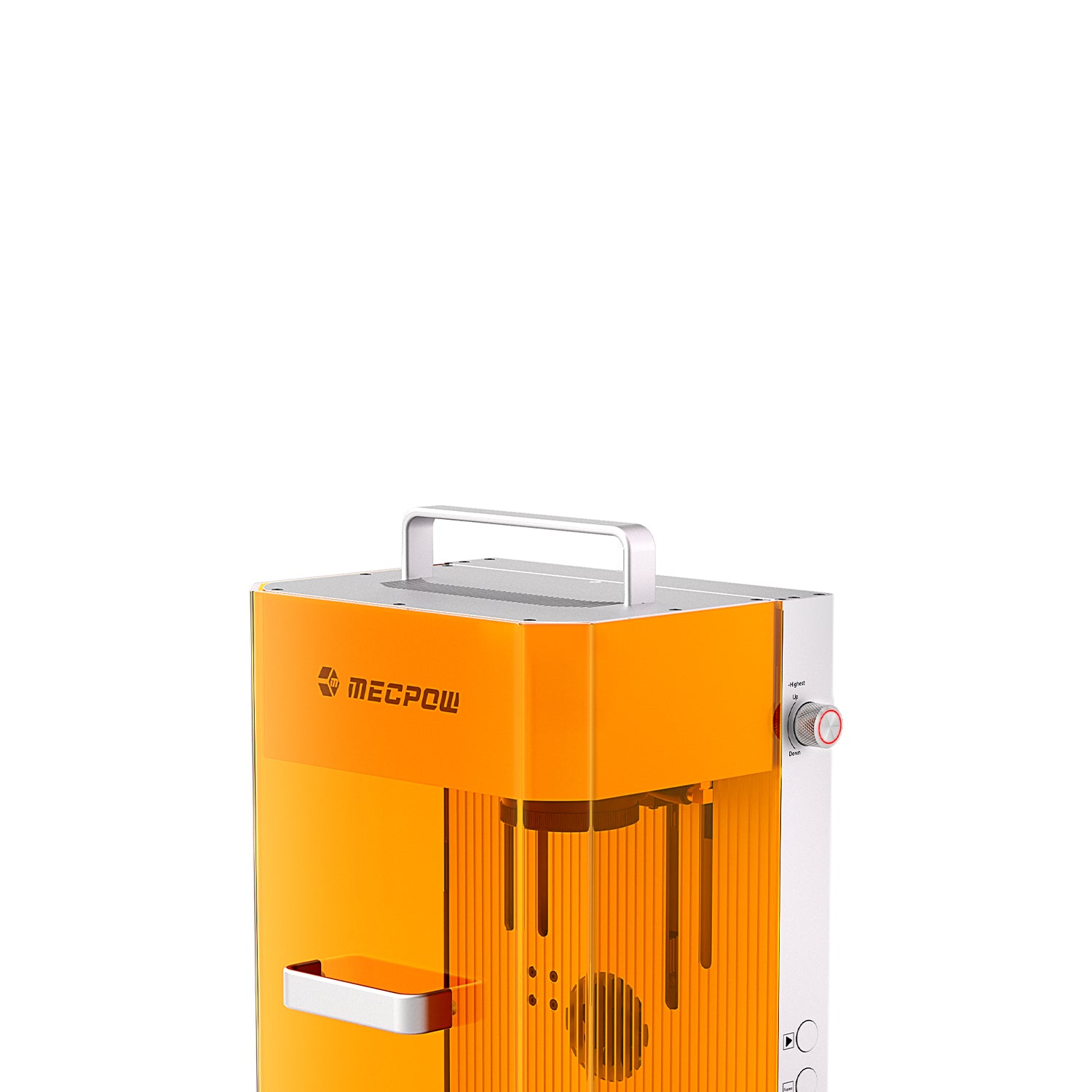

Weighing about 6.5kg, it can be easily lifted and carried anywhere, whether you're engraving at home or on the go.
X1 Specification
Brand: Mecpow
Type: Laser Engraver
Model: X1
Color: Silver and Orange
Material: Aluminum, Acrylic
Input Voltage: DC 12V, 6A
Rated Power: 72W
Max. Engraving Area: 105×105mm
Max. Engraving Speed: 5000mm/s
Laser Spot Size: 0.03×0.03mm (Infrared Laser), 0.06×0.08mm (Diode Laser)
Connection Methods: WiFi, USB
Software Support: LightBurn, Mecpow Laser (PC), Mecpow (App)
System Support: Windows, macOS, Android, iOS
File Format Support: JPG, BMP, PEG, PNG, etc.
Rated Power: 72W
Input Power: 36W
Laser Power: 2W (Infrared Laser), 10W (Diode Laser)
Wavelength: 1064±1nm (2W), 445±5nm (10W)
Positioning Accuracy: 0.0001mm
Input Voltage: 110V-240V
Output Voltage: 12V
Output Current: 6A
Product Weight: 6.5kg
Package Weight: 8.9kg
Product Size (H×W×D): 284×259×331mm
Package Size (H×W×D): 350×350×420mm

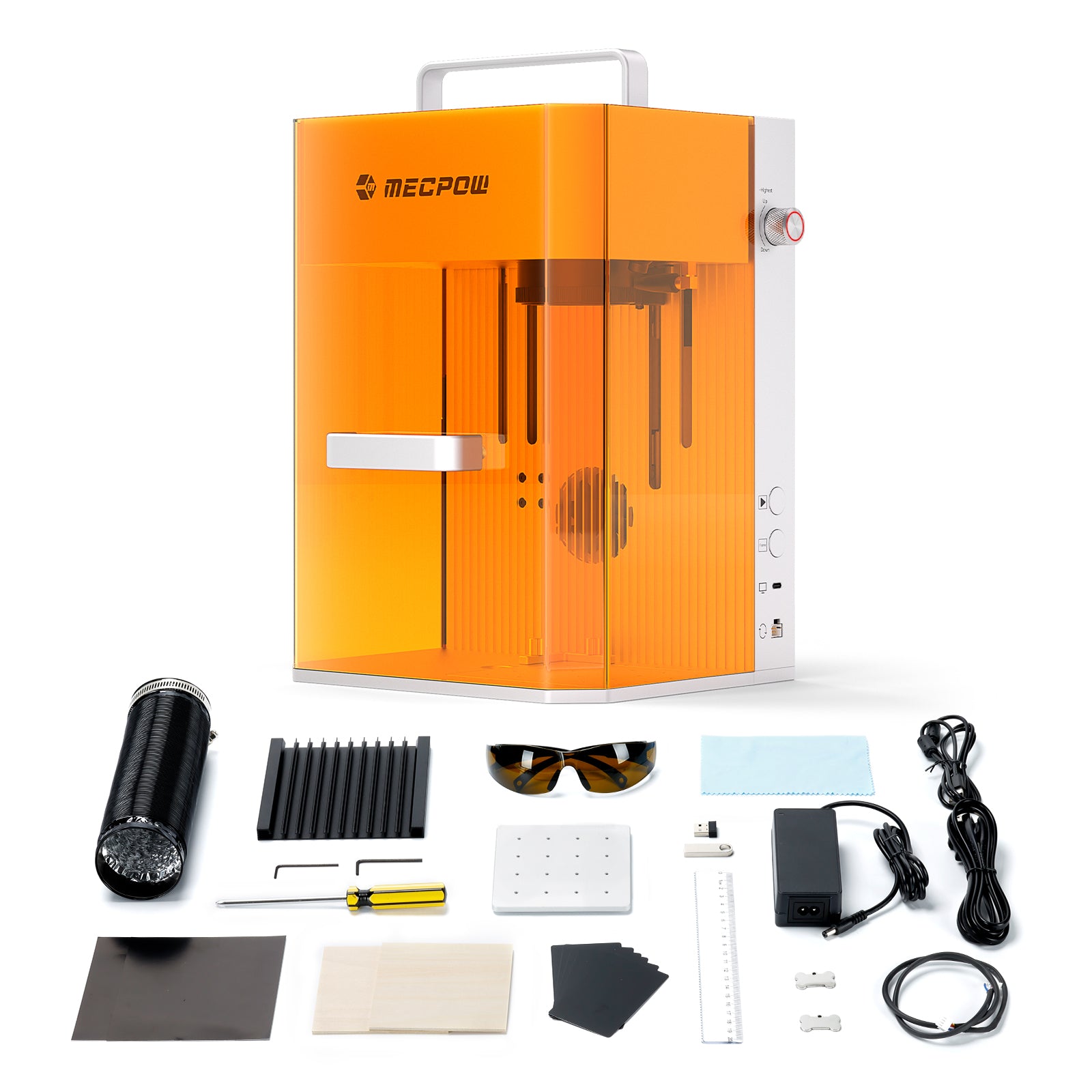

1 x Laser Engraver
1 x Power Cable
1 x Power Adapter
1 x USB Stick (2GB)
2 x USB Key
1 x Exhaust Pipe
1 x Throat Hoop
6 x Metal Plate
2 x Engraved Card
2 x Wood Board
1 x Googles
2 x Allen Key
1 x Screwdriver
1 x Ruler
1 x Cutting Panel
1 x Positioning Fixture
2 x Pet Tag
1 x Type-C Cable
1 x 4-Pin to 8-Pin Cable
1 x User Manual
FAQ
What are the main features of the X1?
The Mecpow X1 is a portable ultra-high-speed laser cutting and engraving machine equipped with dual light sources (2W 1064nm infrared laser + 10W 455nm diode laser), suitable for both beginners and professionals. It comes with a protective cover that can be used with a smoke purifier, allowing you to work indoors with peace of mind.
What materials is it suitable for?
This laser engraving machine is compatible with over 300 materials. Its blue diode laser can engrave wood, leather, acrylic, glass, ceramic, rubber, fabric and slate, while the infrared laser can engrave common metals such as gold, silver, copper, platinum, aluminum and iron.
Note: Different power settings may affect engraving results. Please refer to the recommended operating parameters before use.
How do I switch between the infrared laser and diode laser on the laser engraving machine?
You can switch between the infrared laser and diode laser directly via the Mecpow Laser software.
How do I connect the machine?
Wireless Connection: Enable your phone’s WiFi function and connect to the Wi-Fi named “Mecpow”. Select “Stay connected”. Then open the app and choose “Device Connection” in the settings.
Wired Connection: Connect the computer to the laser engraving machine using the included USB-C cable.
What are the engraving speed and precision?
The maximum engraving speed can reach 5000mm/s, which varies with the complexity of the engraving image. The engraving precision can reach 0.001mm, depending on the material and settings.
What software does the X1 require?
You can download our proprietary software “Mecpow Laser” or use the third-party software “LightBurn”. However, some features may not be available when using “LightBurn”. For optimal performance, we recommend prioritizing the use of the “Mecpow Laser” software and the “Mecpow” app.
Can it be used with engraving machine accessories?
It is compatible with Mecpow accessories, including the G5 rotary roller, G1 slide expansion kit and Mecpow smoke purifier.
What is the processing area of the X1?
The maximum processing area of the Mecpow X1 is 105×105mm, with a maximum engraving height of 110mm. You can also use the G1 slide extension kit to increase the processing area to 370×105mm.
