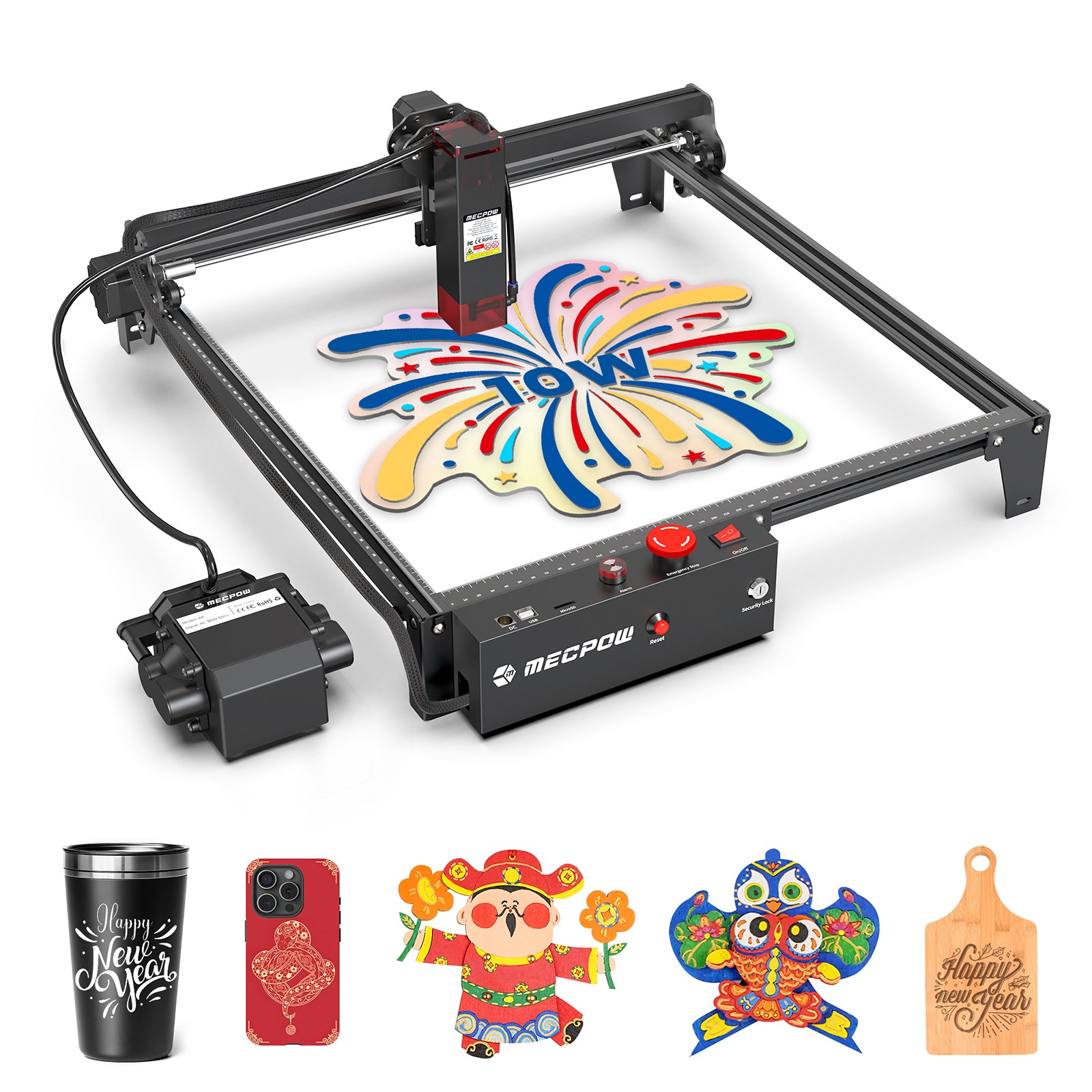

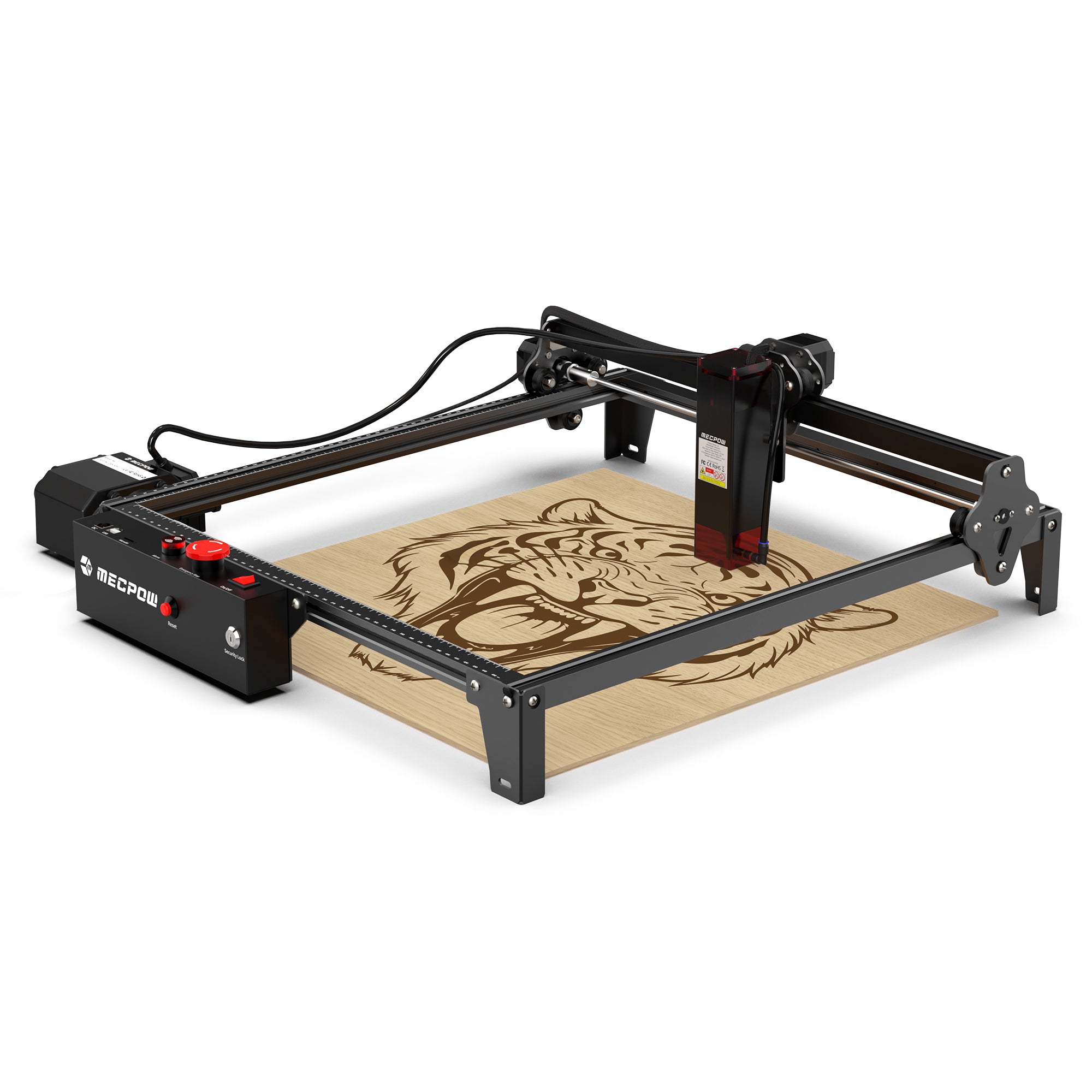

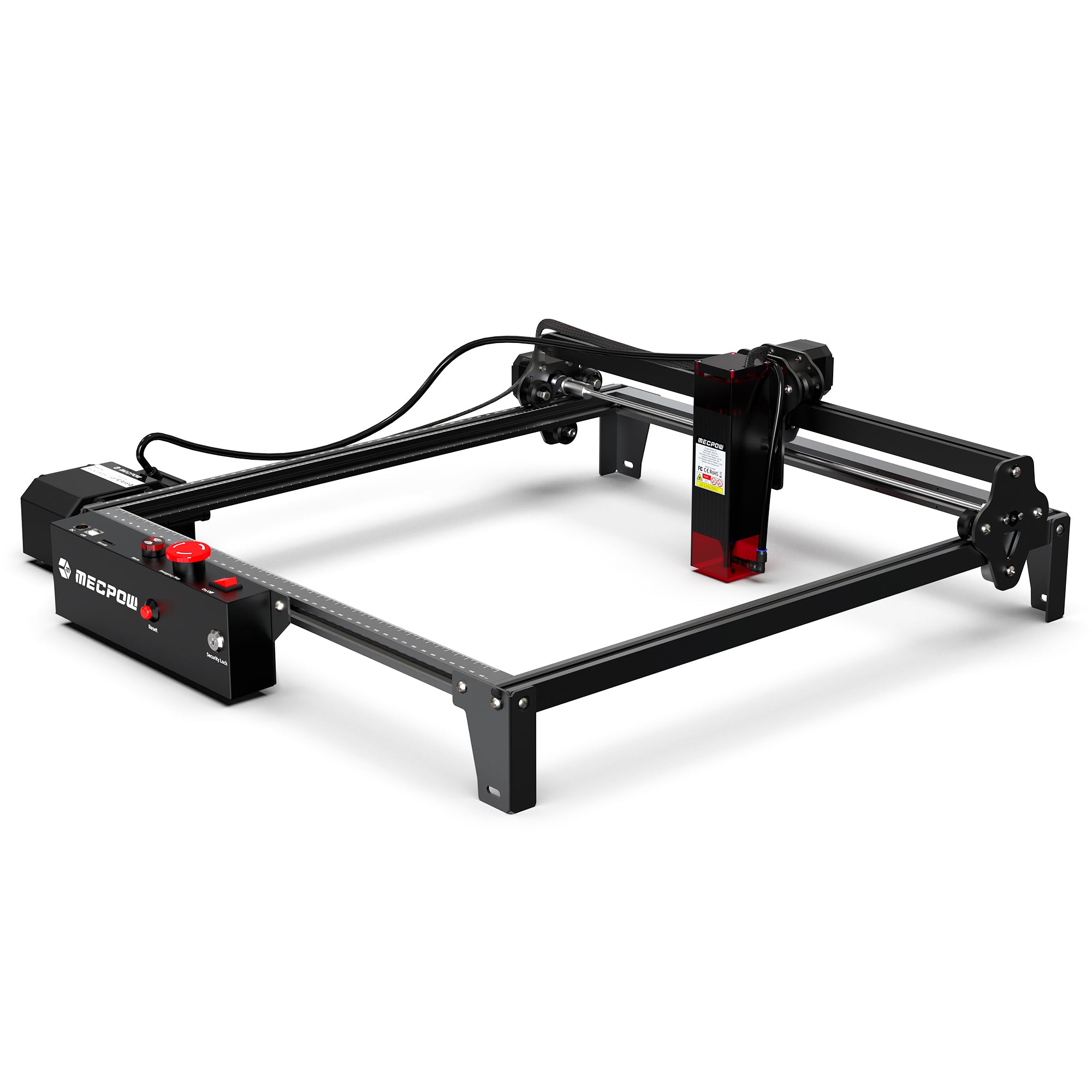

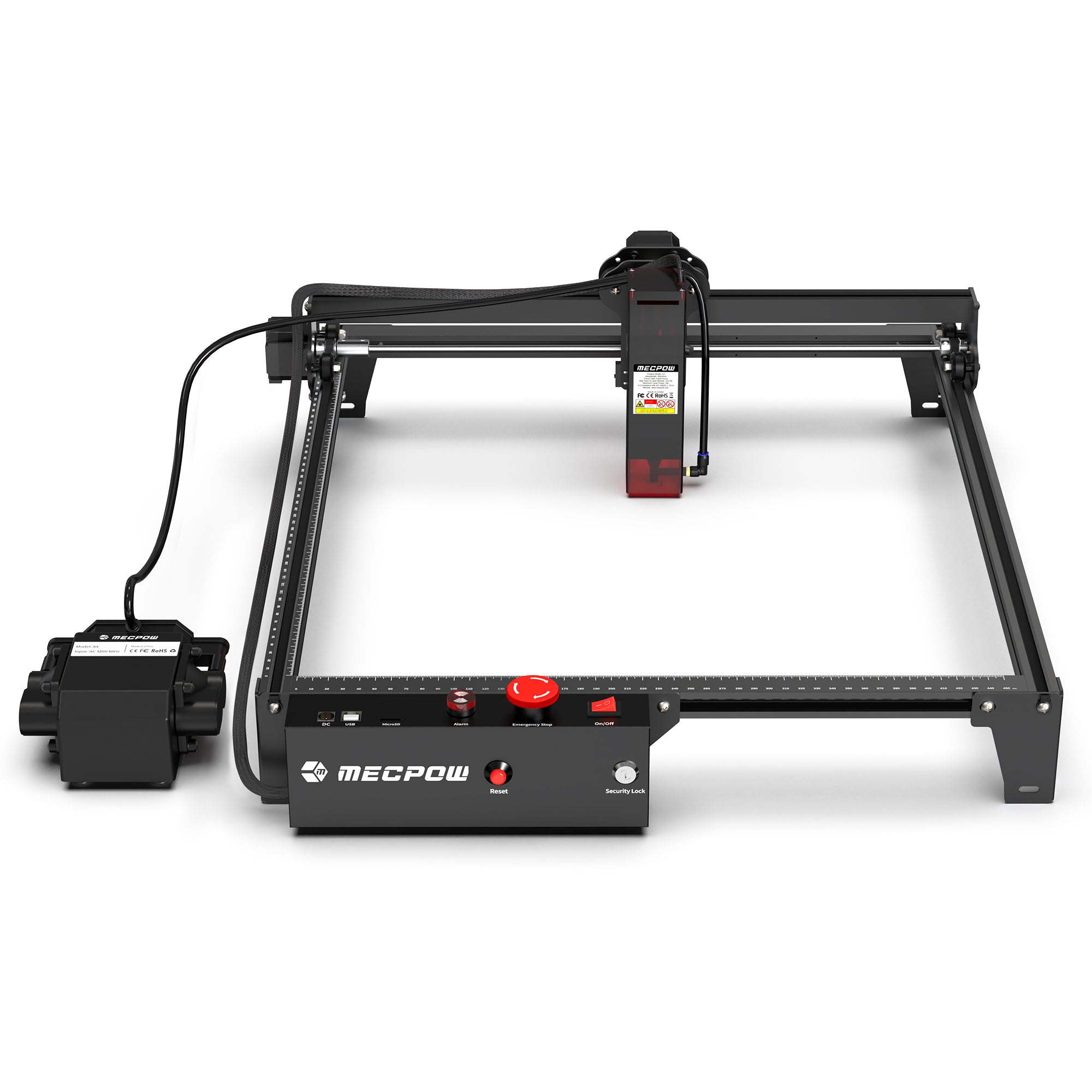

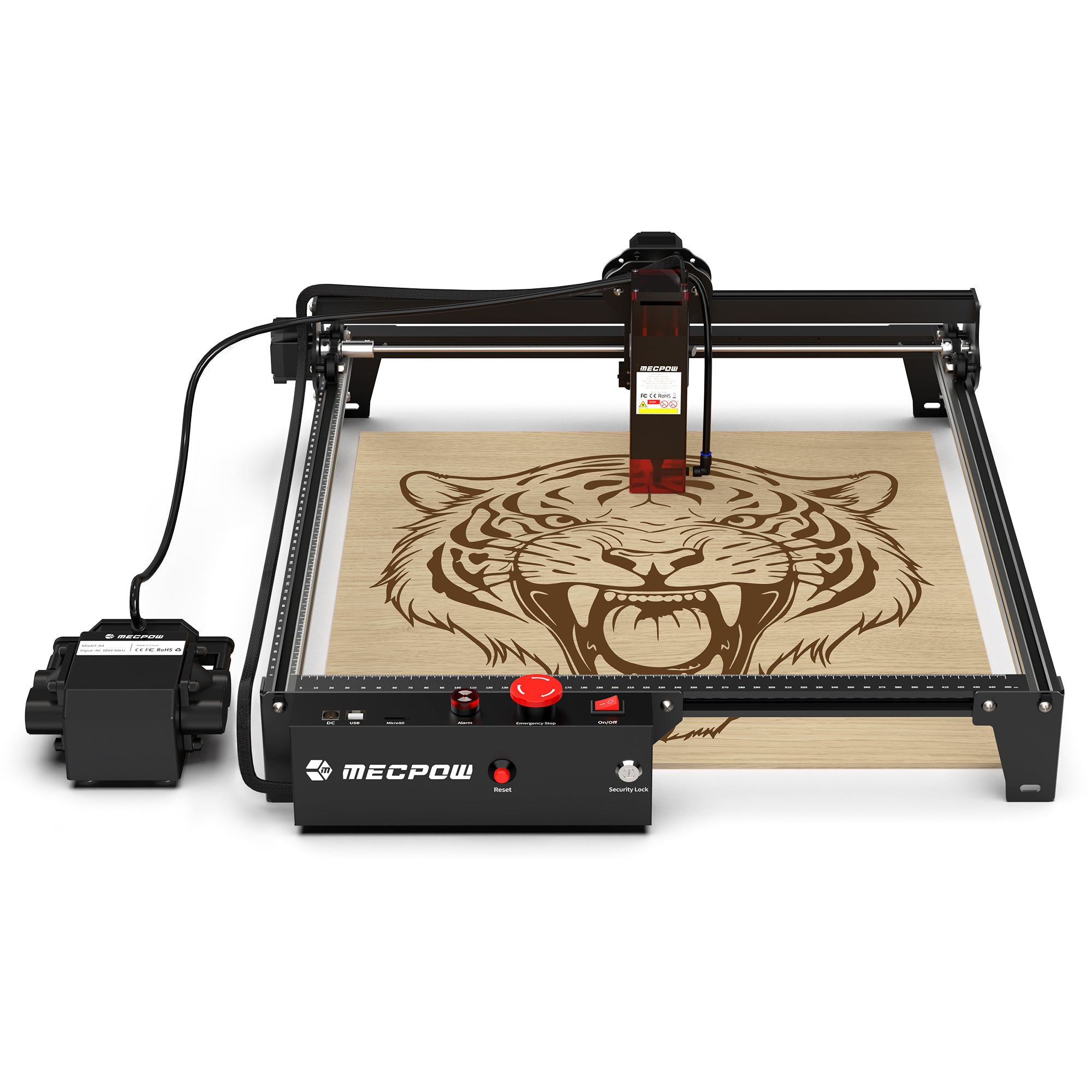

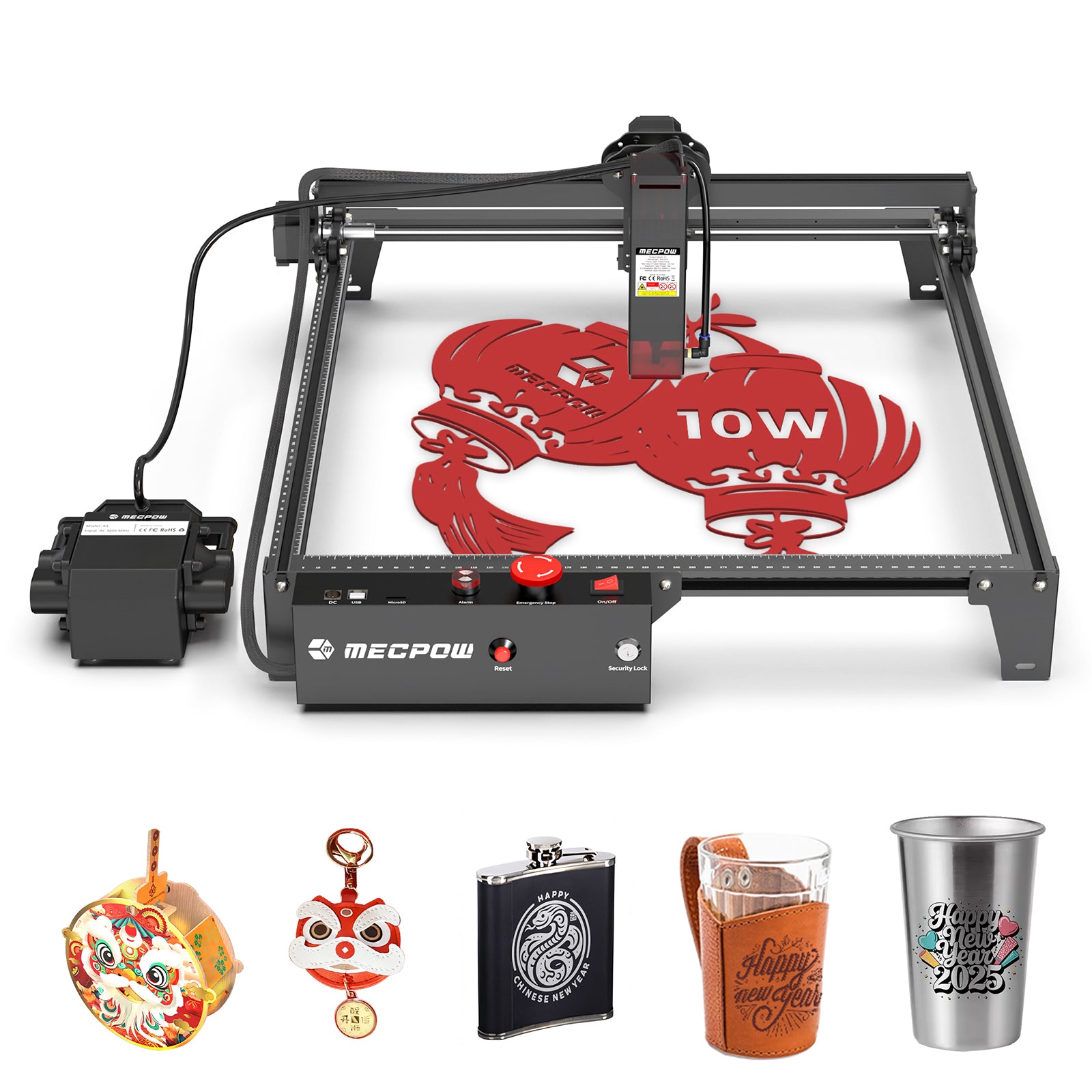

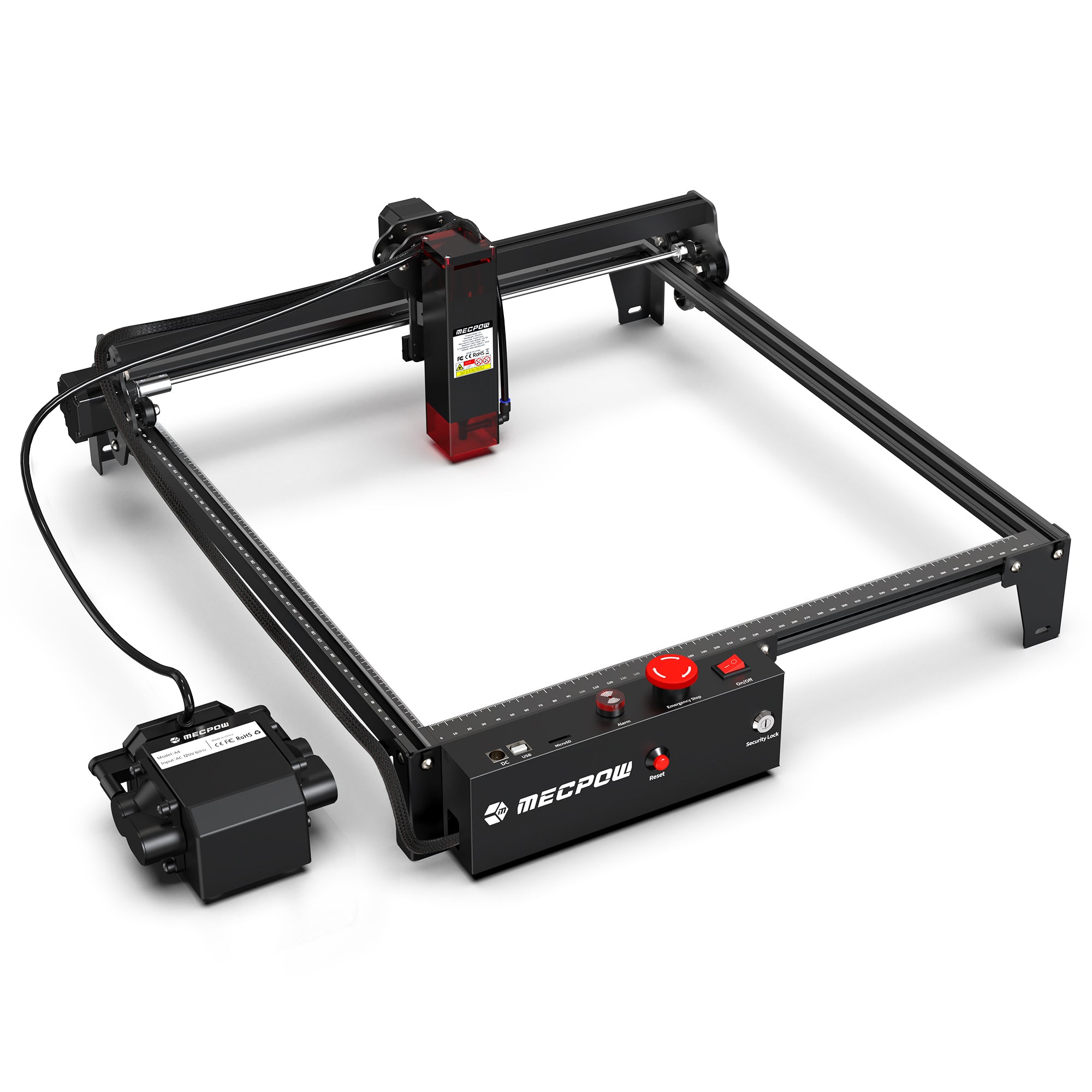

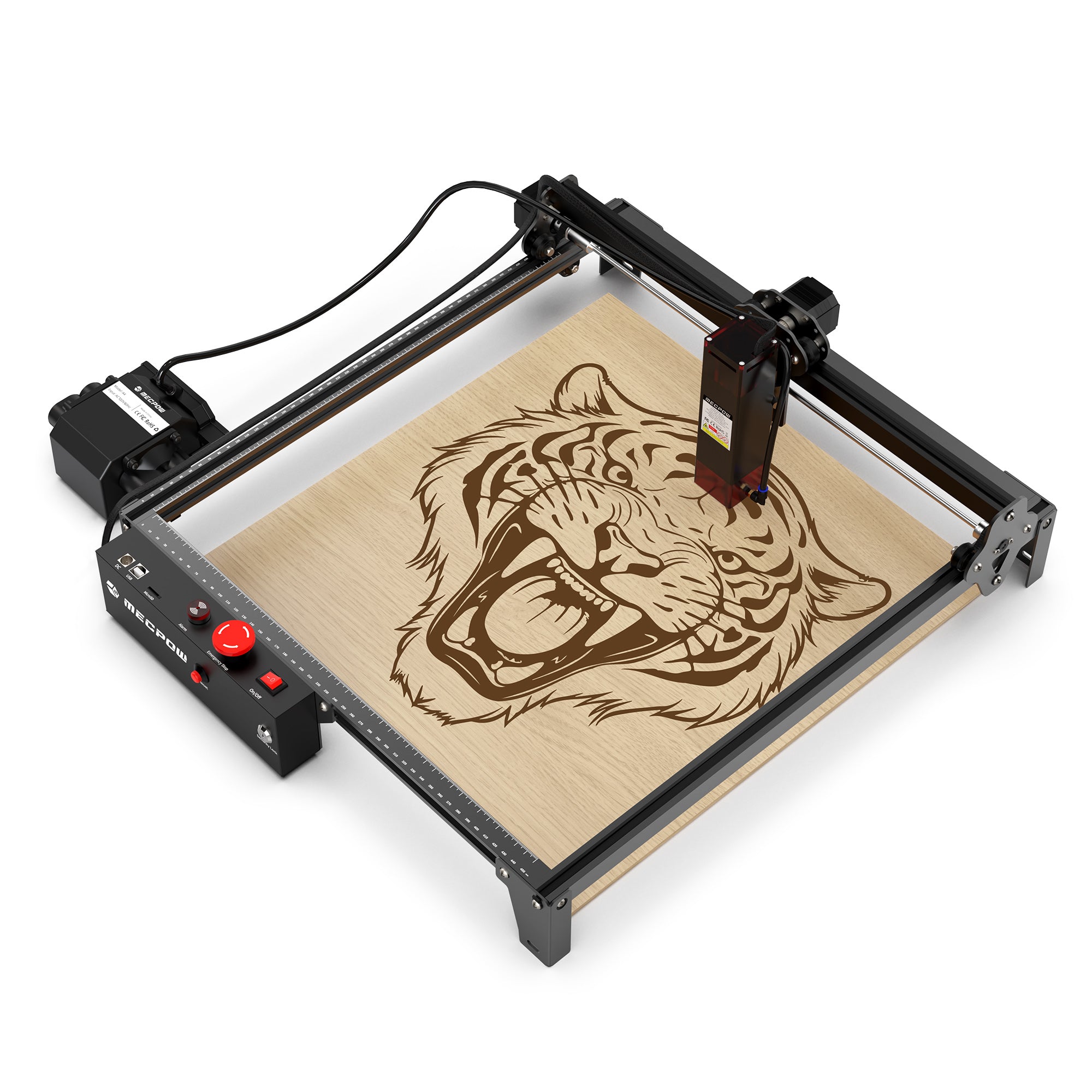

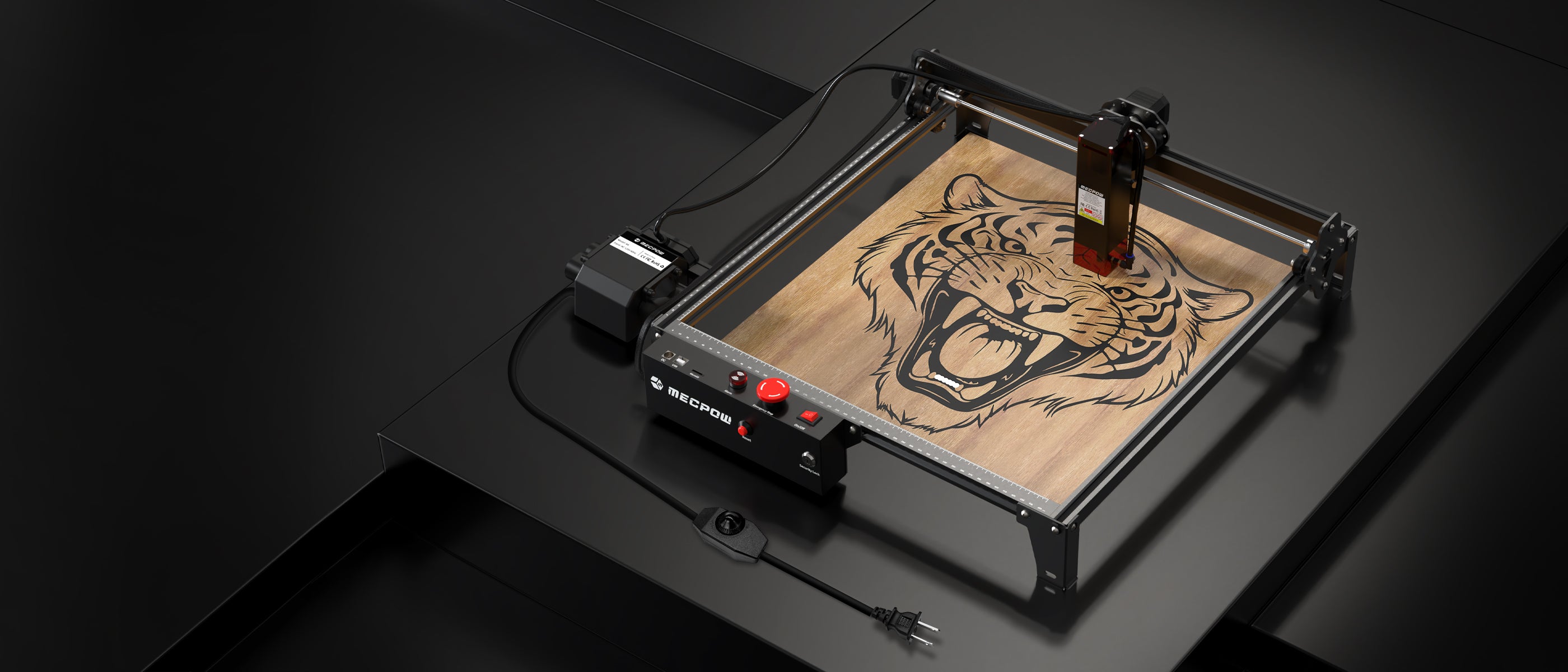

X3 Pro 10W Laser Engraving Machine With Air Pump Kit
High-Precision Engraving
The Mecpow X3 Pro adopts a 10W diode laser with a small focus of 0.06x0.08mm and an engraving accuracy of 0.01mm. The small spot size, along with short pulses, produces high peak power, which can achieve more accurate and deeper engraving and cutting. It can cut a wood board with a 20mm thickness and an acrylic board with a 15mm thickness.
Upgraded Security
The X3 Pro machine boasts a flame sensor and a gyroscope sensor, which can trigger the alarm and stop the machine’s operation in the event of fire or tilting more than 50±5°. Besides, limit switches are included to prevent accidents and reduce wear by stopping the machine from moving beyond its safe limits, leading to a longer lifespan of the laser engraver. Furthermore, you can stop the machine anytime by pressing the emergency stop button and lock the machine to keep it safe from unwanted use, which is especially handy if you have kids around.

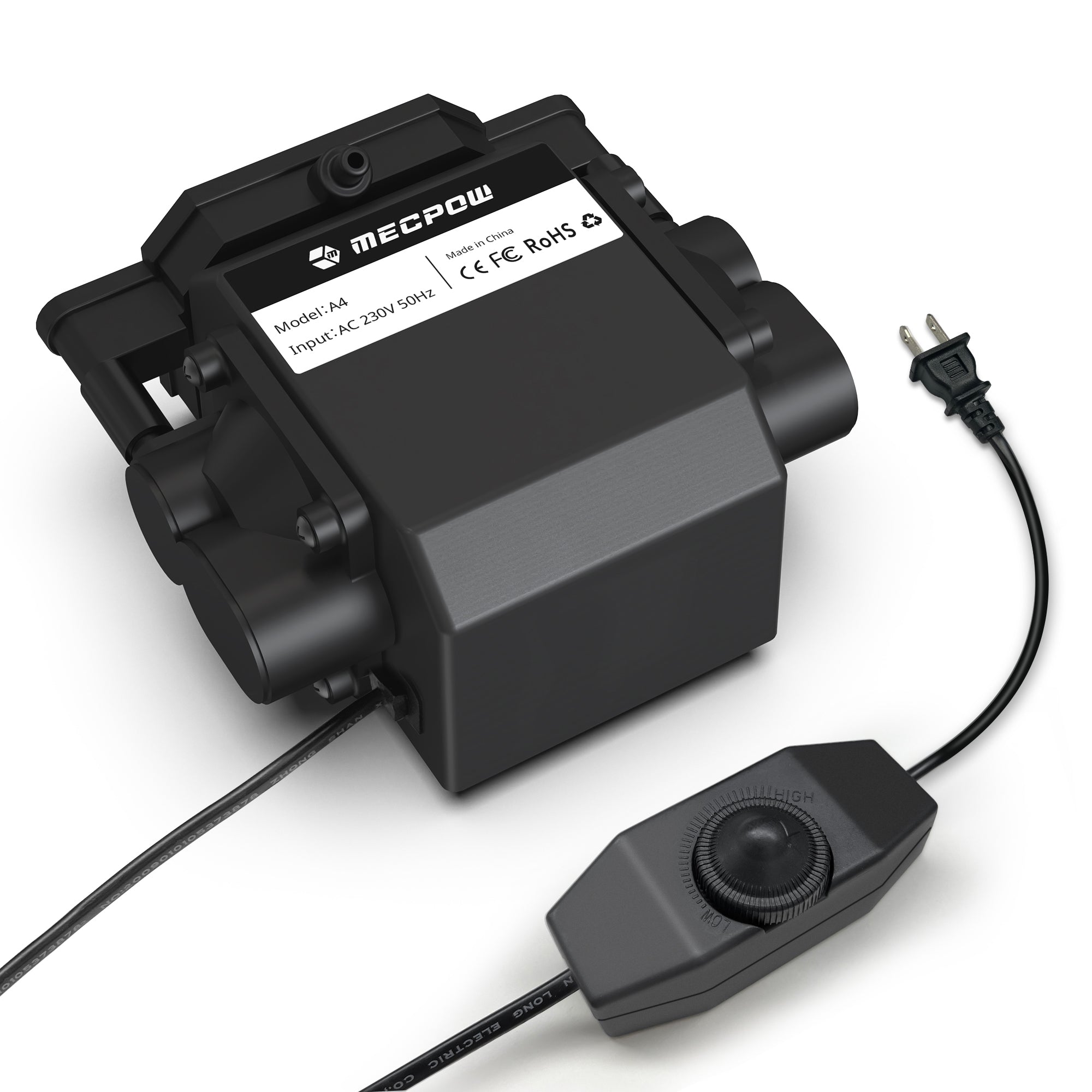

Adjustable Air Assist

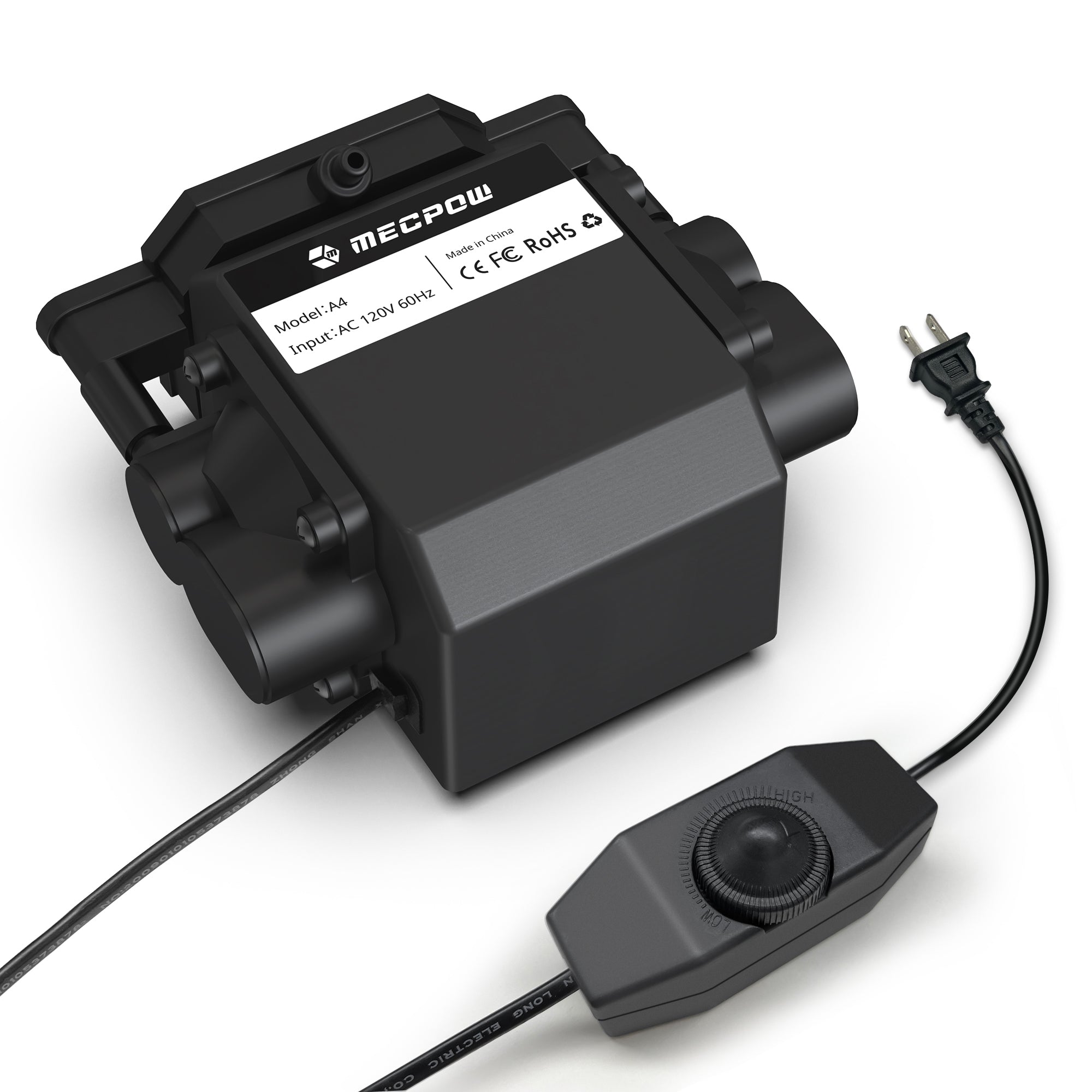

With a maximum air flow of 30 liters per minute, the air pump effectively removes debris and smoke for a cleaner cut. It also prevents the buildup of combustible materials, reducing the risk of fire and providing a safer engraving experience. Plus, with its adjustable knob, you can easily regulate the airflow according to the density of the smoke for a smokeless and odorless workspace.
Fast & Easy Focusing
The X3 Pro laser engraver comes with a fixed-focus laser that saves your time in adjusting the focus and a focusing screen that helps you move the laser head to the correct position. Slide down the laser head till it touches the focusing screen on the object and then remove the focusing screen.

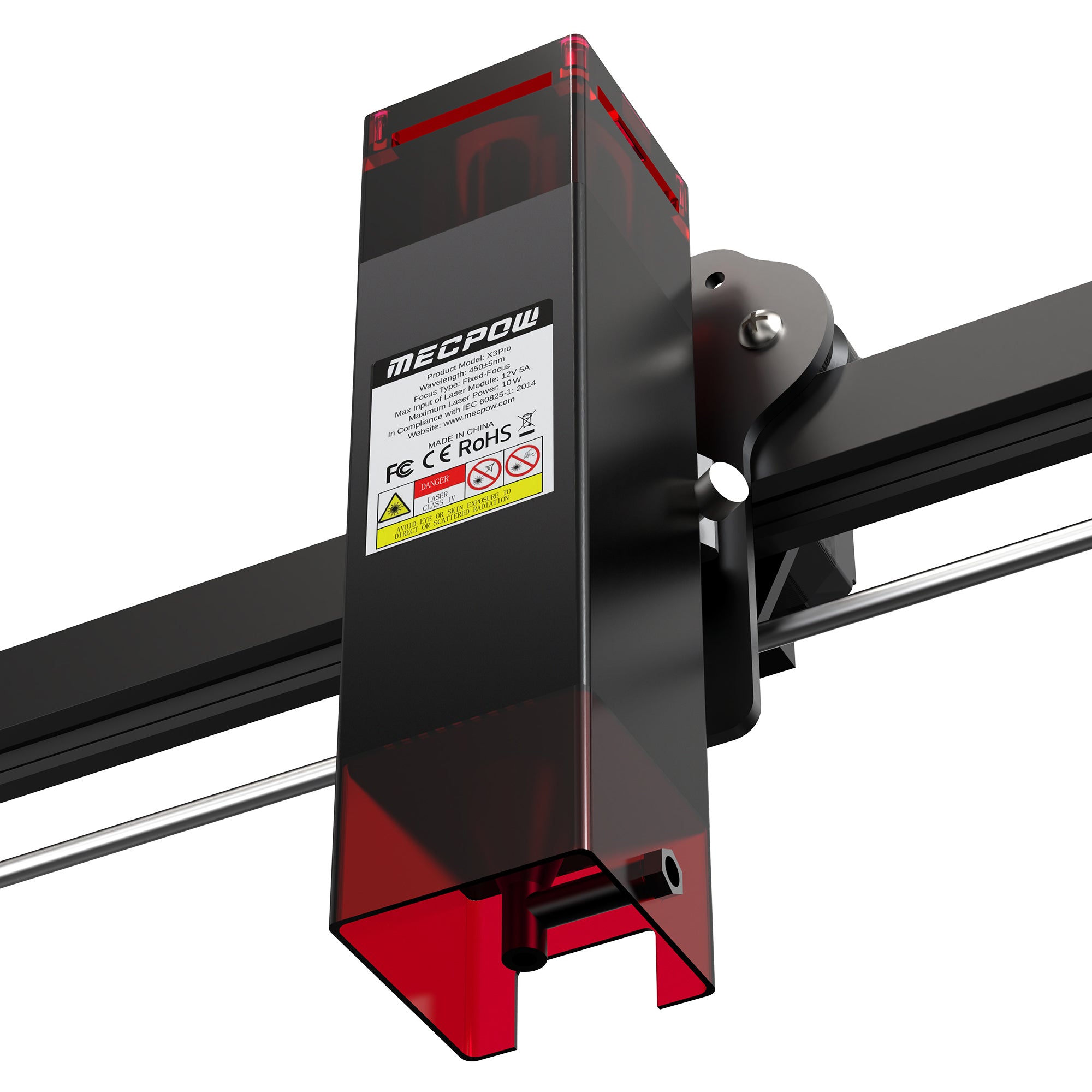

Eye Protection
The laser engraving machine is equipped with a laser shield on the laser module, which can filter out diffuse light from the laser spot to a large extent. A pair of laser safety goggles is also included for better eye protection.
Wide Application and Compatibility

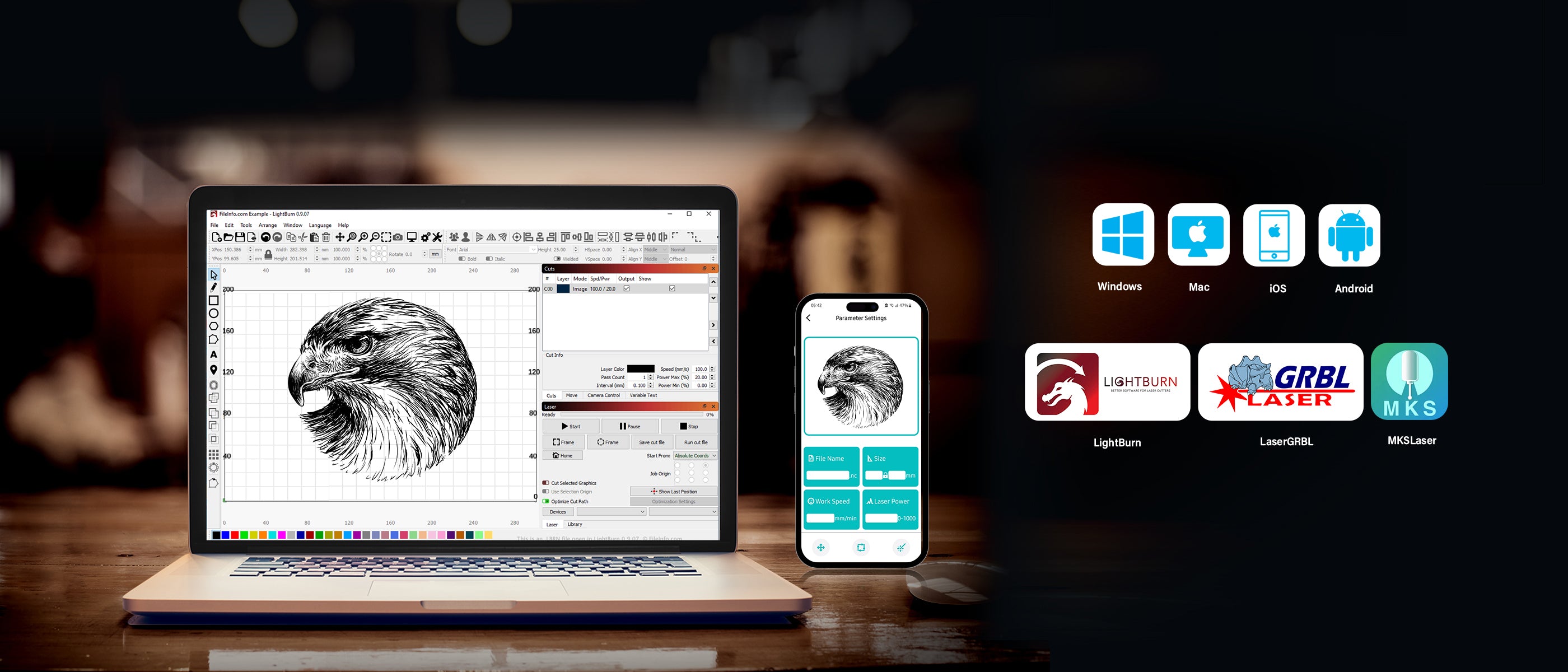

The X3 Pro engraving machine can be used for engraving on a variety of materials, including wood, acrylic, leather, bamboo, fabric, stainless steel, etc. It is compatible with LaserGRBL (Windows only) and LightBurn (Windows and Mac OS), supporting various file formats, including JPG, PNG, DXF, TIF, PDF, SVG, AI, NC, BMP, etc.

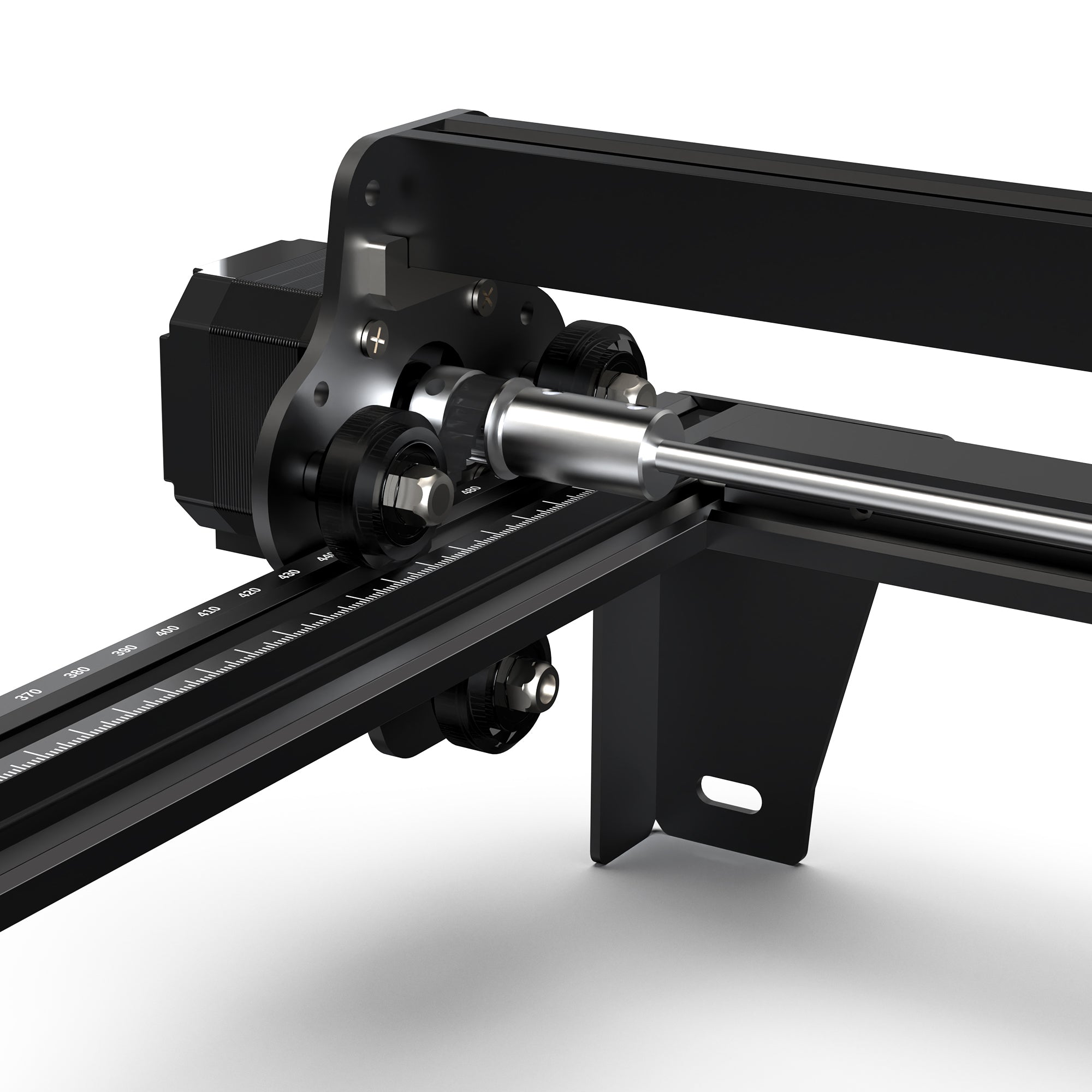

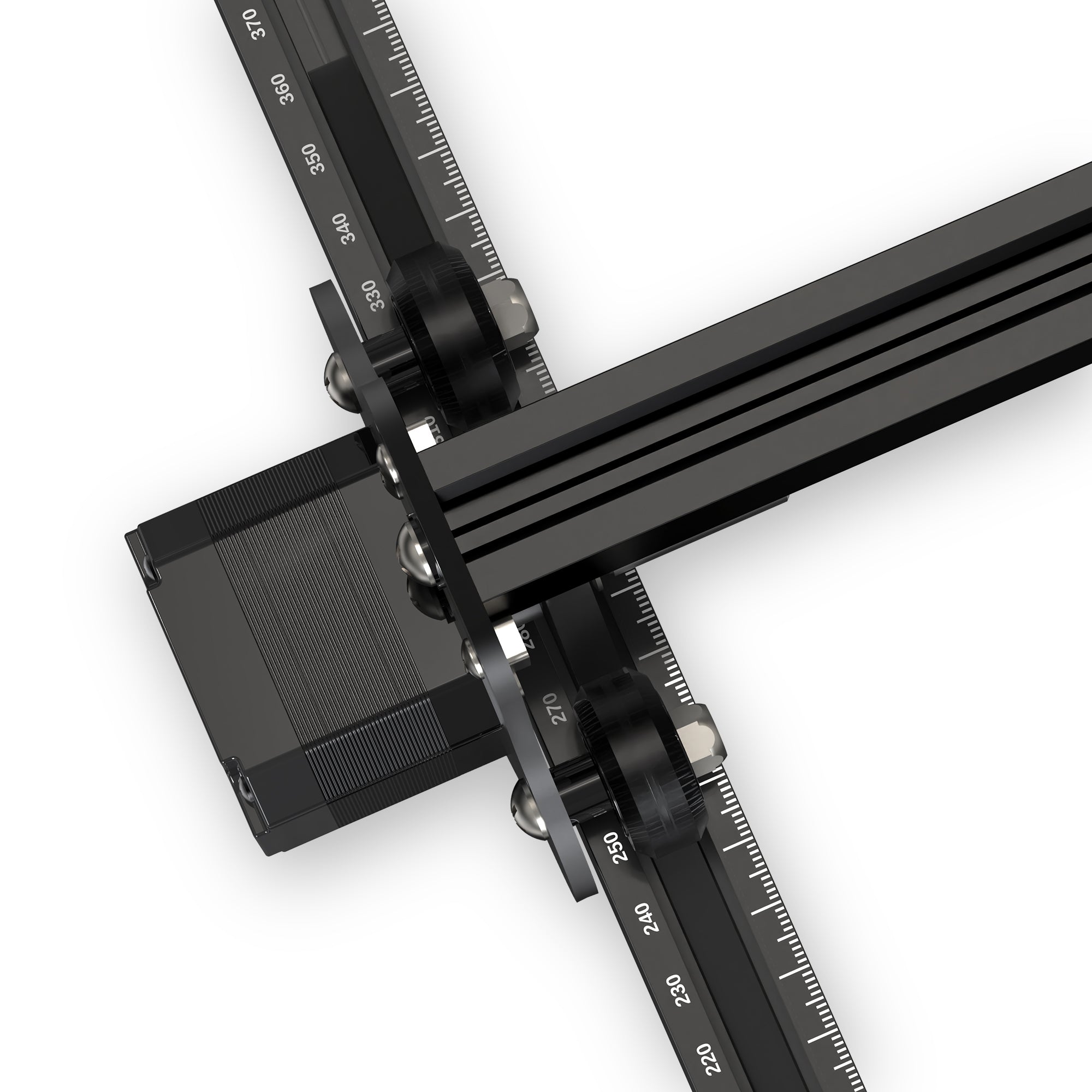

Embrace the Mechanical Power
Reasons to Pick X3 Pro
10W Laser Power
30L/Min Air Pump
Fixed Focus
Emergency Stop
Flame Sensor & Tilt Alarm
Security Lock
Limit Switches
10000mm/min Fast Engraving
0.01mm Engraving Accuracy
Offline Engraving
All Aluminium Alloy Body
Eye Protection

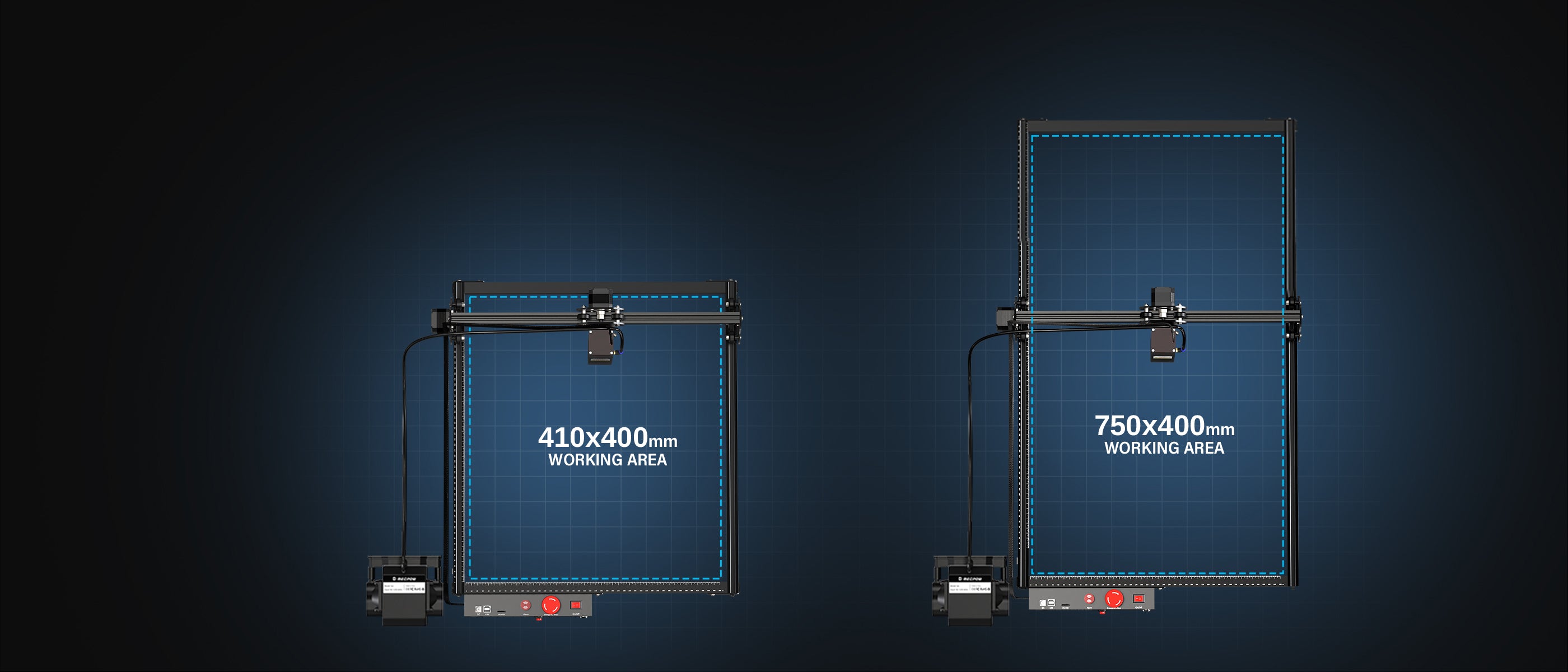

The large engraving area allows you to etch multiple designs at once. Moreover,you can extend the engraving area by using Mecpow's extended Y-axes.
*Extended Y-axes are not included, You'l need to buy them separately.
Unleash your creativity with this leading-edge technology.
*File Format Support: JPEG, BMP, GIF,PLT, PNG, DXF, etc.

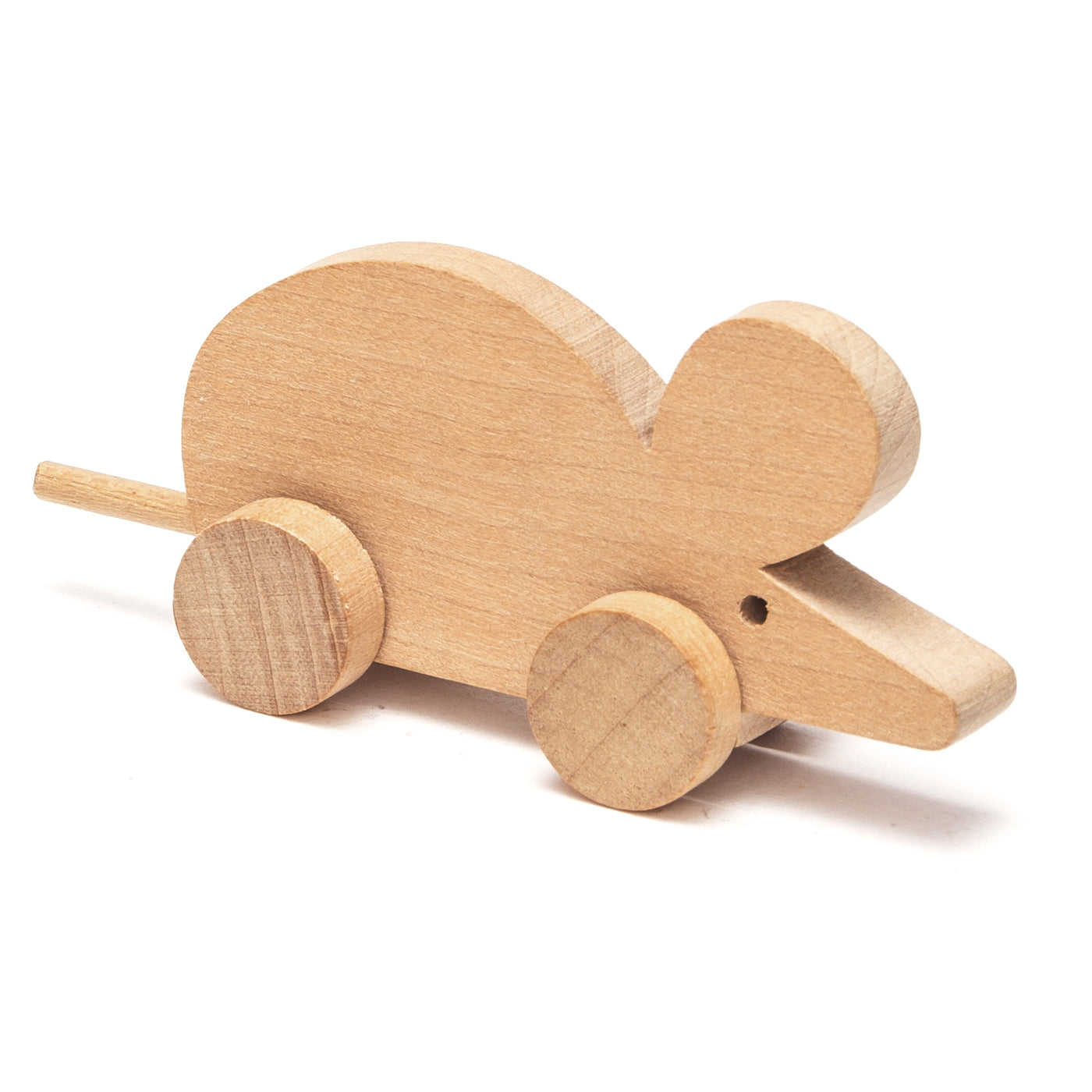

The powerful 10W diode laser can cut through wooden planksas thick as 20mm and painted acrylic sheets as deep as 15mm.
The upgraded laser head features a tiny focal point of 0.06x0.8mm, perfect for achieving high precision in engraving.
Fast & Easy Focusing
1. Place the focusing screen on the object.
2. Move the laser head over the focusing screen andslide it down till it touches the focusing screen.
3. Take the focusing screen out and thefocusing is completed.
The laser shield filters out 98% of UV light to protect your eyes.
The air pump helps to remove debris and smoke for a cleaner cut. It also prevents the buildup of combustible materials, reducing the risk of fire and providing a safer engraving experience.
Security ls Priority
Flame Sensor
The flame sensor in the laser modulewill activate the alam and stop themachine from working inthe event of a fire.

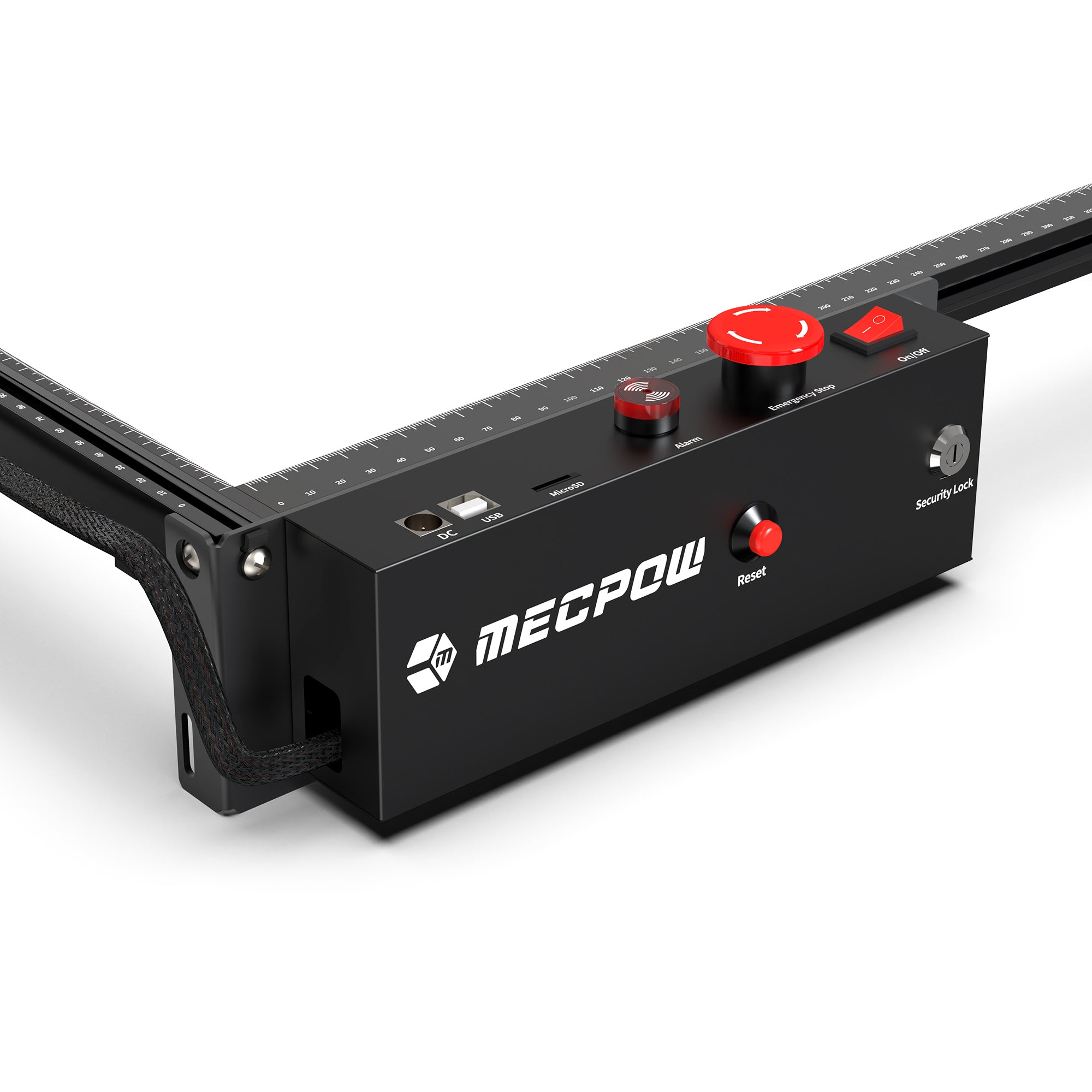

Emergency Stop
You can stop the machine's operation immediately by pressing the button and get it back to work by rotating it counterclockwise.
Gyroscope Sensor
It will trigger the alarm and halt the machine's operation when the machine tilts beyond 50+5°.
Security Lock
Lock your machine and keep itsafe from unwanted use, which isespecially handy ifyou have kidsaround who might be tempted to use it.

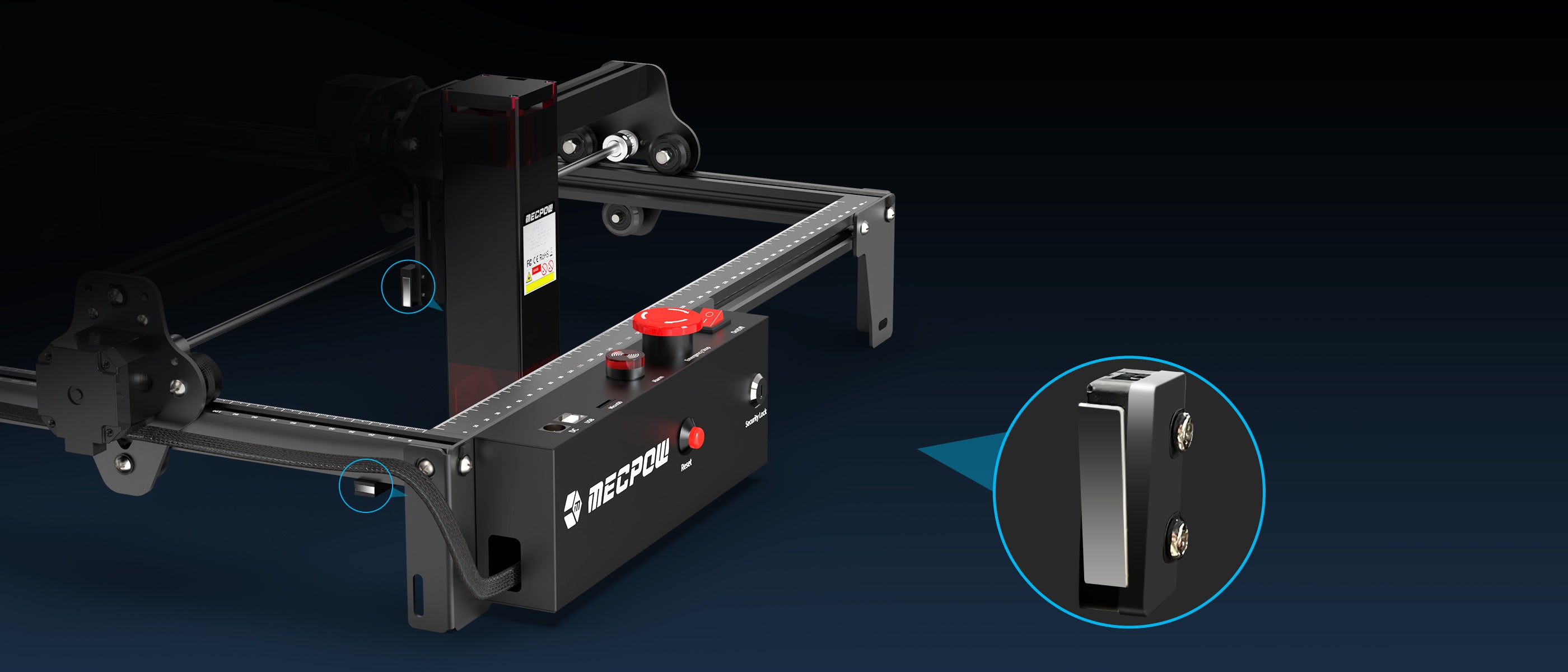

Limit switches help prevent accidents and reduce wear by stopping the machine from moving beyond its safe limits, leading to a longer lifespan of the laser engraver.
Engraving on Various Materials
Design Whatever You Want

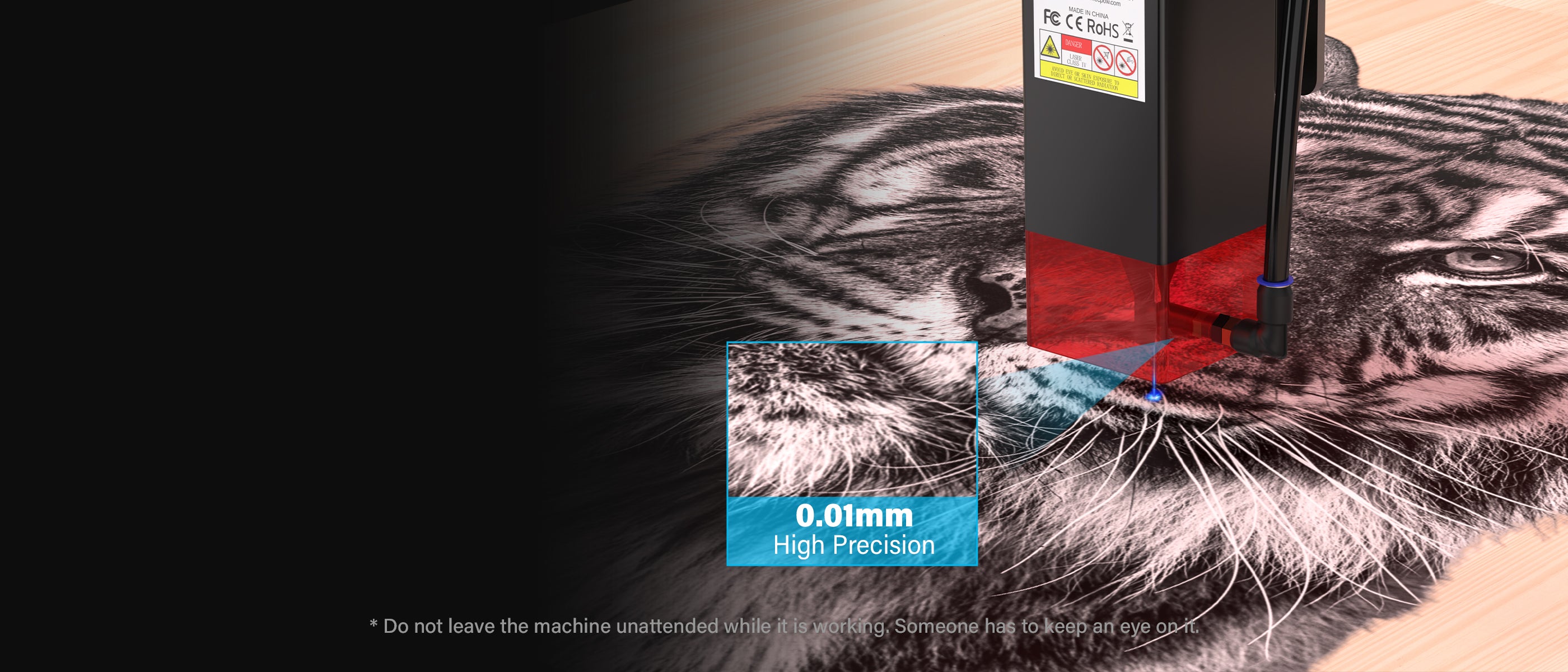

With an engraving accuracy of 0.01mm, Mecpow X3 Pro makes your engraving finer and prettier.
X3 Pro Specification
Brand: Mecpow
Type: Laser Engraving Machine
Model: X3 Pro
Color: Black
Frame Material: High-Strength Aluminium Alloy
Power Adapter: AC 100V-240V, 50/60HZ (Input), DC 12V 5A (Output)
Electrical Power: 60W
Laser Power: 10±1W
Wavelength: 445±5 nm
Spot Size of Laser Beam: 0.06x0.08 mm
Engraving Area: 410x400 mm
Engraving Speed: 10000 mm/min
Engraving Accuracy: 0.01 mm
Focusing: Fixed-Focus Laser
Laser Shield: Yes
Service Life: ≥10000 Hours
Heat Dissipation: Fan Cooling
Tilt Alarm: 50±5°
Method of Data Transmission: USB Wired Connection (Type-B)
Materials for Laser Engraving: Wood, Acrylic, China, Fabric, Bamboo, Plastic Board, Leather, Fruit, Bread, etc.
System Support: Windows, Mac
Software Support: LaserGRBL (Free Software for Windows), LightBurn (Paid Software for Windows & Mac OS)
File Format Support: JPEG, BMP, GIF, PLT, PNG, DXF, etc.
Alarm: Yes
Emergency Stop: Yes
Reset Button: Yes
Security Lock: Yes
Flame Sensor: Yes
Gyroscope Sensor: Yes
Limit Switches: 2
Product Weight: 3.67 kg
Package Weight: 5.14 kg
Product Size(L x W x H): 510x460x117 mm
Package Size(L x W x H): 800x249x117 mm
Size of Laser Module(L x W x H): 40x40x80 mm

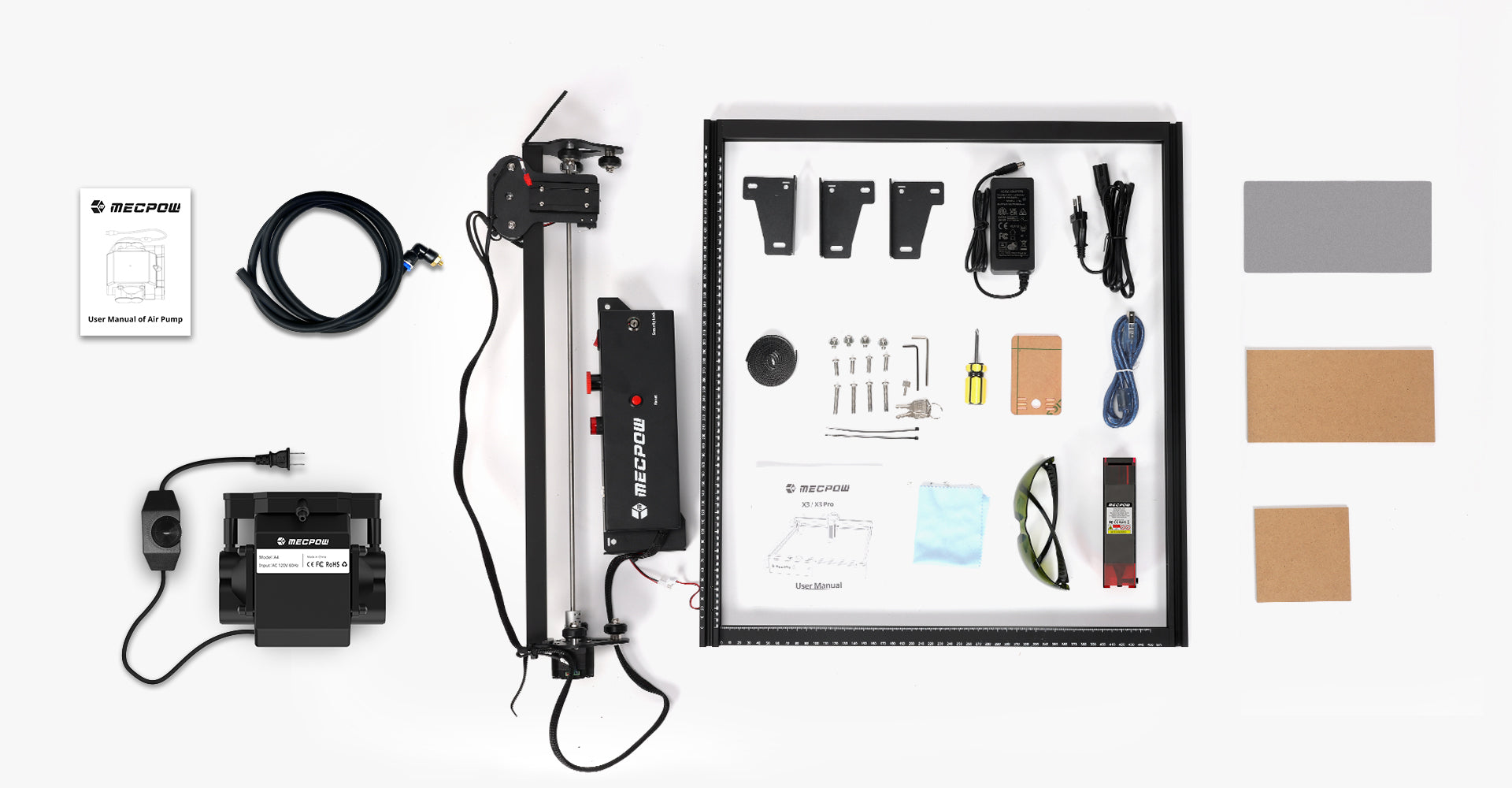

1 x Laser Engraving Machine (Unassembled)
1 x User Manual
1 x Laser Goggles
1 x USB Cable1 x Power Adapter
1 x Tool Kit
2 x Wood Board
1 x Aluminium Plate
1 x Focusing Screen
2 x Key
1 x Air Pump Kit
FAQ
What are the actual working dimensions of the X3 Pro?
The Engraving Area is 410x400 mm. It is recommended to have remaining space to prevent the laser head from exceeding the engraving range.
How do I check the firmware version?
You can go directly to the official website to download the latest firmware and view the update instructions: https://mecpow.com/pages/download-center
Just finished assembly of the Mecpow x3 pro. These rubber pieces (4) are included but can't figure out what to do with them. Any ideas?
It can be placed under the laser strut to prevent the machine from shifting
Is there a recommendation for MAX ambient temperature for operating the x3 pro?
Our recommended operating temperature range for the laser is 0° to 35°C (32° to 95°F). Storage temperature range is 0° to 45°C (32° to 113°F).
Is it possible to mount a 22w module on the x3 Pro?
The X3 Pro is not compatible with the 22w laser module.
