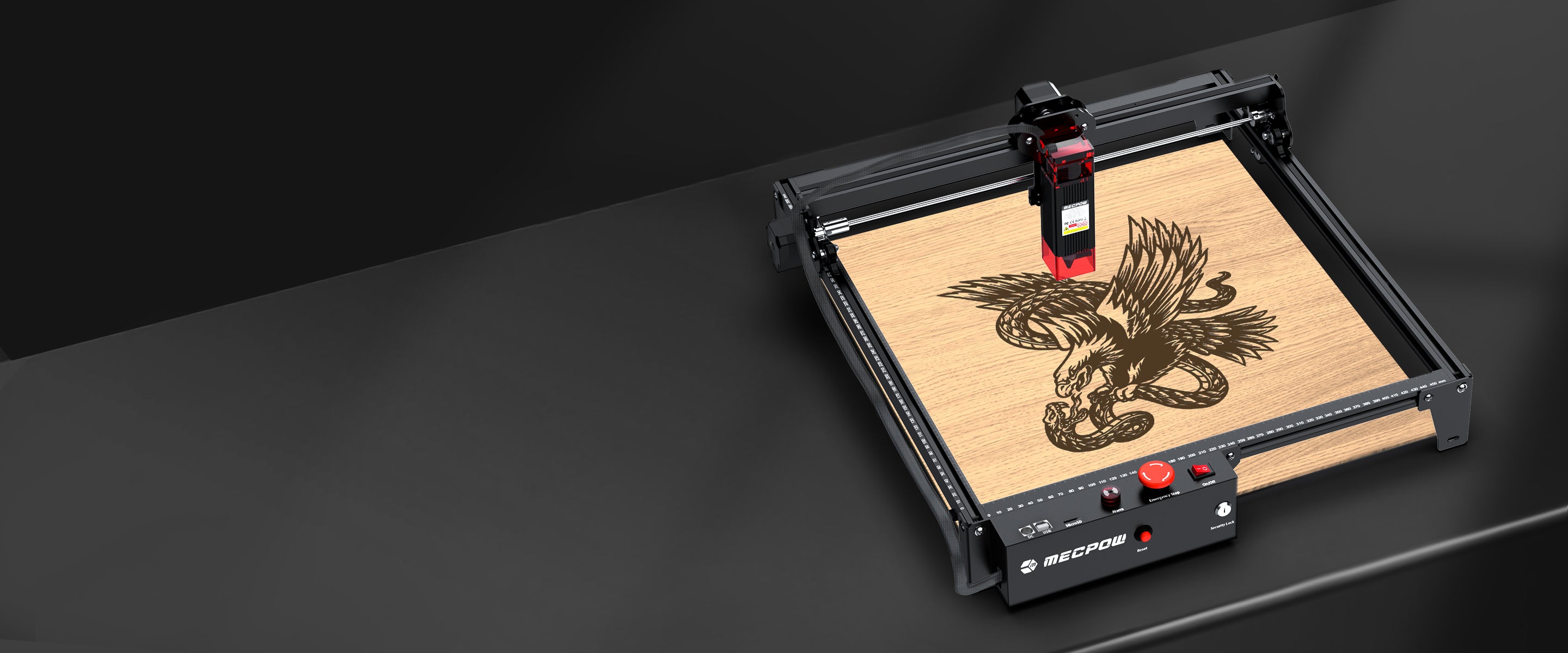

X3 5W Laser Engraving Machine
High-Precision Engraving
The Mecpow X3 adopts a 5W diode laser with a small focus of 0.05x0.07mm and an engraving accuracy of 0.01mm. The small spot size and short pulses produce high peak power. It can cut a wood board with an 8mm thickness and an acrylic panel with an 8mm thickness.
Upgraded Security
The X3 machine boasts a flame sensor and a gyroscope sensor, which can trigger the alarm and stop the machine’s operation in the event of a fire or tilting more than 50±5°. Besides, limit switches are included to prevent accidents and reduce wear by stopping the machine from moving beyond its safe limits, leading to a longer lifespan of the laser engraver.
Fast & Easy Focusing
The X3 laser engraver comes with a fixed-focus laser that saves you time in adjusting the focus and a focusing screen that helps you move the laser head to the correct position. Slide down the laser head till it touches the focusing screen on the object and then remove the focusing screen.
Eye Protection
The laser engraving machine is equipped with a laser shield on the laser module, which can filter out diffuse light from the laser spot to a large extent. A pair of laser safety goggles are also included for better eye protection.
Wide Application and Compatibility
The X3 engraving machine can be used for engraving on various materials, including wood, acrylic, leather, bamboo, fabric, stainless steel, etc. It is compatible with LaserGRBL (Windows only) and LightBurn (Windows and Mac OS), supporting various file formats, including JPG, PNG, DXF, TIF, PDF, SVG, AI, NC, BMP, etc.
Embrace the Mechanical Power
5W Laser Power
Fixed Focus
10000mm/min Fast Engraving
Compressed Spot
All Aluminium Alloy Body
0.01mm Engraving Accuracy
Emergency Stop
Flame Sensor & Tilt Alarm
Limit Switches

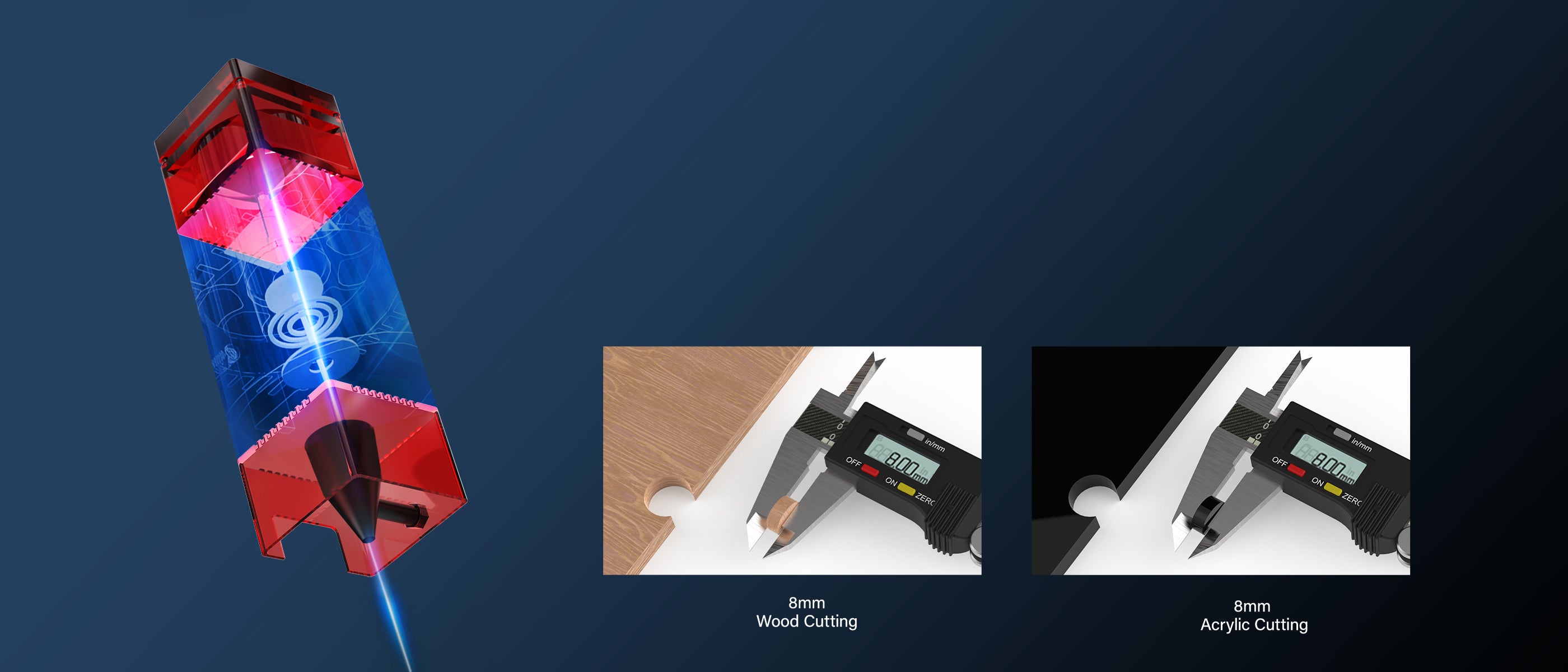

The 5W diode laser can cut through wooden planks and painted acrylic
sheets as thick as 8mm.

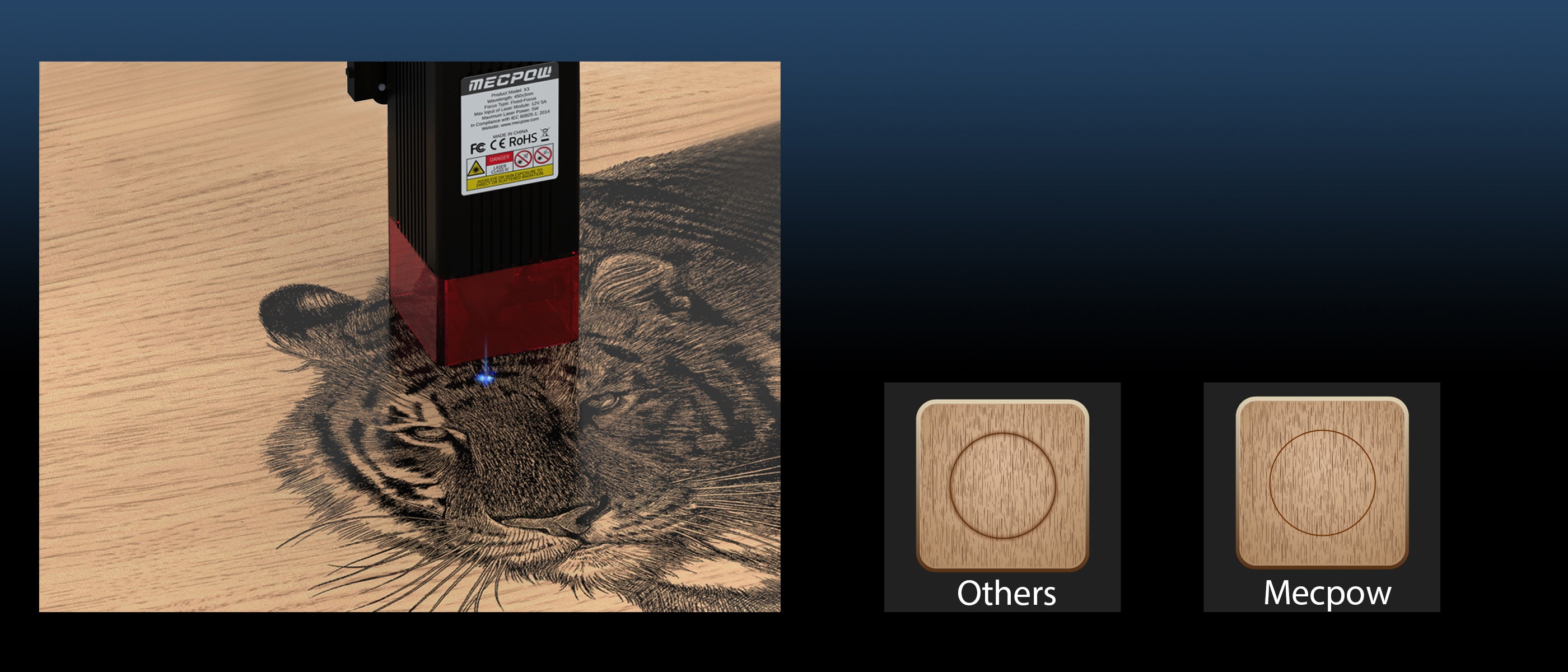

The upgraded laser head features a tiny focal point of 0.05x0.07mm, perfect for achieving high precision in engraving.
With an engraving accuracy of 0.01mm,
Mecpow X3 makes your engraving finer and prettier.
Fast & Easy Focusing

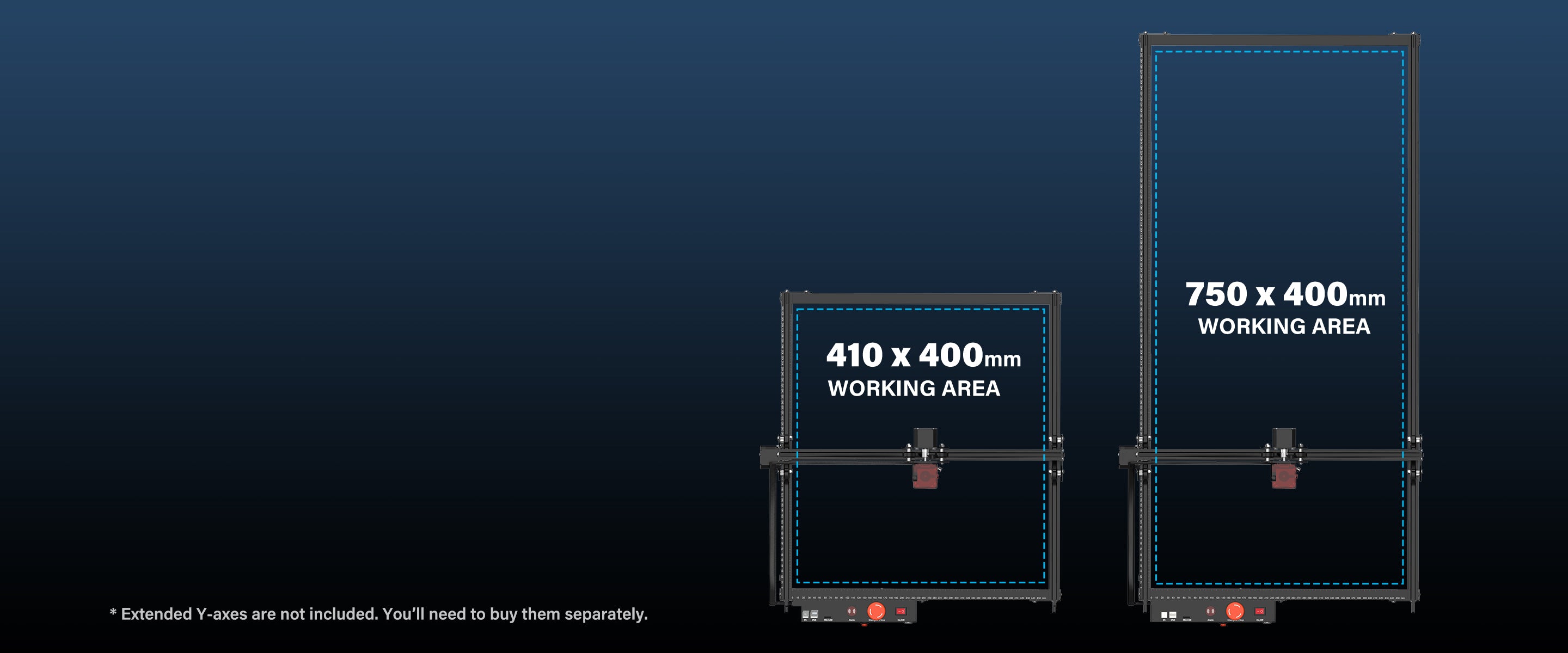

The large engraving area allows you to etch multiple designs at once.
Moreover, you can extend the engraving area by using Mecpow's extended Y-axes.

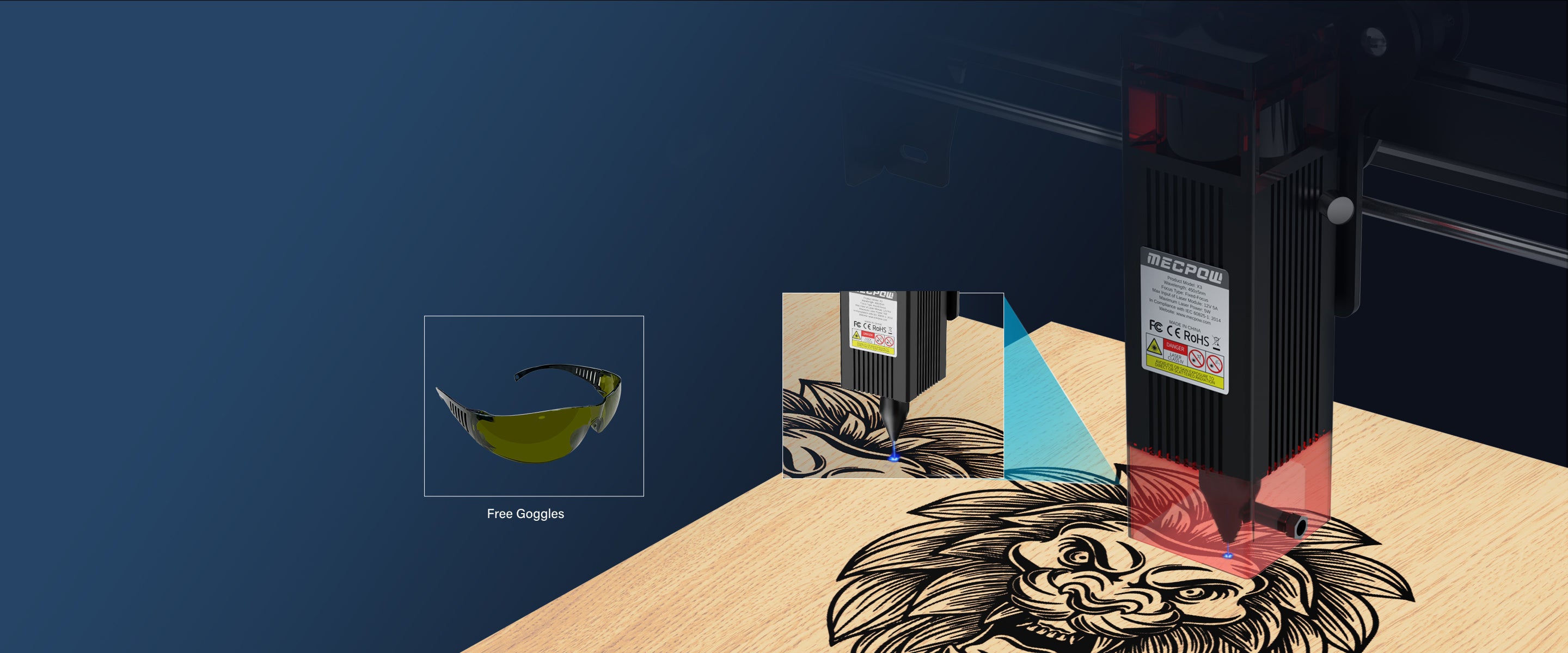

The laser shield filters out 98% of UV light to protect your eyes.
Security Is Priority
Flame Sensor
The flame sensor in the laser module will activate the alarm
and stop the machine from working in the event of a fire.
Gyroscope Sensor
It will trigger the alarm and halt the machine's operationwhen the machine tilts beyond 50+5°.
Emergency Stop
You can stop the machine's operation immediately by pressing the button and get it back to work by rotating it counterclockwise.
Security Lock
Lock your machine and keep it safe from unwanted use, whichis especially handy if you have kids around who might betempted to use it.
Limit switches help prevent accidents and reduce wear by stopping the machinefrom moving beyond its safe limits, leading to a longer lifespan of the laser engraver.

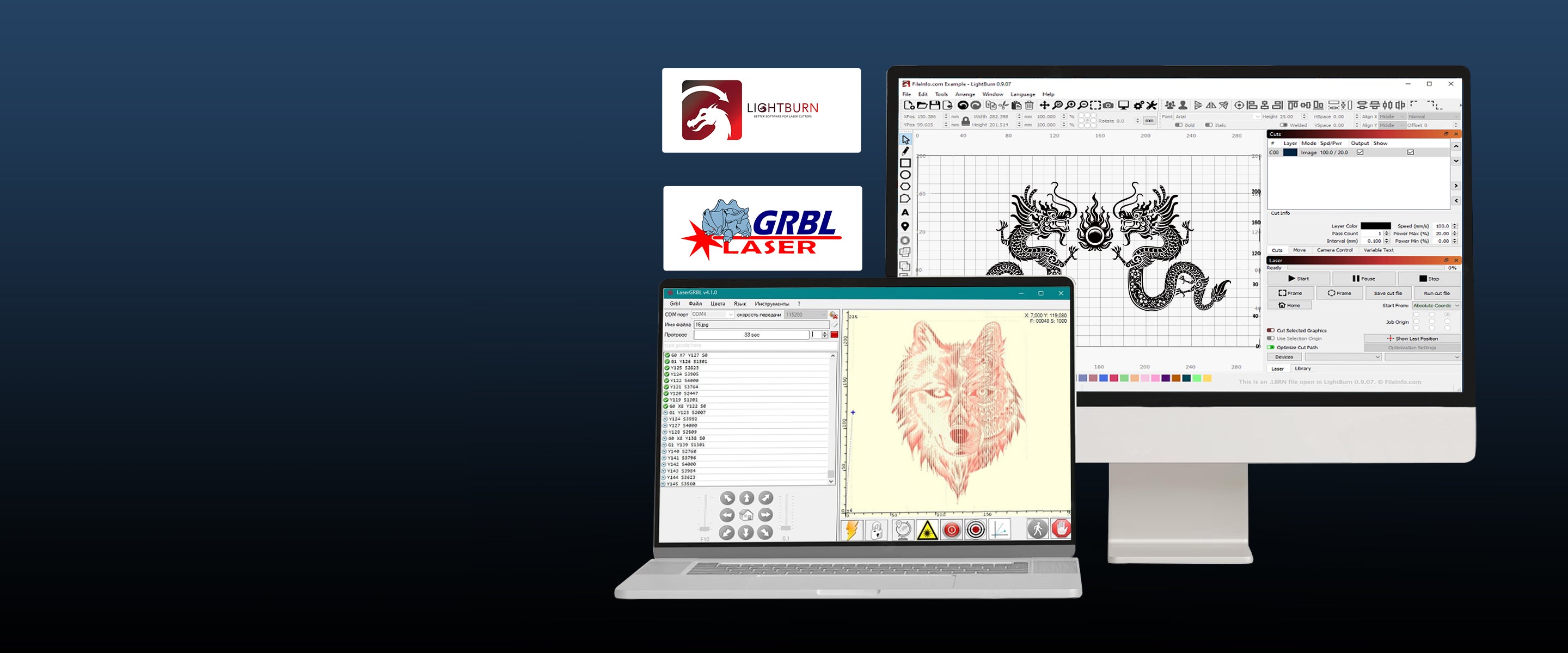

Mecpow X3 is compatible with LaserGRBL and LightBurn,supporting Windows (Win XP/7/8/10)and Mac systems.
File Format Support: JPEG, BMP, GIF, PLT, PNG, DXF, etc.
Engraving on Various Materials
Design Whatever You Want
X3 Specification
Brand: Mecpow
Type: Laser Engraving Machine
Model: X3
Color: Black
Frame Material: High-Strength Aluminium Alloy
Power Adapter: AC 100V-240V, 50/60HZ (Input), DC 12V 5A (Output)
Electrical Power: 60W
Laser Power: 5±0.5W
Wavelength: 445±5 nm
Spot Size of Laser Beam: 0.05x0.07 mm
Engraving Area: 410x400 mm
Engraving Speed: 10000 mm/min
Engraving Accuracy: 0.01 mm
Focusing: Fixed-Focus Laser
Laser Shield: Yes
Service Life: ≥10000 Hours
Heat Dissipation: Fan Cooling
Tilt Alarm: 50±5°
Method of Data Transmission: USB Wired Connection (Type-B)
Materials for Laser Engraving: Wood, Acrylic, China, Fabric, Bamboo, Plastic Board, Leather, Fruit, Bread, etc.
System Support: Windows, Mac
Software Support: LaserGRBL (Free Software for Windows), LightBurn (Paid Software for Windows & Mac OS)
File Format Support: JPEG, BMP, GIF, PLT, PNG, DXF, etc.
Alarm: Yes
Emergency Stop: Yes
Reset Button: Yes
Security Lock: Yes
Flame Sensor: Yes
Gyroscope Sensor: Yes
Limit Switches: 2
Product Weight: 3.62 kg
Package Weight: 4.31 kg
Product Size(L x W x H): 510x460x117 mm
Package Size(L x W x H): 659x249x117 mm
Size of Laser Module(L x W x H): 40x40x60 mm

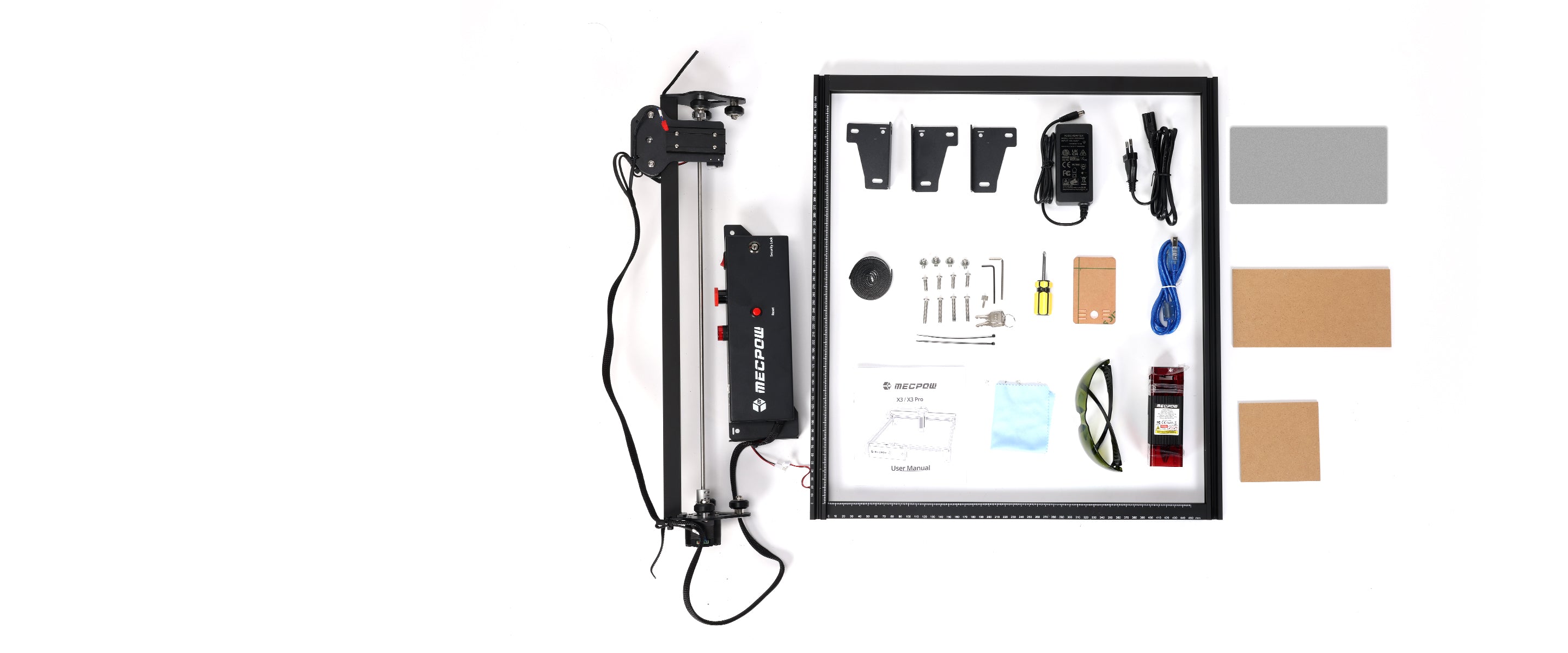

1 x Laser Engraving Machine (Unassembled)
1 x User Manual
1 x Laser Goggles
1 x USB Cable
1 x Power Adapter
1 x Tool Kit
2 x Wood Board
1 x Aluminium Plate
1 x Focusing Screen
2 x Key
