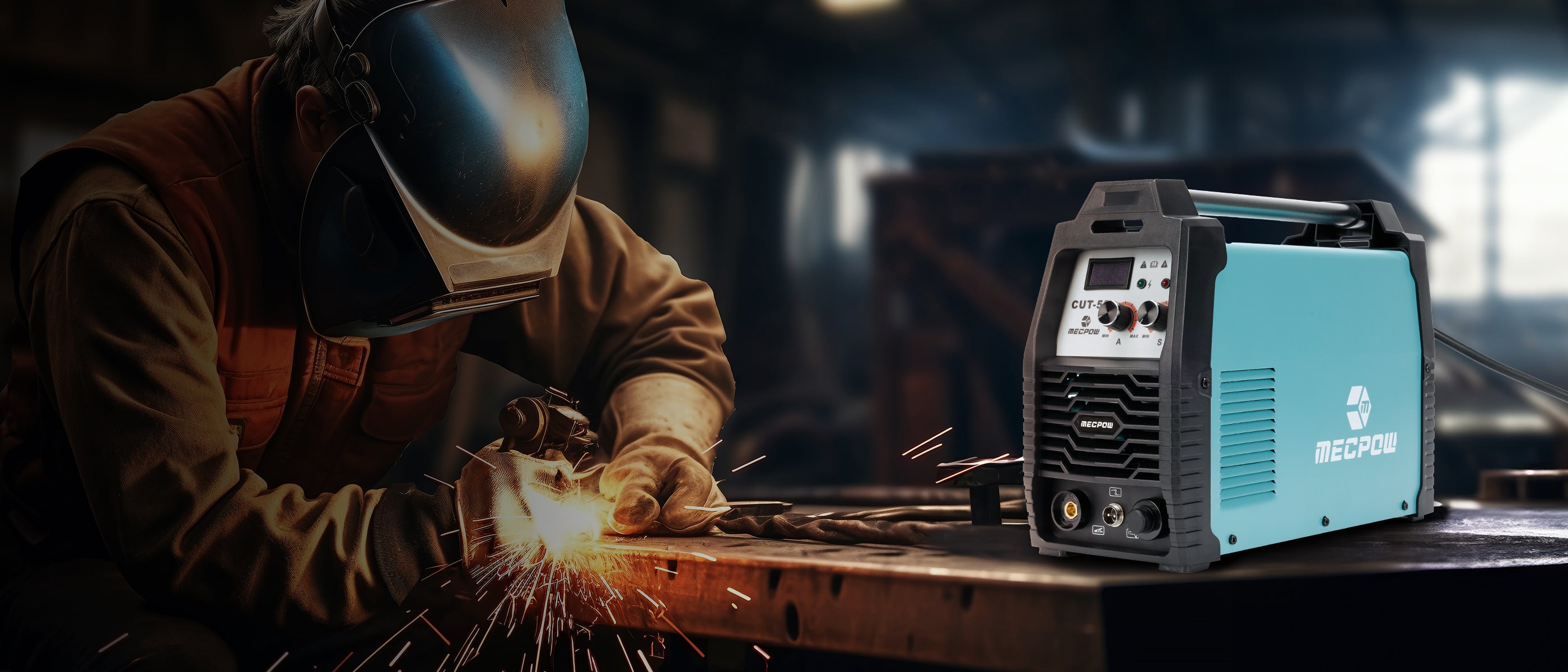

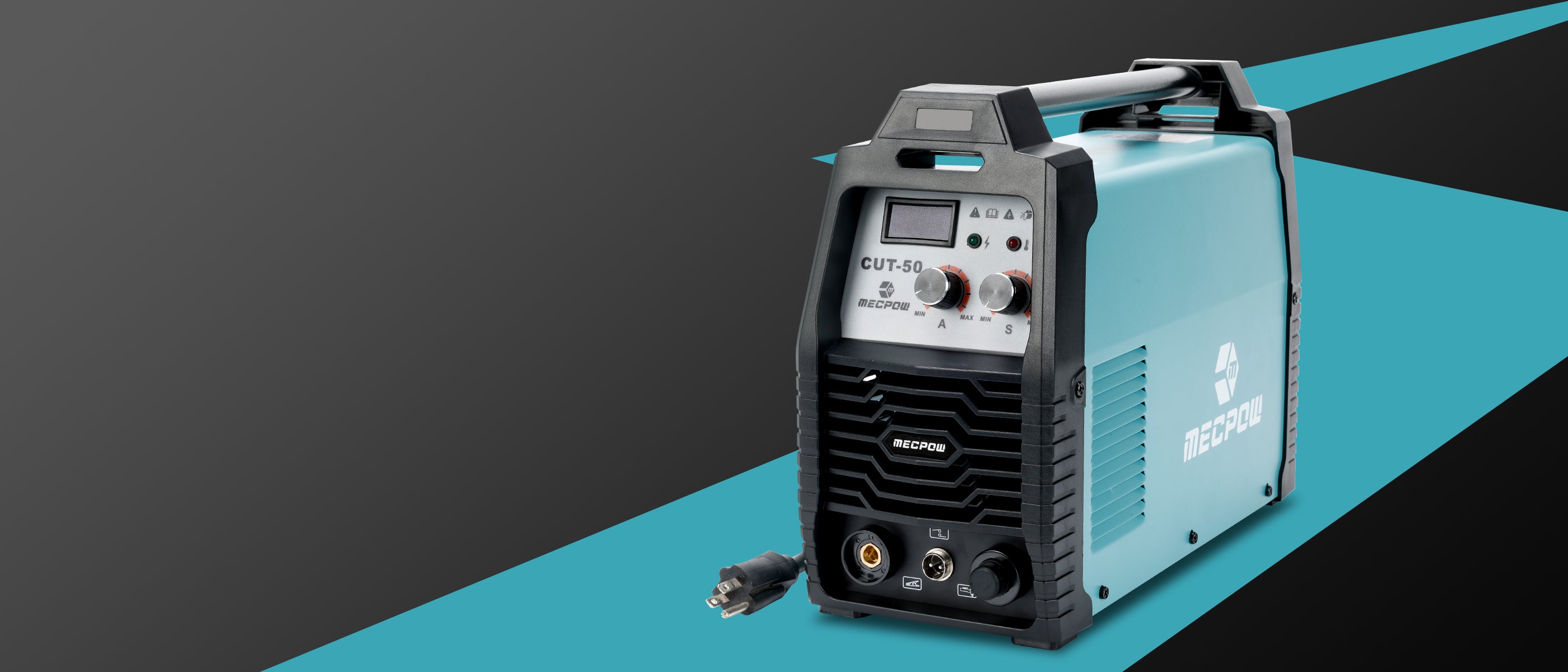

Mecpow CUT-50 Plasma Cutter
Stable Operation with Non-Interference Technology
Engineered with an innovative back-blow start, the Mecpow CUT-50 plasma cutter eliminates interference during operation, ensuring a safe and seamless cutting experience. Its non-high-frequency design provides stability for smooth and precise performance, even in demanding environments.
Versatile Cutting for Multiple Materials

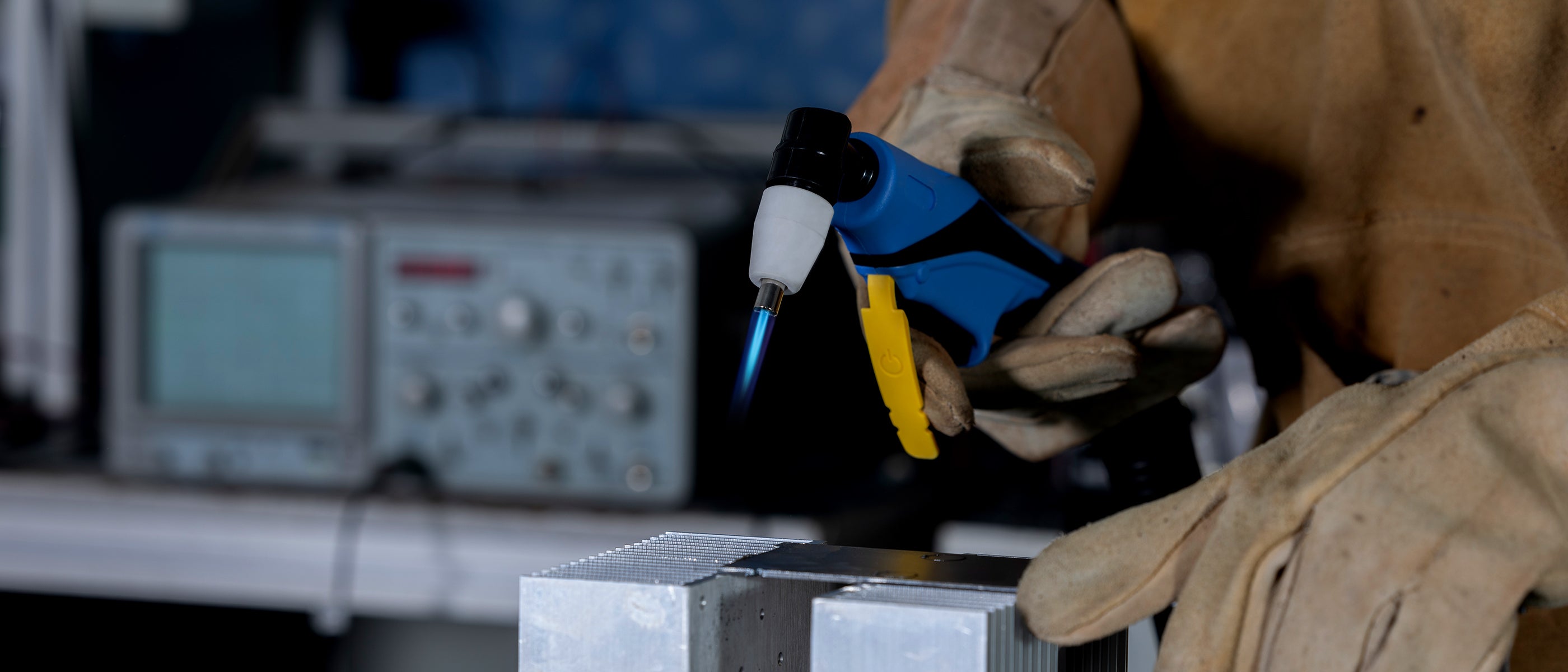

The non-touch pilot arc torch delivers exceptional versatility, effortlessly cutting through rough, painted, or rusted surfaces with minimal slag. Ideal for stainless steel, alloy steel, low-carbon steel, copper, aluminum, and other non-ferrous metals, this cutter meets the needs of professionals and hobbyists alike.
Air-Cutting Efficiency
The Mecpow CUT-50 plasma cutter delivers efficient air-cutting performance, handling thicknesses from 5mm to 15mm. Operating smoothly with compressed air at 4-7 CFM @ 72 PSI, it’s compatible with standard air compressors and supports an optimal pressure range of 30-60 PSI, ensuring reliability and versatility across different setups.
User-Centric Adjustability for Precision
Tailor your cutting experience with adjustable arc timing, arc current, cutting current, and post-flow time. The advanced IGBT inverter technology ensures efficient operation with a 60% duty cycle, while the LED display provides clear, real-time data for precision settings without removing your helmet.
Simplified and Portable Cutting Solution
The Mecpow CUT-50 plasma cutter is designed for maximum convenience and efficiency. With a plug-and-play air connector and a built-in pressure regulator, setup takes just 30 seconds, allowing you to start cutting immediately after unpacking. Weighing only 5.2 kg, its lightweight and compact design make it easy to transport between job sites, offering cutting-edge performance wherever you go—perfect for professionals on the move or quick setups.
High Frequency Plasma Cutter
High Frequency
Contact Arc Starting
IGBT
Smart Fan
Overheat Protection
Overload Protection
Overcurrent Protection
Overvoltage Protection
Advanced IGBT Inverter Technology
Adjustable Post-Gas Flow Time (5–15 seconds)
2T Operation Mode
- Immediate Arc Initiation
- Simplified Setup and Operation
- Reliable Start with Direct Contact

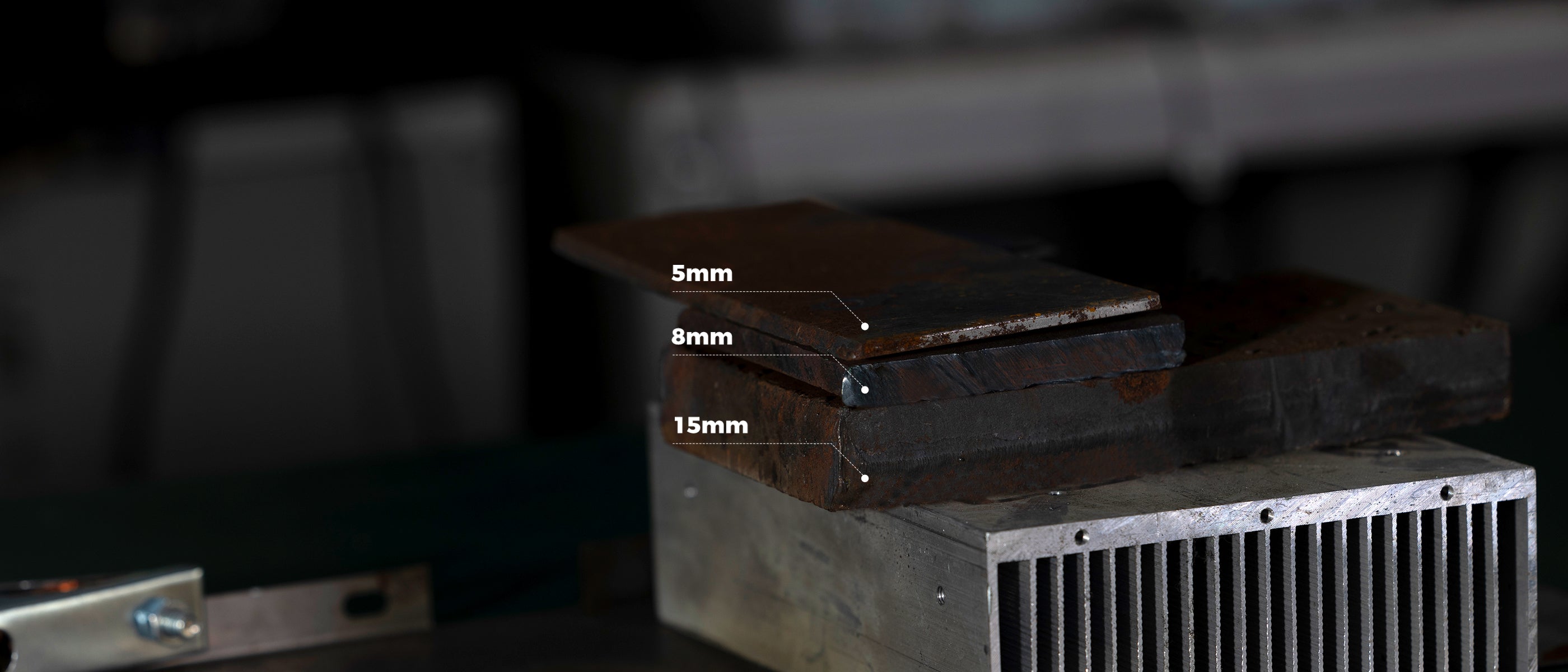

Clean Cutting Capacity
Achieves precise and clean cuts on materials with a thickness of 5-10mm, ensuring smooth results across various applications.
Maximum Cutting Capability
Capable of handling materials up to 10-15mm in thickness,
delivering reliable performance even for demanding tasks.
Optimal Air Pressure for Best Results
Recommended air pressure range: 30-60 psi. This ensures efficient
operation and consistent cutting quality.
*Note: The cutting results may vary depending on the thickness and type of metal.

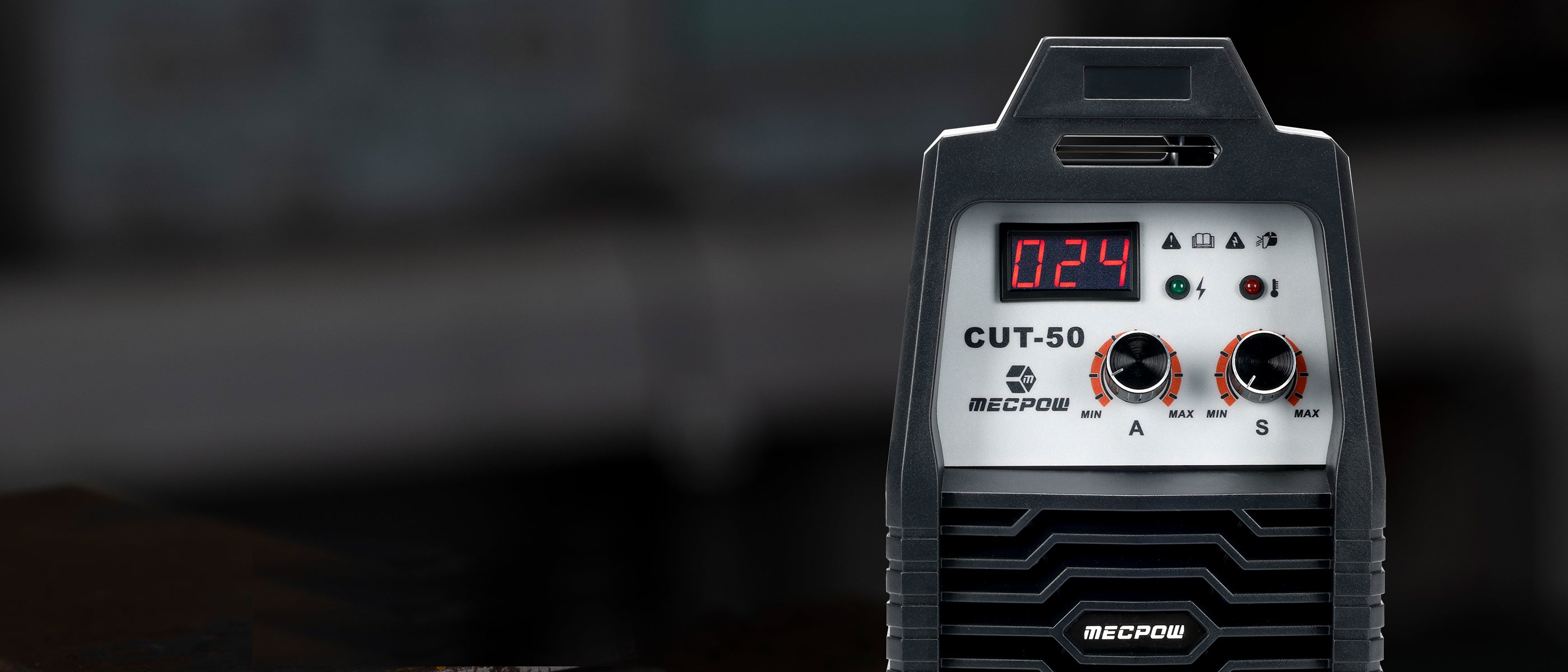

Air pressure, current, and voltage are clearly shown forreal-time status monitoring and timely adjustments.

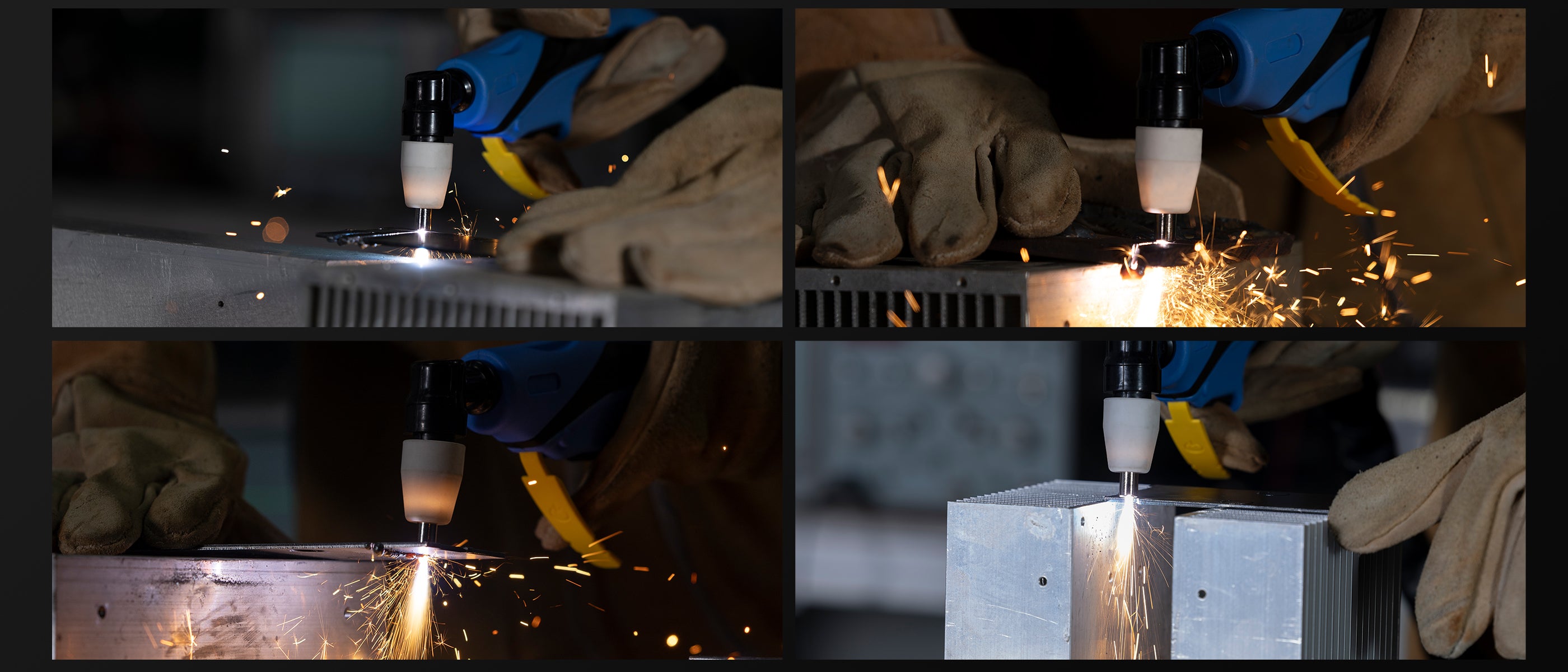

Versatile Cutting for Various Metals
Effortlessly cuts through alloy steel, stainless steel, low-carbon steel, copper, aluminum, and more.
Wide Applications
DIY Projects
Steel Pipe Cutting
Heavy Duty Cutting
Plasma Cutter Introduction
1. LCD Display
2. Power Indicator
3. Overheat/Fault Indicator Light
4. Cutting Current Control Knob
5. Gas Delay Adjustment Knob
6. Earth Clamp
7. Torch Switch
8. Cutting Torch Connector
9. Input Power Cable
10. Power Switch
11. Pressure Regulator Connector
12. Gas Valve
13. Fan

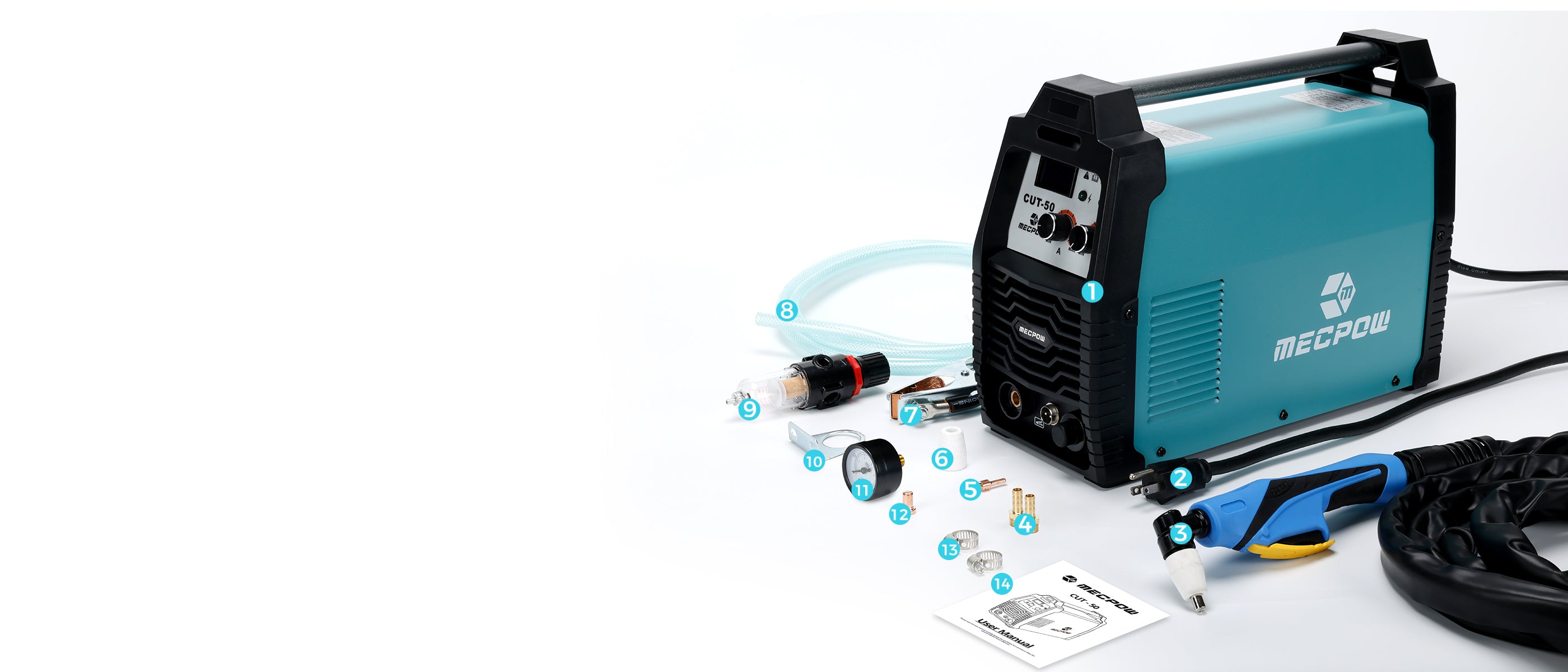

⑴ CUT-50 Plasma Cutter x 1
⑵ 1.5m Power Cable x 1
⑶ PT-31 Cutting Torch x 2
⑷ Air Hose Fitting x 2
⑸ Electrode x 5
⑹ Protection Cover x 2
⑺ 2m 16-Gauge Copper Clad Aluminum Wire with 200A Ground Clamp x 1
⑻ 2m Air Hose x 1
⑼ Reducing Valve x 1
⑽ Pressure Regulator Mounting Bracket x 1
⑾ Pressure Regulator x 1
⑿ Nozzle x 5
⒀ Hose Clamp x 2
⒁ Product Manual x 1
CUT-50 Specification
Brand: Mecpow
Model: Cut-50
Color: Blue
Product Name: Plasma Cutter
Input Voltage (V): AC 220V ± 15% (European Standard), AC 110V (US Standard)
Input Power Capacity (KVA): 6.3
No-load Voltage (V): 230
Current Range (A): 20-50
Rated Output Voltage(V): 100
Rated Duty Cycle (%) at 25°C: 80
Efficiency (%): 85
Power Factor: 0.93
Insulation Class: F
Protection Class: IP23
Arc-starting Method: Touch Arc-Loading
Recommended Air Compressor Pressure (kg/cm²): 4.5
Recommended Air Flow (m³/min): 0.17
Product Weight: 5.2 kg
Package Weight: 8.6 kg

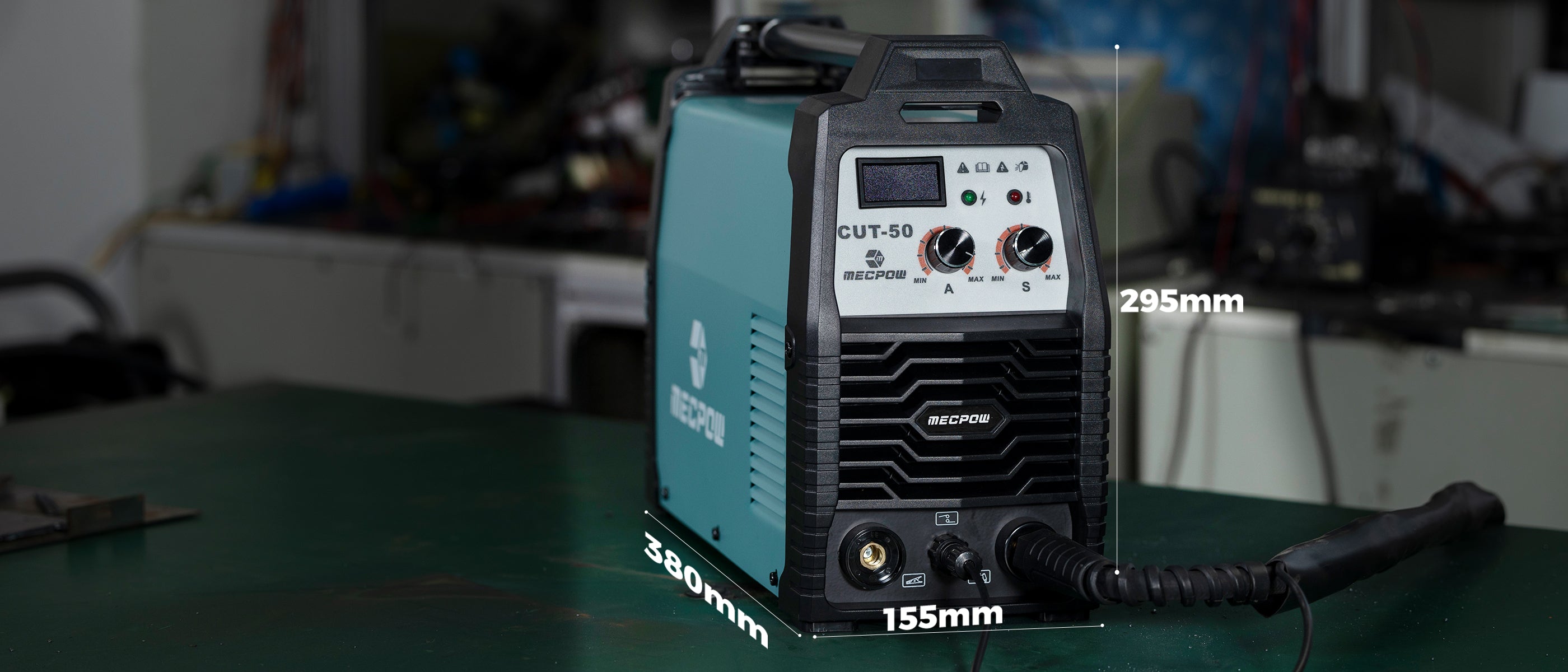

Product Size: 385 × 155 × 290 mm
Package Size: 475 × 250 × 355 mm
CUT-50 Plasma Cutter×1
1.5m Power Cable×1
PT-31 Cutting Torch×1
2m Air Hose×1
Electrode×5
Nozzle×5
Protection Cover×2
Pressure Regulator×1
Hose Clamp×2
Product Manual×1
Warranty Card×1
Air Hose Fitting×2
Reducing Valve x 1
Pressure Regulator Mounting Bracket x 1
2m 16-Gauge Copper Clad Aluminum Wire + 200A Ground Clamp×1
FAQs for CUT 50
Why does the power indicator light up, but the fan isn’t working and the controls are unresponsive?
This usually happens when the overvoltage protection is triggered. Try turning off the machine, waiting for a few minutes, and then restarting it.
The machine powers on and runs, but it won’t initiate the arc. What could cause this?
There are two possible reasons for this issue: either the input voltage is too low, or the air compressor pressure is either too high or too low. If you're still unable to resolve the problem, please feel free to contact our professional customer service team for assistance!
What is the maximum material thickness this cutter can handle?
The plasma cutter can handle materials from 5 mm to 15 mm thick. For clean and precise cuts, it is recommended to use it on materials up to 15 mm thick.
What materials can I cut with this plasma cutter?
Mecpow CUT-50 plasma cutter is suitable for a variety of materials, including alloy steel, stainless steel, low-carbon steel, copper, aluminum, etc.
Is it difficult to set up and start using the cutter?
Not at all! The cutter comes with a plug-and-play air connector and a built-in regulator, allowing you to start cutting in just 30 seconds.
How accurate is the LED display? Can I read it while wearing a helmet?
The large LED display provides precise and clear data readings, and it’s designed to be easily readable even while wearing a welding helmet.
How portable is this plasma cutter?
This plasma cutter is only 5.2 kg; it is lightweight and compact, making it easy to transport between job sites or use at home.
Can I adjust the cutting time?
Yes, you can set the cutting time between 5-15 seconds by 2T modes to suit your cutting preferences and comfort.
What is the recommended air pressure for operation?
The recommended air pressure is between 20-50 psi.
