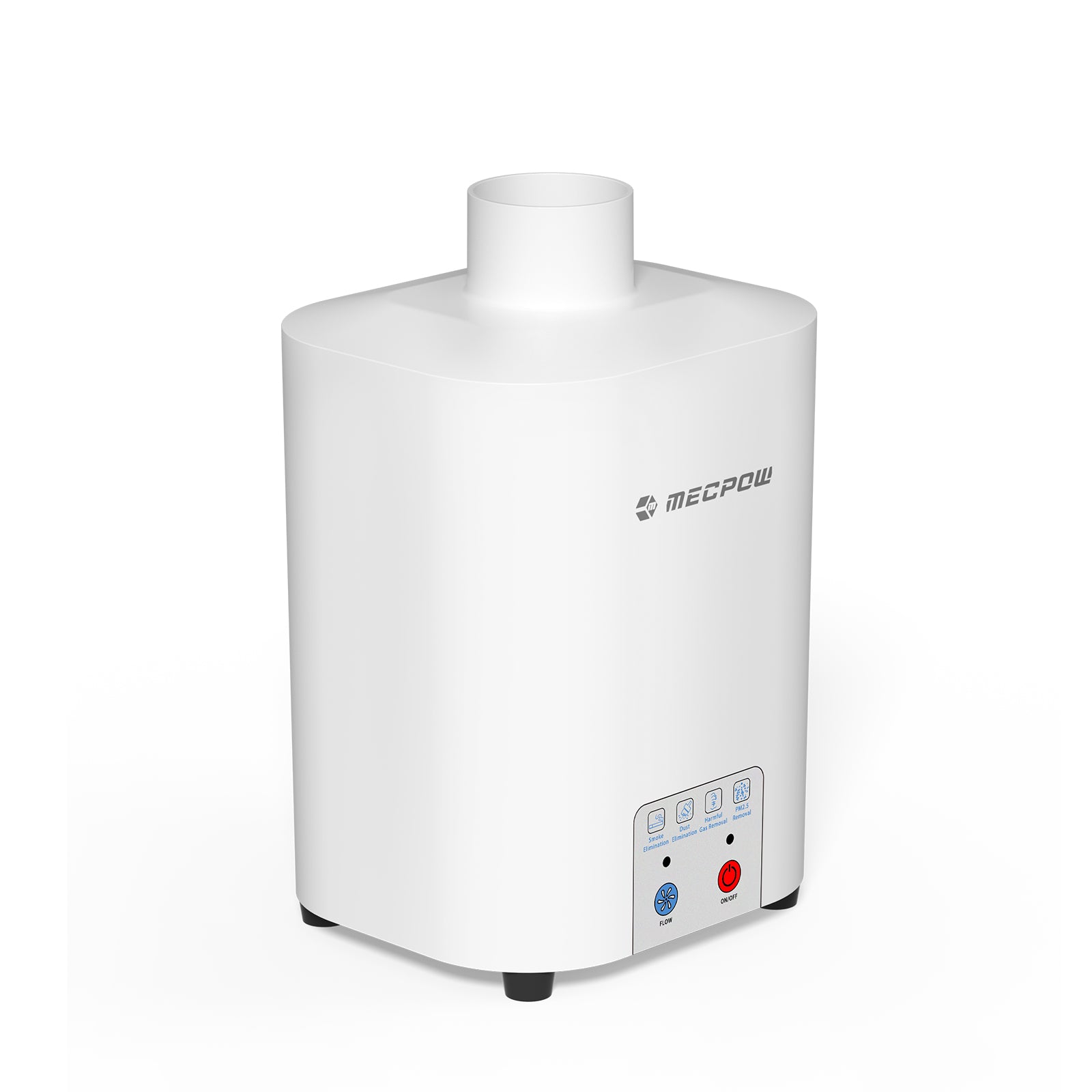

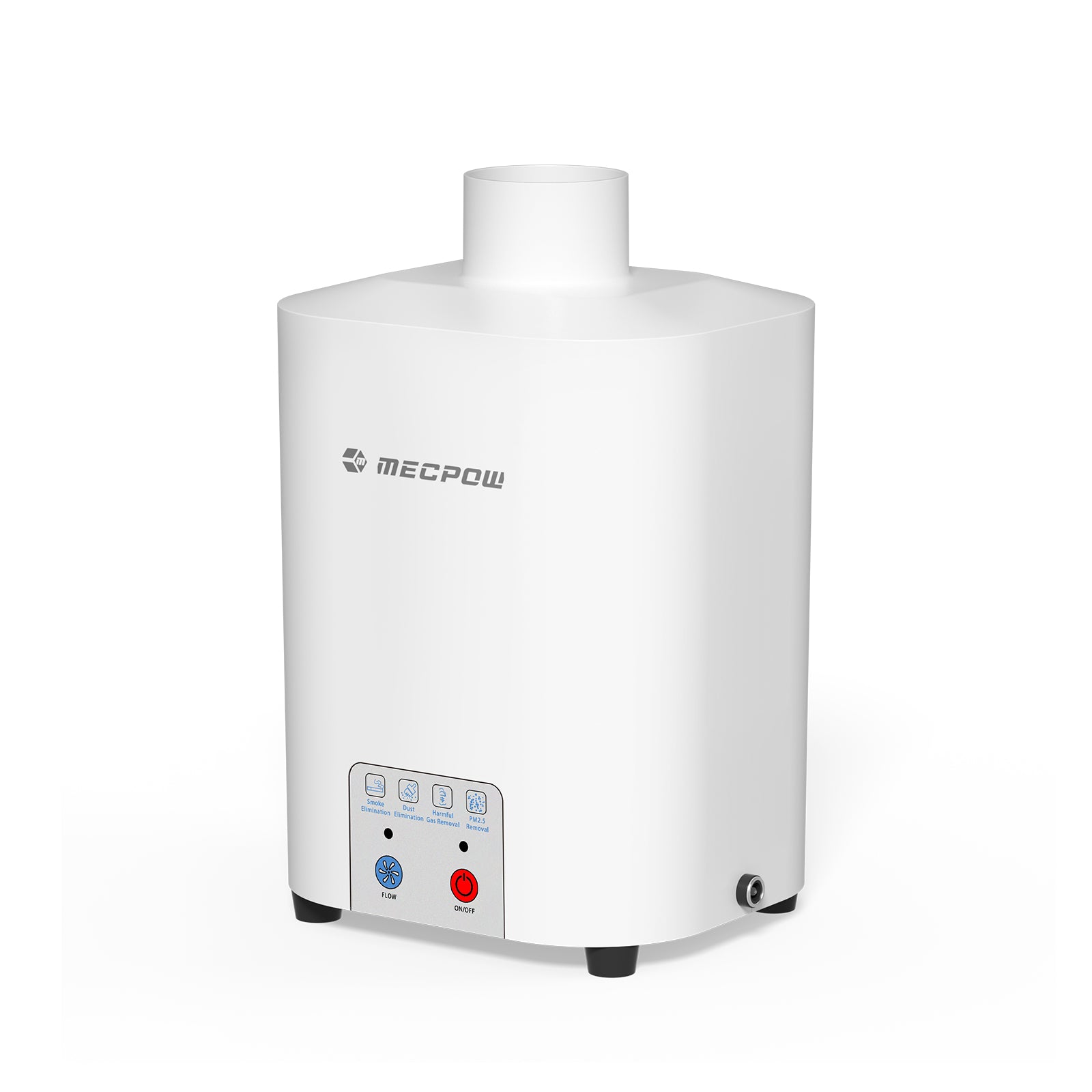

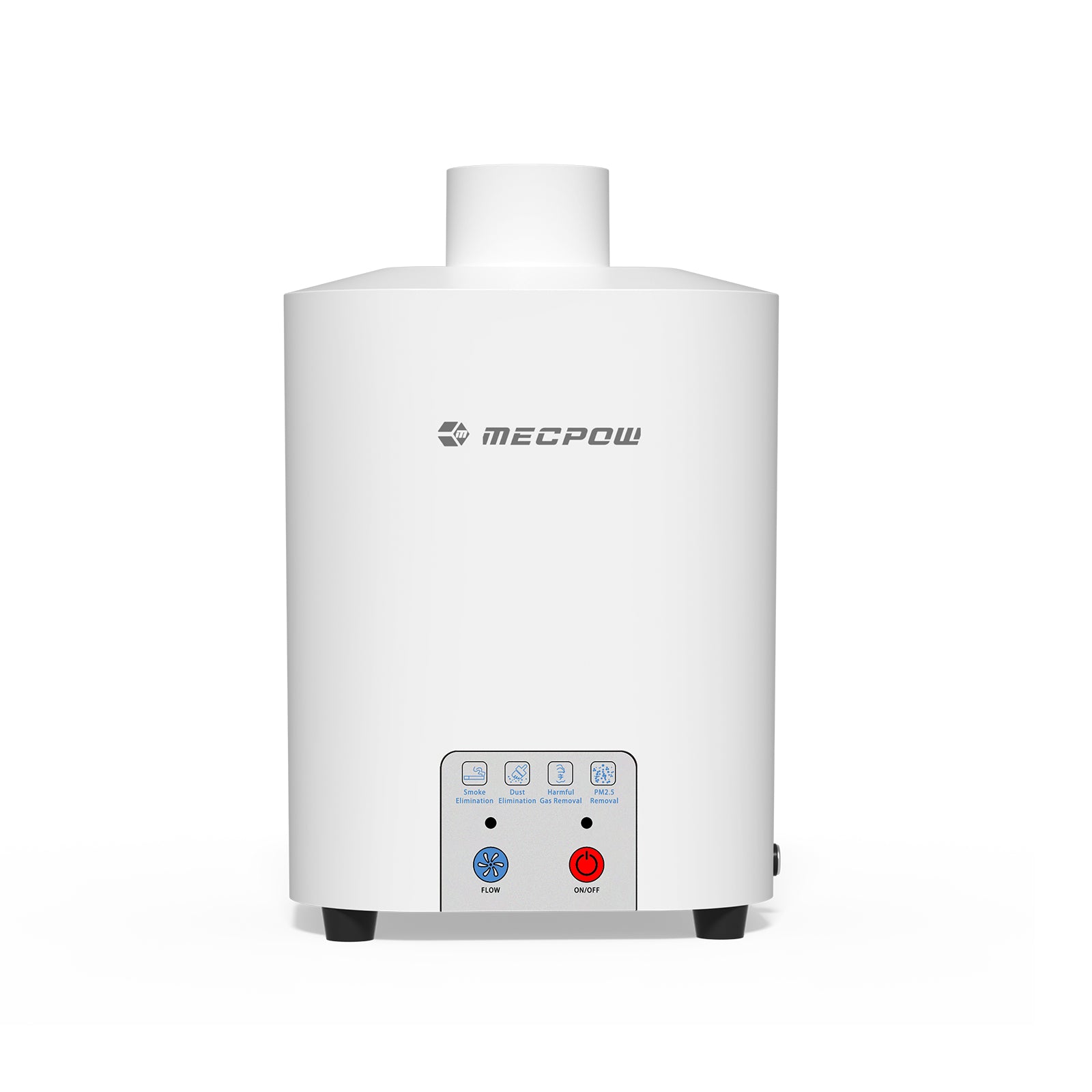

Mecpow P50 Fume Extractor

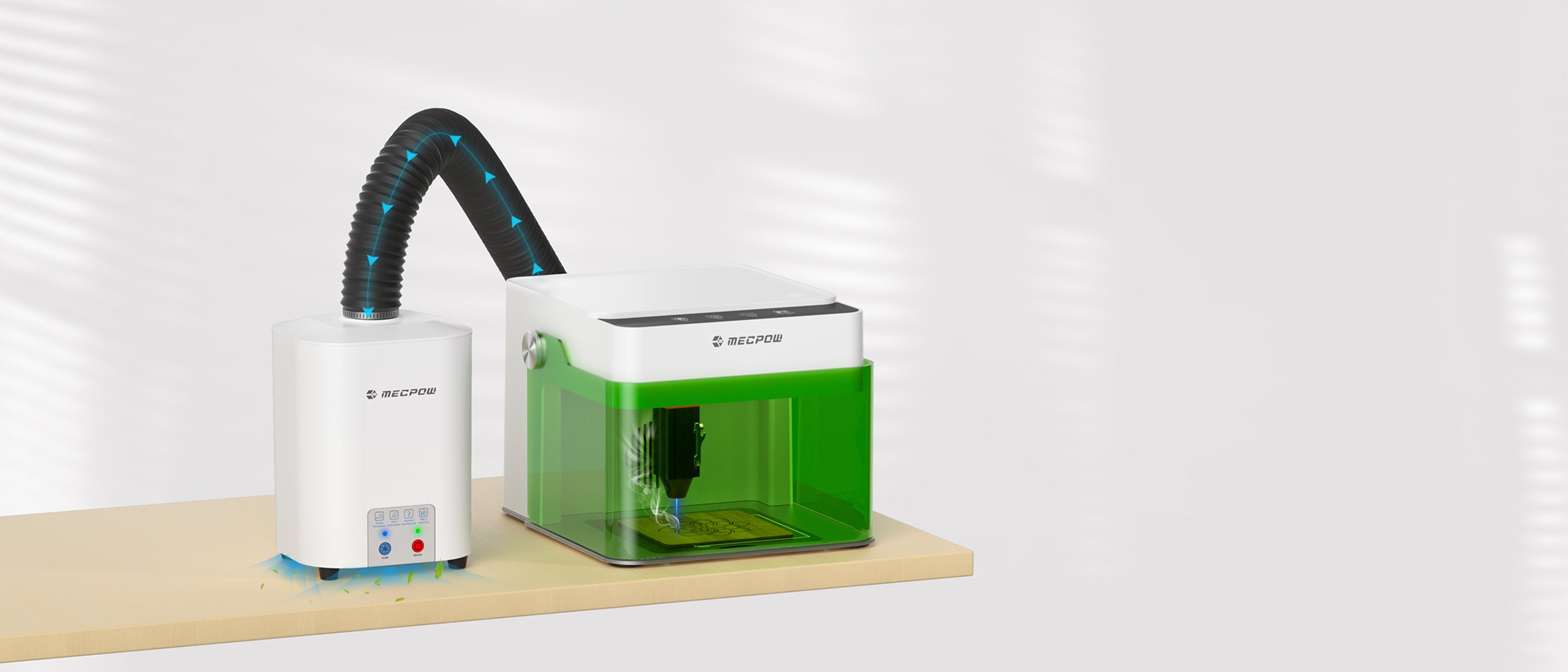

Strong Suction, Instant Purification
With a 50W brushless motor, the Mecpow P50 fume extractor delivers strong suction that instantly captures and removes smoke and harmful particles. Whether used indoors or outdoors, the P50 ensures a cleaner and fresher working environment, promoting healthier and more comfortable work sessions.

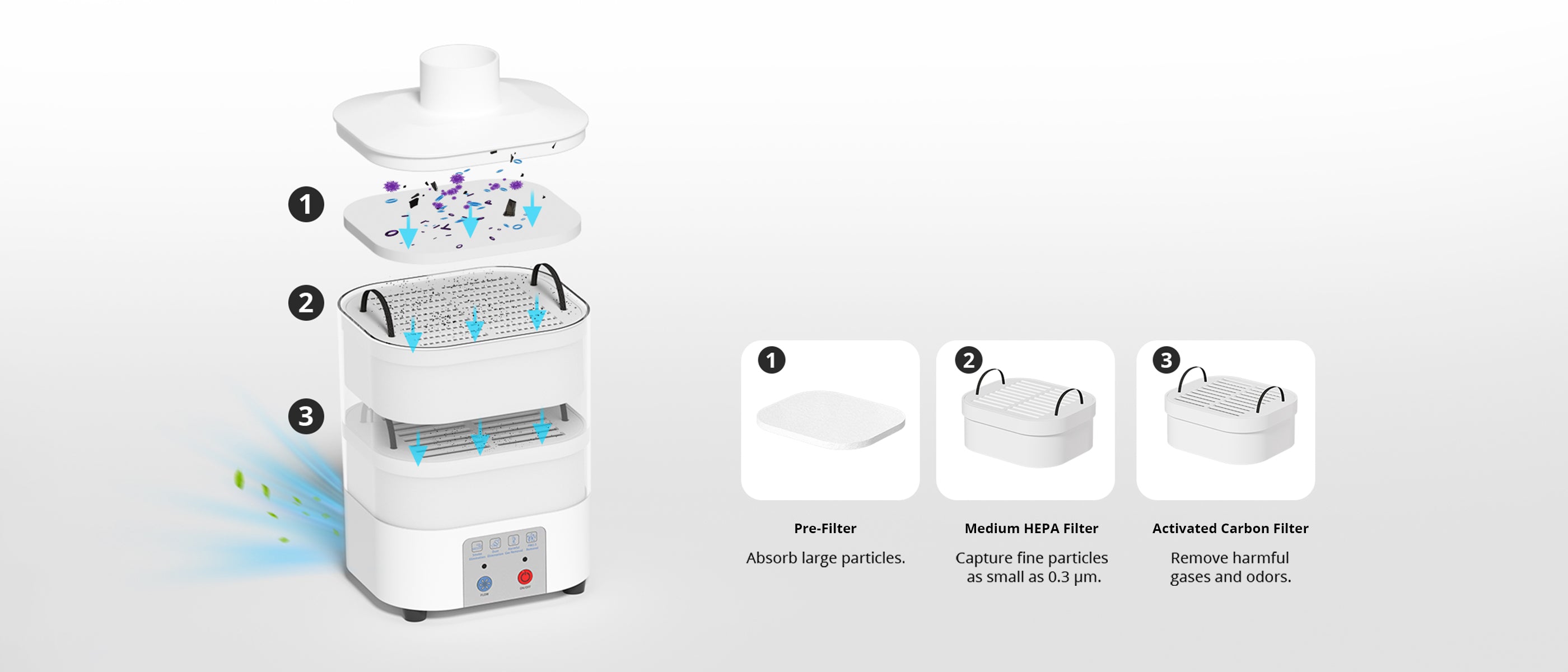

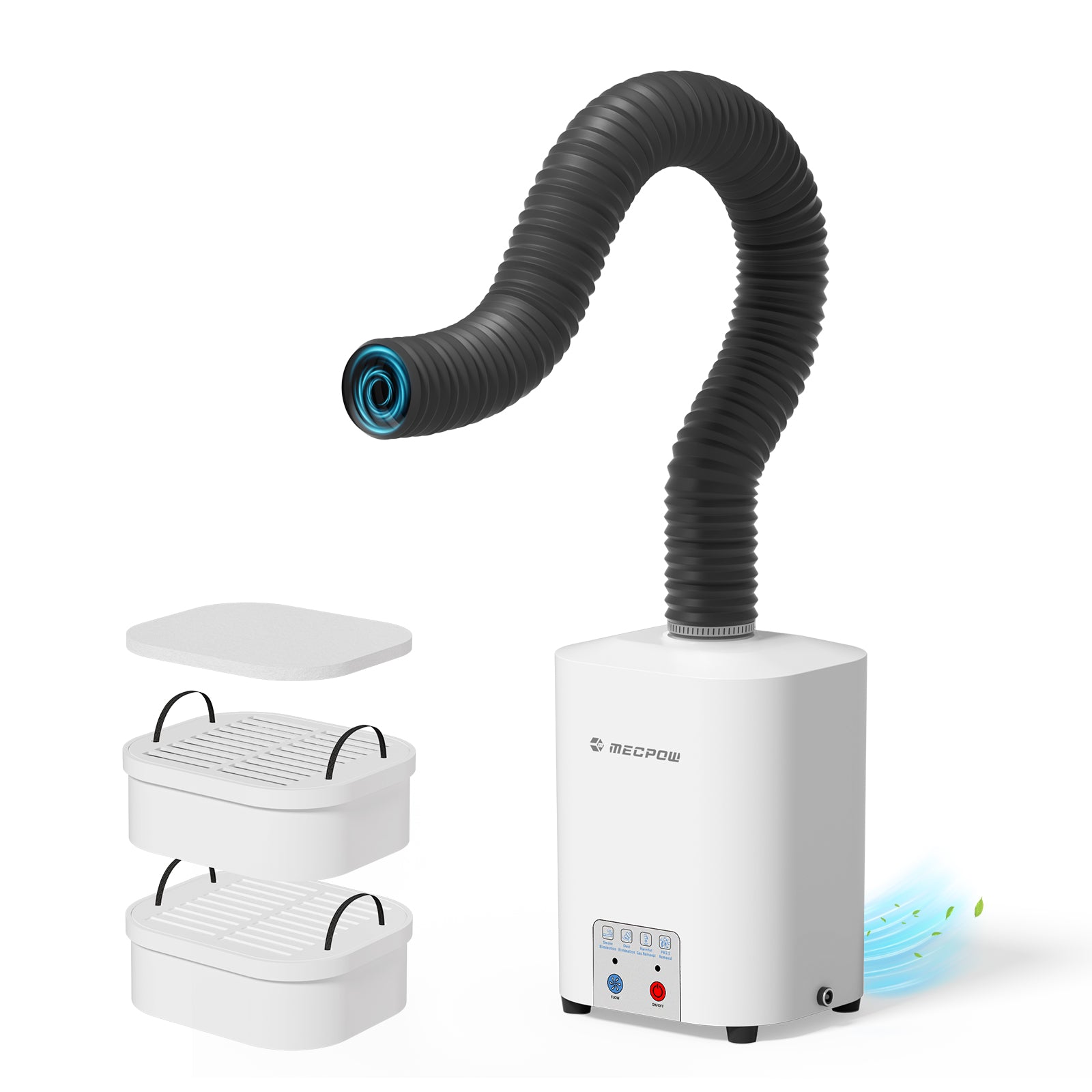

Powerful 3-Layer Filtration System
The P50 fume extractor features a 3-layer filtration system, including a pre-filter, a medium HEPA filter, and an activated carbon filter. This powerful filtration system effectively purifies smoke, dust, and harmful gases, achieving a remarkable 99.97% filtration and purification efficiency.

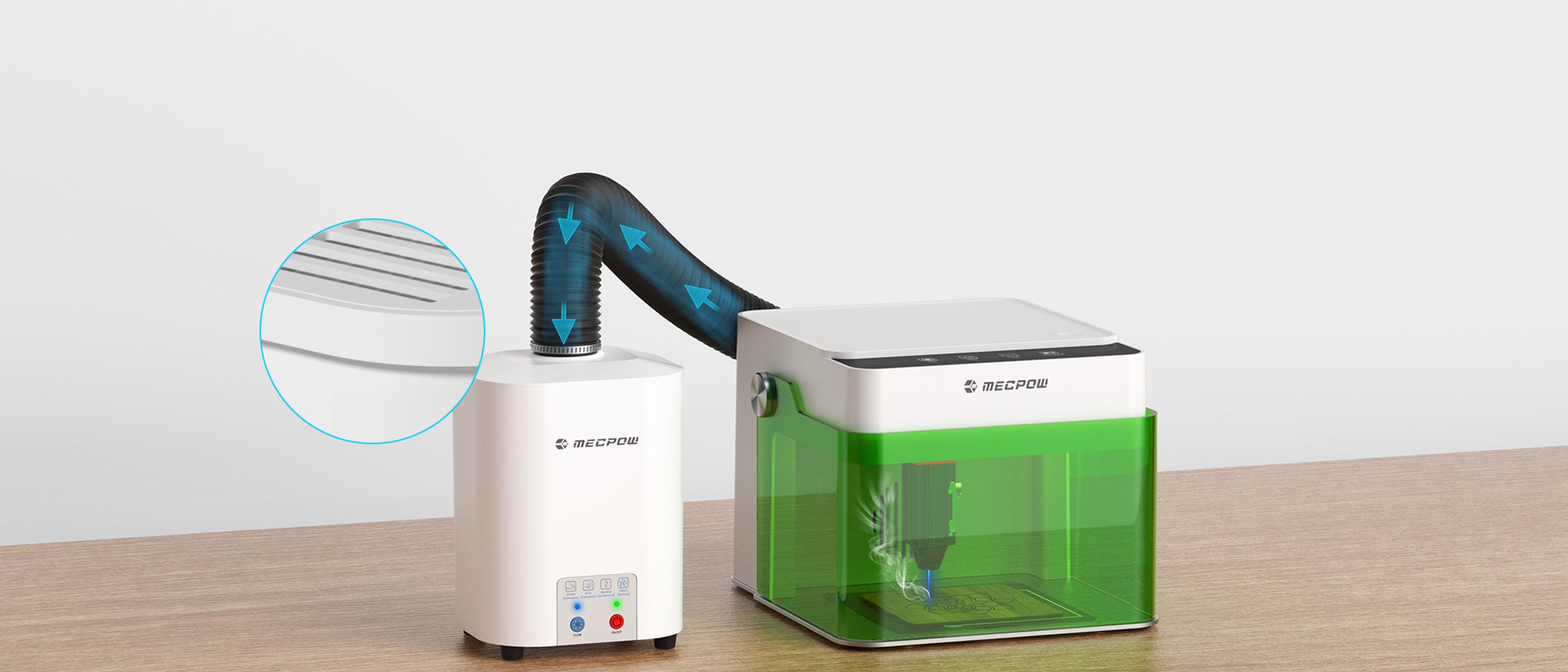

Sealed Design for Zero Smoke Leakage
The P50 fume extractor adopts an integrated sealed design with a precision-fit air inlet and protective foam, effectively eliminating smoke leakage. Even during extended use, it contains fumes and odors, ensuring your workspace remains safe, clean, and fresh.

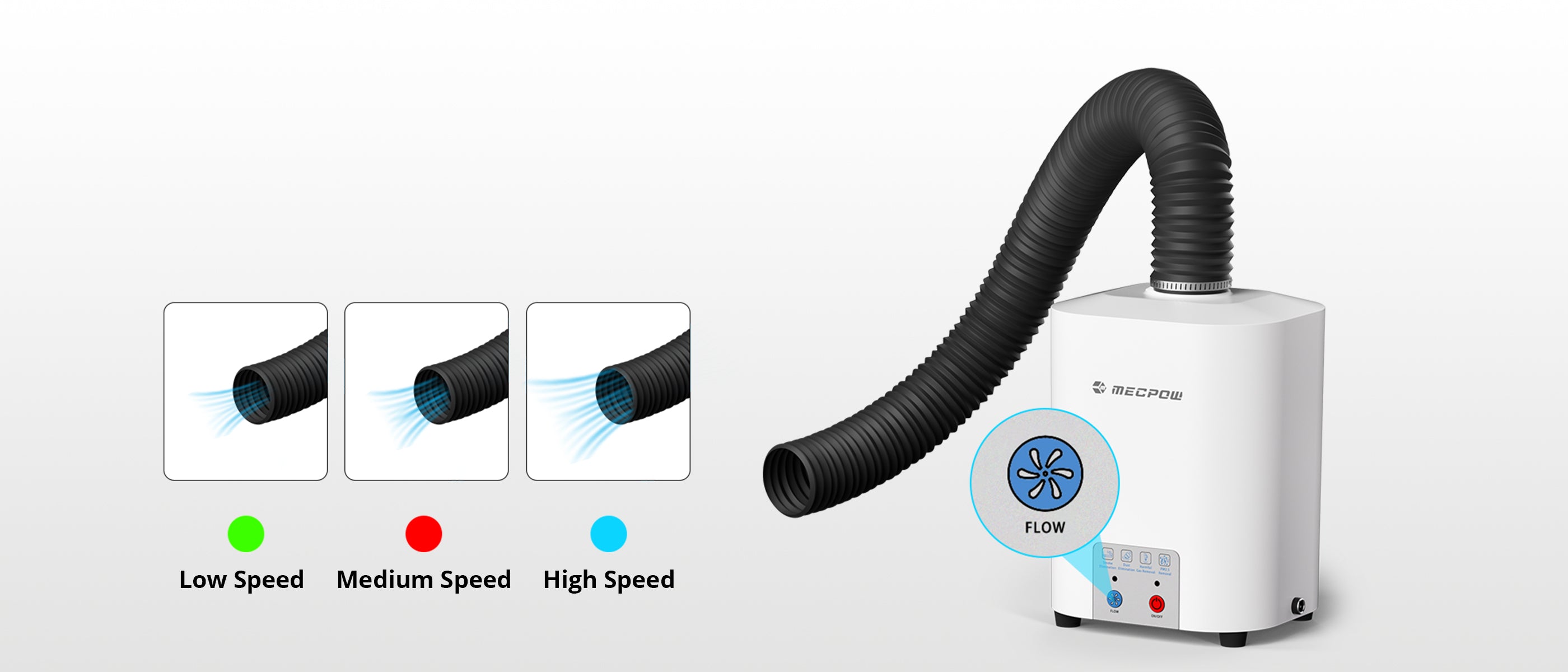

3 Speed Modes, Ultimate Flexibility
With low, medium, and high speed settings, the P50 fume extractor easily adapts to your needs. Its compact and portable design enables you to enjoy effective purification anywhere, maintaining optimal air quality at all times.
Quiet Operation & Wide Compatibility

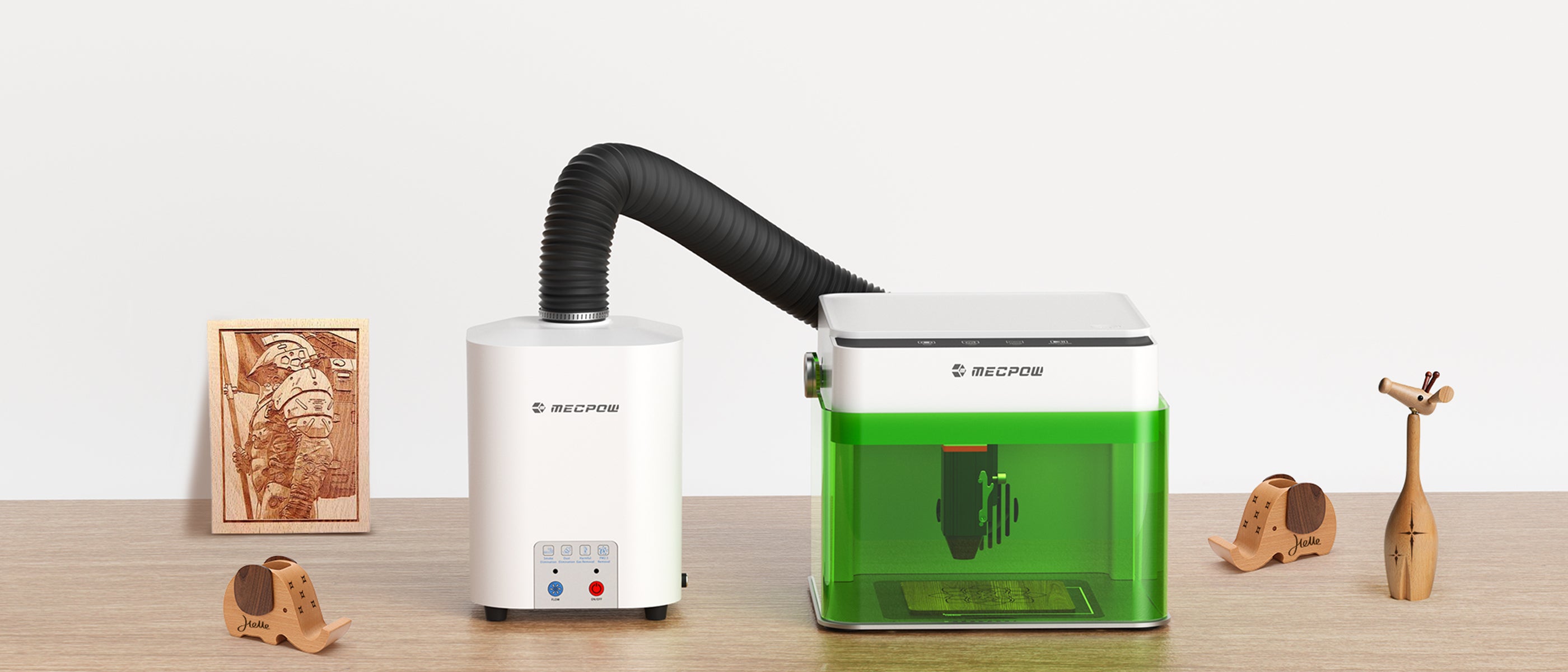

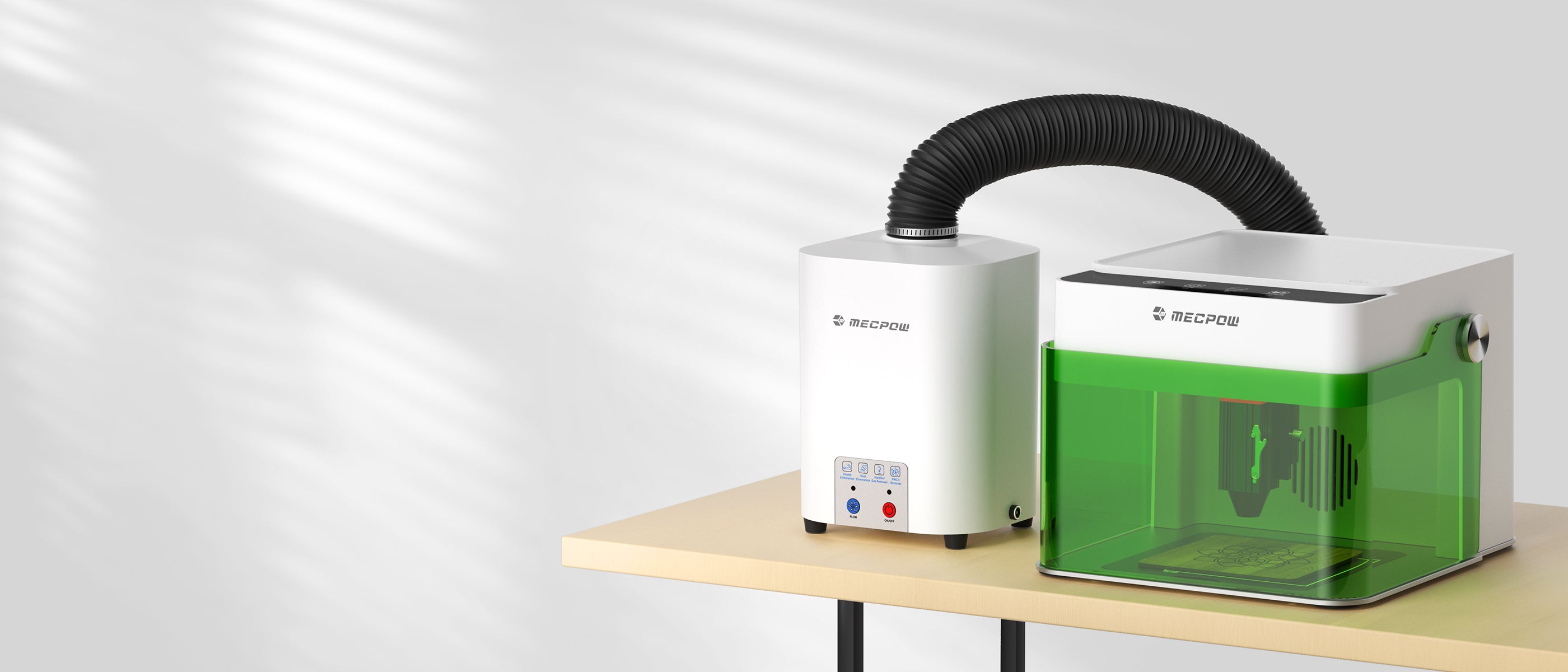

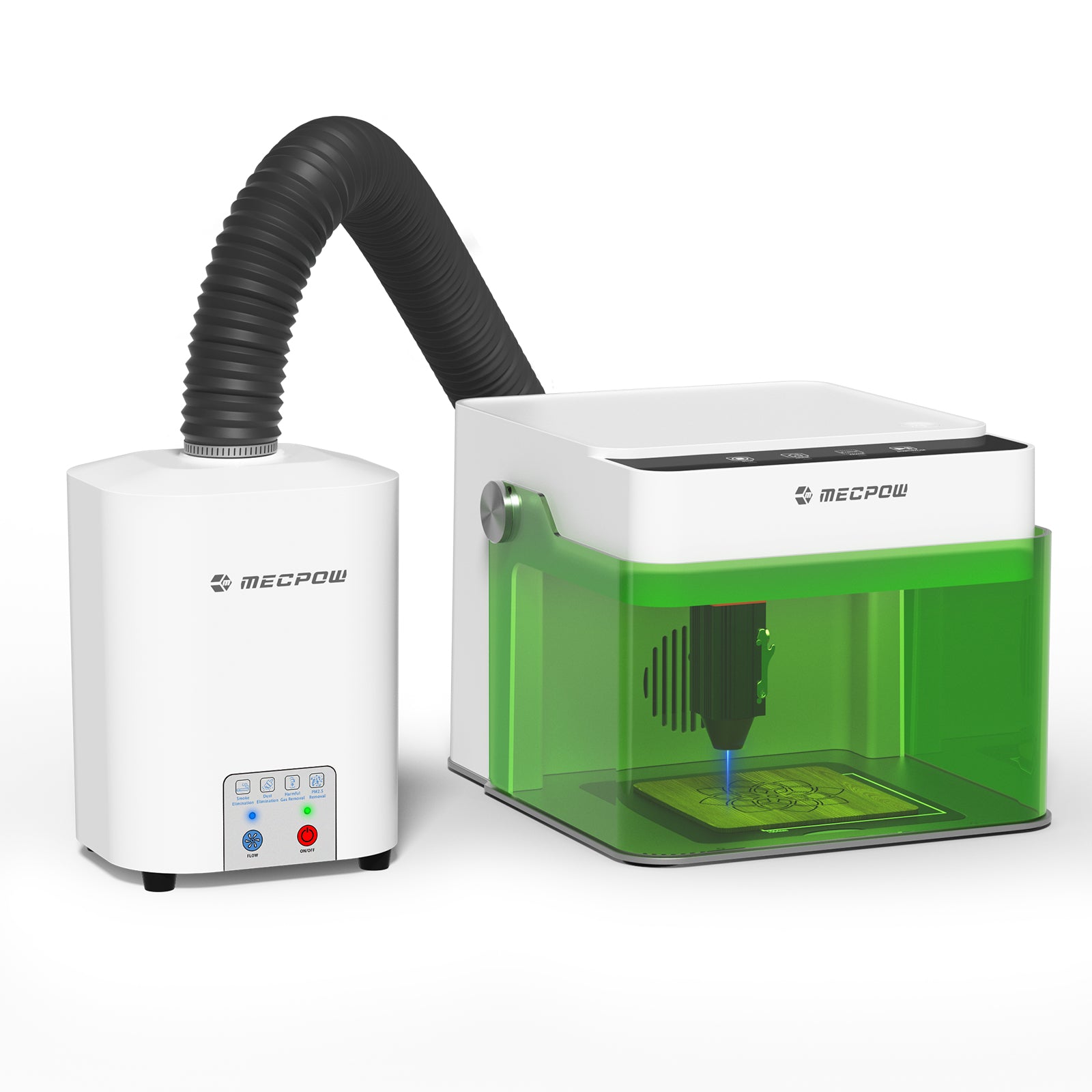

Despite its powerful performance, the P50 fume extractor operates at a noise level under 55 dB, ensuring it won’t disturb your family’s rest. Its energy-saving design reduces power consumption by up to 75%, making it both efficient and sustainable. The P50 is compatible with the Mecpow M1, Atomstack P1, and other laser engravers equipped with a Φ50 mm flange, giving you broad flexibility across your projects.
50W Strong Suction Power
3-Layer Filtration System
99.97% Smoke Removal Rate
Advanced Sealed Design
Low Noise (<55 dB)
Effectively remove smoke and harmful
particles, creating a cleaner, healthier
working environment!

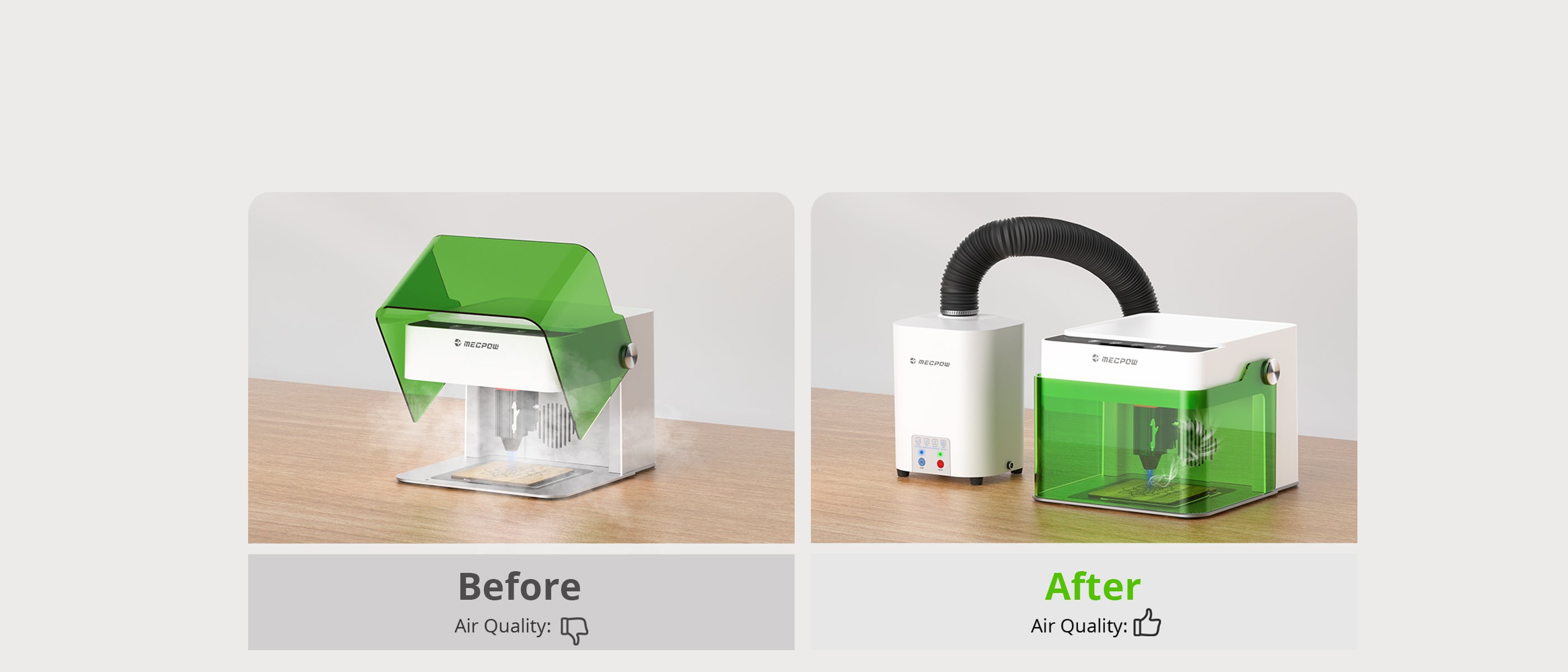

With Mecpow P50, say goodbye to smoke and odors and enjoy naturally clean indoor air in moments.
Filter out 99.97% of the smoke, dust, and harmful gases.
Prevent smoke leakage, keeping your workspace safe and fresh at all times!
Flexibly switch speed modes according to different tasks.
P150 Specification
Brand: Mecpow
Type: Fume Extractor
Model: P50
Color: White
Suction Power: 50W
Input Voltage: DC 24V 2A
Air Inlet: Ф50 mm
Flow Speed: 128 m³/h
Filtration Performance: 0.3 μm/99.97%
Noise: ＜55 dB
Exhaust Pipe Size: Ф52 mm x 1 m

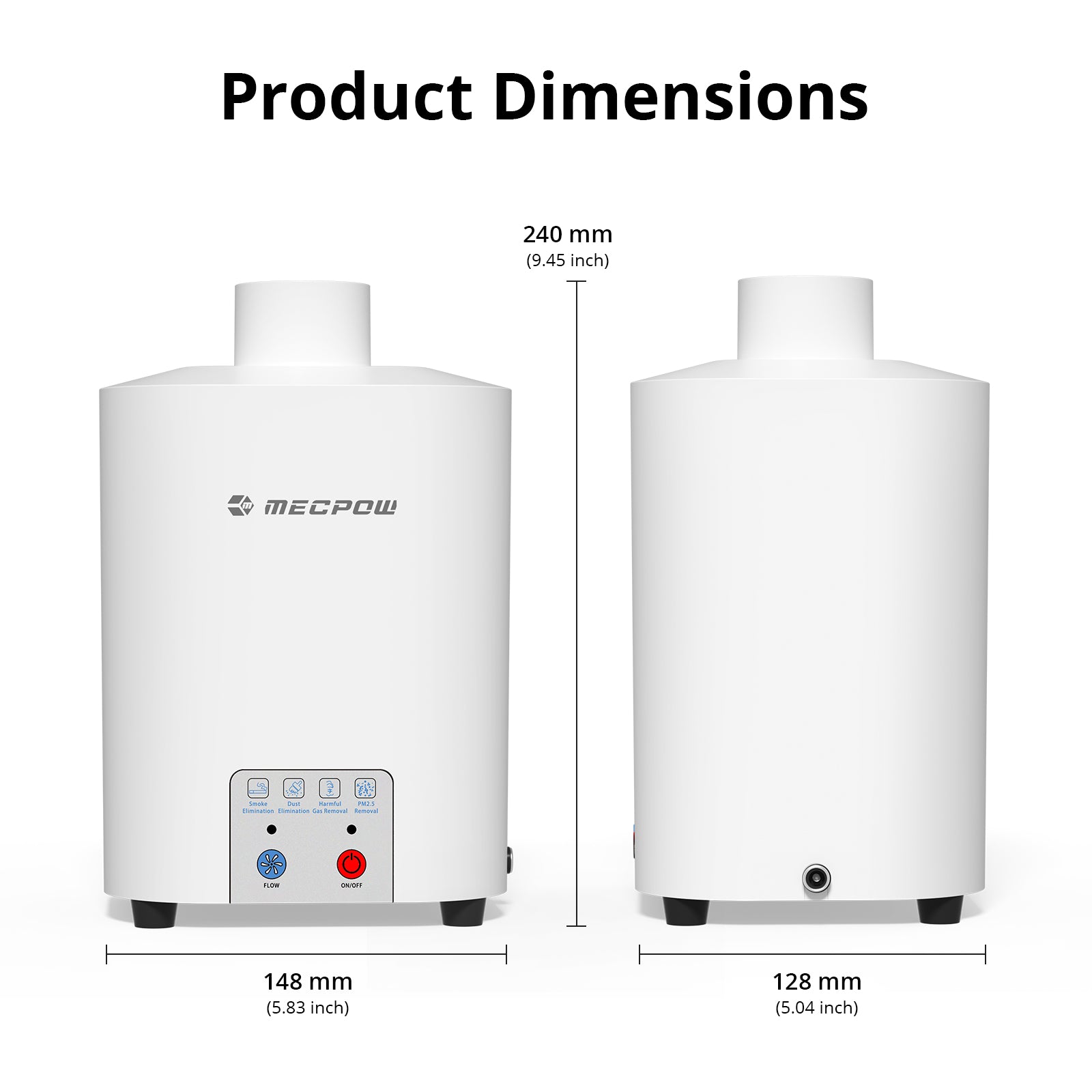

Product Dimension: 148 x 128 x 240 mm
Package Dimension: 245 x 175 x 260 mm
Product Weight: 0.95kg
Package Weight: 1.65kg

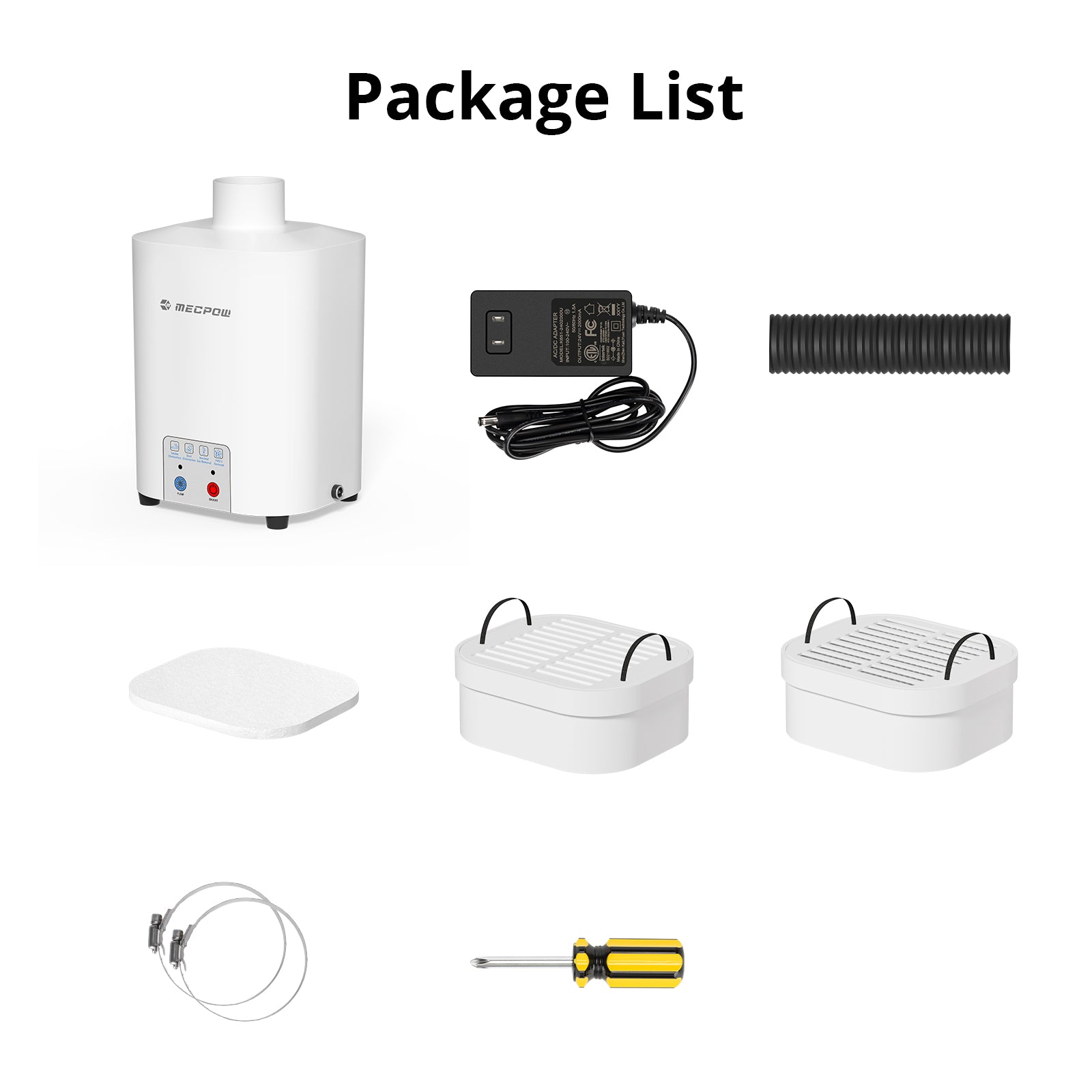

1 x P50 Fume Extractor
1 x Power Cable
1 x Exhaust Pipe
1 x Screwdriver
2 x Throat Hoop
5 x Pre-Filter
1 x Medium HEPA Filter
1 x Activated Carbon Filter
FAQs for P50
Why is the air volume weak, and why does the suction power decrease significantly during operation?
A: The air inlet may be clogged.
B: There are foreign objects that may be stuck in the exhaust pipe.
C: The filter could be saturated.

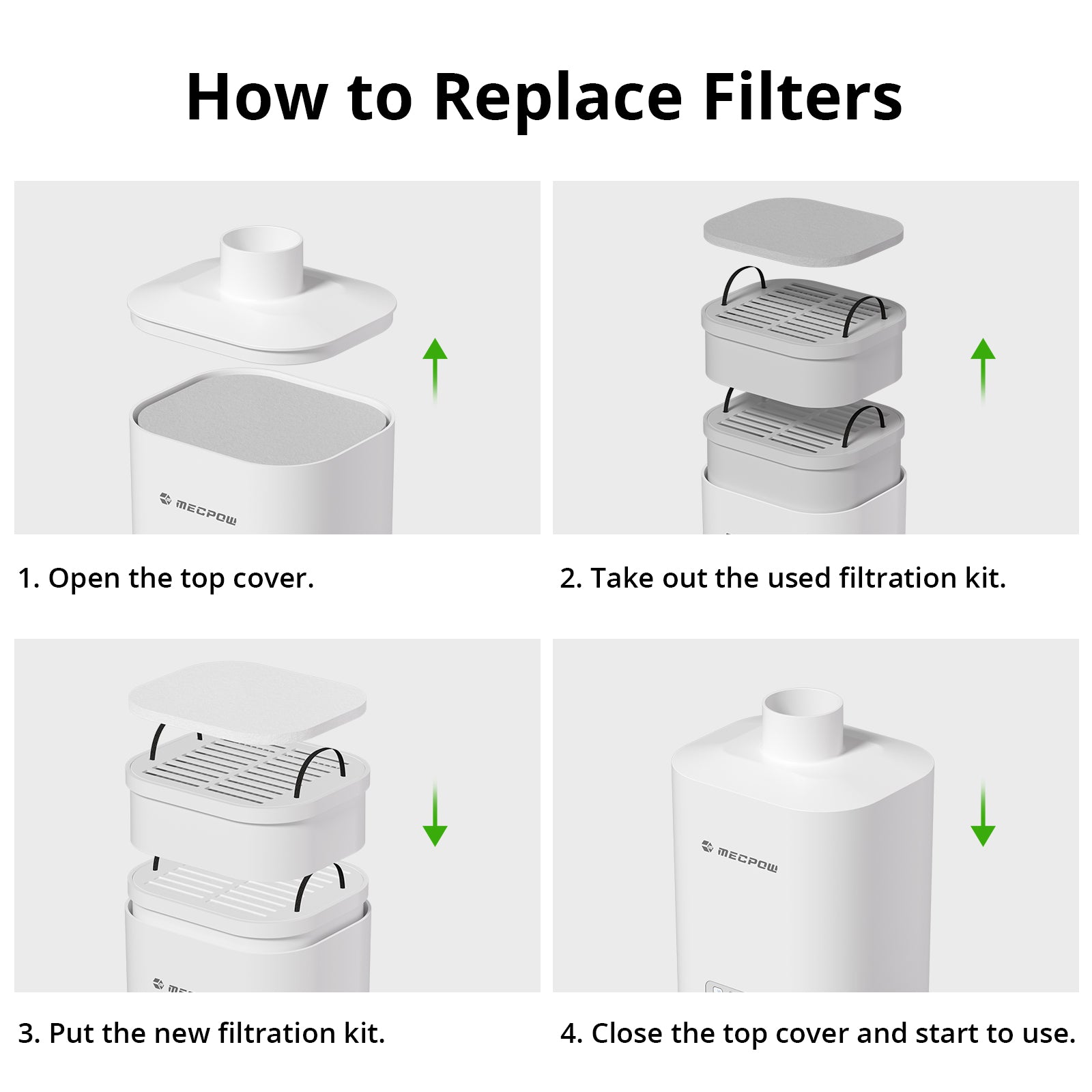

To resolve this issue, turn off the power, open the top cover of the main unit, and check whether the air inlet and exhaust pipe are clogged by foreign objects. If you find any foreign objects, it is recommended to clear them away. If the suction is normal without the filter, then the (old) filter is the problem and should be replaced.
Why does the machine immediately shut down after startup, and why does it happen again when I restart it?
A: The machine shuts down because the filter is too clogged, restricting airflow. This makes the fume extractor draw too much power when starting, which triggers the overcurrent protection mechanism and causes the machine to shut off automatically.
To troubleshoot, turn off the power, open the top cover, and check for any foreign matter blocking the air inlet. Then, if there is no foreign matter after checking and handling, adjust the airflow to the minimum level. Finally, restart the machine and adjust the airflow to the appropriate level.
