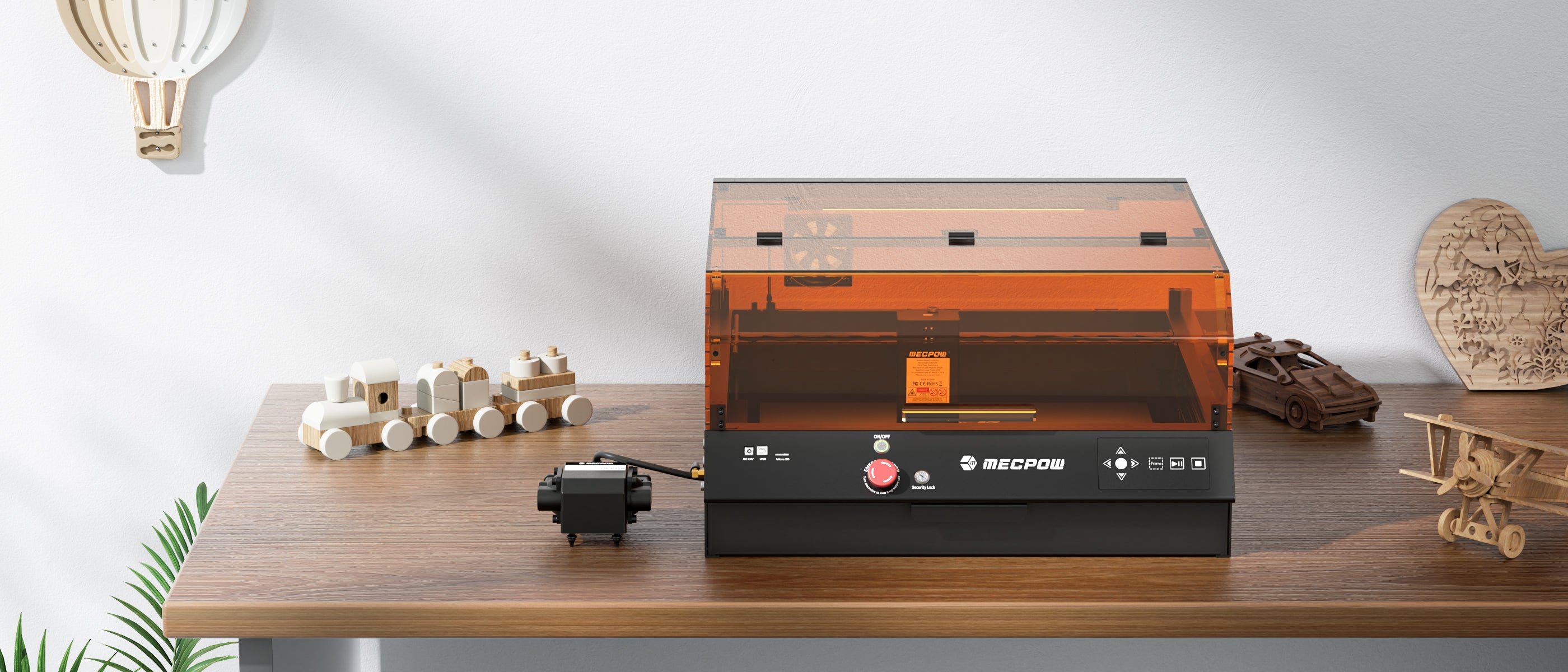

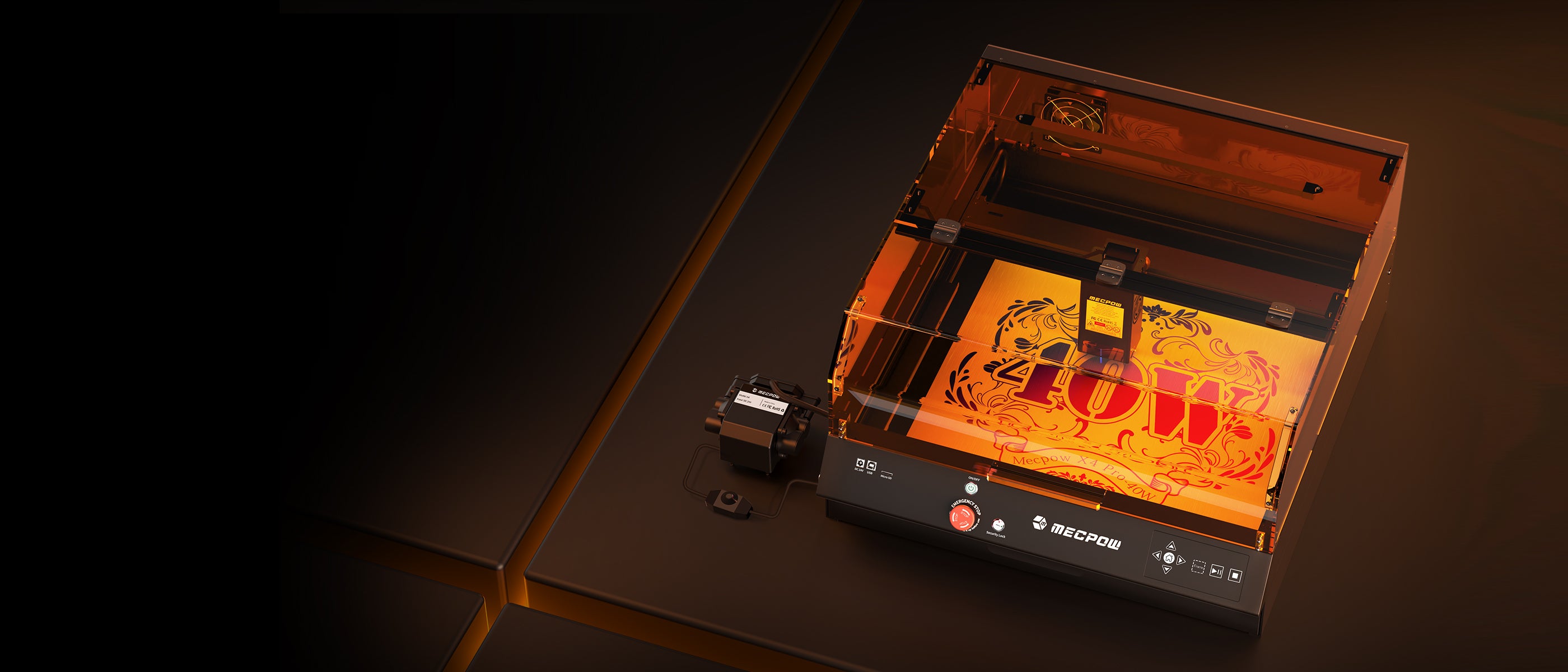

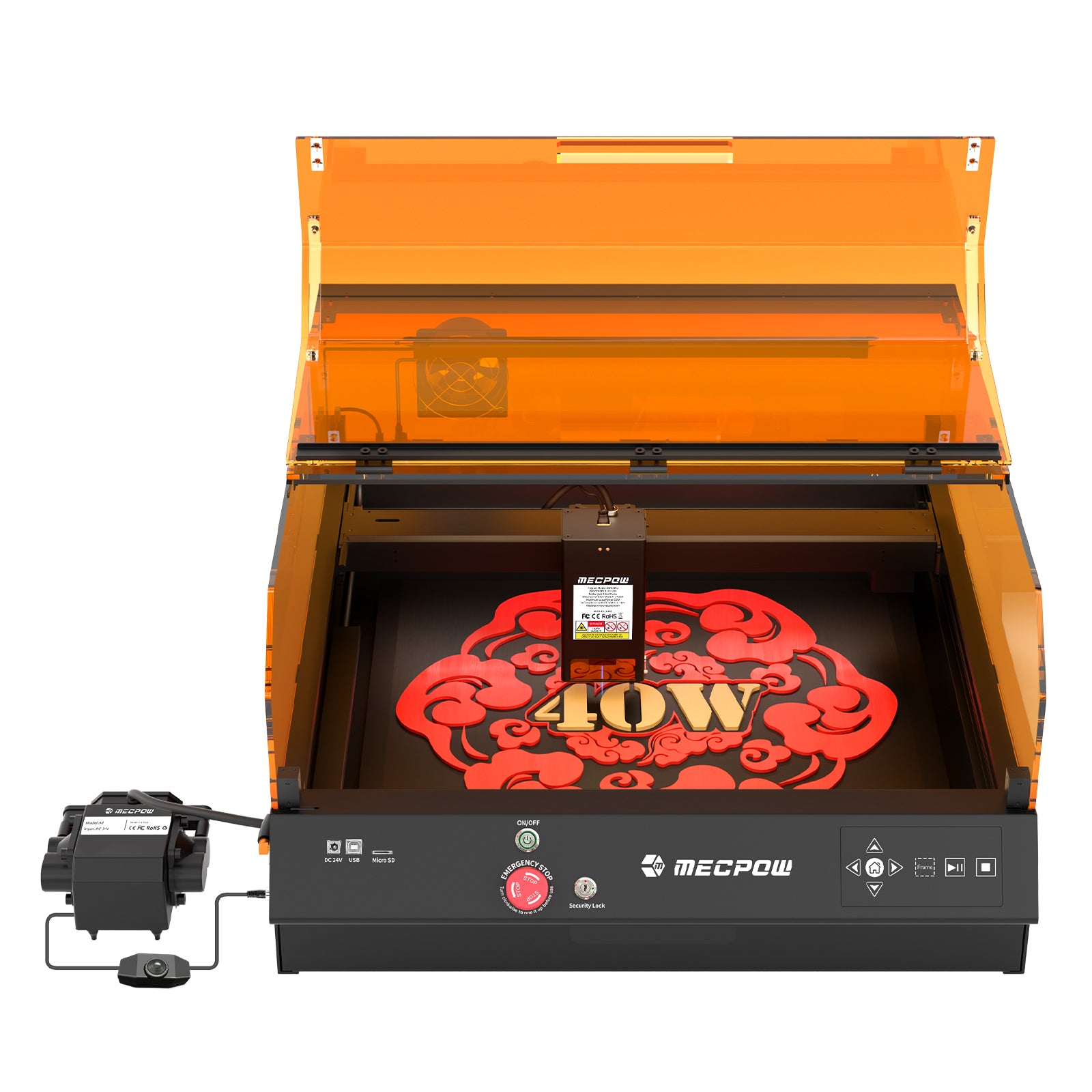

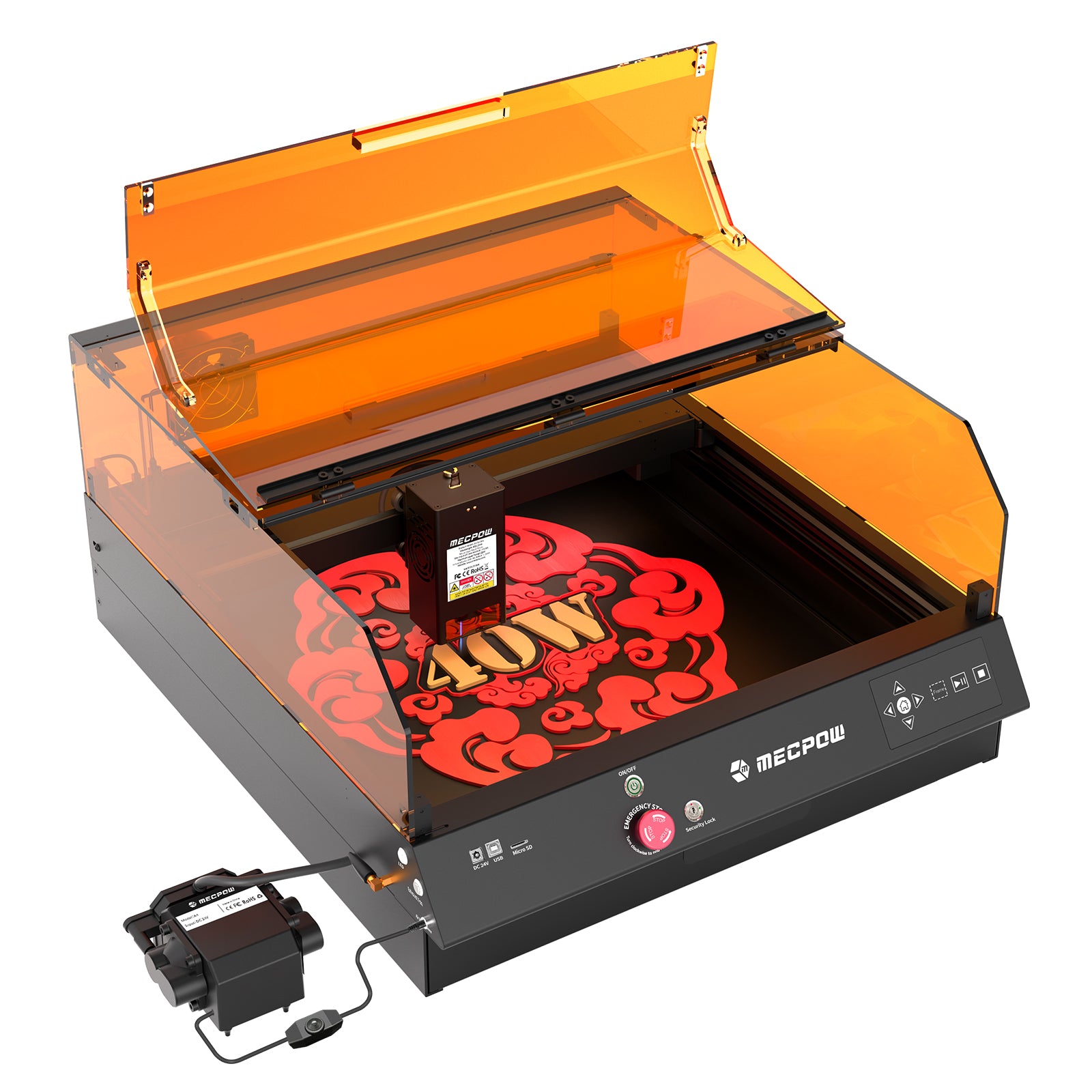

Mecpow X4 Pro-40W Laser Engraving Machine
Dual-Laser Power, Powerful Performance
The Mecpow X4 Pro-40W dual-laser engraver offers dual lasers: 40W and 20W, meeting various cutting and engraving needs. With a powerful 40W laser, the X4 Pro-40W can slice through 25mm wood, 30mm black acrylic, and 0.15mm black stainless steel, while its 20W mode is perfect for detailed engraving with a smaller spot size. With a maximum speed of up to 30000mm/min, the X4 Pro-40W easily handles fast cutting and precise engraving.

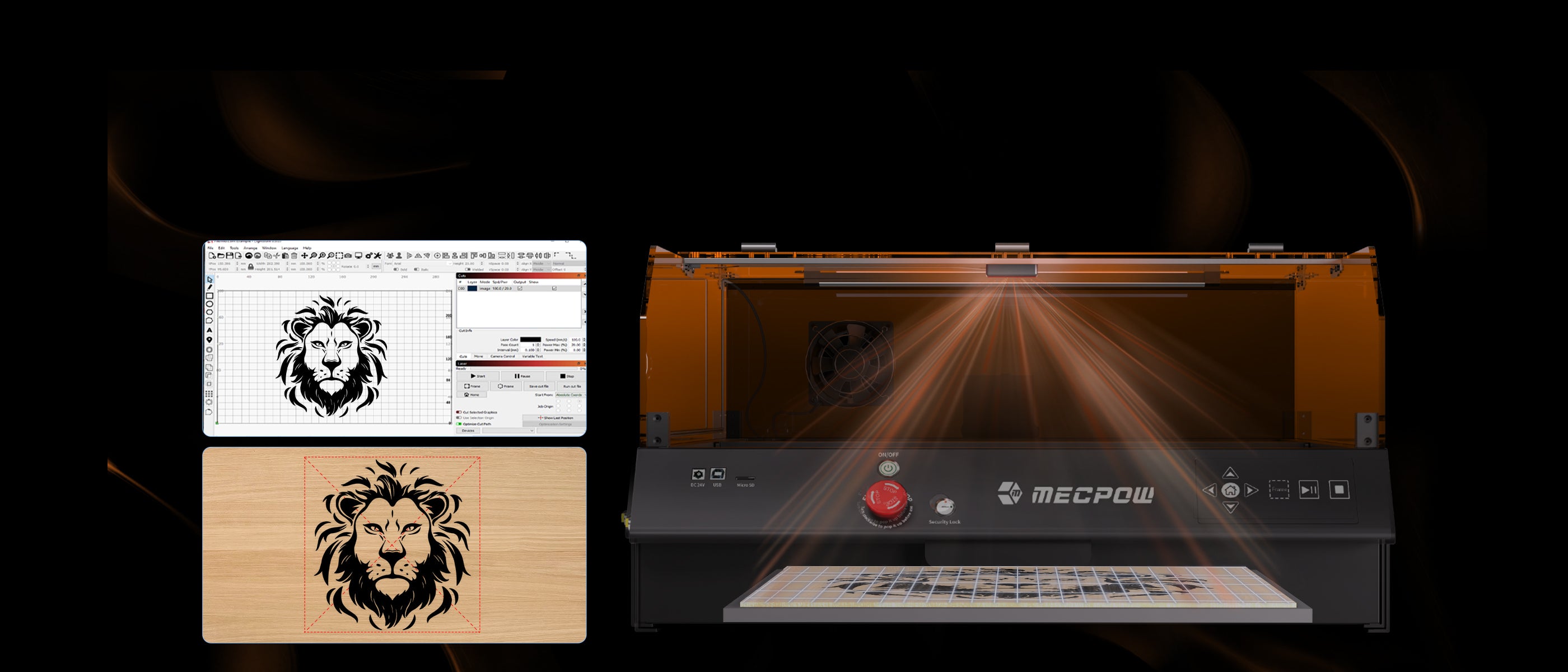

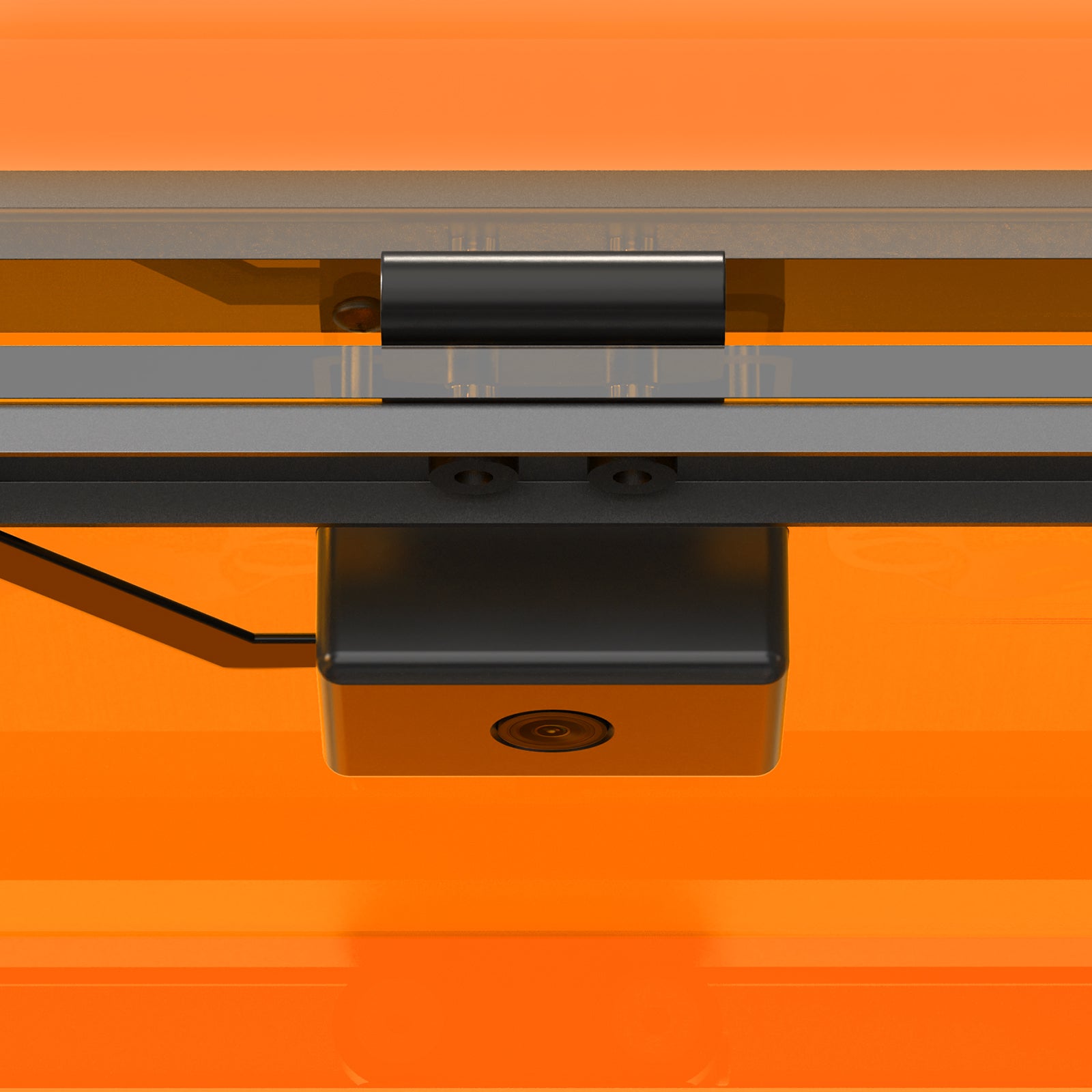

Built-in Camera for Precision
Equipped with a built-in high-definition camera, the X4 Pro-40W dual-laser engraver supports visual-assisted precise positioning. The top-mounted camera enables precise focusing, engraving control, image tracking, and batch engraving. The HD video recording function can document and share your creative process, enhancing your artistic projects.
Comprehensive Safety Features

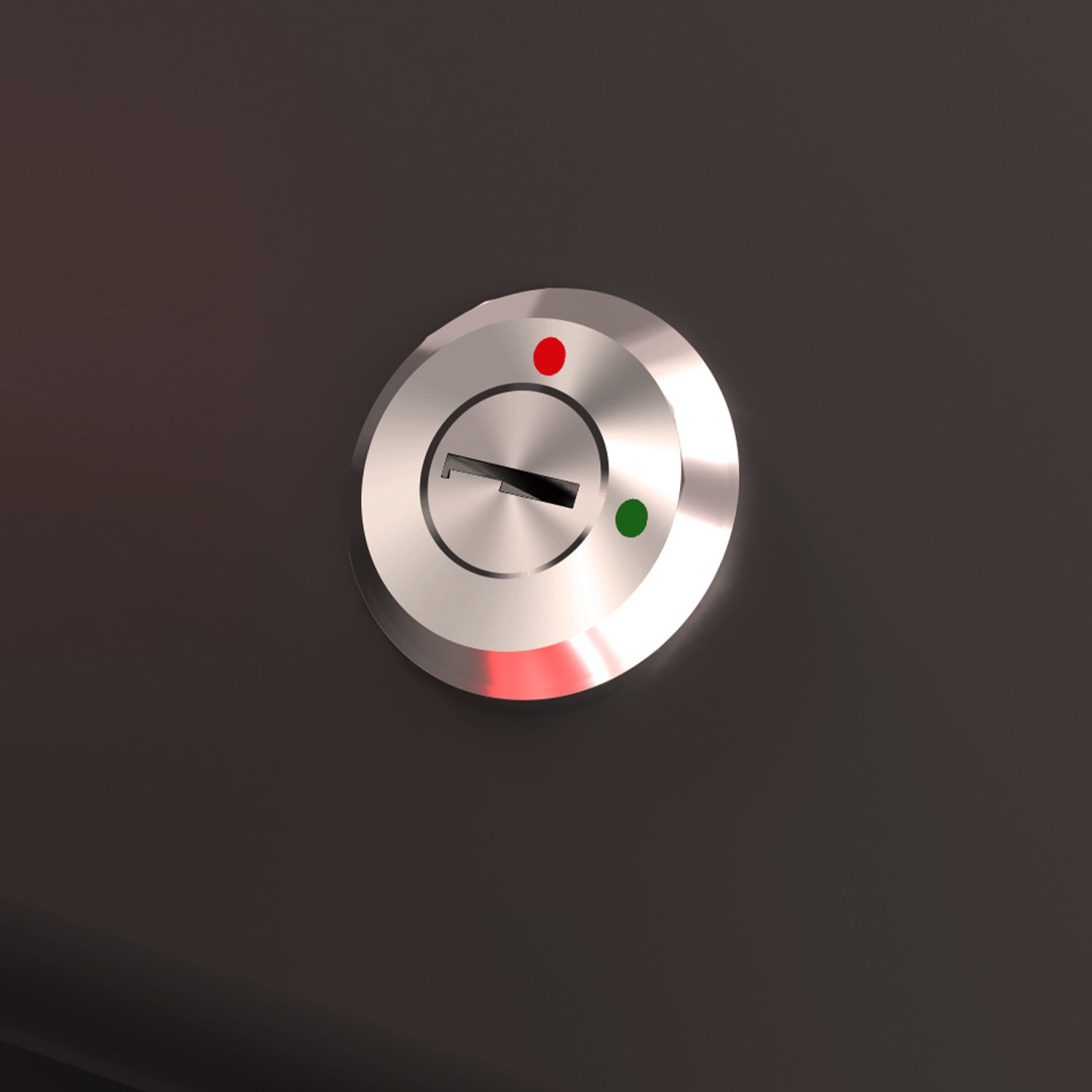

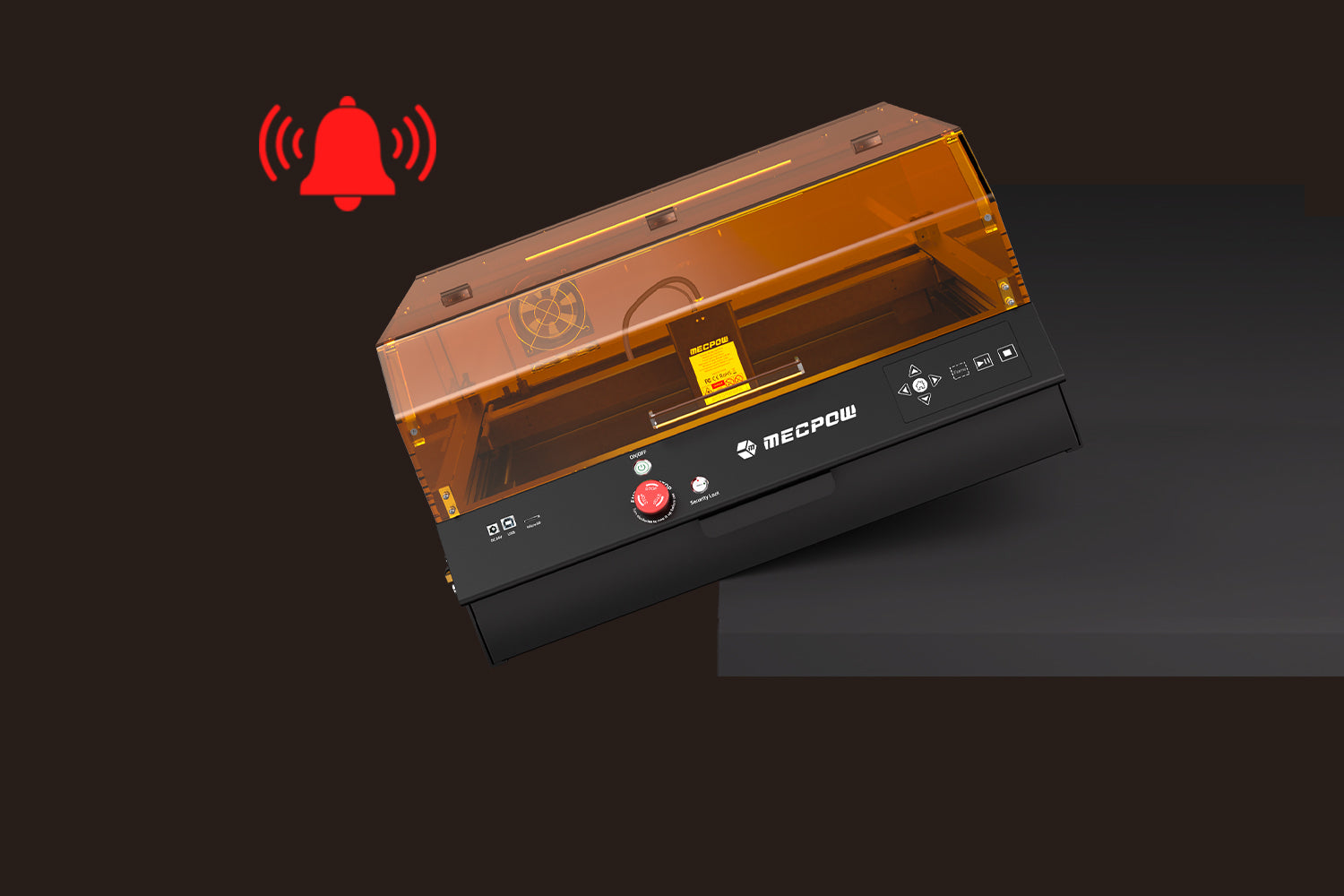

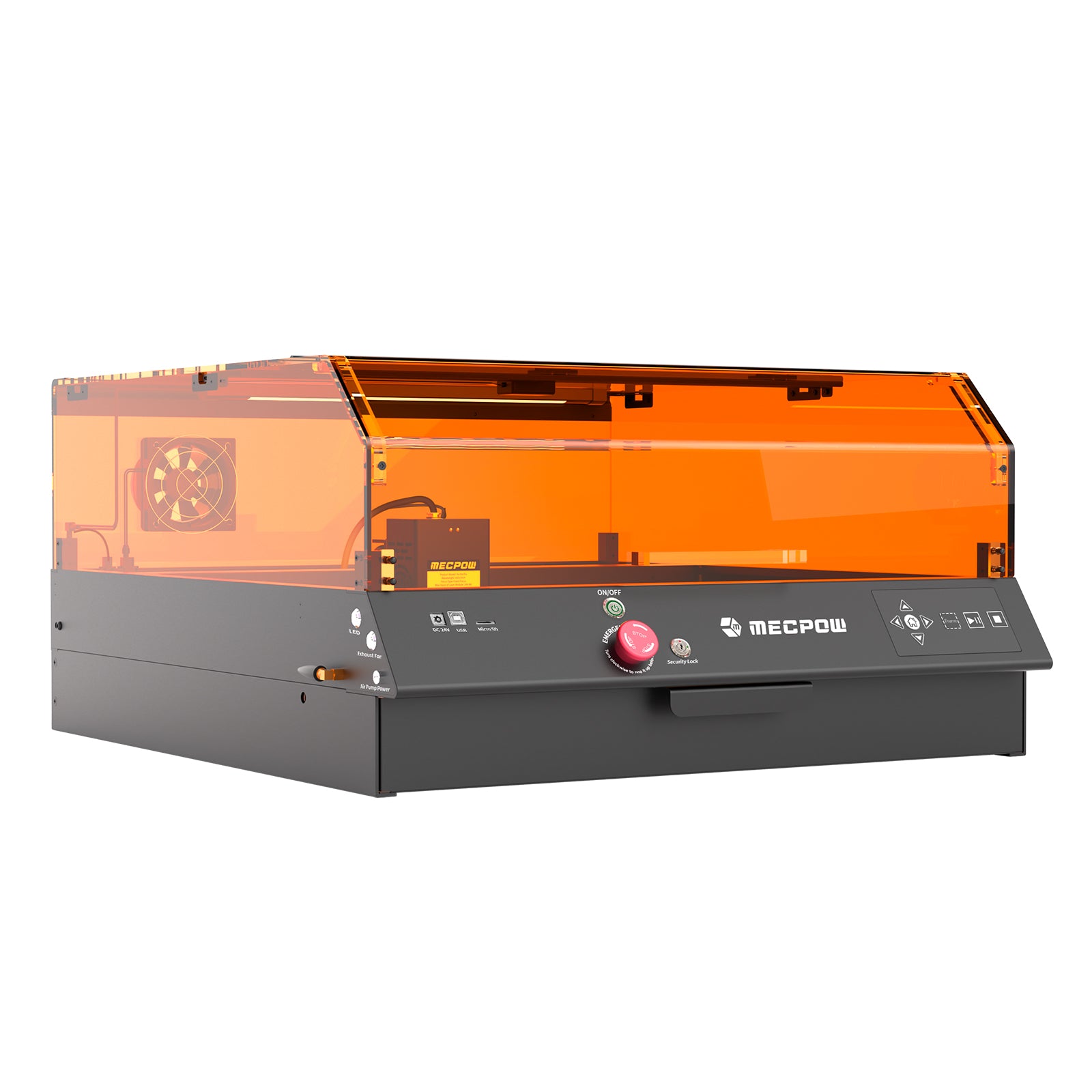

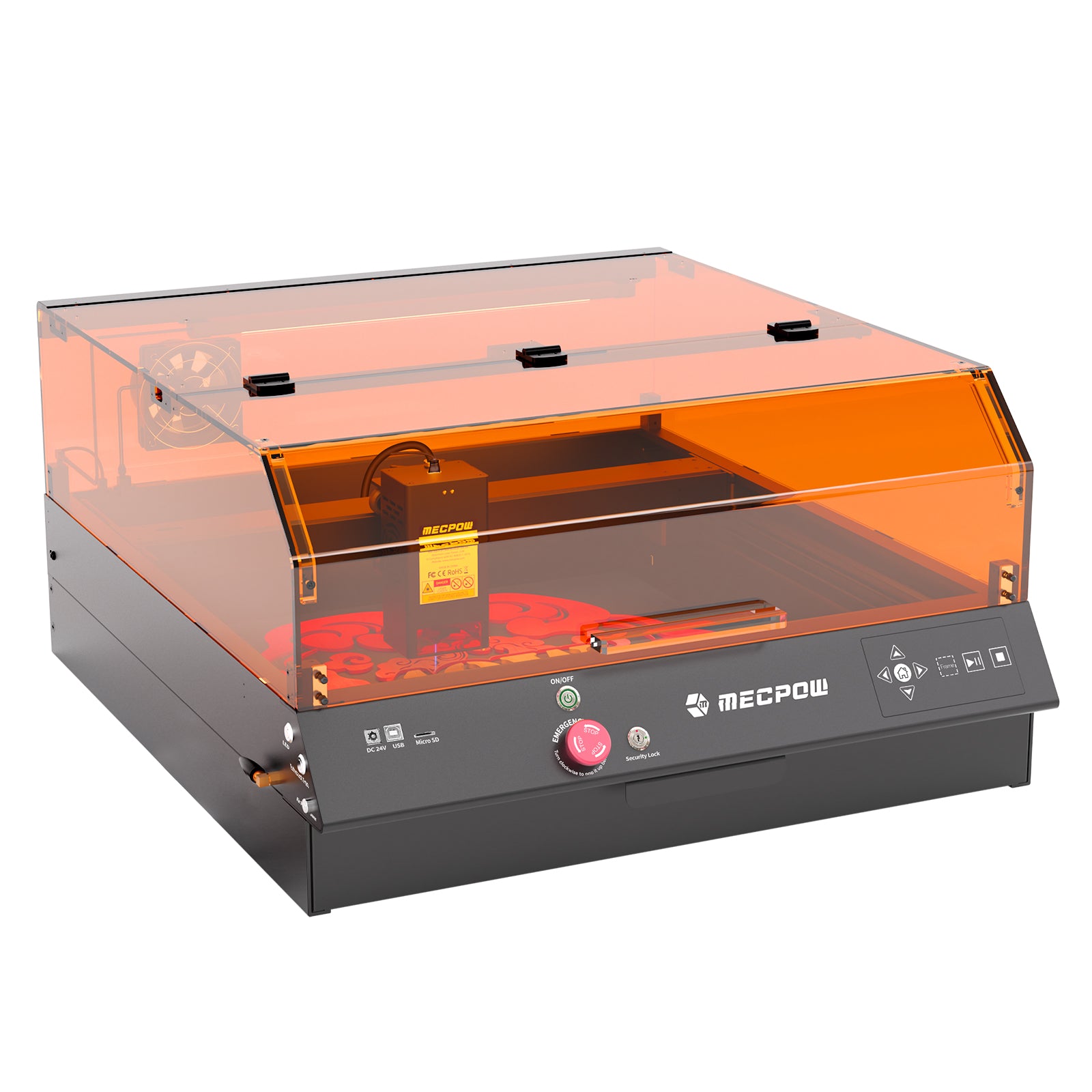

Certified with FDA Class 1 laser safety standards, the X4 Pro-40W features a fully enclosed protective cover and 360-degree visibility design, providing a more comfortable and secure workspace. Its protective cover filters 99% of laser light, safeguarding your eyes without the need for goggles. Additional safety measures include a security lock, flame sensor, emergency stop switch, tilt protection (the X4 Pro-40W automatically stops working when tilted beyond 50°±5), and limit switches in four directions, ensuring a safer working environment.
Versatile Connectivity and Smart Control

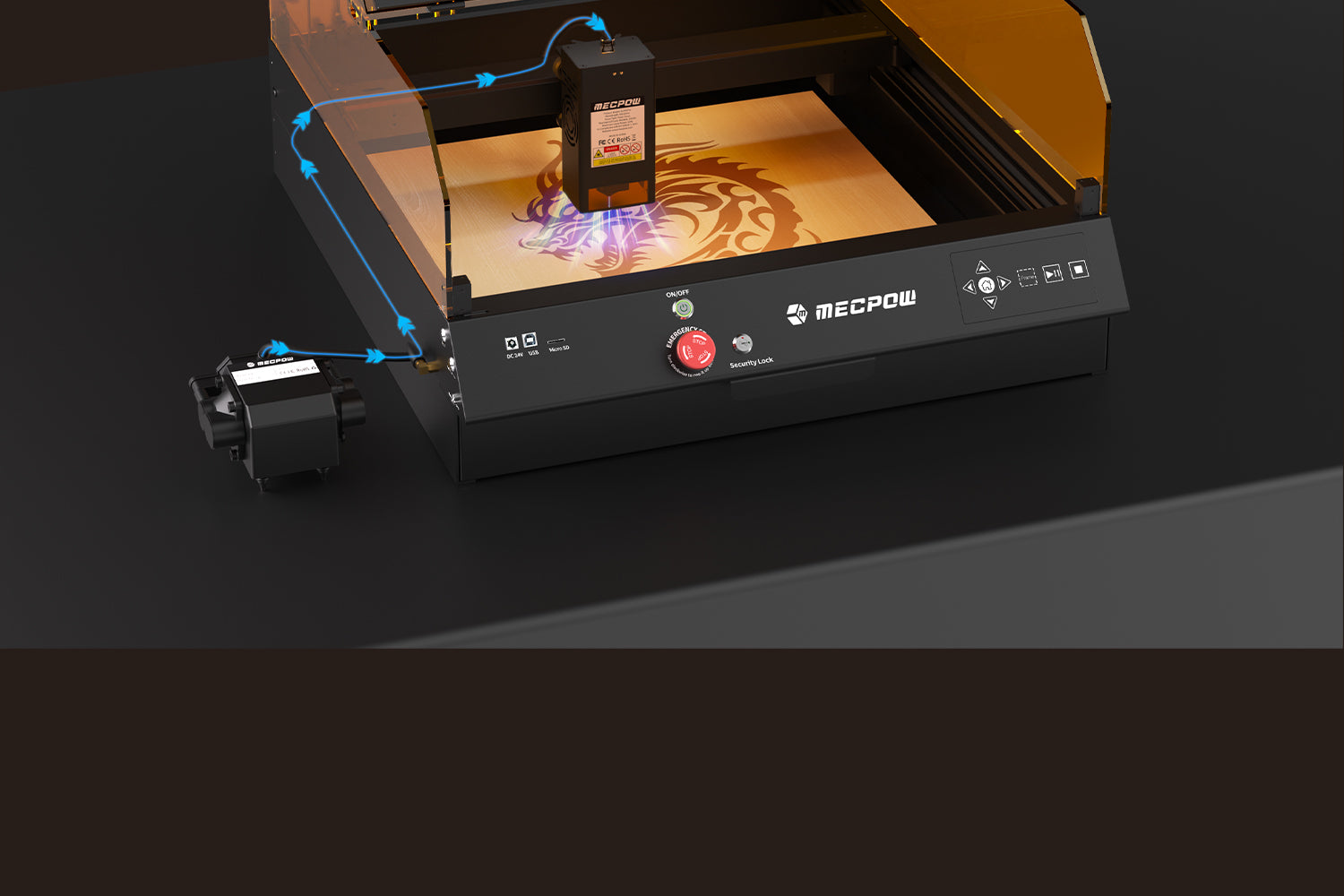

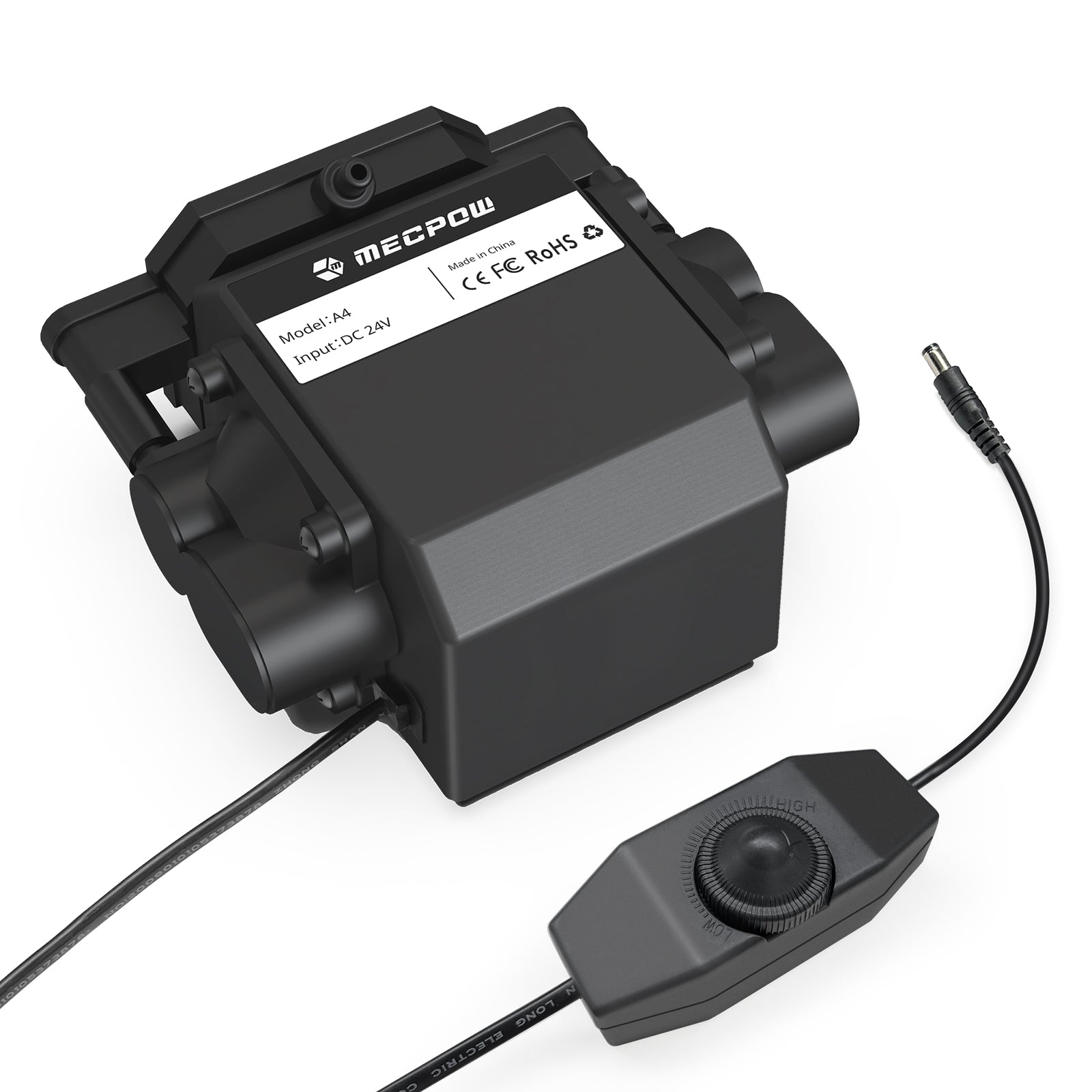

The X4 Pro-40W dual-laser engraver supports WiFi, USB, TF card, and app connections. It is compatible with popular engraving software like MKSLaser APP, LightBurn, and LaserGRBL, giving you options to suit your needs. Its automatic air assistance system includes a 30L air pump for effective heat dissipation, thus extending your device’s lifespan. The lid-open stop function and efficient fume extraction system ensure safe and convenient use.

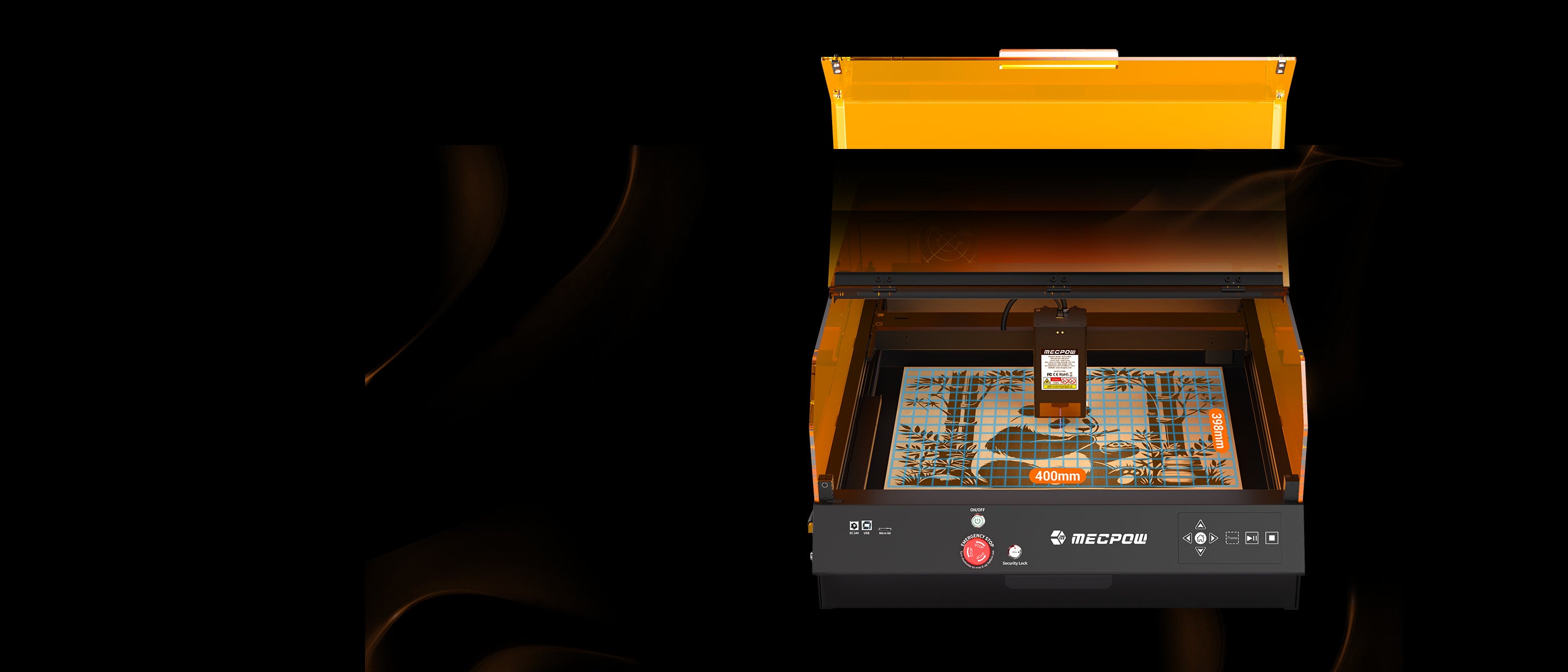

Spacious Work Area
The X4 Pro-40W dual-laser engraver boasts a spacious work area of 400x398mm, freeing you to unleash your creativity. With two adjustable holes on the bottom to fit different table sizes, it can be easily placed on cabinet shelves, making it ideal for various workshop layouts. The X4 Pro-40W accommodates projects of different sizes, ensuring versatility in engraving tasks.
40W/20W Strong Power
FDA Class 1 Safety Certification
Built-in Camera
Comprehensive Security System
Three Connection Modes
Full-Feature Protective Cover
30000 mm/min High Speed
0.08 x 0.1 mm Accuracy
400 x 398 mm Spacious Work Area

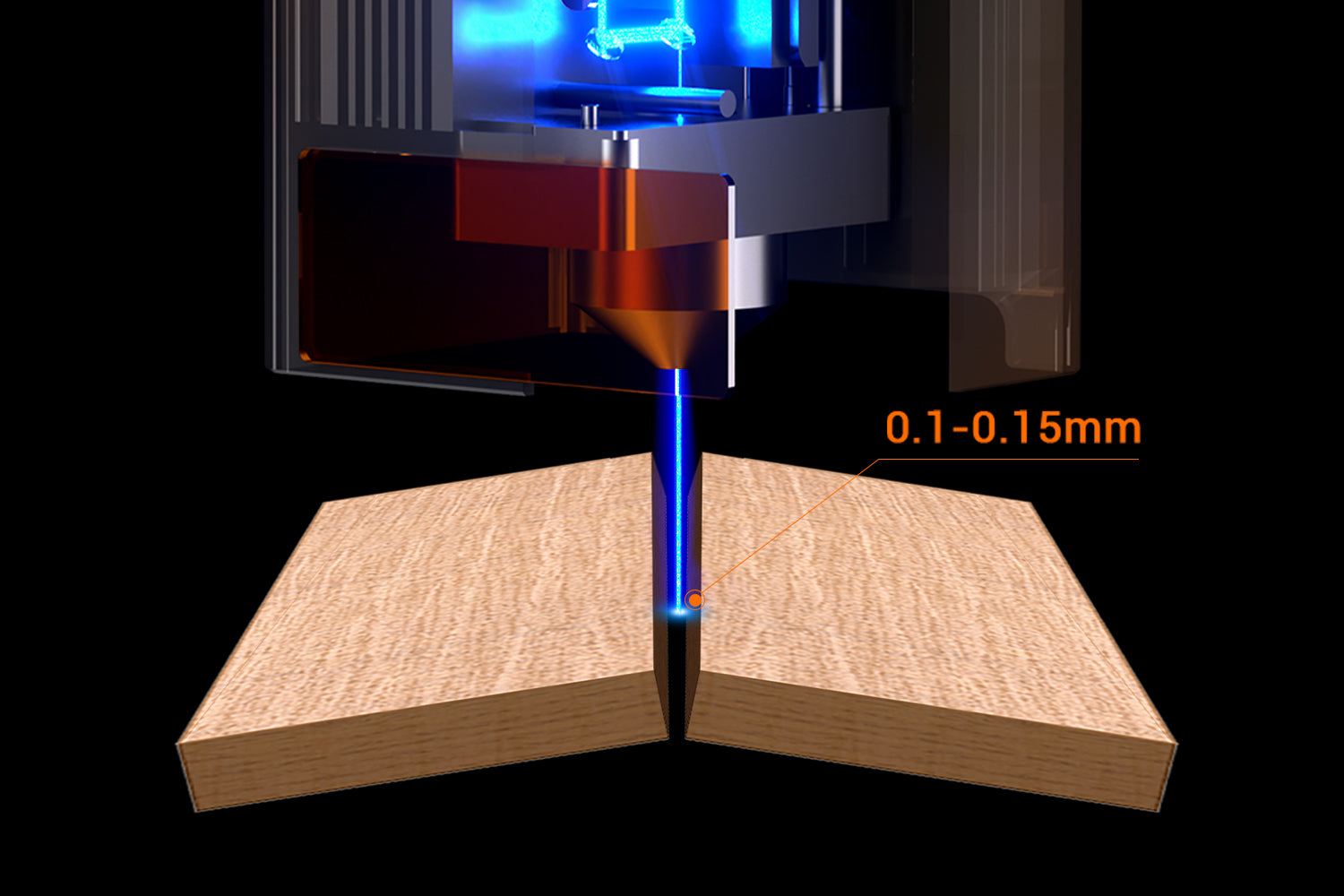

Dual-Laser Power, Powerful Performance
Adjust the light beam according to various cutting and engraving needs, making the work more refined!

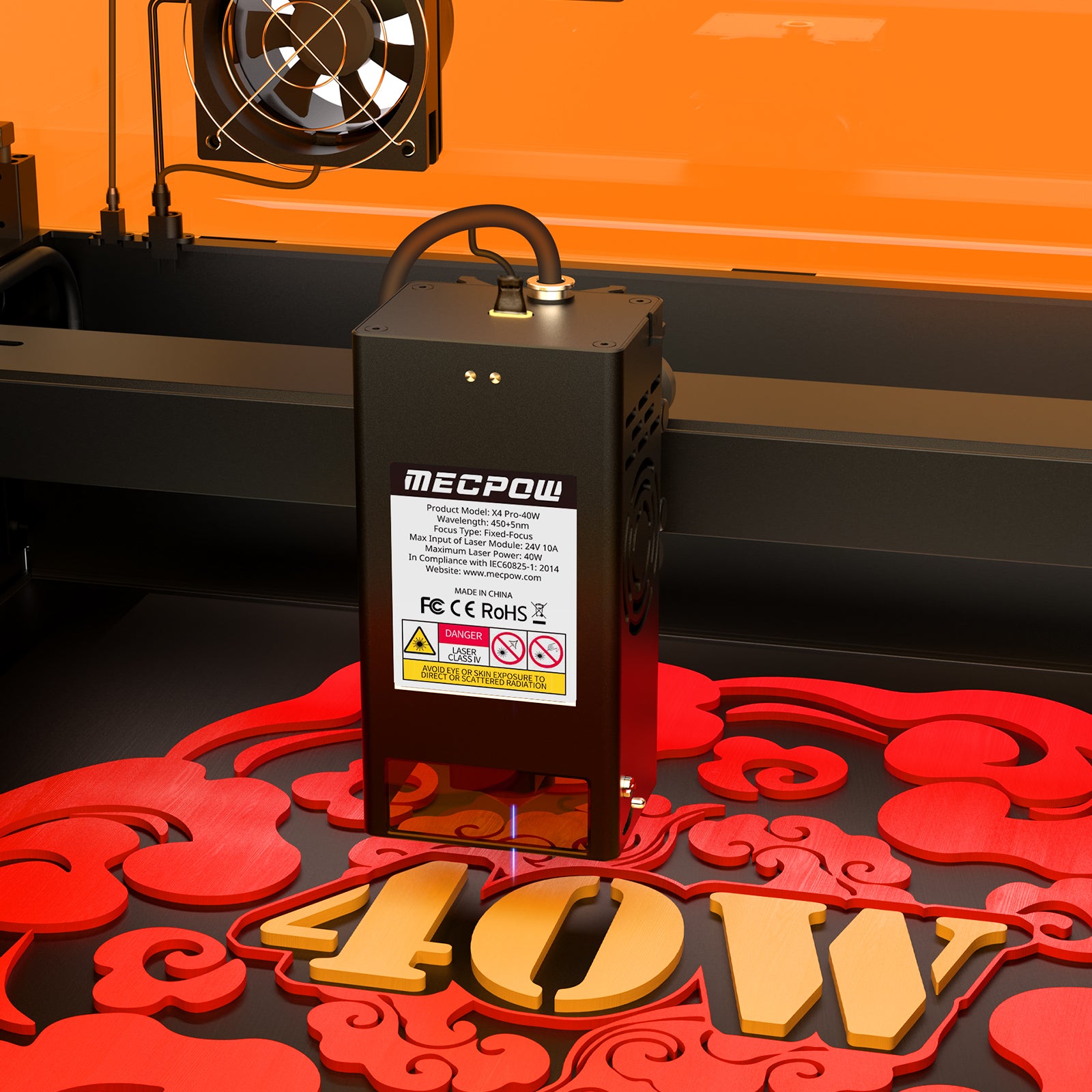

40W Ultra-high power Prime for cutting
20W Improved accuracy Prime for engraving

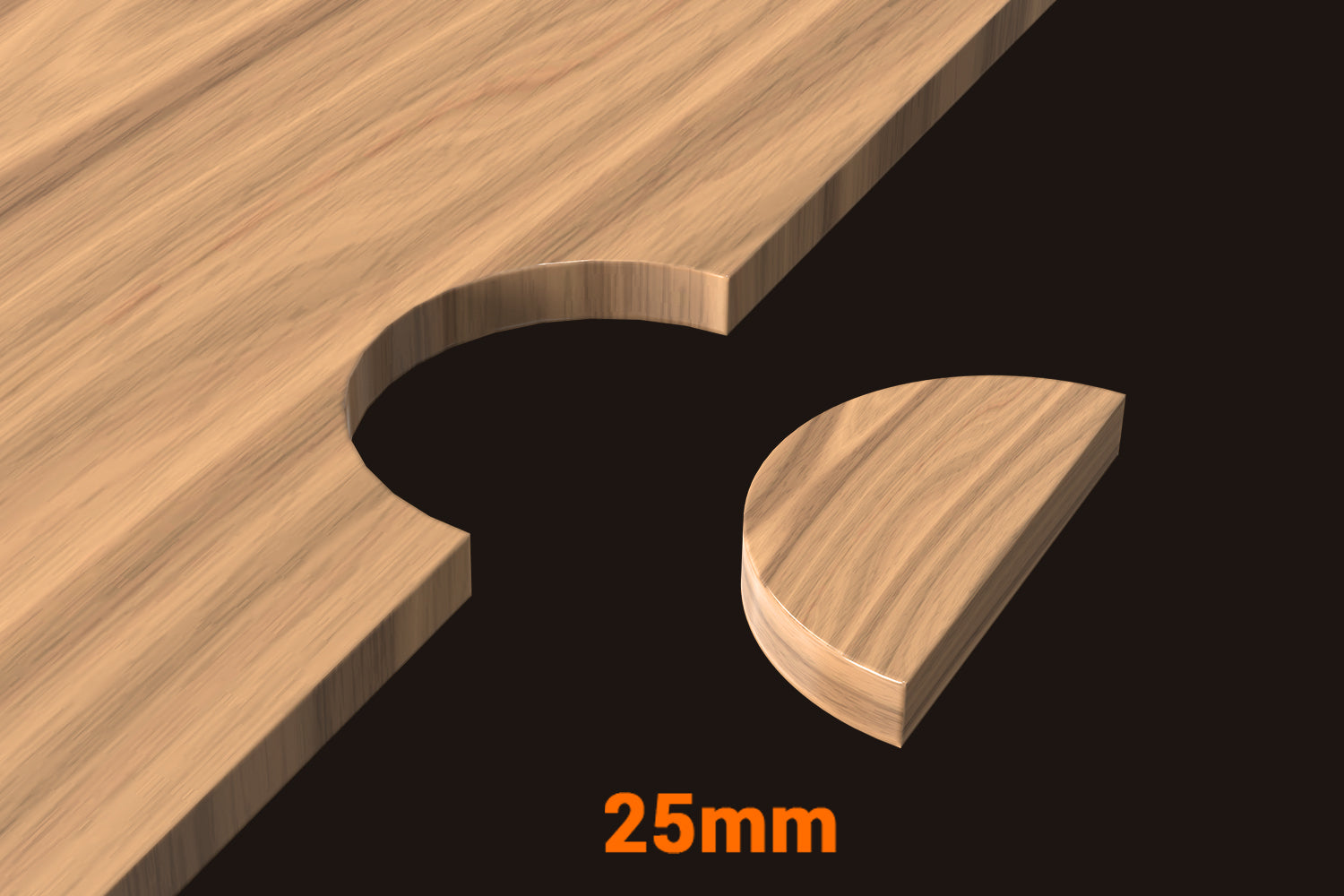

Cut 25mm wood with one pass

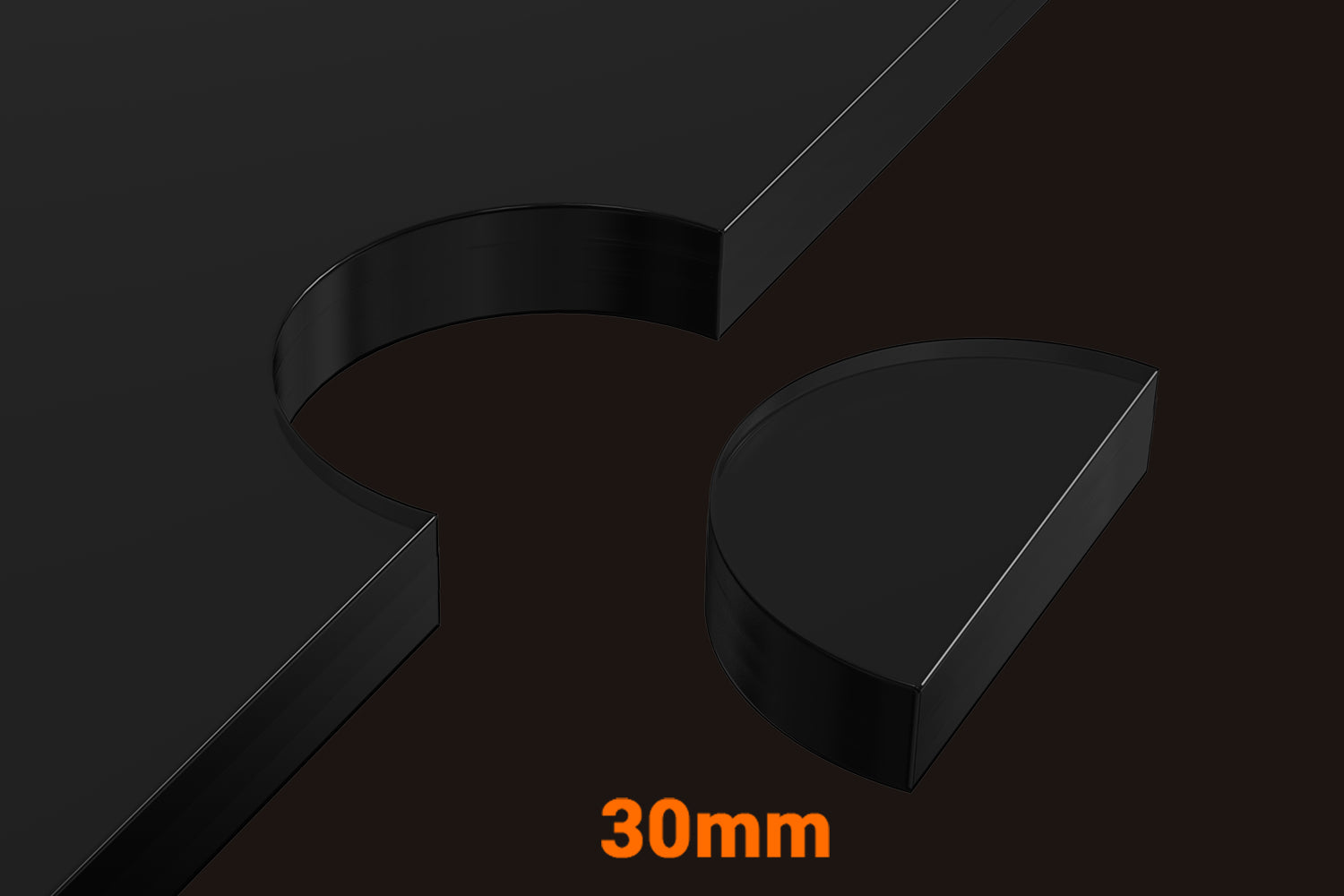

Cut 30mm black acrylic with two passes

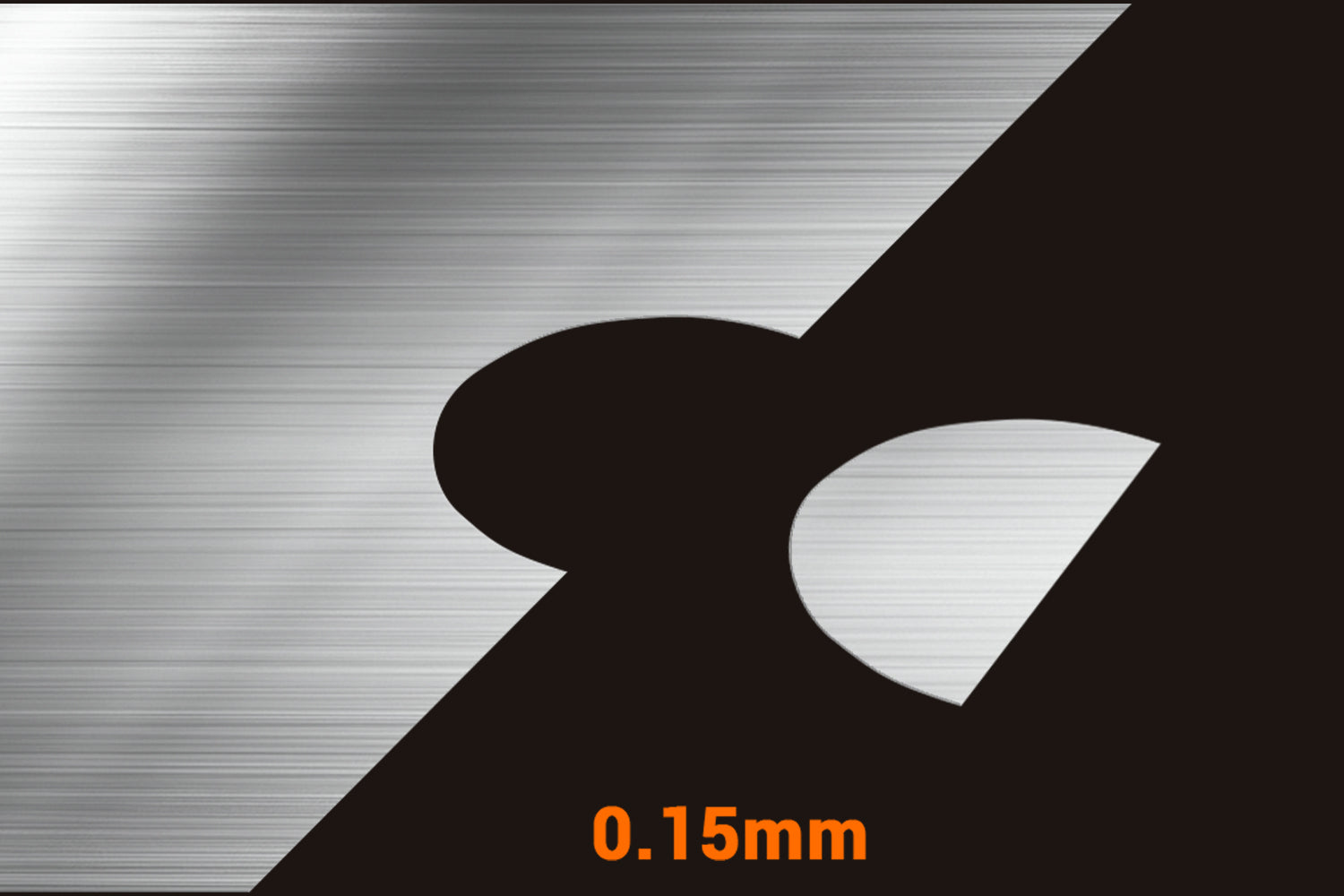

Cut 0.15mm stainless steel with one pass

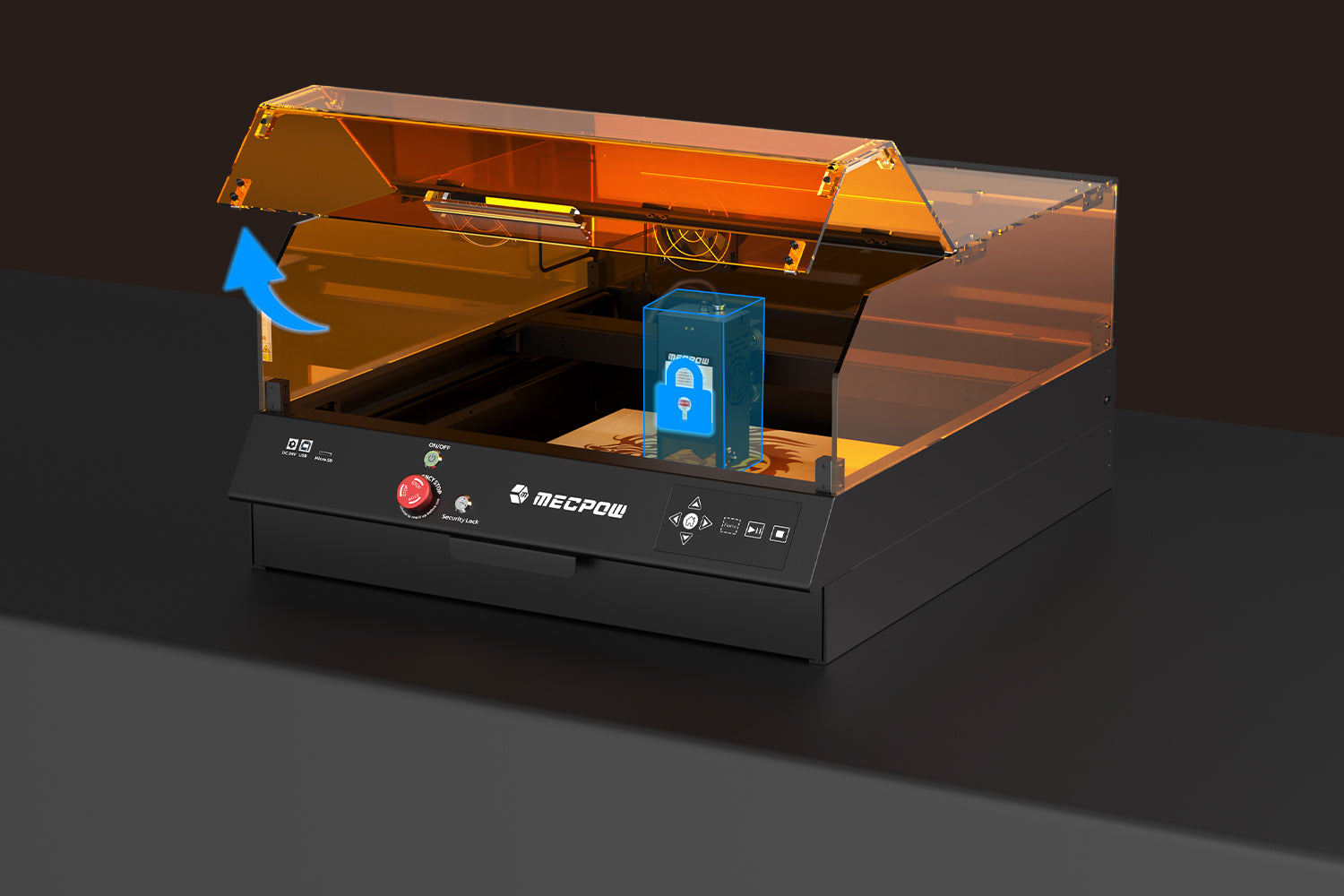

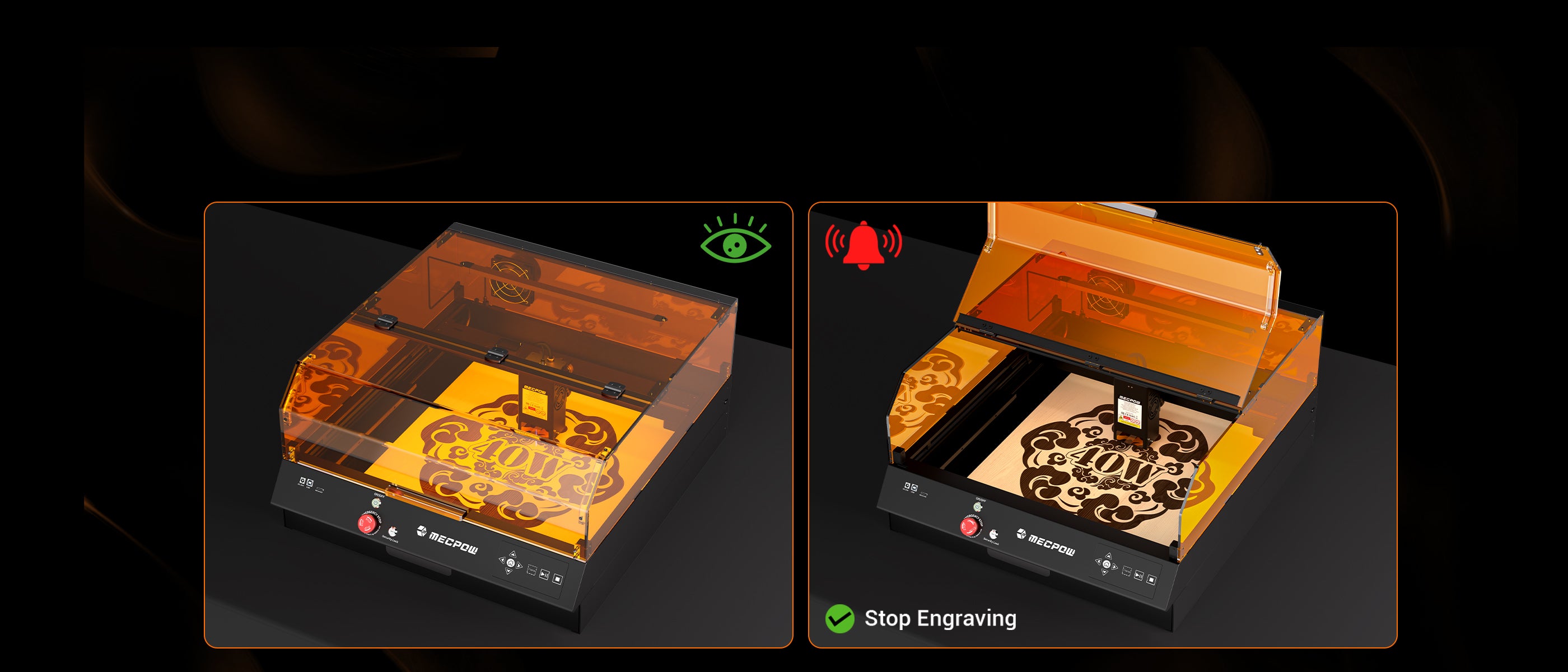

Equipped with a lid-open safety stop to prevent laser leakage and ensure safer engraving
Enjoy the fastest cutting and most precise engraving with ease!
Document and share your creative process, enhancing your artistic projects!
Meet the boundless needs of your business!

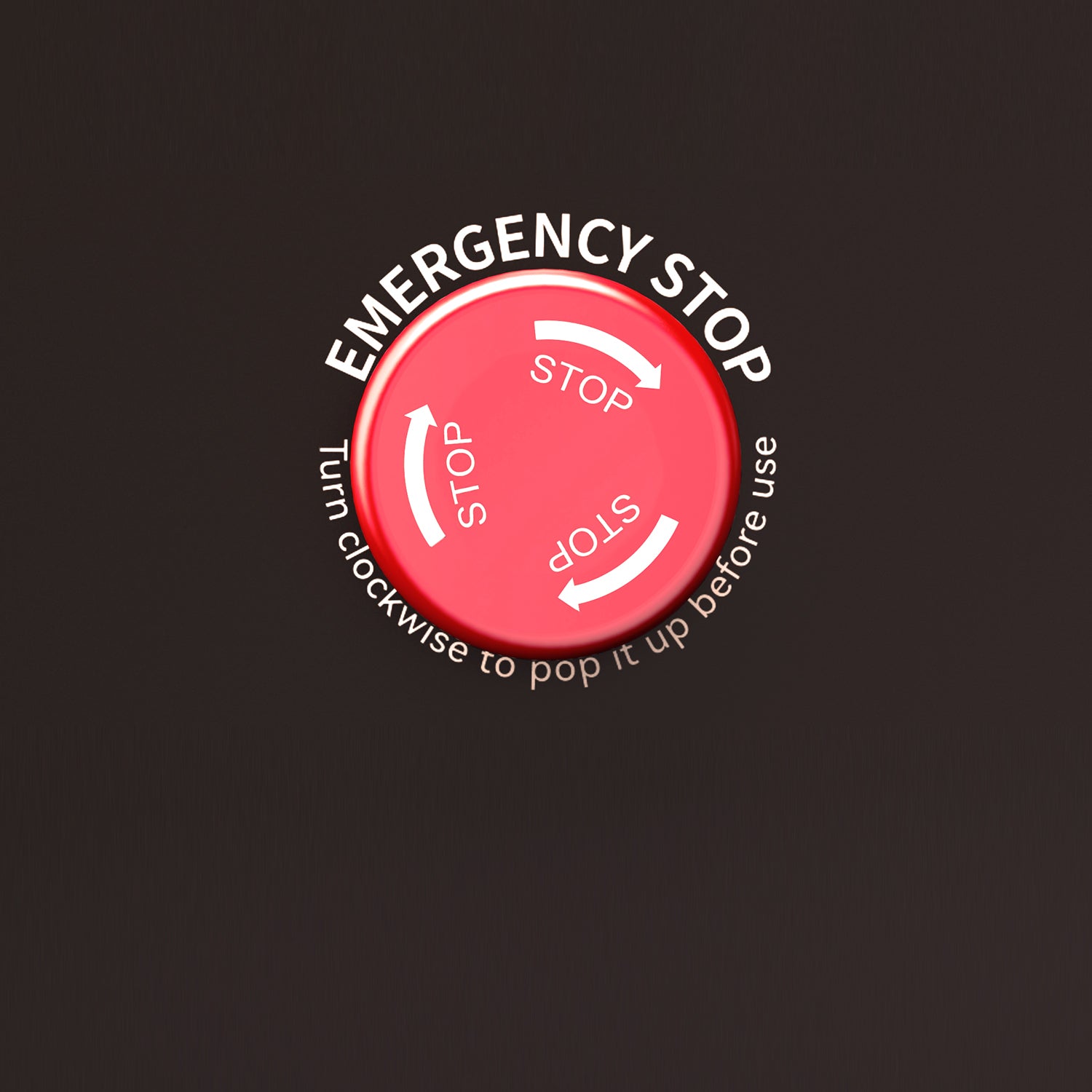

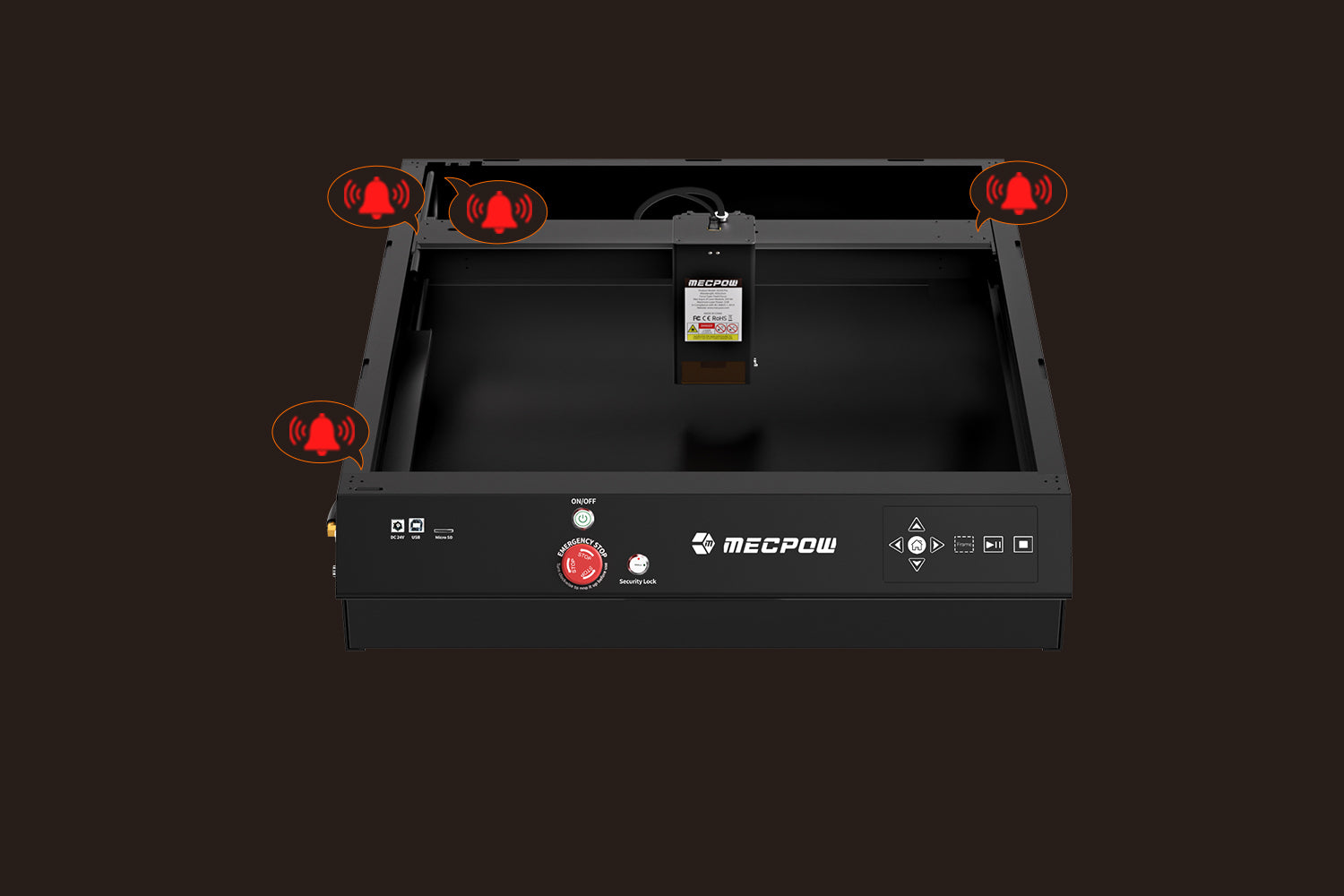

Comprehensive Safety Features
Ensure a safer working environment!

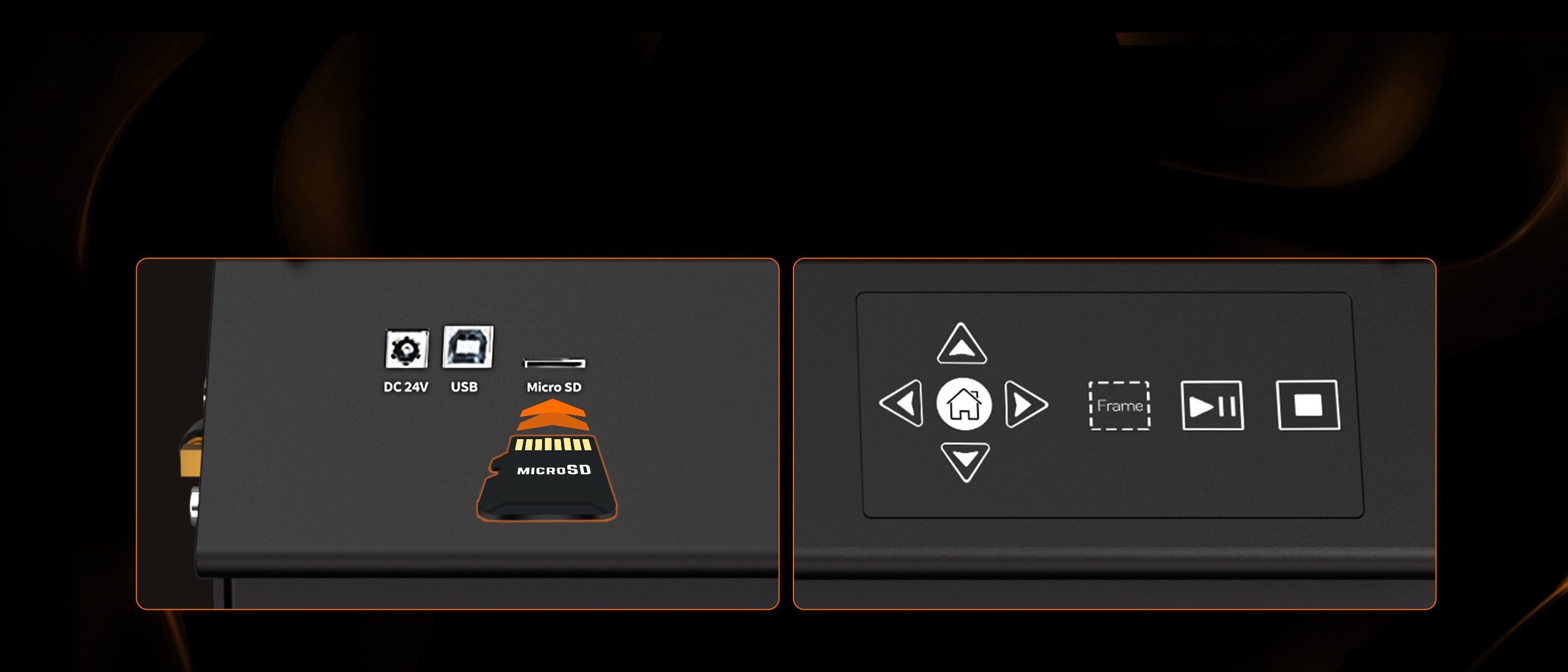

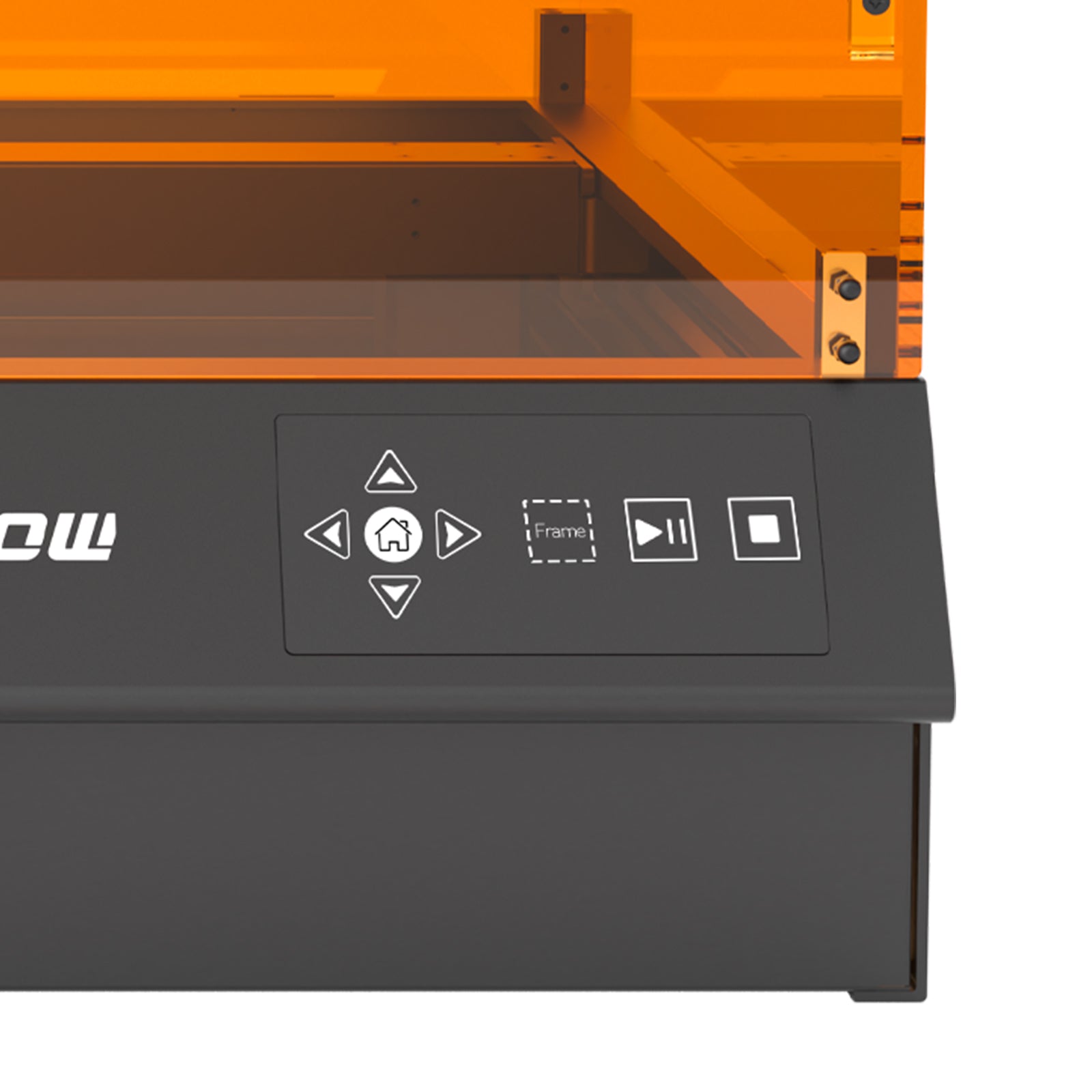

Immediately start engraving by inserting the TF card into the laser engraver and simply operating the control panel.
Suitable for various studios
Comprehensive Security System

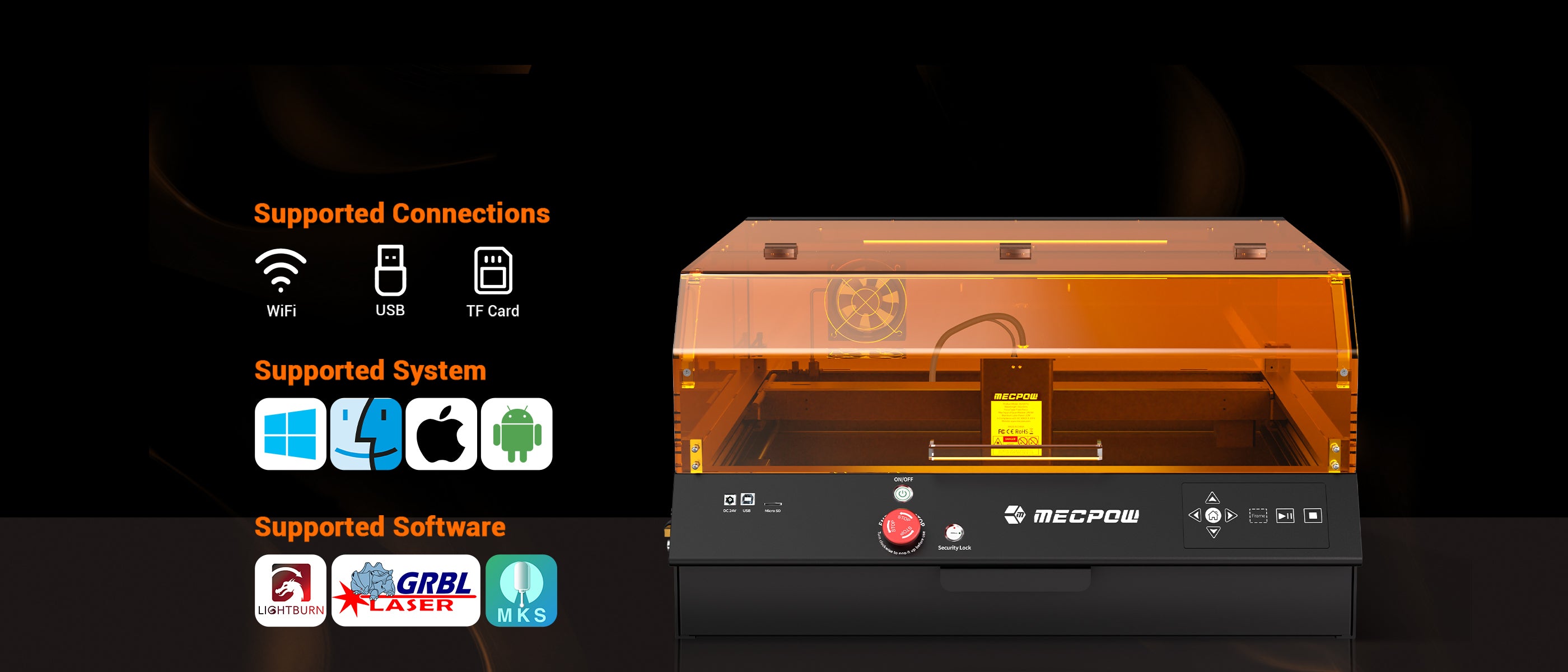

Compatible with three connection modes and multiple software

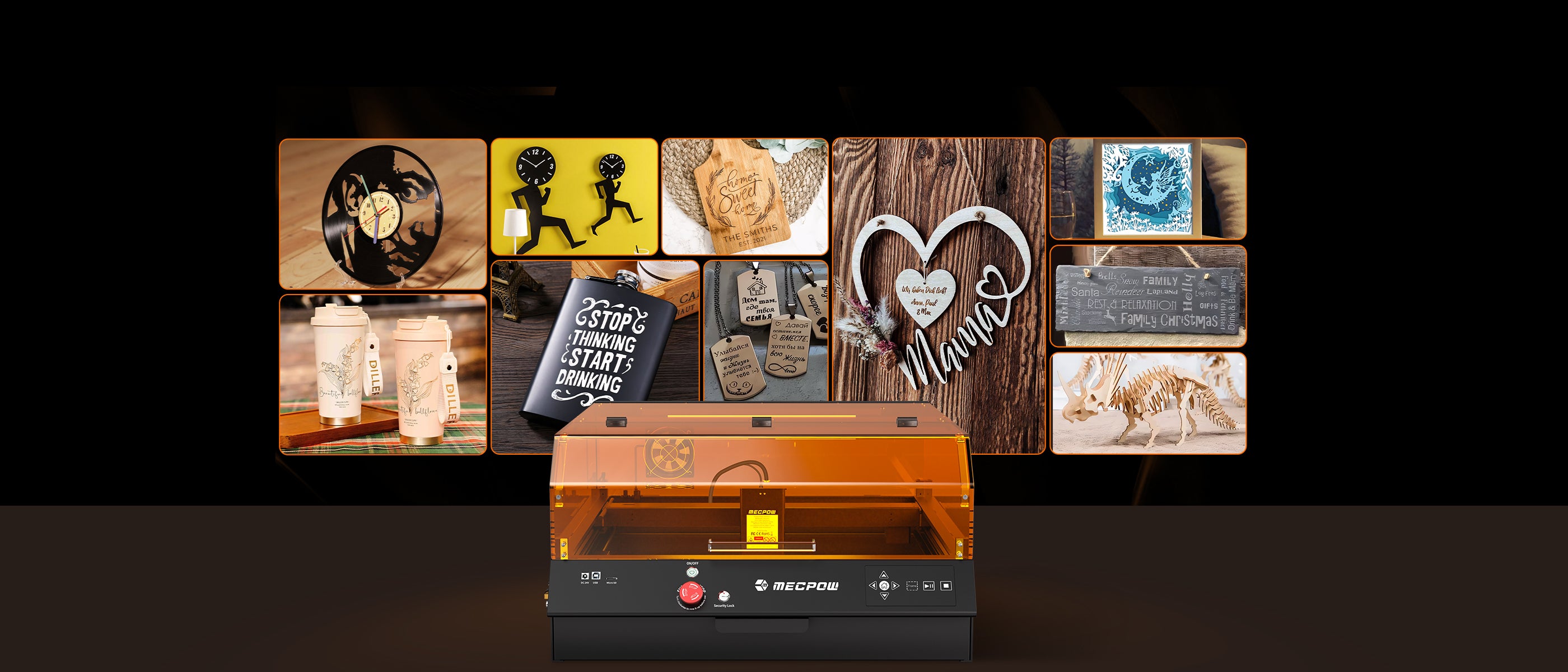

Work with 500+ engraving materials!
X4 Pro-40W Specification
Brand: Mecpow
Type: Laser Engraving Machine
Model: X4 Pro-40W
Color: Black and Orange
Frame Material: Aluminum
Input Voltage: DC 24V
Rated Power: 240W
Max. Engraving Area: 400 x 398 mm
Max. Engraving Speed: 30000 mm/min

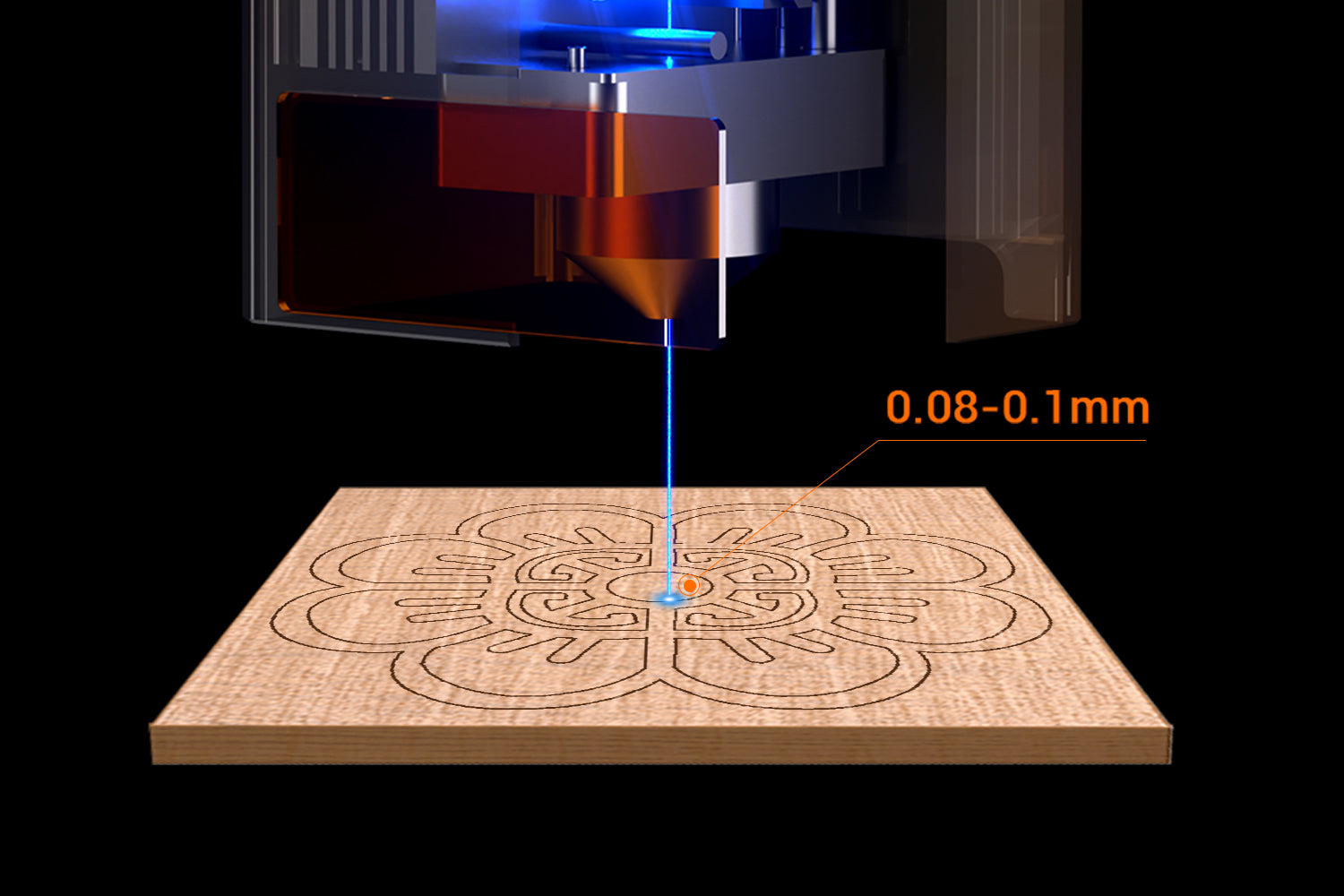

Spot Size of Laser Beam: 0.08 x 0.1 mm (20W), 0.1 x 0.15 mm (40W)
Tilt Alarm: 50°±5
Software Support: MKSLaser (APP), LaserGRBL, LightBurn
System Support: Windows, Mac, Linux, iOS, Android
File Format Support: JPEG, BMP, GIF, PLT, PNG, DXF
Materials for Laser Engraving: Wood, Acrylic, China, Fabric, Bamboo, Plastic Board, Leather, Fruit, Bread, etc.
Rated Power: 148W
Input: 24V 10A
Laser Power: 40W
Input Voltage: 24V
Input Current: 1.5A
Input Power: 36W
Air Velocity: 30 L/min
Input Voltage: AC 100-240V
Input Current: 2.5A
Output Voltage: 24V
Output Current: 10A
Pixel: 5MP
Focal Length: 27.5cm
Wide-Angle Lens: 102° (Vertical)
Color Image Sensor: 1/4”CMOS
Product Dimension: 718 x 611 x 248 mm
Package Dimension: 817 x 660 x 275 mm
Product Weight: 15.4kg
Package Weight: 22.5kg
1 x Main Unit
1 x Throat Hoop
1 x Screwdriver
1 x Exhaust Fan
1 x Exhaust Pipe
1 x Laser Module
1 x Power Adapter
1 x Metal Plate
1 x Goggles
1 x User Manual
1 x Air Pump
1x Screw Pack
1 x Cleaning Brush
1 x WiFi Antenna
1 x Left Protective Cover
1 x Right Protective Cover
1 x Rear Protective Cover with Metal Connecting Plate
1 x Top Protective Cover with LED Light
1 x Front Protective Cover
1 x Calibration Card
1 x TF Card
1 x TF Card Reader
1 x Wrench (1.5mm Hex Key)
2 x Key
2 x USB Cable
2 x Wood Board
2 x Adhesive Cable Clip
4 x Raiser
4 x Protective Cover Support
FAQs for X4 Pro-40W
Can I use the laser engraver out of the box?
To enhance product protection during transport, it is partially assembled and will require installation. However, do not be concerned as an installation video and multi-language user manual are included in the package to assist you in assembling it easily and swiftly.
Will the protective cover prevent the smoke from flowing out?

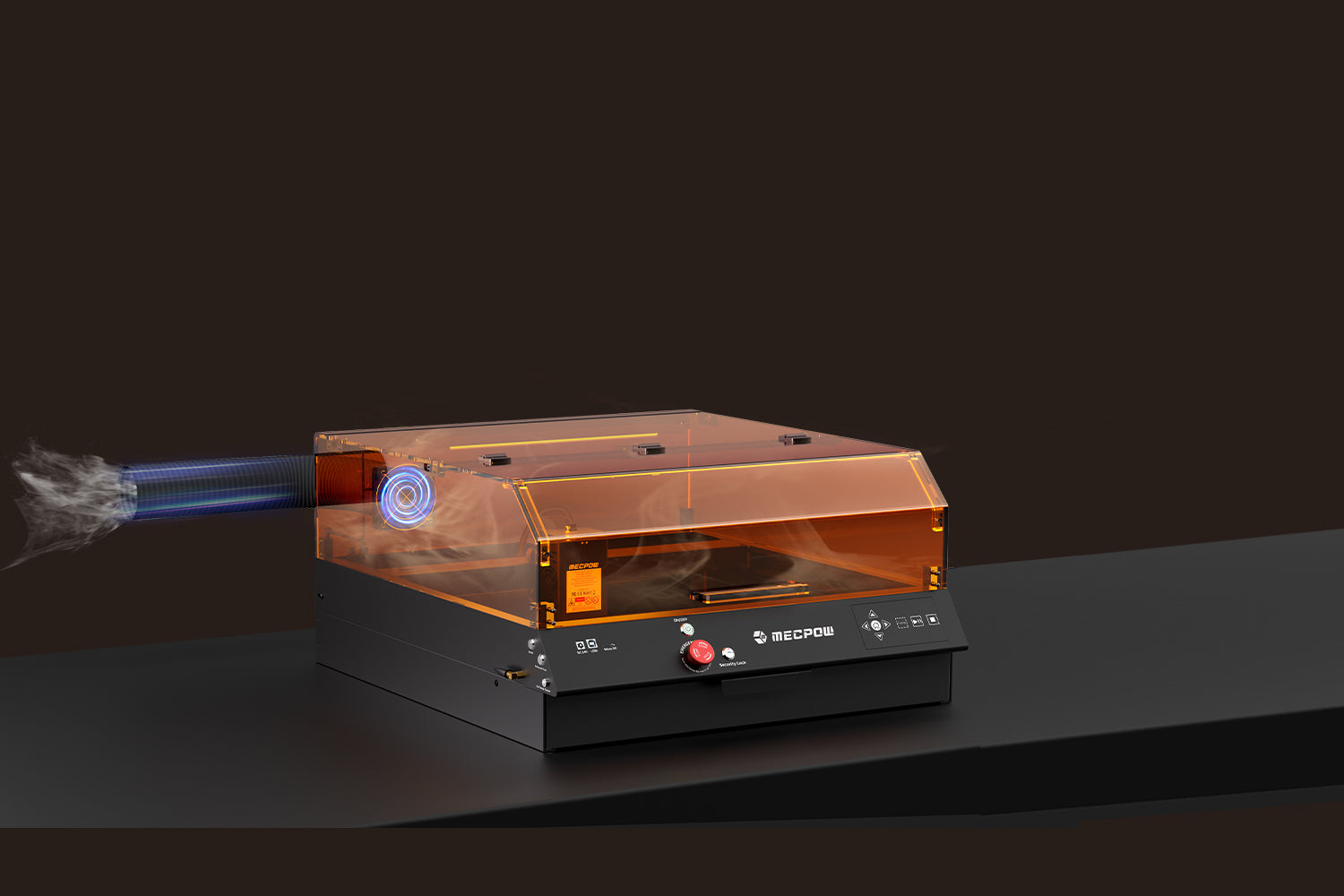

Yes. The protective cover prevents smoke from escaping from anywhere other than the exhaust fan. The exhaust pipe vents out smoke and dust to the outdoors for a clean engraving environment.
Can the protective cover filter the harmful rays from the laser engraver?
Yes, the anti-blue light protective cover will filter the pernicious rays while still providing a panoramic view for easy observation.
Will the protective cover restrict the size of the engraving objects?
No, you can use it mainly for the engraving of small objects for batch production; you can also add raisers for the engraving of higher objects.
What can the camera do for us?
You can use it to record your engraving for even more fun or fast position with a visual aid for tracking the engraving position precisely.

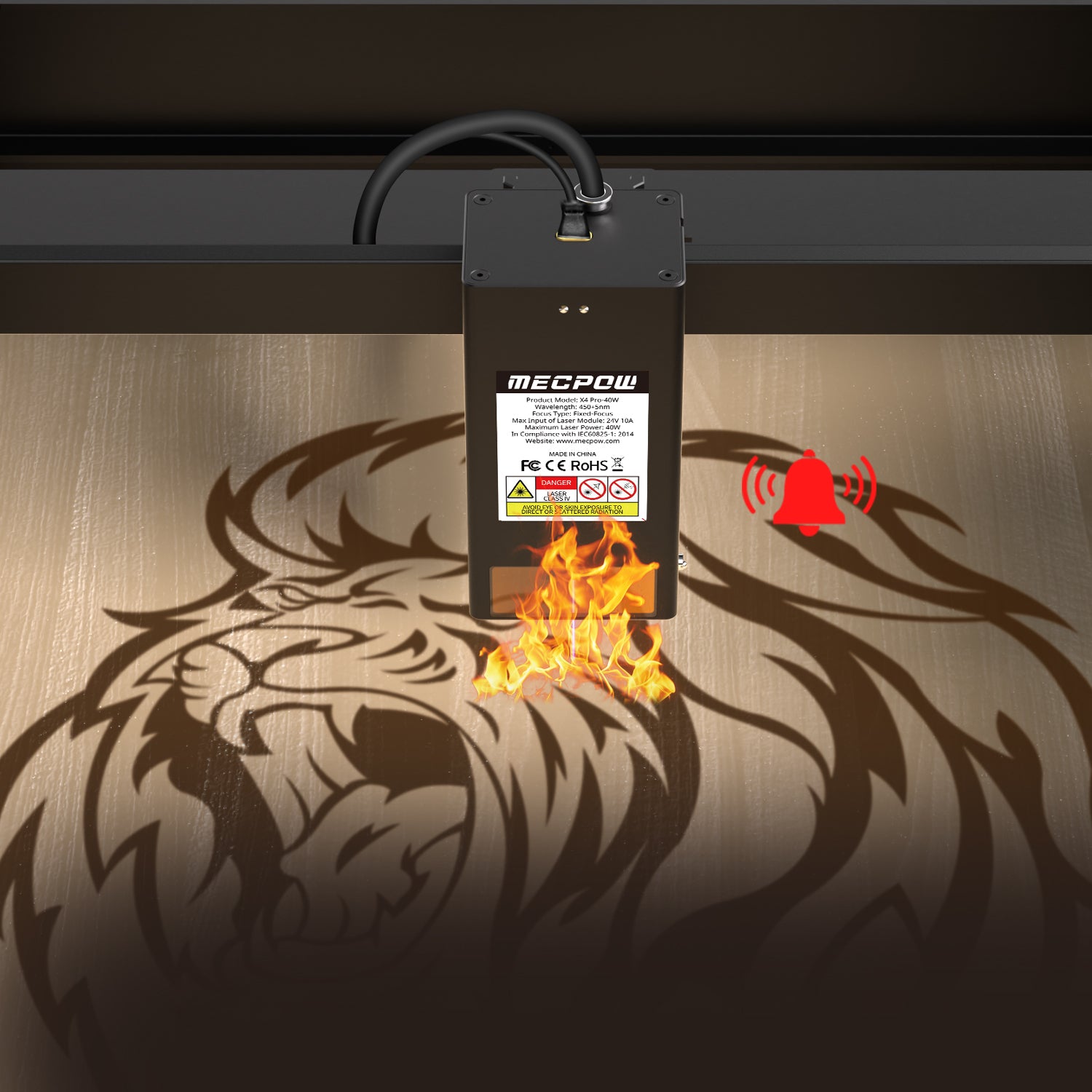

What if the engraving objects are burned, even causing a fire?
Don’t worry; the situation won’t happen in most cases. The laser engraver is certified with FDA Class 1 security and has a comprehensive safety system: a flame sensor, limit switches, security lock, tilt sensor, and emergency stop, which will ensure the safety of both users and the machine. If there is a fire, the flame sensor will detect and activate the alarm while also halting the machine’s operation. You can check the environment and avoid placing the machine in direct sunlight. Contacting customer service to adjust the sensitivity of the lame sensor is also needed.
What kind of objects can the X4 Pro-40W laser engraver engrave on?
The X4 Pro-40W laser engraver can engrave on many objects: Wood, Acrylic, Glass, Metal, Cylinders, Cards, Board, Stainless Steel, Food, Leather, Fabric, Rubber and so on.
Can it connect to the smartphone?
Yes, it can connect to a smartphone for use. By connecting to the engraver's wifi and operating on the mobile app, MKSLaser, you will embark on your creation journey.
Does it support offline operations?
Yes, you can start the offline operation by inserting a TF card and operating on the control panel.
What system and software is it suitable for?
It supports multiple operating systems: Windows, Mac, Linux, Android, and iOS, and is compatible with software such as LaserGRBL and LightBurn.
How to switch between 20W and 40W laser power?
The laser power can be switched between 20W and 40W via a toggle switch on the laser module.
