G5 Rotary Roller Module with Versatile Jaws
Various Types of Jaws

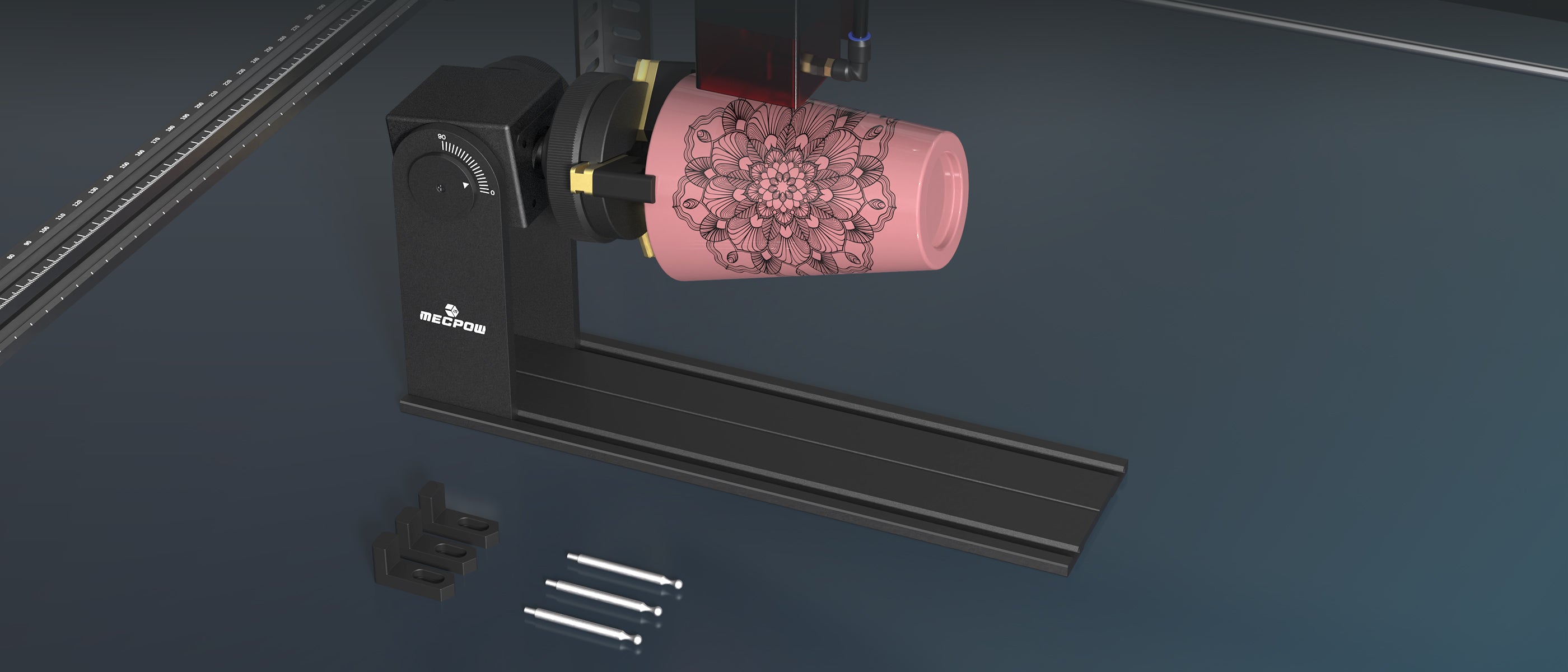

The Mecpow G5 rotary roller module is a versatile tool equipped with three sets of jaws: ladder jaws, square jaws and stud jaws. These jaws can securely hold engraving objects such as rings, bracelets, circular objects, and cylinder-shaped items. You can choose any jaws to engrave.

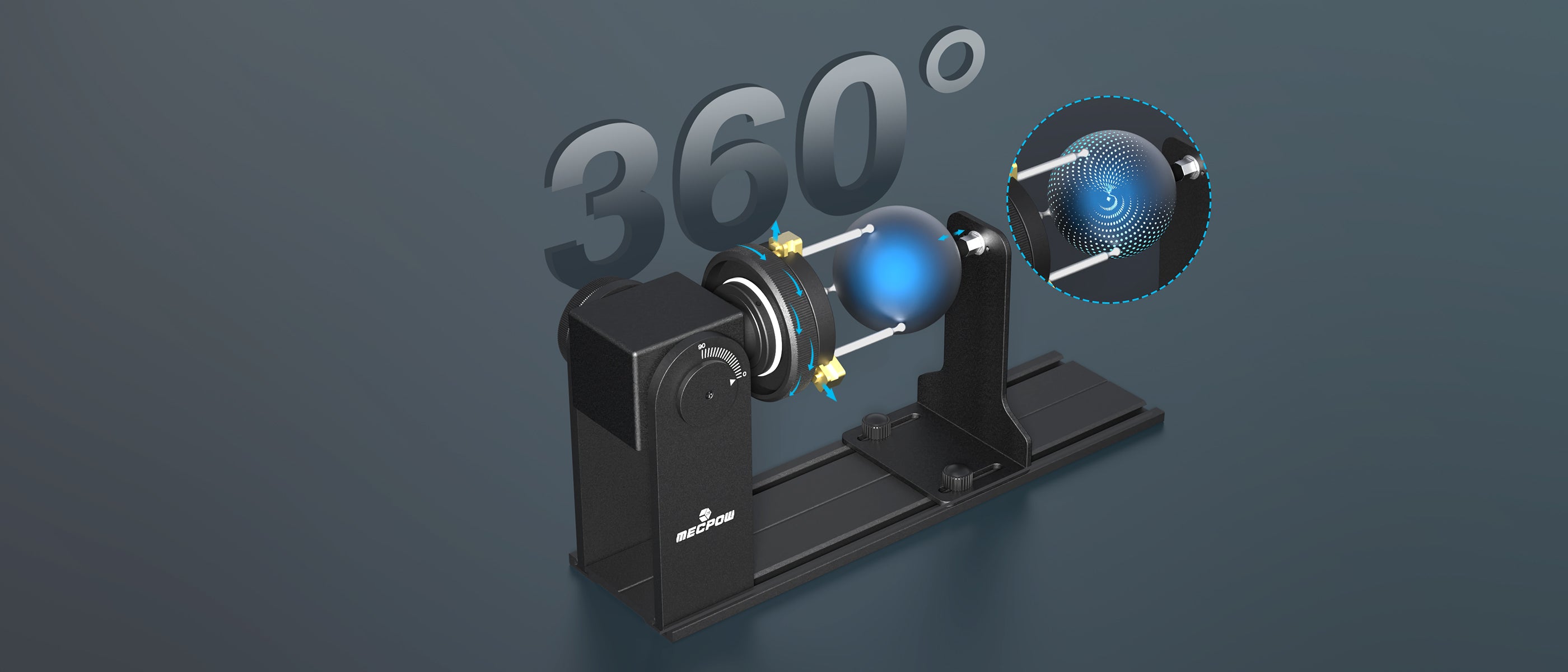

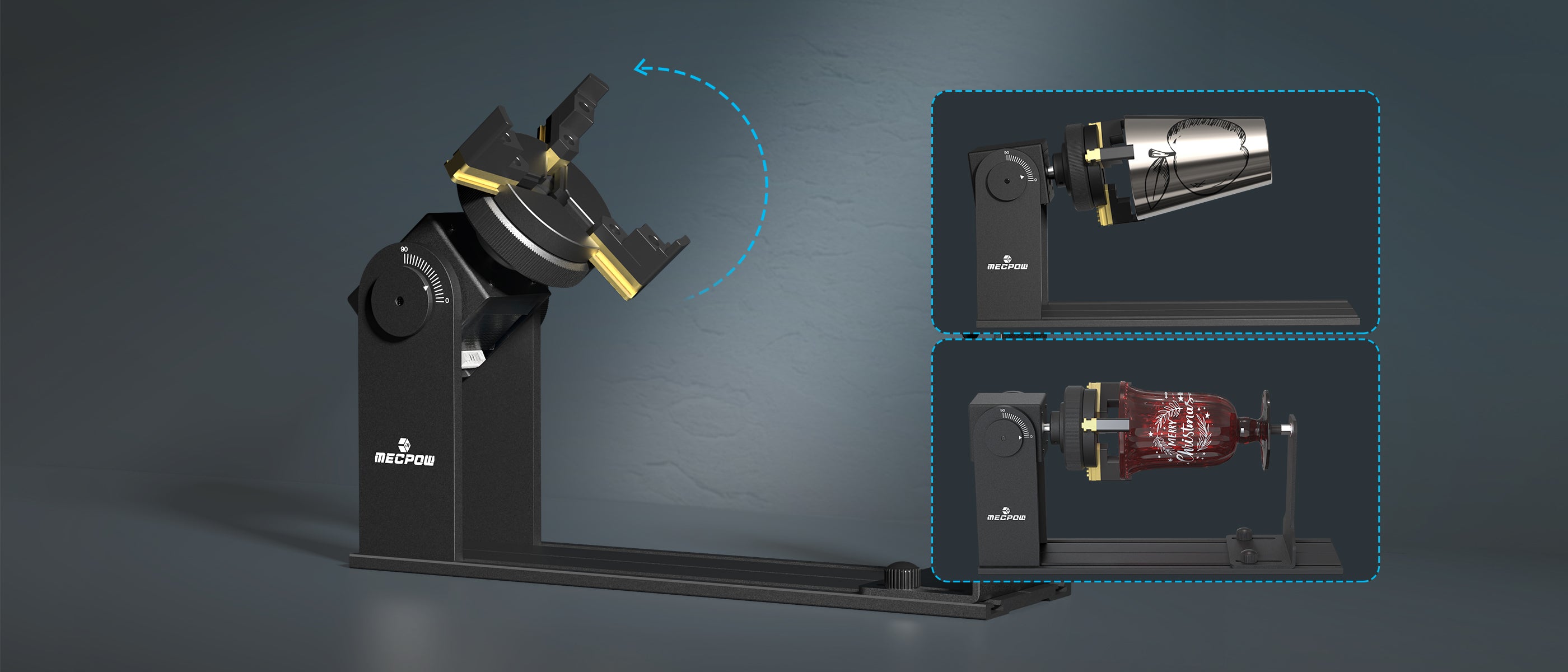

Precise Angle Adjustment & 360° Rotary Chunk
The Mecpow rotary roller module features an adjustable angle of 90° to engrave on distinctive objects, such as beverage cans, baseballs, goblets, etc. It is designed with an angle line for easy viewing and precise calibration. The 360° rotary chunk enhances the stability and accuracy of the engraving. You could create ingenious engravings unconventionally.

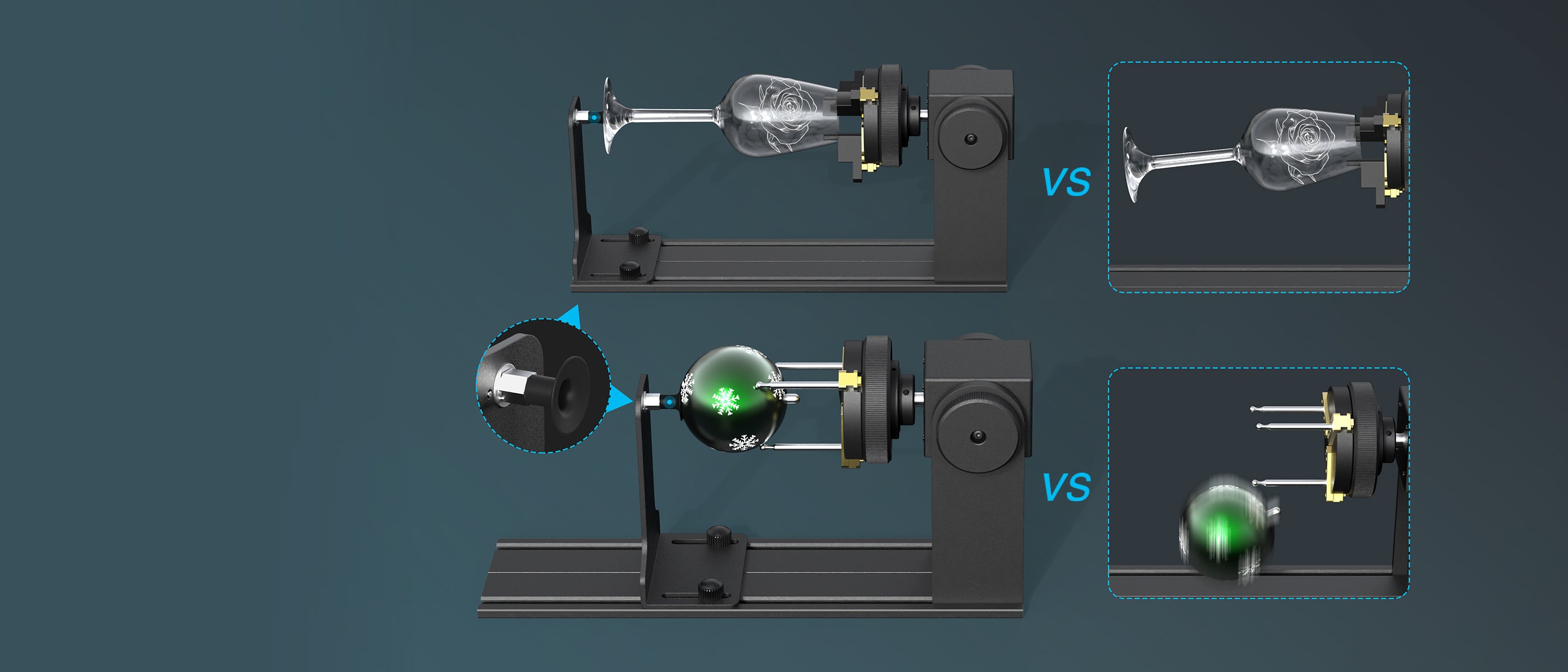

Multiple Engraving Choices
The Mecpow G5 rotary roller allows for engraving on diverse objects by assembling the jaws in different ways. The square jaws and ladder jaws can be used for internal clamping and external clamping, or replaced with stud jaw clamping. You have the option to adjust the position of the supporting column to engrave items of different lengths and sizes.
Easily Assembled Design & Durable Material
The Mecpow G5 requires no assembly, making it easy to use straight out of the box. It is made of aluminum alloy and stainless steel, ensuring lasting and durable use.

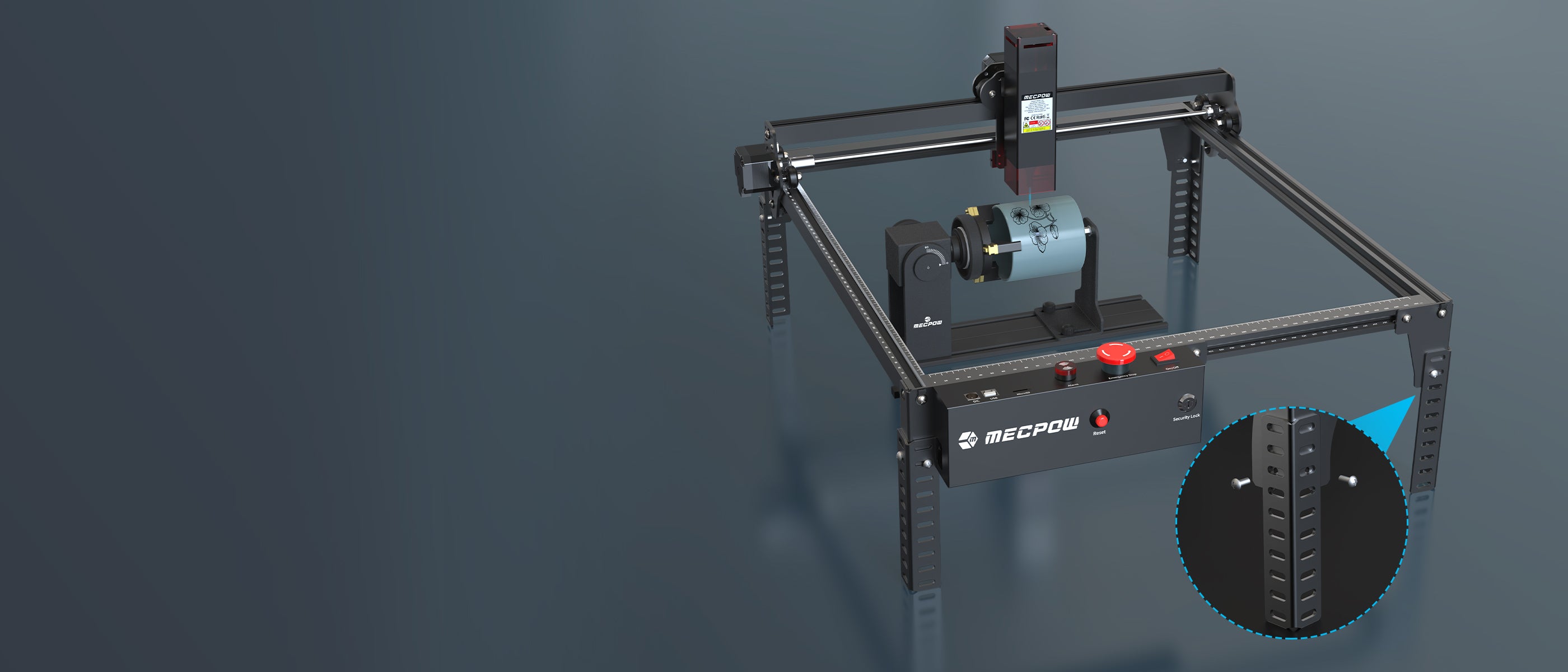

Wide Compatibility

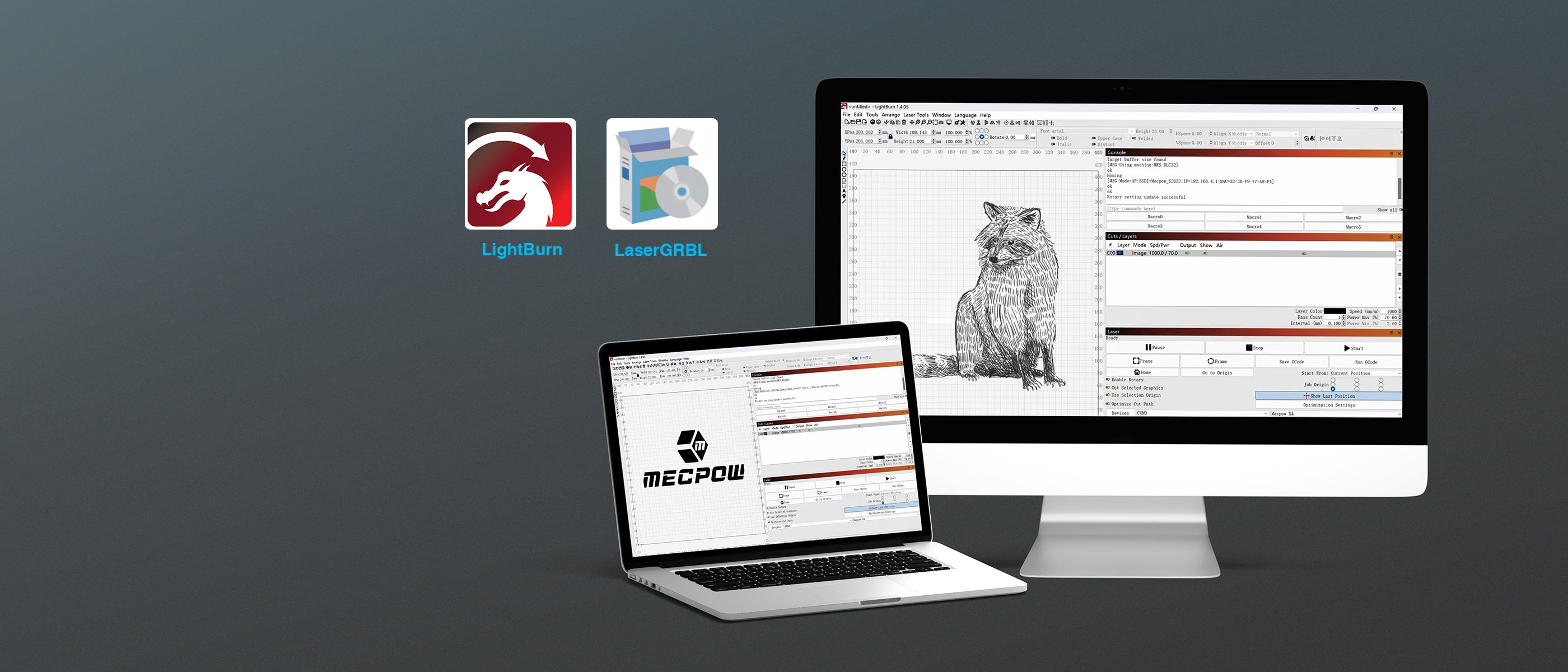

The rotary chunk is compatible with all Mecpow engravers and 95% of laser engraving machines on the market. It can be connected to software like LightBurn and LaserGRBL for added convenience.
No Assembly Required
Multifunctional Jaws
Adjustable Rotary Chuck
Supporting Column

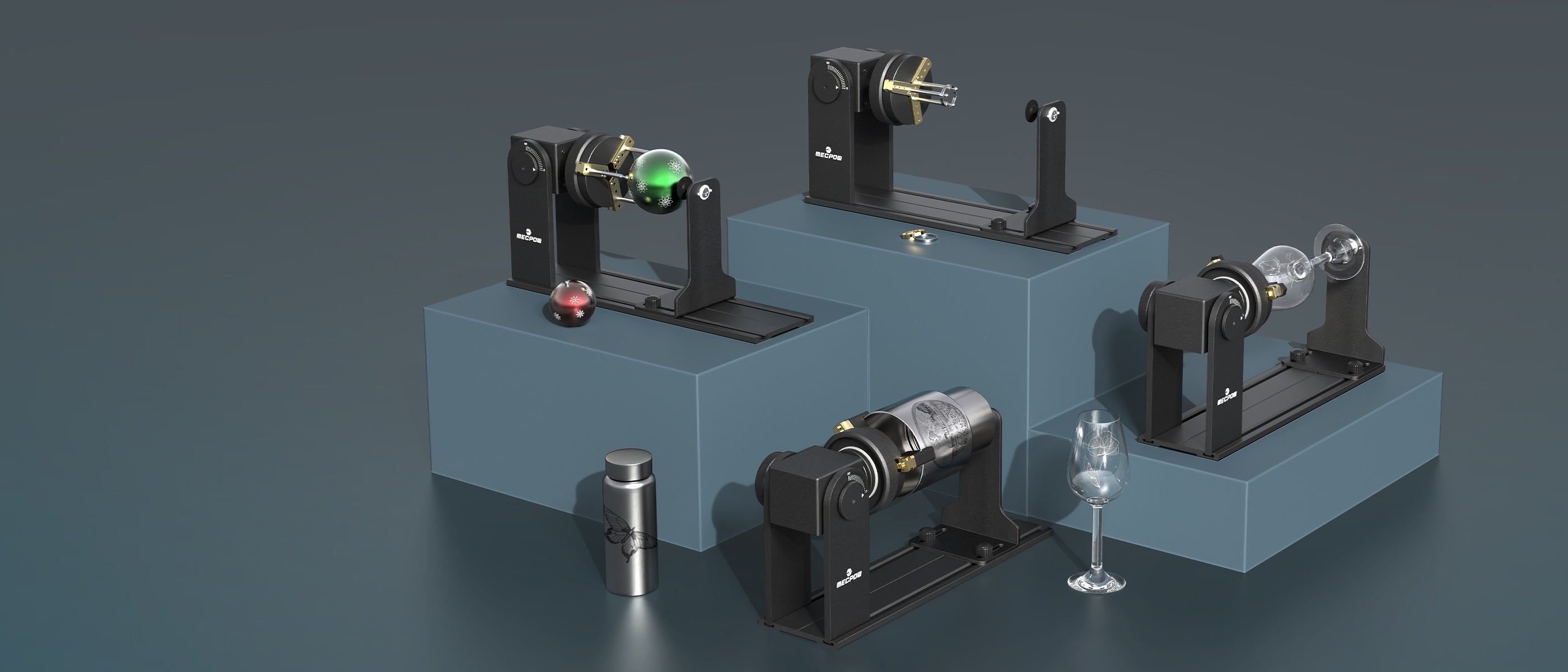

Versatile Jaws Tackle All-Shaped Objects
External Clamping
For cylinder objects with a diameter of 1-110mm
Internal Clamping
For cylinder objects with a diameter of 25-75mm
Stud Jaw Clamping
For rings, bracelets, and circular objects with a diameter of 10-95mm

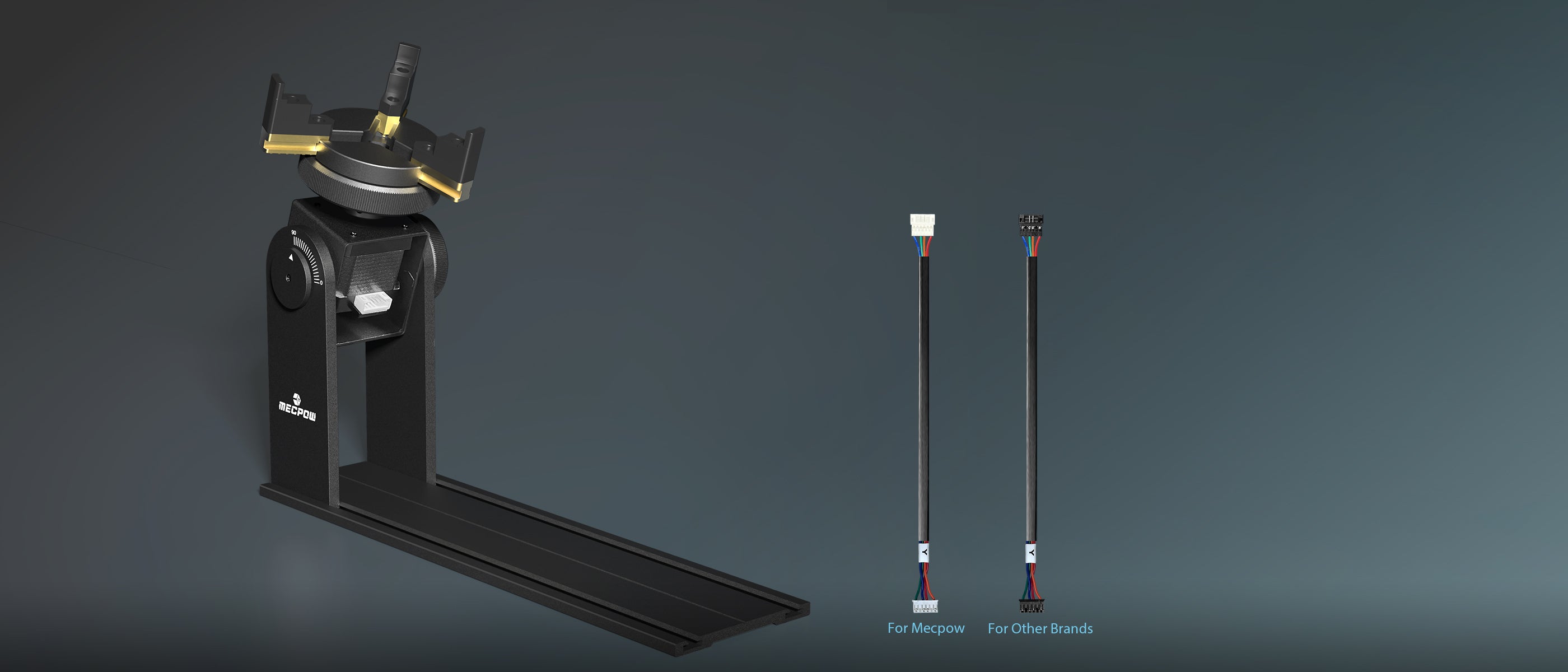

Note: The cable with white connectors is for use with Mecpow engravers and the one with black connectors is for engravers of other brands.l
Package List
1x Rotary Roller Module
(With Ladder Jaws)
3x Stud Jaw
3x Square Jaw
4x Heightening Bracket
(For Mecpow X3, X3 Pro, X5, X5 Pro)
1x User Manual
8x Screw
1x Screwdriver
1x Tape Measure
1x Cable with Black Connectord
(For Other Brands)
1x Cable with White Connectors
(For Mecpow)
FAQ About G5
Will the engraving object be unstable?
No, there are 3 sets of jaws and a strong silicone absorber that can securely hold objects and provide stability during the engraving process.
What types of objects can be engraved?
Thanks to the 3 sets of jaws and different ways of using them: internal clamping, external clamping, and stud jaw clamping, the rotary roller makes it possible to engrave various objects of different shapes and sizes, such as baseballs, mugs, tumblers, etc.
Are the jaws easy to install and change?
Yes, the installation and change of jaws are simple and can be completed in just a few minutes. You can refer to the user manual.
What kind of engraving machine is it suitable for?
The G5 rotary roller module is suitable for all Mecpow laser engravers and 95% engraving machines on the market.
Is it easy to install?
The ladder jaws have been installed on it. You can use the rotary roller out of the box.
Can it achieve 360° engraving?
Yes, the rotary chunk allows for 360-degree engraving, giving you the freedom to be creative.
Does the rotary roller break easily?
No, it is made of durable aluminum alloy and stainless steel, ensuring long-term use.
G5 Specification
Brand: Mecpow
Type: Rotary Roller Module
Model: G5
Color: Black
Power: 5W
Motor: 42mm Stepped Motor
Engraving Roller Length: 240mm
Engraving Adjustable Distance: 5mm to 90mm
Rotary Roller Module Material: Aluminum alloy, stainless steel, iron, silicone and plastic
Compatibility: Compatible with 95% of laser engraving machines on the market
Angle-Adjustment Knob: Yes
Jaw Adjustment Knob: Yes
Ladder Jaw: Yes
Stud Jaw: Yes
Square Jaw: Yes
Adjusting Bolts: Yes
Strong Silicone Absorber: Yes
Integrated Design: Yes
Heightening Brackets: 4
Adjustable Engraving Width: Yes
360° Rotary Engraving: Yes
Angle Adjustment: 0-90°
Gross Weight: 2.26kg
Net Weight: 1.65kg
Product Size (L x W x H): 360 x 76 x 120mm
Package Size (L x W x H): 341 x 272 x 88 mm
1x Rotary Roller Module
3x Stud Jaw
3x Square Jaw
3x Ladder Jaw
4x Heightening Bracket (For Mecpow X3, X3 Pro, X5, X5Pro)
1x Cable with White Connectors (For Mecpow)
1x Cable with Black Connectors (For other brands)
1x Tape Measure
8x Screw
1x Screwdriver
1x User Manual
